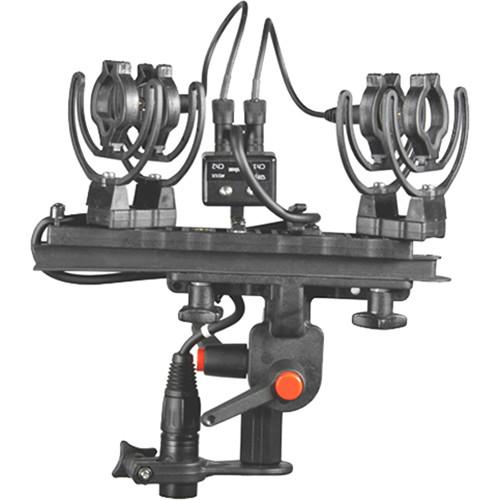

User Manual for Rycote Suspension Medium ORTF Click to enlarge the picture
Contents of the user manual for the Rycote Suspension Medium ORTF
- Product category: Grips & Mic Suspensions Rycote
- Brand: Rycote
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rycote Grips & Mic Suspensions
 |
User manual for the Rycote Suspension Medium ORTF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rycote product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rycote user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rycote product will considerably shorten its lifespan!
|

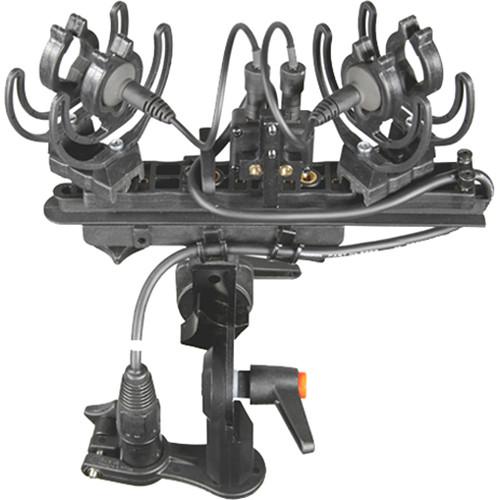

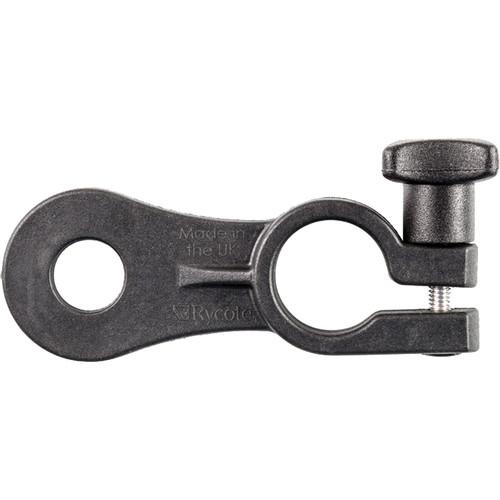

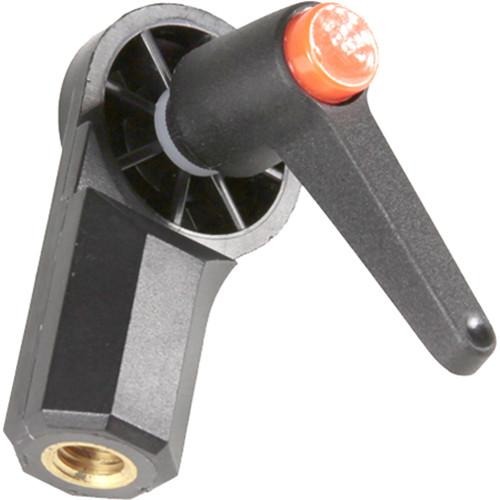

Product description The Suspension Medium ORTF (MZL) from Rycote is a mounting bar designed to keep microphones at the correct spacing and angle for ORTF stereo recordings. It can be used in several environments in applications for films, broadcast TV, wildlife sound recordings, and more. The Suspension Medium ORTF (MZL) is suitable for shotgun microphones from 8.3" to 16" in length and has a mic diameter ranging from 0.75 to 0.98". In addition, it is suitable for a matched pair of Sennheiser MKH 8020/40/50 (sold separately) in ORTF stereo configuration, and will fit in an AE windshield (sold separately). The 5-pin XLRM output Connbox uses detachable Binder cables, with a 5.1" tail and MZL (XLR) connectors. ORTF stereo recording is defined as using a stereo pair of microphones with the capsules spaced 6.7" (17cm) apart, and at an angle of 110° to each other. In the Box Rycote Suspension Medium ORTF (MZL) XLR Holder Mk II rzcfbyefve Boom Adapter for Modular Suspension System Connbox CB11 with 2-MZL Detachable Tails to XLR 5M Medium 2-Module Bar 4 x Single Lyre 62 (19/25) + Risers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rycote Suspension Medium ORTF in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRycote 40152 Specs | Bar | Medium 2 module 6.3" (160 mm) length, plus two quarter module bars angled at 55° each | | Lyres | Fitted: 4x single Lyre 62 (19/25) + risers | | Connbox | CB 11 with 5.1" (130 mm) tail, 2 MZL (XLR) detachable |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
