User Manual for Sabrent NVMe PCIe M.2 to USB 3.1 Gen 2 USB Type-C SSD Enclosure Click to enlarge the picture
Contents of the user manual for the Sabrent NVMe PCIe M.2 to USB
- Product category: Hard Drive Enclosures & Docks Sabrent
- Brand: Sabrent
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sabrent Hard Drive Enclosures & Docks
 |
User manual for the Sabrent NVMe PCIe M.2 to USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sabrent product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sabrent user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sabrent product will considerably shorten its lifespan!
|

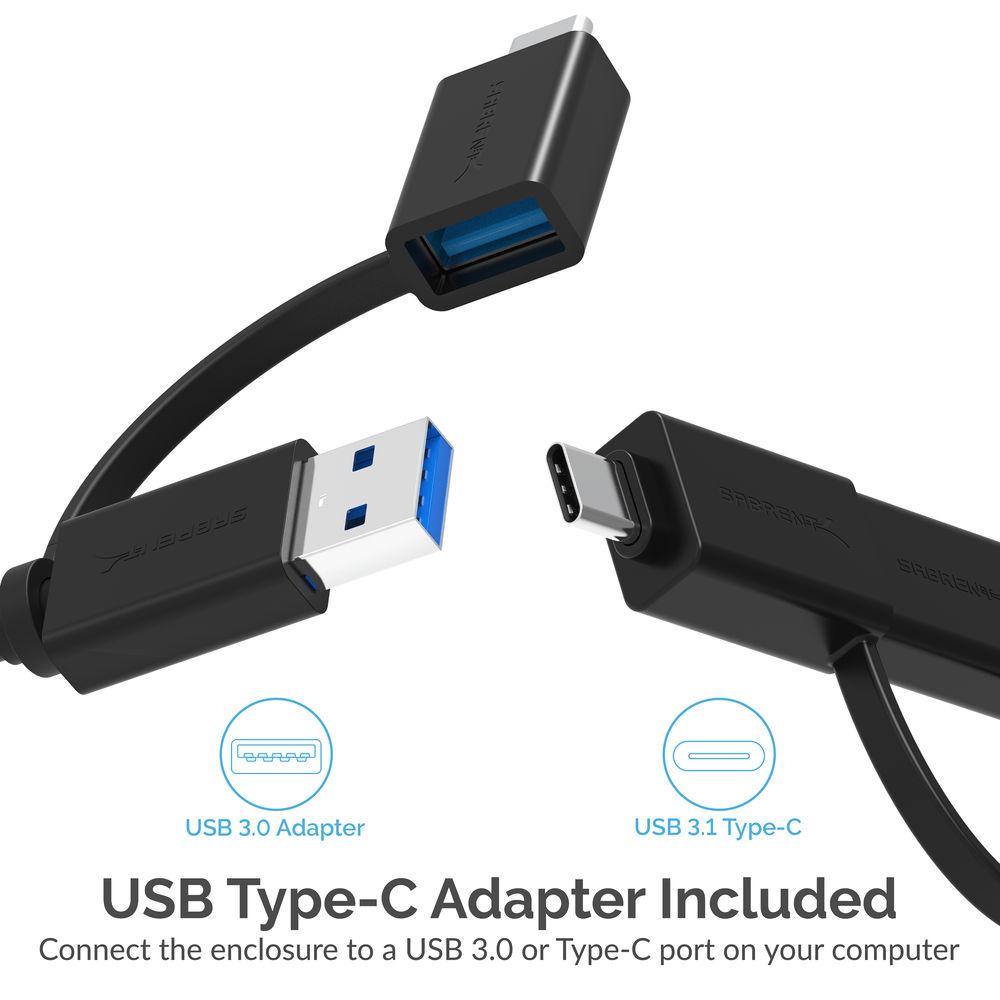

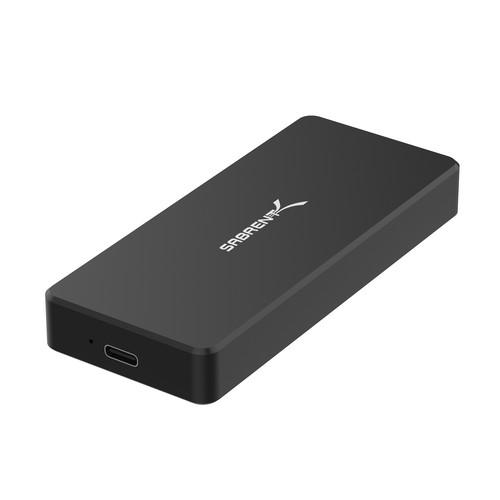

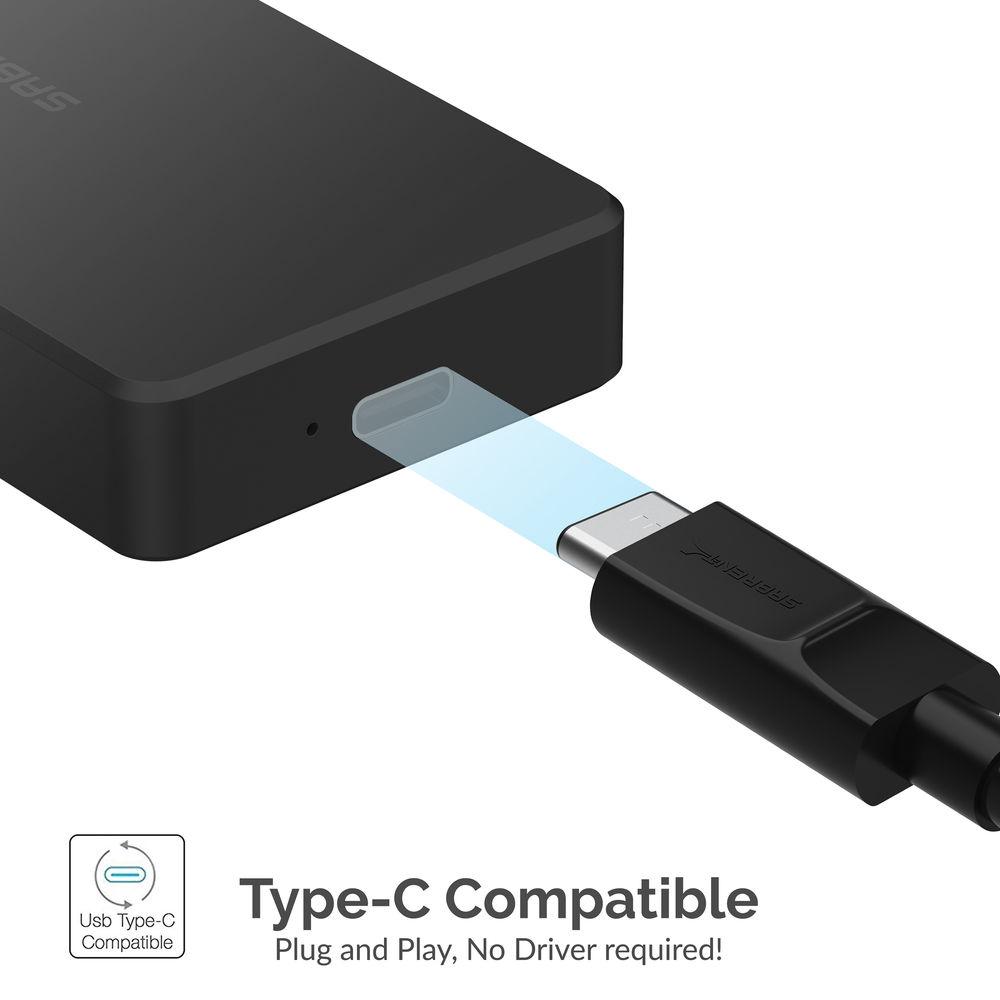

Product description Compatible with NVMe PCIe M.2 solid-state drives that have form factors of 2230 (30mm), 2242 (42mm), 2260 (60mm), and 2280 (80mm), the NVMe PCIe M.2 to USB 3.1 Gen 2 Type-C SSD Enclosure from Sabrent boasts a black aluminum shell that's designed to be portable and durable. The enclosure's heat-dissipating vents help it to remain cool while using less power. Equipped with a 10 Gb/s USB 3.1 Gen 2 Type-C interface, the enclosure is backward compatible with 5 Gb/s USB 3.1 Gen 1. Plug-and-play functionality means that no additional drivers are required for use. A USB Type-C to Type-A cable and a USB Type-A to Type-C adapter are included.

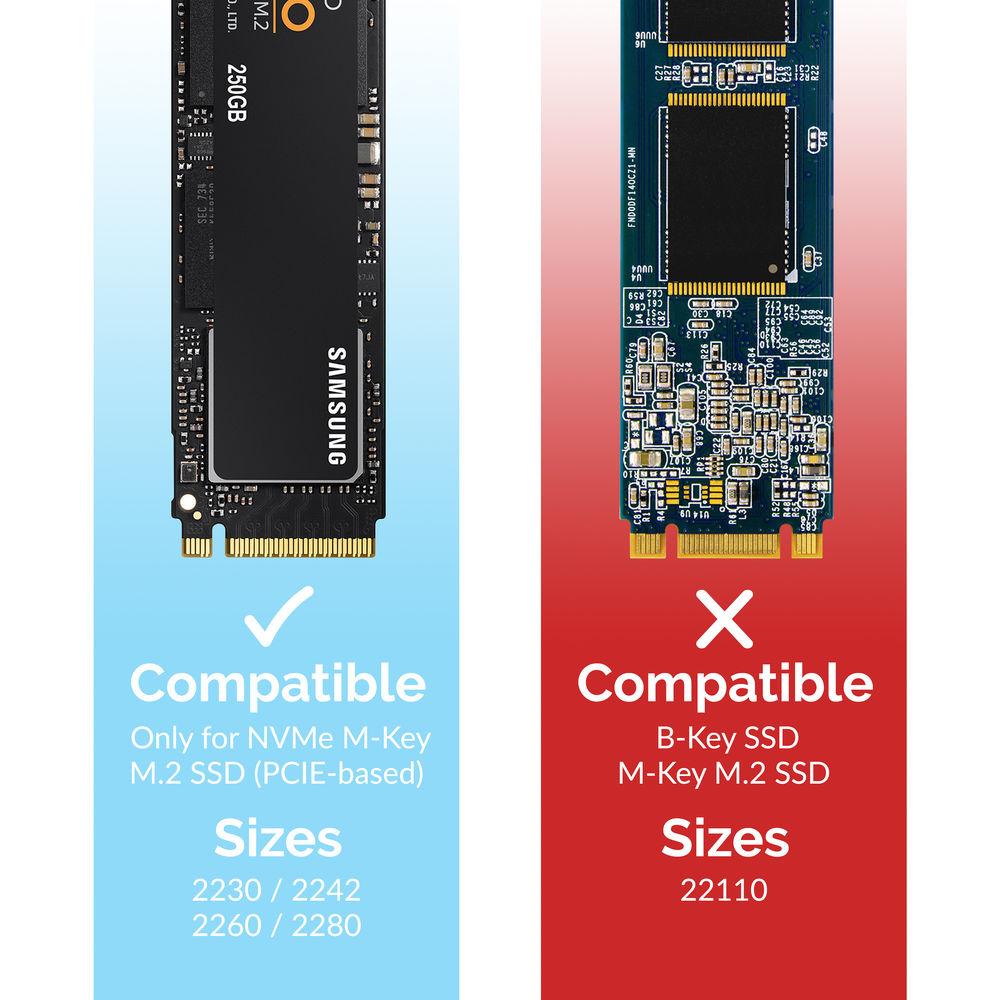

Please note that this enclosure only supports NVMe PCIe M.2 SSDs and does not support M.2 SATA SSDs. - Performance
- Capable of read/write speeds of up to 850-1020 MB/s with most NVMe SSDs.
- Solid Aluminum

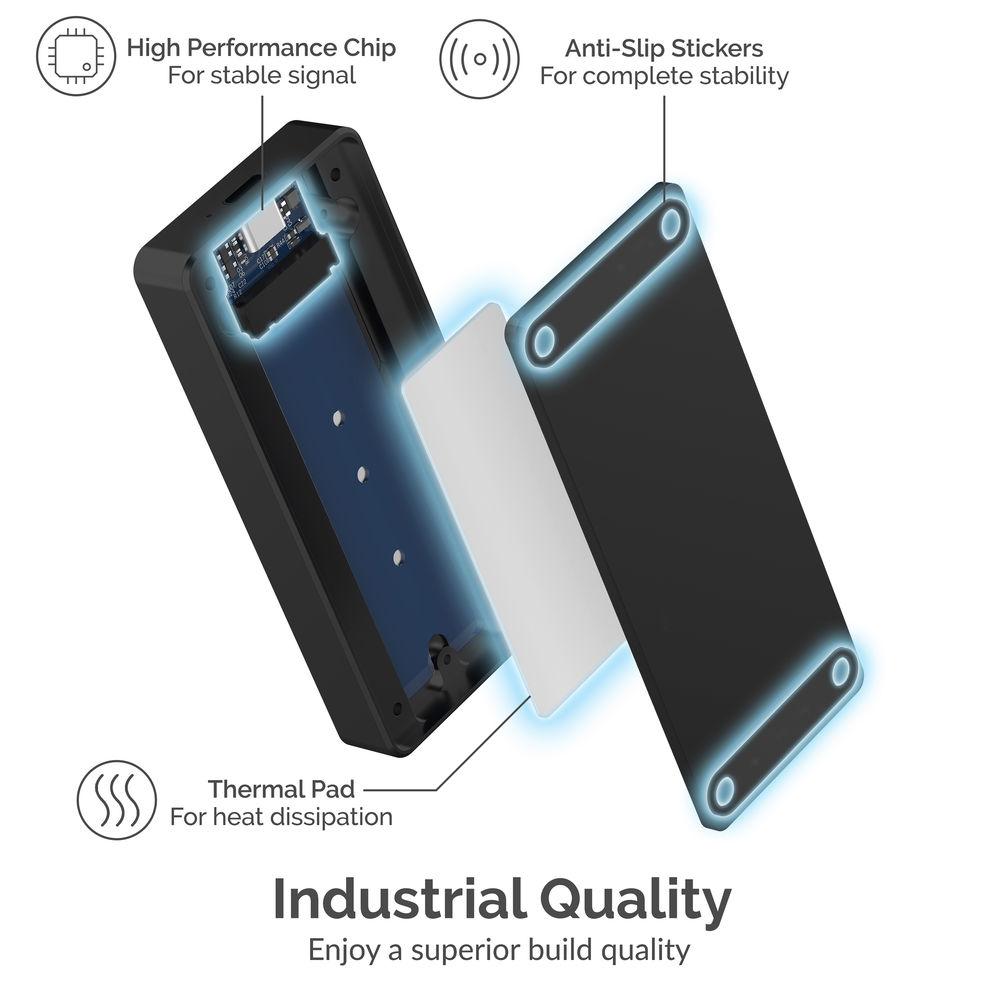

- The enclosure's sandblasted 9mm CNC-machined aluminum alloy shell is designed for increased heat dissipation and reduced power consumption, while a frosted surface provides a comfortable touch.
- SSD Compatibility
- Samsung 950 Pro, PM951, PM981, SM961, 960 EVO, 960 Pro, 970 EVO, and 970 Pro
WD Black
ADATA XPG
Corsair Force
Intel 600P, 760P, and 900P
Toshiba OCZ RC100
Patriot
SK Hynix
Kingston
Mushkin Pilot
DREVO D1 XTREME - Additional Compatibility
- Supports TRIM and UASP.

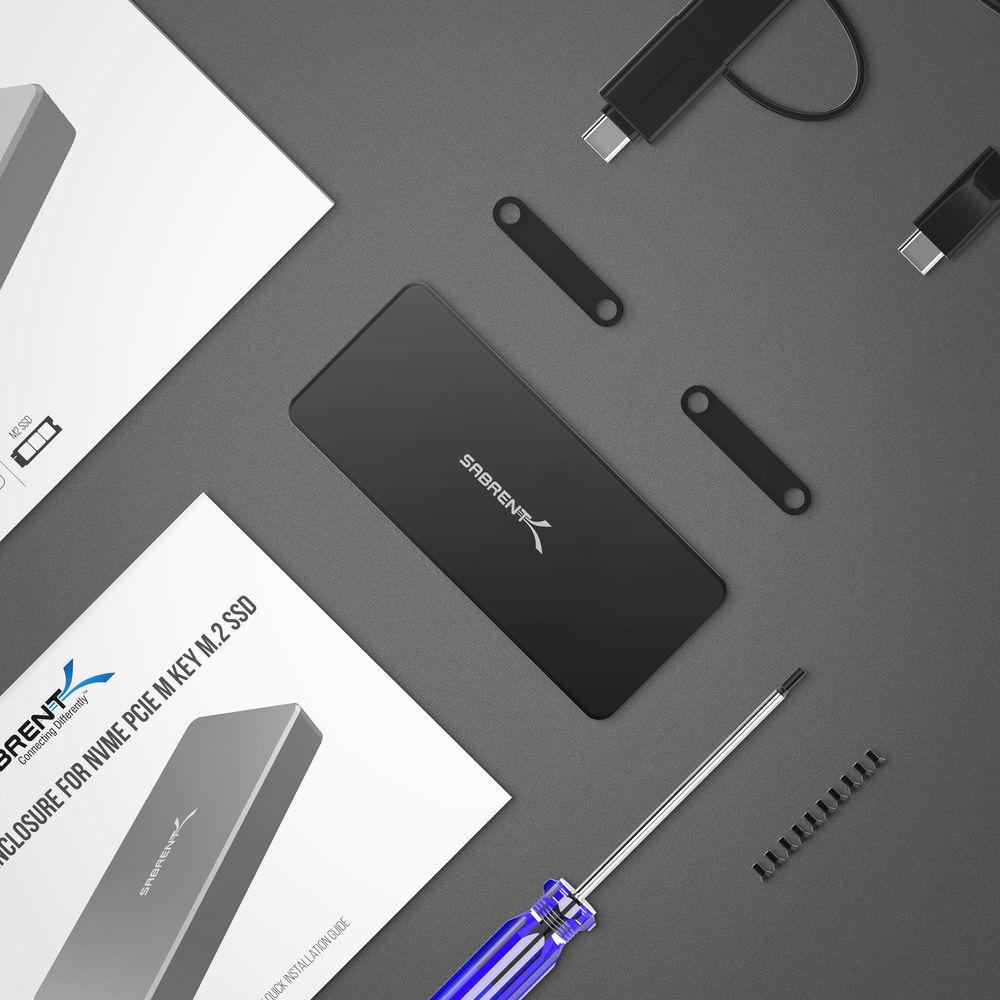

UPC: 840025210844 In the Box Sabrent NVMe PCIe M.2 to USB 3.1 Gen 2 USB Type-C SSD Enclosure (Black) USB Type-C to Type-A Cable USB Type-A to Type-C Adapter Screw Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sabrent NVMe PCIe M.2 to USB 3.1 Gen 2 USB Type-C SSD Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSabrent EC-NVME-BLK Specs | | | Number of Bays | 1 x M.2 (2280) | | Connections | 1 x USB Type-C (USB 3.1 Gen 2 (10 Gb/s)) | | Compatible Drive Interface | NVMe | | Form Factor | Portable | | UASP Support | Yes | | Hot-Swap Support | Yes | | Operating System Support | Linux, Windows, macOS/OS X | | OS Compatibility | Windows 8 or Later
macOS 10.1 or Later

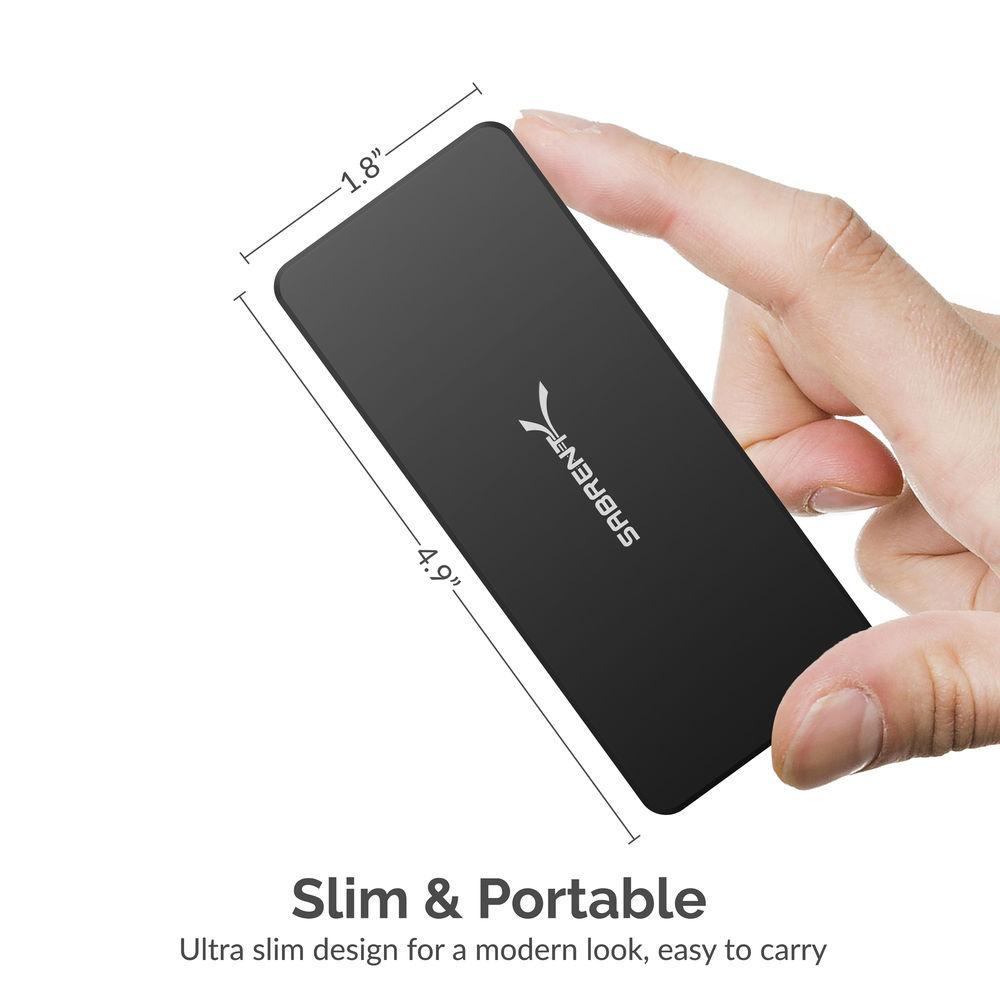

Linux | | | | Material of Construction | Aluminum | | Dimensions (W x H x D) | 7.5 x 5.2 x 0.7" / 19.1 x 13.2 x 1.8 cm | | Weight | 7.8 oz / 221 g | | | | Package Weight | 0.495 lb | | Box Dimensions (LxWxH) | 8.75 x 5.3 x 0.85" |
