User Manual for Sachtler 0373 FSB-4 Aluminum Tripod System Click to enlarge the picture
Contents of the user manual for the Sachtler 0373 FSB-4 Aluminum Tripod System
- Product category: Tripod Systems Sachtler
- Brand: Sachtler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sachtler Tripod Systems
 |
User manual for the Sachtler 0373 FSB-4 Aluminum Tripod System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sachtler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!
|

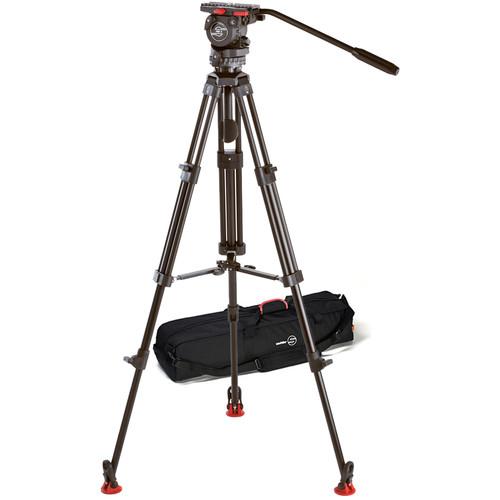

Product description The Sachtler 0373 FSB-4 is an aluminum tripod system offering stable movements for creating the best images possible. This FSB-4 system consists of the FSB-4 fluid head, 2-stage aluminum tripod, mid-level spreader and case. - Frictionless Leak Proof Fluid Damping

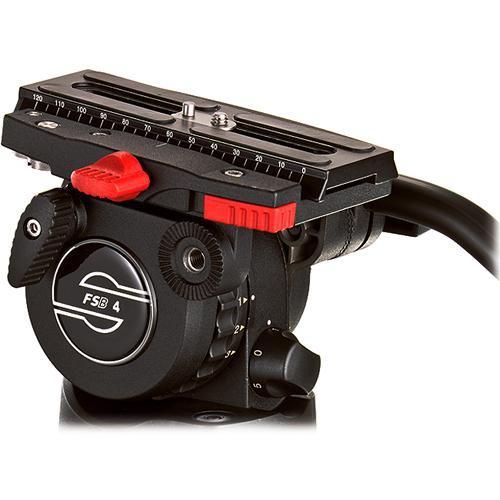

- Frictionless leak-proof fluid damping with three levels of drag, for perfect pictures while panning, without jerks and vibrations. Identical across both horizontal and vertical planes, and allows complete disengagement of drag for fast panning.
- Snap and Go
- The FSB-4 head accepts a payload from 0 to 4kg while using Sachtler's Snap & Go sideload mechanism.
- Dynamic Counterbalancing System
- The dynamic counterbalancing system compensates for torques as the camera tilts, preventing the camera from inadvertently tipping, and ensuring that it is positioned securely at any tilt angle.
- Safe at any Temperature
- Operates without any frictions from -40°F to +140°F.

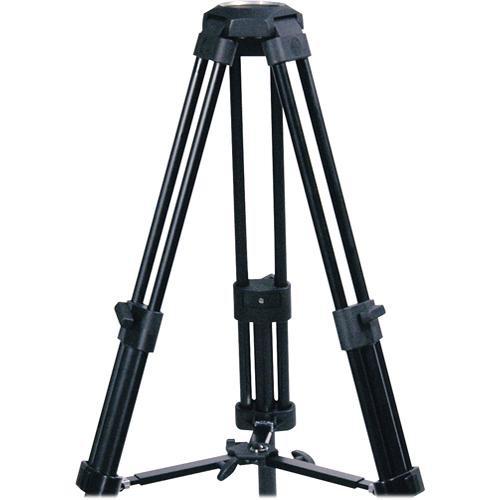

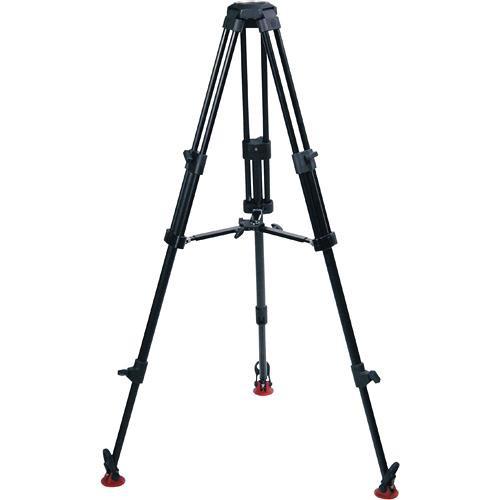

- Tripod
- The Sachtler two stage aluminum tripod is designed for ultralight DV camcorders with its proven Touch & Go system. This system enables fast changeovers from the tripod to the shoulder within a matter of seconds.

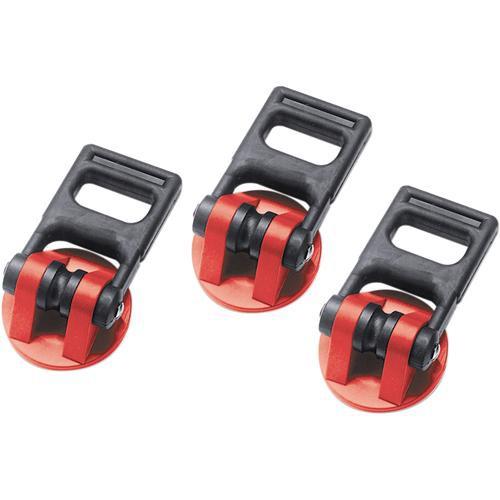

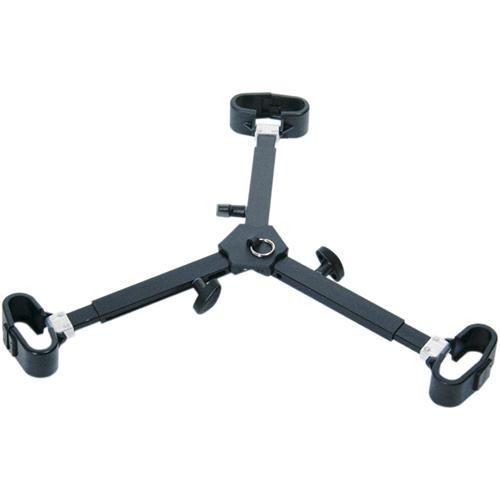

In the Box Sachtler 0373 FSB-4 Aluminum Tripod System FSB-4 Fluid Head Tripod Legs Mid-Level Spreader Soft Carrying Case Single Section Pan Bar Quick Release / Wedge Plate Rubber Feet Limited 1-Year Warranty, Extendable to 2-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler 0373 FSB-4 Aluminum Tripod System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler 0373 Specs | | | Load Capacity | 8.8 lbs (4kg) | | Maximum Height | 63" (160cm) | | Maximum Height w/o Column Extended | N/A | | Minimum Height | 30.3" (77cm) | | Transport Length | 33.1" (84cm) | | Leveling Bubble/Illuminated | Yes / No | | Weight | 11 lbs (5 kg) | | | | Counter Balance System | 5 Step | | Quick Release/Wedge Plate | Yes | | Balance Plate | Yes Sliding 120mm | | Tilt Drag | 3 Grades of Drag | | Tilt Range | 90° Up and 70° Down | | Tilt Lock | Yes | | Spring Loaded Counter Balance | 3 Grades of Drag | | Pan Range | 360° | | Pan Lock | Yes | | | | Material | Aluminum | | Head Attachment Fitting | 75mm Bowl | | Leg Stages/Sections | 2/3 | | Leg Lock Type | Speed Lock | | Independent Leg Spread | Yes | | Spiked/Retractable Feet | Spiked with Rubber Feet | | Center Brace | Mid-Level | | | | Package Weight | 18.2 lb | | Box Dimensions (LxWxH) | 44.0 x 10.0 x 9.0" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
