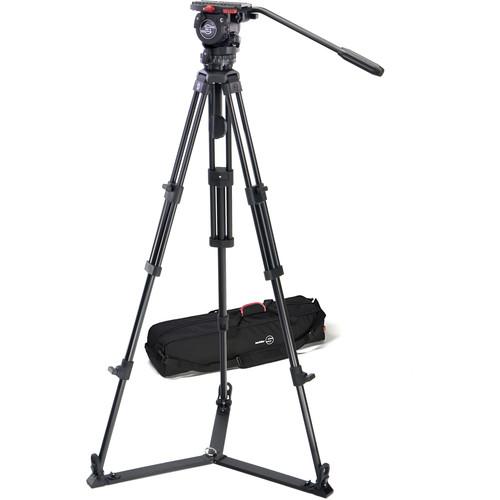

User Manual for Sachtler 0471 Aluminum Tripod System with FSB 6 Head, ENG 75 2 Legs, Ground Spreader Click to enlarge the picture
Contents of the user manual for the Sachtler 0471 Aluminum Tripod System with
- Product category: Tripod Systems Sachtler
- Brand: Sachtler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sachtler Tripod Systems
|
User manual for the Sachtler 0471 Aluminum Tripod System with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sachtler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!
|
Product description The Sachtler 0471 Aluminum Tripod System with FSB 6 Head, ENG 75/2 Legs, Ground Spreader is a complete tripod system that supports cameras and accessories weighing up to 8.8 pounds. It includes a Sachtler FSB 6 and a set of Sachtler ENG 75/2 D aluminum tripod legs with a ground level spreader. The head features a 75mm ball base with integrated flat base, which allows you to use the head with the included bowl base tripod legs or mount it to available supports with flat base fittings. The camera plate is the sliding balance type and provides 4.7" of balance adjustment. The head features Sachtler's Side Load mechanism, which allows you to snap the camera plate into the head from the top, instead of having to line it up and slide it in from the back of the head. The head features a five-step counterbalance system with a zero setting. The pan and tilt feature independent locks and three grades of drag with a zero setting.
The legs feature a working height range of 13.4 to 57.9" (20.1 to 64.6" with the included head attached). Each leg is independently adjustable in height and angle, allowing you to quickly rough in your position. The included ground level spreader features independent length adjustment of the spreader arms. These adjustments allow the tripod legs to work in oddly shaped spaces. The rotary leg clamps are durable and lock the leg heights quickly and securely. Head - Frictionless Leak-Proof Fluid Damping
- Frictionless leak proof fluid damping with three independent levels of drag on both the pan and tilt axes, with a zero setting that allows complete disengagement of drag for fast panning/tilting.
- Quick Release
- The FSB 6 features Sachtler's Side-Load mechanism, which provides you the ease and convenience of a quick release system with the balance adjustment of a sliding balance plate.
- Sliding Balance Plate
- Sliding camera mount and plate with a 4.7" sliding range allows you to balance a wide variety of camera, lens, and accessory configurations.
- Pan Handle
- One pan handle is included with the system, and head incorporates a pan handle mounting rosette on both sides, allowing you to attach an additional available pan handle for dual pan handle control.
Aluminum Legs - Independent Leg Adjustment
- The legs feature independent height adjustments, which allow the legs to remain stable on rough terrain.
- Dual Spiked Feet
- The dual spiked feet provide grip in soft surfaces, such as earth or sand, when the legs are at a normal height or when you need to spread them wide for low angle shots.
Ground Level Spreader - The ground level spreader features length adjustable arms that allow independent leg spread and support. The center pull ring allows you to collapse the legs and the spreader together, making it fast to set up and reposition the tripod.
In the Box Sachtler 0471 Aluminum Tripod System with FSB 6 Head, ENG 75/2 Legs, Ground Spreader 0407 FSB 6 Fluid Head with Sideload Mechanism 4183 DA 75 Tripod with 75mm bowl Spreader SP 75 Ground Tripod Spreader DV 75 S Padded Bag (Open Box) Limited 1-Year Extendable to 2 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler 0471 Aluminum Tripod System with FSB 6 Head, ENG 75 2 Legs, Ground Spreader in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler 0471 Specs | | | Load Capacity | 2.2 to 17.6 lb (1 to 8 kg) | | Diameter/Thread | 75mm | | Counter Balance System | 10 steps plus 0 setting | | Quick Release/Wedge Plate | Yes | | Balance Plate | Yes, 4.7" (120mm) Sliding Range | | Tilt Drag | 3 Steps plus 0 | | Tilt Range | -70 to 90° | | Tilt Lock | Yes | | Pan Range | 360° | | Pan Drag | 3 Steps plus 0 | | Pan Lock | Yes | | Leveling Bubble/Illuminated | Yes | | Temperature Range | -40 to +140°F (-40 to +60°C) | | Weight | 5.7 lbs (2.6 kg) | | | | Load Capacity | 44 lb (20 kg) | | Head Attachment Fitting | 75mm bowl | | Maximum Height | 57.9" (147.1 cm) | | Minimum Height | 13.4" (34.0 cm) | | Folded Length | 25.6" (65.0 cm) | | Weight | 4.2 lb (1.9 kg) | | Material of Construction | Aluminum | | Leg Lock Type | Rotary | | Independent Leg Spread | Yes | | Spreader | Included: Ground
Optional: Mid-level | | Spiked Feet | Dual Spikes | | | | Package Weight | 18.5 lb | | Box Dimensions (LxWxH) | 43.0 x 10.0 x 10.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
