User Manual for Sachtler 0475 FSB-6 Carbon Fiber Tripod System Click to enlarge the picture
Contents of the user manual for the Sachtler 0475 FSB-6 Carbon Fiber Tripod
- Product category: Tripod Systems Sachtler
- Brand: Sachtler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sachtler Tripod Systems
 |
User manual for the Sachtler 0475 FSB-6 Carbon Fiber Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sachtler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!
|
Product description - Sachtler Tutorial Video: FSB series

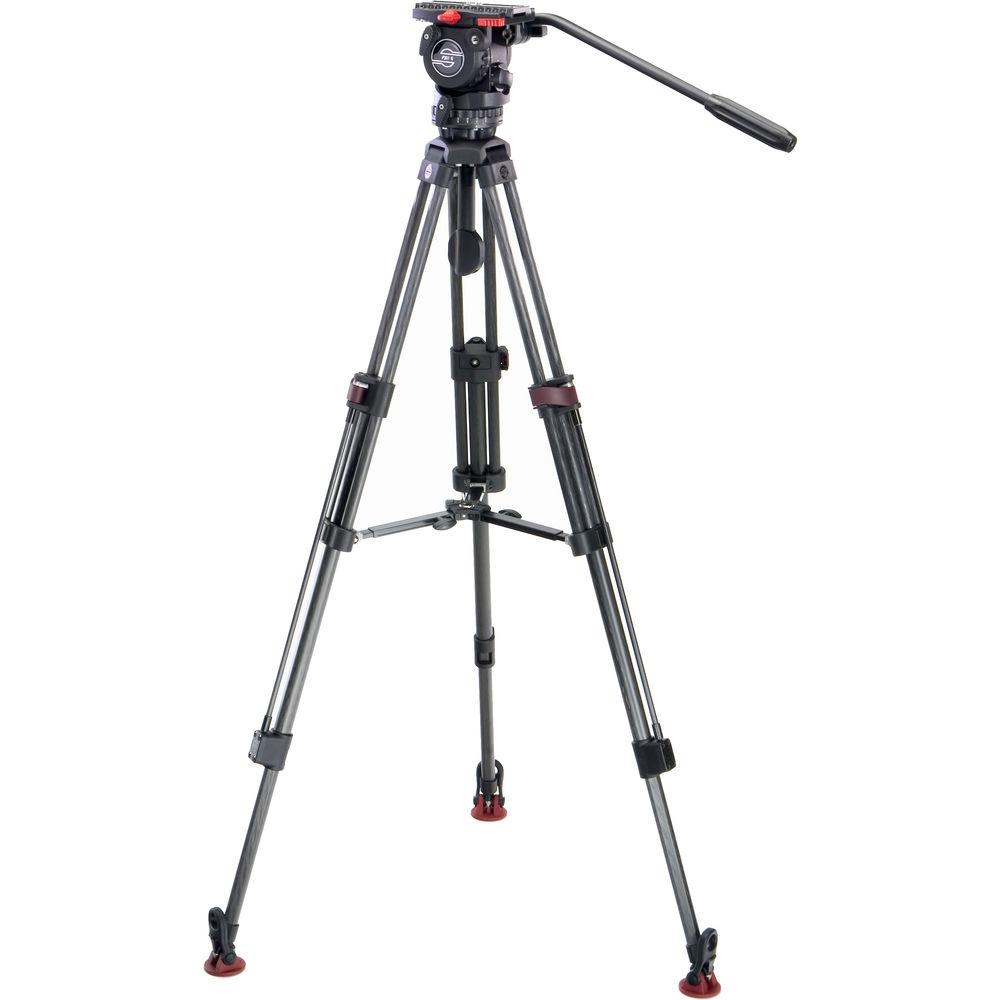

The Sachtler 0475 FSB-6 Carbon Fiber Tripod System offers stable movements to deliver the best images possible. This FSB-6 system consists of the FSB-6 fluid head, two-stage carbon fiber tripod, mid-level spreader, and a case. - Tripod
- The Sachtler 4588 Speed Lock 75 carbon fiber tripod with 75mm levelling bowl supports up to 44.1 lb. Speed Lock tripods feature traditional dual-tube design with a twist: three leg clamps instead of six, for rapid setup to catch fast-breaking news.
- Frictionless Leak-Proof Fluid Damping
- Frictionless leak-proof fluid provides damping with three levels of drag, for perfect pictures while panning, without jerks and vibrations. Identical across both horizontal and vertical planes, allowing complete disengagement of drag for fast panning.
- Snap and Go

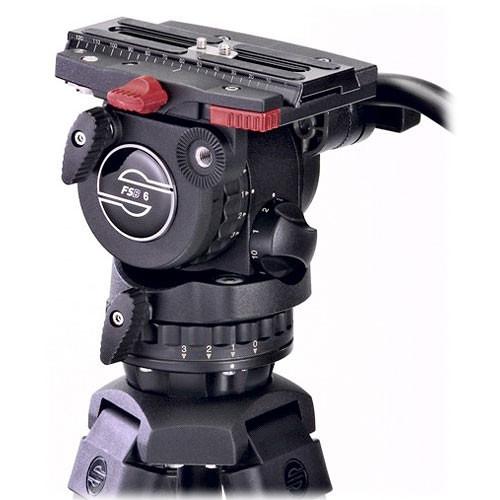

- The FSB-6 head accepts a payload from 3.3 to 17.6 pounds while using Sachtler's Snap and Go sideload mechanism.
- Dynamic Counterbalancing System
- The dynamic counterbalancing system compensates for torque as the camera tilts, preventing the camera from inadvertently tipping, and ensuring that it is positioned securely at any tilt angle.
- Safe at Any Temperature
- Operates without any friction from -40 to 140°F.

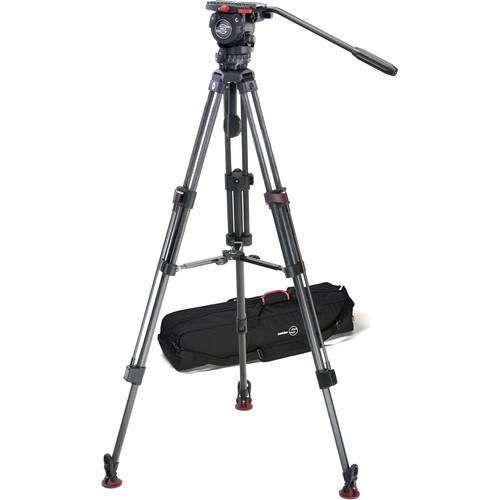

In the Box Sachtler 0475 FSB-6 Carbon Fiber Tripod System 0407 FSB 6 Fluid Head with Sideload Mechanism 4588 Speed Lock 75 CF Tripod w/ 75mm Bowl Mid-Level Spreader DV 75 S Padded Bag (Open Box) Single-Section Pan Bar Quick Release/Wedge Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler 0475 FSB-6 Carbon Fiber Tripod System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler 0475 Specs | | | Load Capacity | 3.3 to 17.6 lb / 1.5 to 8 kg | | Diameter/Thread | 75 mm | | Counter Balance System | 10 steps | | Quick Release/Wedge Plate | Yes | | Balance Plate | Yes, 4.7" / 120 mm sliding range | | Tilt Drag | 3 steps plus zero | | Tilt Range | -70 to +90° | | Tilt Lock | Yes | | Pan Range | 360° | | Pan Lock | Yes | | Leveling Bubble | Yes, illuminated | | Temperature Range | -40 to 140°F / -40 to 60°C | | Weight | 5.7 lb / 2.6 kg | | | | Material | Carbon fiber | | Payload | 44 lb / 20 kg | | Leg Stages/Sections | 2/3 | | Minimum Height | 13.4" / 34.04 cm | | Maximum Height | 57.90" / 147.07 cm | | Folded Length | 33.1" / 84 cm | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 39.5 x 9.5 x 9.0" |
