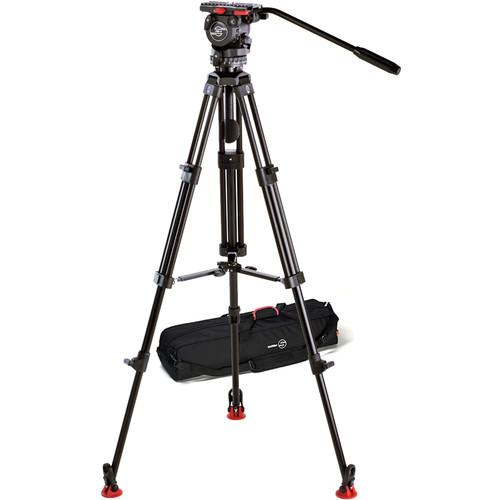

Product description The Sachtler 0773 is a tripod system featuring the FSB-8 fluid head. This kit consists of a fluid head, tripod, spreader and carry case. This system offers Sachtler quality in a complete tripod system. - Fluid Head

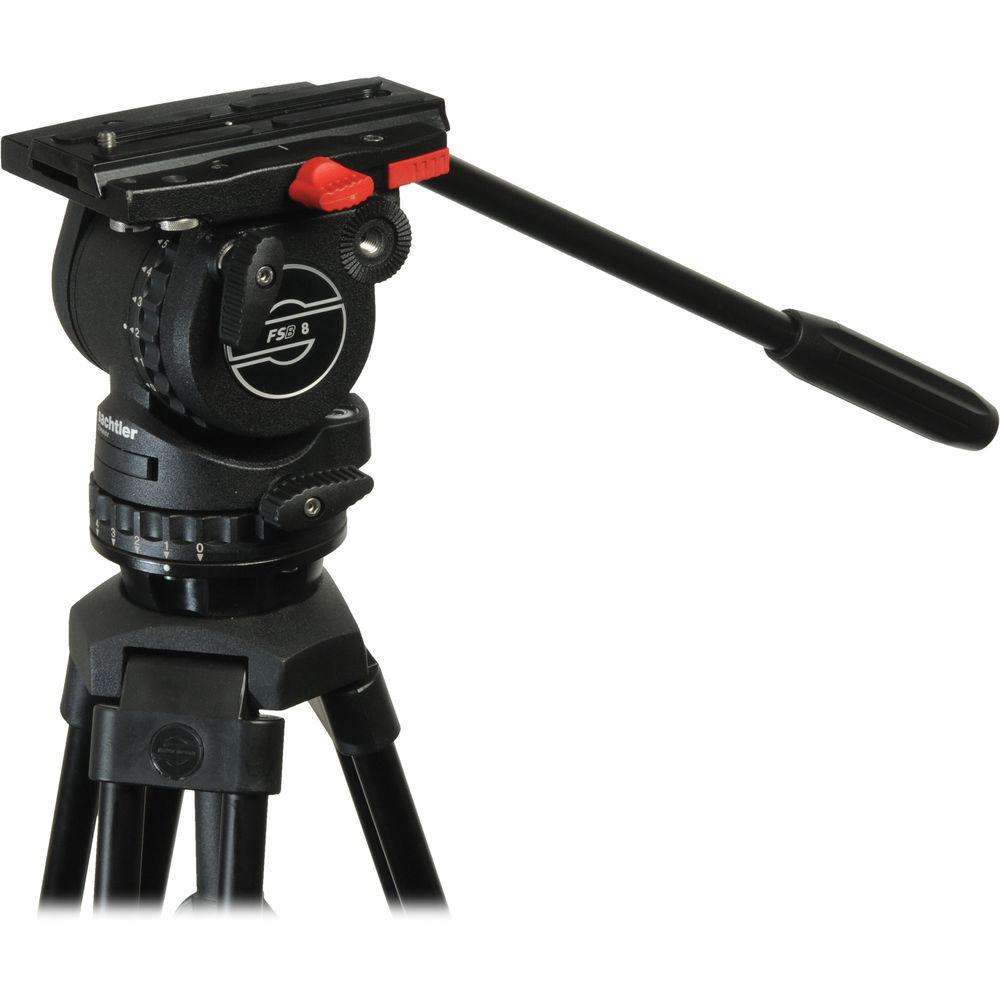

- The Sachtler FSB-8 is a fluid head designed to work with a variety of camcorders up to 9kg. This head features Sachtler's Snap & Go sideload mechanism which boasts an exceptionally large sliding range of 120mm (4.7") and 10-step counterbalance.
- Tripod

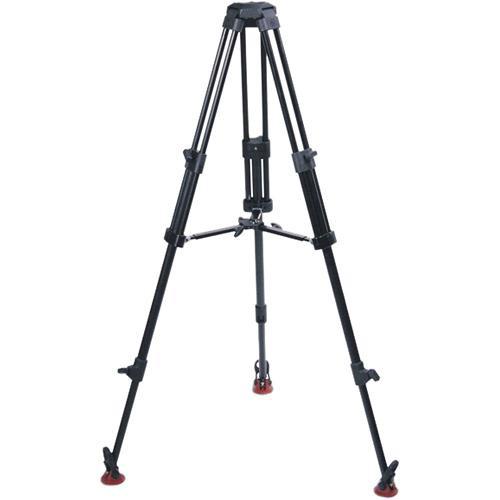

- The Sachtler 4188 two stage aluminum tripod is targeted for ultralight DV camcorders with its proven Touch & Go system enabling fast changeovers from the tripod to the shoulder within a matter of seconds.

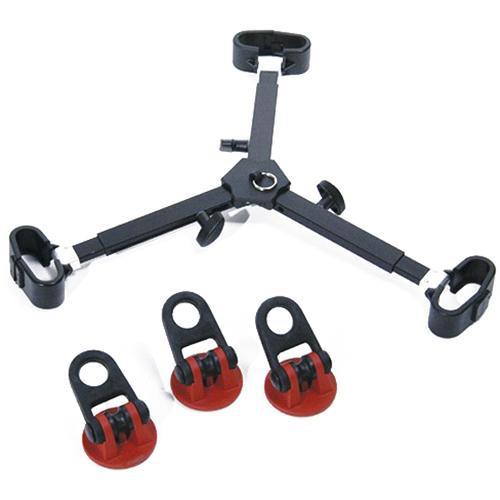

- Mid-Level Spreader
- The Sachtler mid-level spreader offers stability in a variety of indoor and outdoor applications. It comes with rubber feet for the tripod and is specially designed for the tripod legs.

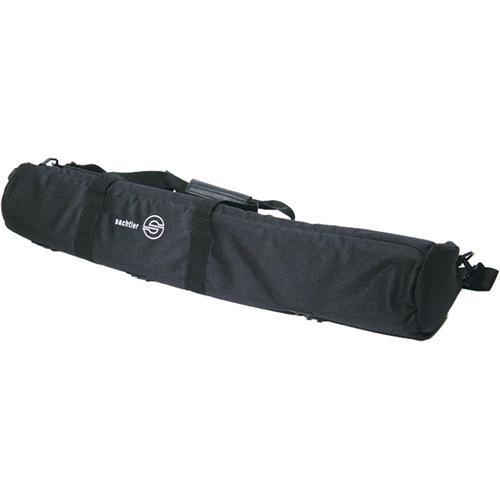

- Soft Case
- A padded bag is offered with this kit for secure transport.
In the Box Sachtler 0773 FSB-8 Tripod System with ENG 75/2 DTripod FSB-8 Fluid Head Panhandle ENG 75/2 D Tripod Mid-Level Spreader with Feet Quick-Release Plate Soft Case Limited 1-Year Warranty, Extendable to 2-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler 0773 FSB-8 Tripod System with ENG 75 2 DTripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler 0773 Specs | | | Load Capacity | 20 lbs (9kg) | | Maximum Height | 63" (160cm) | | Maximum Height w/o Column Extended | N/A | | Minimum Height | 30.3" (77cm) | | Folded Length | 33.1" (84cm) | | Leveling Bubble/Illuminated | Yes / Yes | | Weight | 11.9 lbs (5.4kg) | | | | Counter Balance System | 10 Steps | | Quick Release/Wedge Plate | Yes | | Balance Plate | Yes, 4.7" (120mm) Sliding Range | | Tilt Drag | 0-5 Steps | | Tilt Range | -75 to +90° | | Tilt Lock | Yes | | Spring Loaded Counter Balance | 0-5 Steps | | Pan Range | 360° | | Pan Lock | Yes | | | | Material | Dural Aluminum | | Head Attachment Fitting | 75mm Bowl | | Leg Stages/Sections | 2/3 | | Leg Lock Type | Rotary Lock | | Independent Leg Spread | Yes | | Spiked/Retractable Feet | Spiked | | Center Brace | Mid-Level | | | | Package Weight | 17.6 lb | | Box Dimensions (LxWxH) | 45.0 x 10.0 x 10.0" |
