User Manual for Sachtler 2570 SYSTEM 25 PLUS CIII Pedestal System Click to enlarge the picture
Contents of the user manual for the Sachtler 2570 SYSTEM 25 PLUS CIII
- Product category: Pedestals Sachtler
- Brand: Sachtler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sachtler Pedestals
 |
User manual for the Sachtler 2570 SYSTEM 25 PLUS CIII contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sachtler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!
|

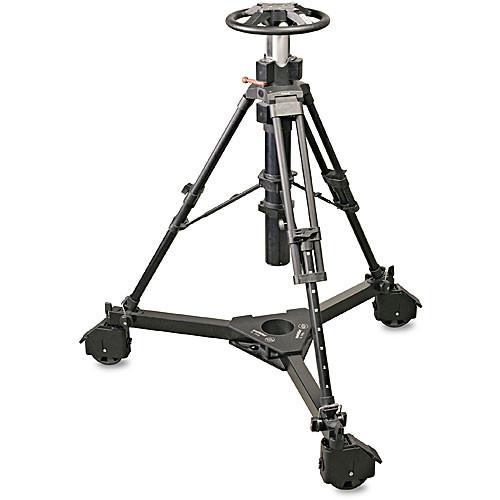

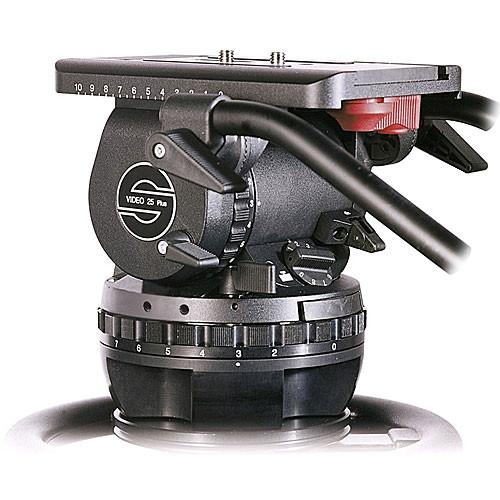

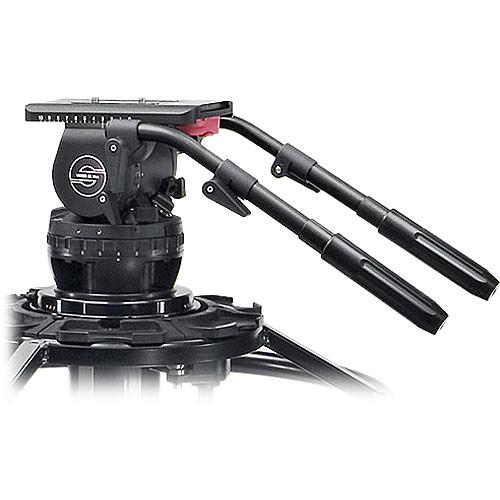

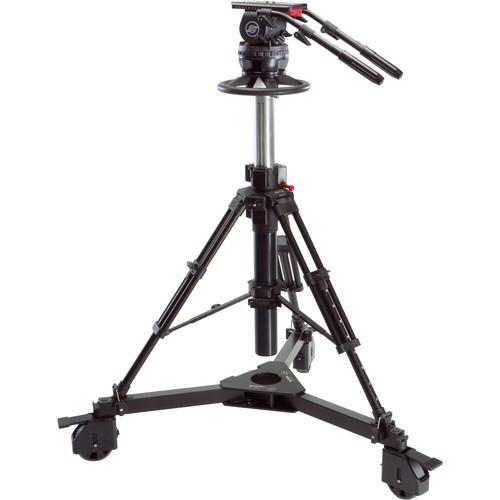

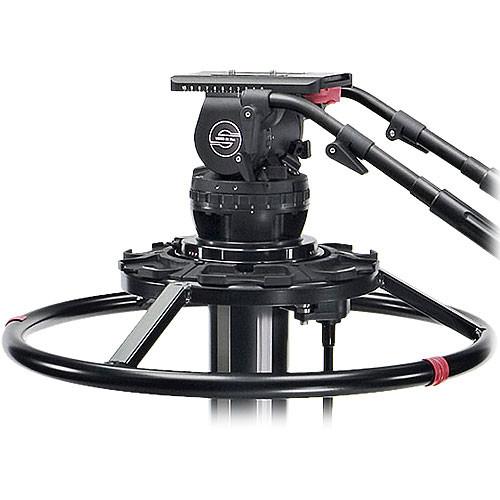

Product description The Sachtler 2570 System 25 Plus CIII Pedestal is designed with today's camera person using HTDV and Widescreen cameras in mind. The System 25 Plus Pedestal system consists of the, Video 25 Plus fluid head with its seven step, temperature-independent damping system. This head is matched with the CIII compact pedestal and Multi Disc for a complete package. Video 25 Plus Fluid Head - Frictionless Leak Proof Fluid Damping
- Frictionless leak proof fluid damping with seven levels of drag, for perfect pictures while panning, without jerks and vibrations. Identical across both horizontal and vertical planes, and allows complete disengagement of drag for fast panning.
- Quick Release
- Touch & Go Quick Release / Automatic Locking System, for quick set up without having to bother screwing the camera to head and then having to unscrew it again. Also features a safety lock lever that prevents inadvertent disengagement of the camera latch.
- Sliding Balance Plate
- Sliding camera mount and plate with a 4.4-inch sliding range, makes a fast balancing system for the camera and ensures perfect balance across the horizontal plane.
- Dynamic Counterbalancing System
- The 18 Step dynamic counterbalancing system, with 9-stage fine-tuning in half steps compensates for torques as the camera tilts. This prevents the camera from inadvertently tipping, and ensures that it is positioned securely at any tilt angle. These features can be activated and deactivated individually.

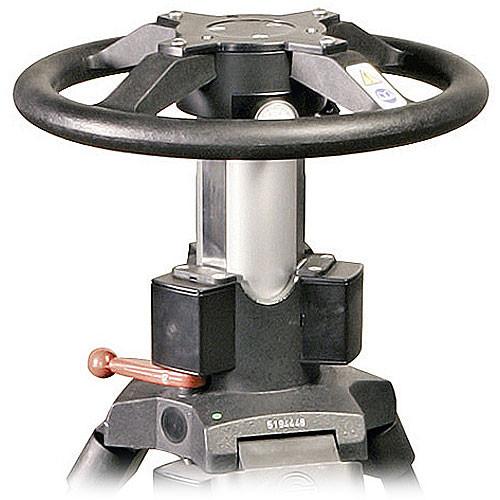

CIII Pedestal System - Air Pressurized Pneumatic Column

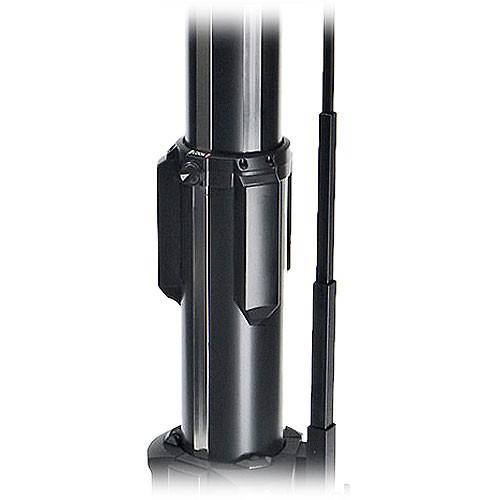

- The pedestal is anchored by a pneumatic column. The system works on the principle of compressed air, which acts as a counterweight and allows for quick height adjustments. An air pressure gauge gives the user instant indication of correct pressure.

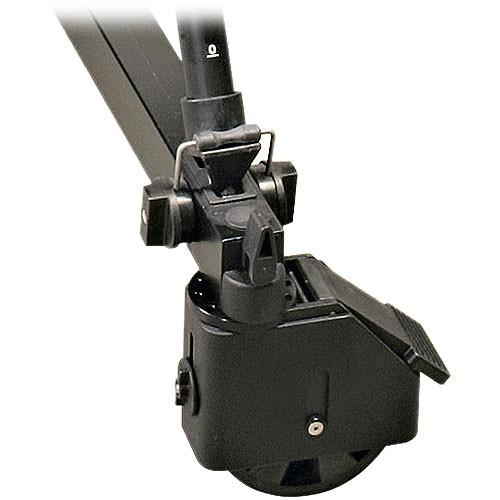

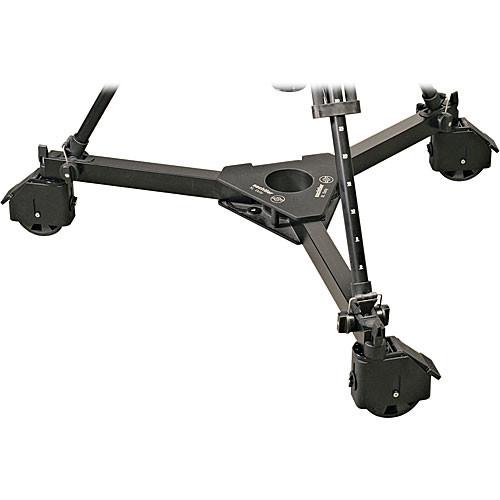

- Silent Dolly Movement
- Silent dolly movement is very important in a studio where sounds can easily carry into the production.
- Set-Up
- This pedestal offers a fast tool-free set-up for productions on the go.
In the Box Sachtler 2570 SYSTEM 25 PLUS CIII Pedestal System Video 25 Plus Fluid Head CIII Pedestal Multi Disc Limited 1-Year Warranty, Extendable to 2-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler 2570 SYSTEM 25 PLUS CIII Pedestal System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler 2570 Specs | | | Load Capacity | 18 to 77 lbs (8-35 kg) | | Trim Ring | No | | Bowl Diameter/Thread | Sachtler/Vinten Flat Base Fitting
100mm Bowl | | Steering Ring Diameter | 12"
(300mm) | | Minimum Height | 35.8" (91 cm) | | Maximum Height | 69.3" (176 cm) | | Leveling Bubble/Illuminated | Yes / Illuminated | | Weight | 49.8 lbs
(22.6 kg) | | | | Balance Plate | Yes, 4.4" Sliding Range | | Tilt Drag | Yes | | Tilt Range | +90° to -75° | | Tilt Lock | Yes | | Spring Loaded Counter Balance | 8 steps, 0 to 7 | | Pan Range | 360° | | Pan Lock | Yes | | | | Doorway Width | 39"
(99cm) | | Wheel Diameter | 6"
(154mm) | | Wheel Lock | Yes | | Cable Guards | Yes | | Weight | 36.4 lbs
(16.5kg) | | | | Package Weight | 72.0 lb | | Box Dimensions (LxWxH) | 50.0 x 30.0 x 22.0" |
