User Manual for Sachtler 2594 System 25 Studio Pedestal System Click to enlarge the picture
Contents of the user manual for the Sachtler 2594 System 25 Studio Pedestal
- Product category: Pedestals Sachtler
- Brand: Sachtler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sachtler Pedestals
 |
User manual for the Sachtler 2594 System 25 Studio Pedestal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sachtler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!
|

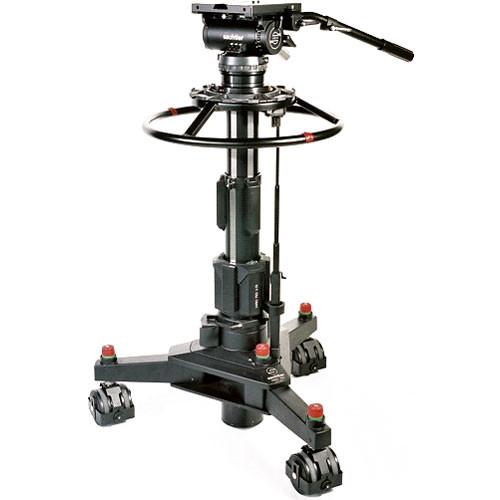

Product description The Sachtler System 25 Studio Pedestal System 2594 is a studio pedestal system for camera and prompter capacity up to 80 lb. This kit offers the Vario Pedestal 2-75 for smooth studio movement, the Video 25 Plus FB for fast and smooth pan and tilts with an adapter plate to make everything work together. - Video 25 Plus FB

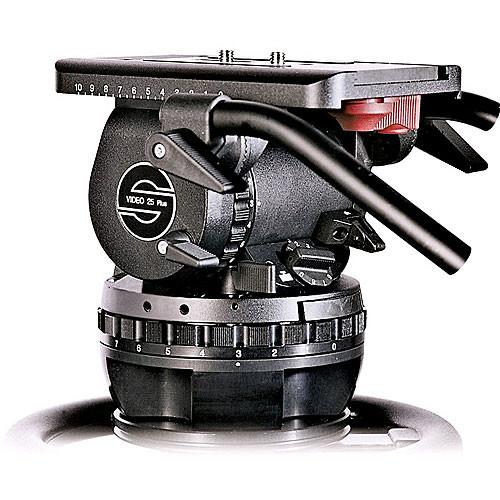

- The Video 25 Plus is unusually light for a Studio / OB head. It offers a seven step, temperature-independent damping system, an 18 step counterbalance which can be adjusted easily and safely in 9 stages with the well known Sachtler dial.
- Vario Pedestal 2-75

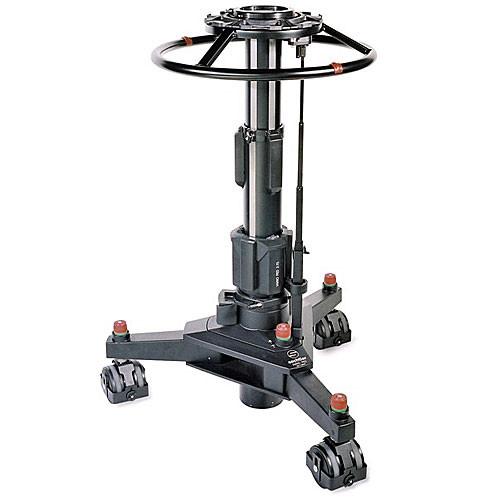

- The Sachtler 5201 2-75 Vario Pedestal is suited for modern broadcast cameras and offers OB and studio packages. The compact, modular construction of these pedestals achieves maximum stability at a relatively low weight. This pedestal is very user friendly offering a Vario dolly and a Quickfix fitting for fast and easy setups without screws.
In the Box Sachtler 2594 System 25 Studio Pedestal System Video 25 Plus FB Vario Pedestal 2-75 Multidisc Base Adapter Limited 1-Year Warranty, Extendable to 2-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler 2594 System 25 Studio Pedestal System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler 25 Studio Specs | | | Load Capacity | 11-77.2 lb (8-35 kg) | | Trim Ring | No | | Bowl Diameter/Thread | Sachtler/Vinten Flat Base Fitting
100 mm Bowl | | Steering Ring Diameter | Not Specified by Manufacturer | | Minimum Height | 26" (66 cm) | | Maximum Height | 56.3" (143 cm) | | Leveling Bubble/Illuminated | Yes / Illuminated | | Weight | 134 lb (61 kg) | | | | Balance Plate | Yes, 4.4" Sliding Range | | Tilt Drag | Yes | | Tilt Range | +90° to -75° | | Tilt Lock | Yes | | Spring Loaded Counter Balance | 8 steps, 0 to 7 | | Pan Range | 360° | | Pan Lock | Yes | | | | Doorway Width | 36.2" (92 cm) | | Wheel Diameter | 6" (154 mm) | | Wheel Lock | Yes | | Cable Guards | Yes | | Weight | 121 lb (55 kg) | | | | Package Weight | 168.8 lb | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
