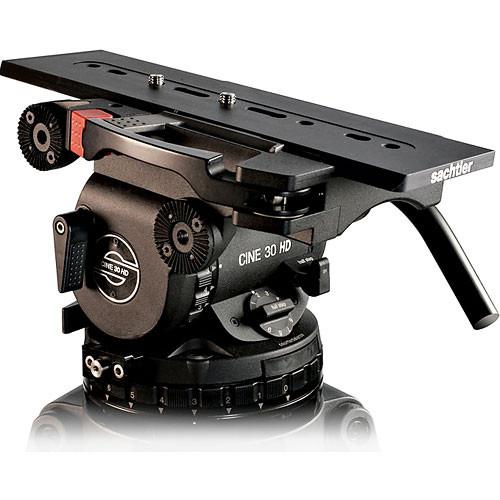

User Manual for Sachtler 3006 Cine 30 HD Fluid Head Click to enlarge the picture
Contents of the user manual for the Sachtler 3006 Cine 30 HD Fluid
- Product category: Video Tripod Heads Sachtler
- Brand: Sachtler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sachtler Video Tripod Heads
|
User manual for the Sachtler 3006 Cine 30 HD Fluid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sachtler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!
|
Product description The Sachtler 3006 Cine 30 HD Fluid Head is a fluid head with a 150mm half ball with integrated flat base that allows you to use this head with a tripod with either a 150mm bowl base or flat base. It features a side-load sliding camera plate mechanism. Unlike traditional sliding baseplates that require you to slide the camerqa plate into the head, the side load mechanism allows you to snap the camera into the head, and still slide the plate foward and back to adjust the balance of the camera on the head. This is especially useful when the camera is weighed down with accessories. It is compatible with Arri and OConnor camera plates, and features a fine adjustment for a tight, secure fit. The head features two payload ranges, from 6.6 to 66, and 17.6 to 77 pounds selectable. The head features 18 steps of counterbalance, these are selectable via the 9-step setting dial, with the half step lever providing 9 additional steps of counterbalance. Pan and Tilt drag is governed by a similar 7-step (plus zero) indexed selector system in conjunction with Sachtler's patented leak-proof frictionless cartridges. A tilt safety lock guarantees the integrity of the payload until it is secured, and disk brakes ensure reliable pan and tilt fixing during operation with a quick flip of a short-throw lever. - Side-Loading Rapid Camera Mount
- The Snap&Go side-loading mechanism gets heavy camera packages mounted quickly without compromising safety or sliding range, and is also compatible with Arri and OConnor camera plates
- 18-Step Counterbalance and 7-Step Drag
- for rapid setup and repeatable results
- Payload Range Selector
- Switch between the High and Low ranges with a flip of the front-mounted Payload Range Selector lever
- Illuminated Bubble Level
- The Touch Bubble is a self-illuminated spirit level activated through contact, and is powered by three PX625A batteries
- Assistant's Box Mount (optional)
- Using the optional Front Box Adapter, an assistant's box may attached to the front of the head without impairing the tilt range
- Eyepiece Extension Support Adapter (optional)
- Provides an anchorage point for eyepiece extension rods on the left side of the head
In the Box Sachtler 3006 Cine 30 HD Fluid Head Sideload Plate 3 x PX625A Batteries Limited 1-Year Warranty, Extendable to 2-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler 3006 Cine 30 HD Fluid Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler Cine 30 HD Specs | | | Camera Plate Features | Sliding Balance Plate, Quick Release | | Balance Plate Sliding Range | 5.9" / 150 mm | | | | Base Mount | 150 mm Half Ball
Mitchell Flat Base | | | | Drag Control | Tilt: 7-Step Plus 0
Pan: 7-Step Plus 0 | | Vertical Tilt | +90
