User Manual for Sachtler 3012 System 30 EFP 2 MCF Click to enlarge the picture
Contents of the user manual for the Sachtler 3012 System 30 EFP 2
- Product category: Tripod Systems Sachtler
- Brand: Sachtler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sachtler Tripod Systems
|
User manual for the Sachtler 3012 System 30 EFP 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sachtler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!
|

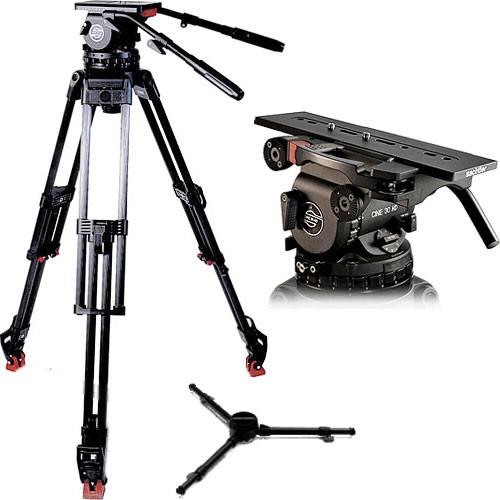

Product description The Sachtler 3012 System 30 EFP 2 MCF consists of the 3006 Cine 30 HD 150mm fluid head, 6386 EFP 2 CF tripod, 7007 mid-level spreader, 3370 telescoping pan arm, 3060 side-load camera plate, and the 7004 rubber feet 100/150 (set of three). Any long-suffering camera assistant will appreciate the Cine 30 HD 150mm fluid head and its unique side-load sliding camera plate. With the camera fully equipped, mounting and dismounting using the Snap & Go locking mechanism is safe, efficient, and worry-free. It is fully compatible with Arri and OConnor camera plates, and features a fine adjustment for a tight, secure fit even if the plate is worn from use. Counterbalance is accomplished with an 18-step selector dial and a high/low range lever for rapid, yet fine-tuned, repeatable setups. Horizontal and vertical drag is governed by a similar 7-step (plus zero) indexed selector system in conjunction with Sachtler's patented leak-proof frictionless cartridges, which carry a separate 5-year warranty. A tilt safety lock guarantees the integrity of the payload until it is secured, and caliper disk brakes ensure reliable pan and tilt fixing during operation with a quick flip of a short-throw lever. The 6386 EFP 2 CF one-stage tripod features a die-cast 150mm receiver, dual 22.0mm carbon fiber composite leg tubes, and rapid-action clamps for fast, secure setups. Stronger than steel and lighter than aluminum, carbon fiber composites have the added advantage of absorbing vibration- a particularly useful trait with HD cameras. Used in conjunction with the included 7007 mid-level spreader and the 7004 rubber feet, payload integrity is assured regardless of terrain. Naturally, the 3012 System 30 is covered by the standard Sachtler 3-year warranty, as well as comprehensive worldwide voice and web-based tech support, complete with CAD drawings, manuals, and service bulletins. - Side-Loading Rapid Camera Mount
- Snap&Go side-loading mechanism gets heavy camera packages mounted quickly without compromising safety or sliding range, and is also compatible with Arri and OConnor camera plates
- 18-Step Counterbalance and 7-Step Drag
- For rapid setup and repeatable results
- Payload Range Selector
- Switch between the High and Low counterbalance ranges with a flip of the front-mounted Payload Range Selector lever
- Caliper Disk Pan and Tilt Locks
- Similar to braking systems on trucks or trains, the default position is on - in case of a system failure, the head will be locked
- Illuminated Bubble Level
- The Touch Bubble is a self-illuminated spirit level activated through contact, and is powered by three PX625A cells
- Assistant's Box Mount (optional)
- Using the optional Front Box Adapter, an assistant's box may attached to the front of the head without impairing the tilt range
- Eyepiece Extension Support Adapter (optional)
- Provides an anchorage point for eyepiece extension rods on the left side of the head
- Carbon Fiber Composite Leg Tubes
- 22.0mm Carbon fiber leg tubes absorb vibration, are stronger than steel, and lighter than aluminum
- Rapid-Action Clamps
- Fully adjustable rapid-action clamps facilitate fast, secure setups
- Mid-Level Spreader
- Prevents tripod collapse while accommodating uneven terrain, and may be folded within the legs when collapsed for transport
In the Box Sachtler 3012 System 30 EFP 2 MCF 3006 Cine 30 HD 150mm Fluid Head 6386 EFP 2 CF Tripod 7007 Mid-Level Spreader 3370 Telescoping Pan Arm 3060 Side-Load Plate 7004 Rubber Feet 100/150 (Set of Three) Limited 1-Year Warranty, Extendable to 2-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler 3012 System 30 EFP 2 MCF in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler Cine Specs | | | Load Capacity | 77.2 lbs (35.0 kg) | | Maximum Height | 70.6" (179.3 cm) | | Maximum Height w/o Column Extended | N/A | | Minimum Height | 29.3" (74.4 cm) | | Folded Length | 37.5" (95.3 cm) | | Leveling Bubble/Illuminated | Yes/Yes | | Weight | 23.7 lbs (10.8 kg) | | | | Counter Balance System | 18-Step plus boost | | Quick Release/Wedge Plate | Yes | | Balance Plate | Yes, with 150mm of travel | | Tilt Drag | 7-Step plus zero | | Tilt Range | -75 to +90° | | Tilt Lock | Caliper brake | | Spring Loaded Counter Balance | 7-Step plus zero | | Pan Range | 360° | | Pan Lock | Caliper brake | | | | Material | Carbon fiber composite | | Head Attachment Fitting | 150mm | | Leg Stages/Sections | 1/2 | | Leg Lock Type | Rapid-Action Clamps | | Independent Leg Spread | Yes | | Spiked/Retractable Feet | Spiked | | Center Brace | Mid-level | | | | Package Weight | 39.0 lb | | Box Dimensions (LxWxH) | 42.7 x 11.6 x 11.3" |
