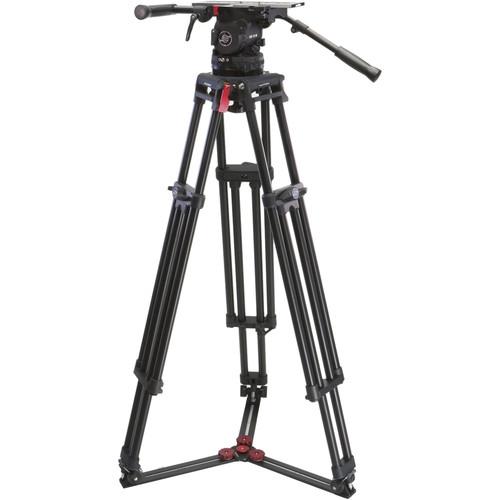

User Manual for Sachtler 3025 Cine 30 Tripod System Click to enlarge the picture
Contents of the user manual for the Sachtler 3025 Cine 30 Tripod System
- Product category: Tripod Systems Sachtler
- Brand: Sachtler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sachtler Tripod Systems
|
User manual for the Sachtler 3025 Cine 30 Tripod System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sachtler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!
|
Product description The Sachtler 3025 Cine 30 Tripod System consists of the 3006 Cine 30 HD 150mm Fluid Head, 6290 Cine 150 Long Tripod, 7023 Cine Ground-Level Spreader, 3372 Heavy-Duty Front Pan Bar, and the 3060 Side-Load Camera Plate.Any camera assistant will appreciate the Cine 30 HD 150mm fluid head and its unique side-load sliding camera plate. With the camera fully equipped, mounting and dismounting using the Snap & Go locking mechanism is safe, efficient, and worry-free. Fully compatible with Arri and OConnor camera plates, it features a fine adjustment for a tight secure fit, even if the plate is worn from use. Counterbalance is accomplished with an 18-step selector dial and a high/low range lever for rapid, yet fine-tuned, repeatable setups. Horizontal and vertical drag is governed by a similar 7-step (plus zero) indexed selector system in conjunction with Sachtler's patented leak-proof frictionless cartridges, which carry a separate five-year warranty. A tilt safety lock guarantees the integrity of the payload until it is secured, and caliper disk brakes ensure reliable pan and tilt fixing during operation with a quick flip of a short-throw lever.When shooting a project with top-of-the-line production cameras and gear, you need a support system that provides secure and robust stability in all conditions. With the Cine 150 (Long), you get a tripod that is rated at an astonishing 309 lb. It safely supports the payload utilizing reliable, time-proven aluminum alloy metallurgy with dual 35mm leg tubes. Oversized rotary stage clamps ensure easy height adjustments while wearing gloves, and the die-cast 150mm receiver accepts most cine/EFP fluid heads. Used in conjunction with the included 7023 Cine ground-level spreader, payload integrity is assured, and delicate floor surfaces are protected.The 3025 System 30 is covered by the standard Sachtler three-year warranty, as well as comprehensive worldwide voice and web-based tech support, complete with CAD drawings, manuals, and service bulletins. - Side-Loading Rapid Camera Mount
- Snap & Go side-loading mechanism gets heavy camera packages mounted quickly without compromising safety or sliding range, and is also compatible with Arri and OConnor camera plates
- 18-Step Counterbalance and 7-Step Drag
- For rapid setup and repeatable results
- Payload Range Selector
- Switch between the high and low counterbalance ranges with a flip of the front-mounted Payload Range Selector lever
- Caliper Disk Pan and Tilt Locks
- Similar to braking systems on trucks or trains, the default position is on, so in case of a system failure, the head will be locked
- Illuminated Bubble Level
- The Touch Bubble is a self-illuminated spirit level activated through contact, and is powered by three PX625A cells
- Optional Assistant's Box Mount
- Using the optional Front Box Adapter, an assistant's box may be attached to the front of the head without impairing the tilt range
- Optional Eyepiece Extension Support Adapter
- Provides an anchor point for eyepiece extension rods on the left side of the head
- Heavy-Duty Leg Tubes
- Oversized aluminum alloy double leg tubes for absolute support integrity
- Rotary Clamps
- Extra-large rotary stage clamps for ease of use while wearing gloves
- Ground-Level Spreader
- Prevents tripod collapse while protecting delicate floor surfaces
In the Box Sachtler 3025 Cine 30 Tripod System 3006 Cine 30 HD Fluid Head fvaxstfbbwcxdzrxuyeezyvssasvdutyb 6290 Cine 150 (Long) 7023 Cine HD Spreader Heavy Duty Front Pan Bar Sideload Plate Limited 1-Year Warranty, Extendable to 2-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler 3025 Cine 30 Tripod System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler Cine Specs | | | Load Capacity | 77.2 lb (35 kg) | | Maximum Height | 77.7" (197.3 cm) | | Maximum Height w/o Column Extended | N/A | | Minimum Height | 41.9" (106.4 cm) | | Folded Length | 49" (124.5 cm) | | Leveling Bubble/Illuminated | Yes/yes | | Weight | 36.0 lb (16.3 kg) | | | | Counter Balance System | 18-Step plus boost | | Quick Release/Wedge Plate | Yes | | Balance Plate | Yes, with 150 mm of travel | | Tilt Drag | 7-Step plus zero | | Tilt Range | -75 to +90° | | Tilt Lock | Caliper brake | | Spring Loaded Counter Balance | 7-Step plus zero | | Pan Range | 360° | | Pan Lock | Caliper brake | | | | Material | Aluminum alloy | | Head Attachment Fitting | 150 mm | | Leg Stages | 1 | | Leg Sections | 2 | | Leg Lock Type | Rotary clamps | | Independent Leg Spread | Yes | | Spiked/Retractable Feet | Spiked | | Center Brace | Ground-level | | | | Package Weight | 57.1 lb | | Box Dimensions (LxWxH) | 42.5 x 26.8 x 14.2" |
