User Manual for Sachtler 4188 75 2D Two-Stage Aluminum Tripod with 7011 Spreader and Foot Kit Click to enlarge the picture
Contents of the user manual for the Sachtler 4188 75 2D Two-Stage Aluminum
- Product category: Tripod Legs Sachtler
- Brand: Sachtler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sachtler Tripod Legs
 |
User manual for the Sachtler 4188 75 2D Two-Stage Aluminum contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sachtler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!
|

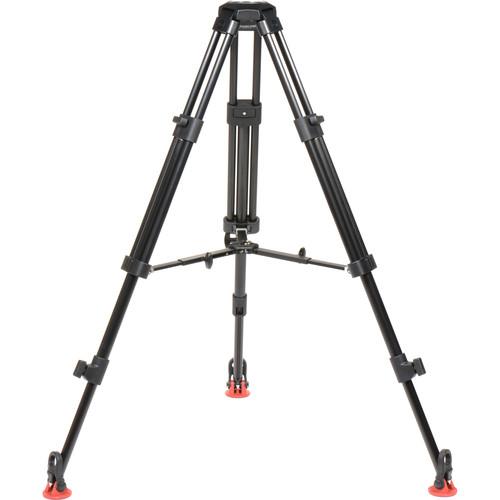

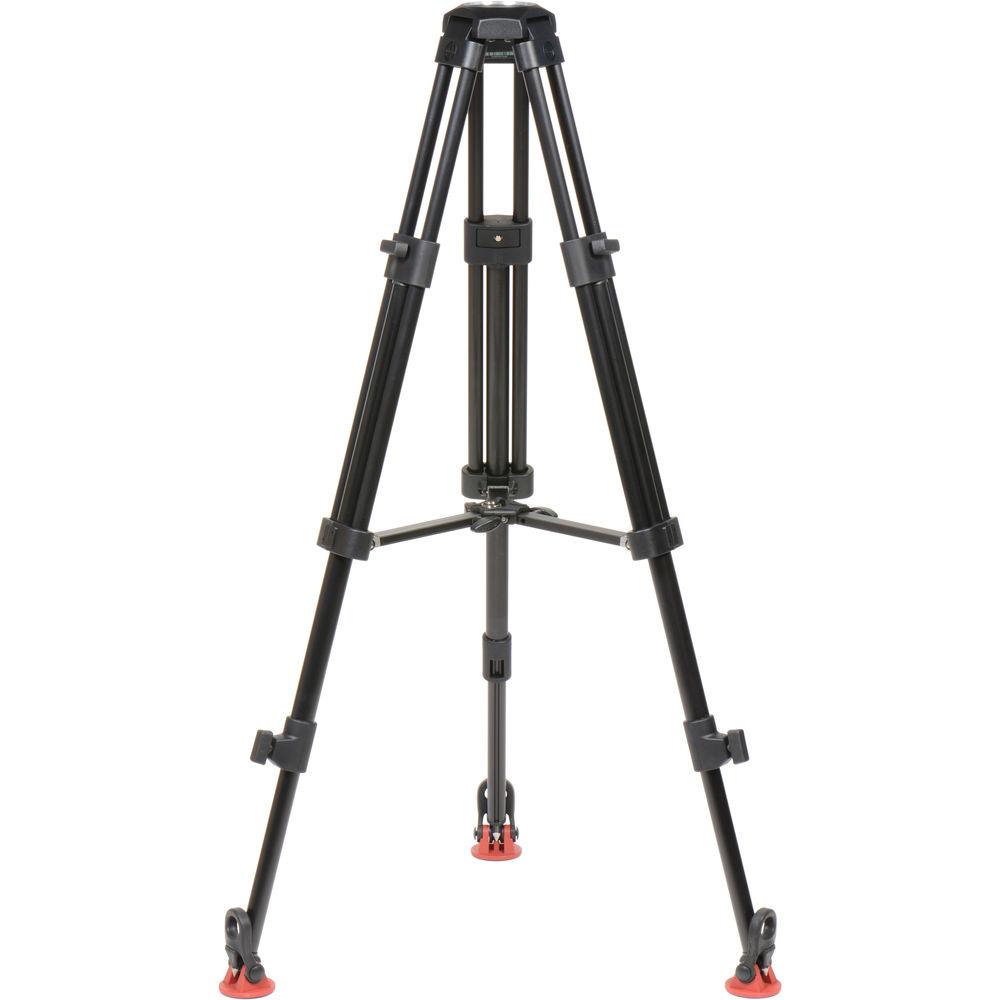

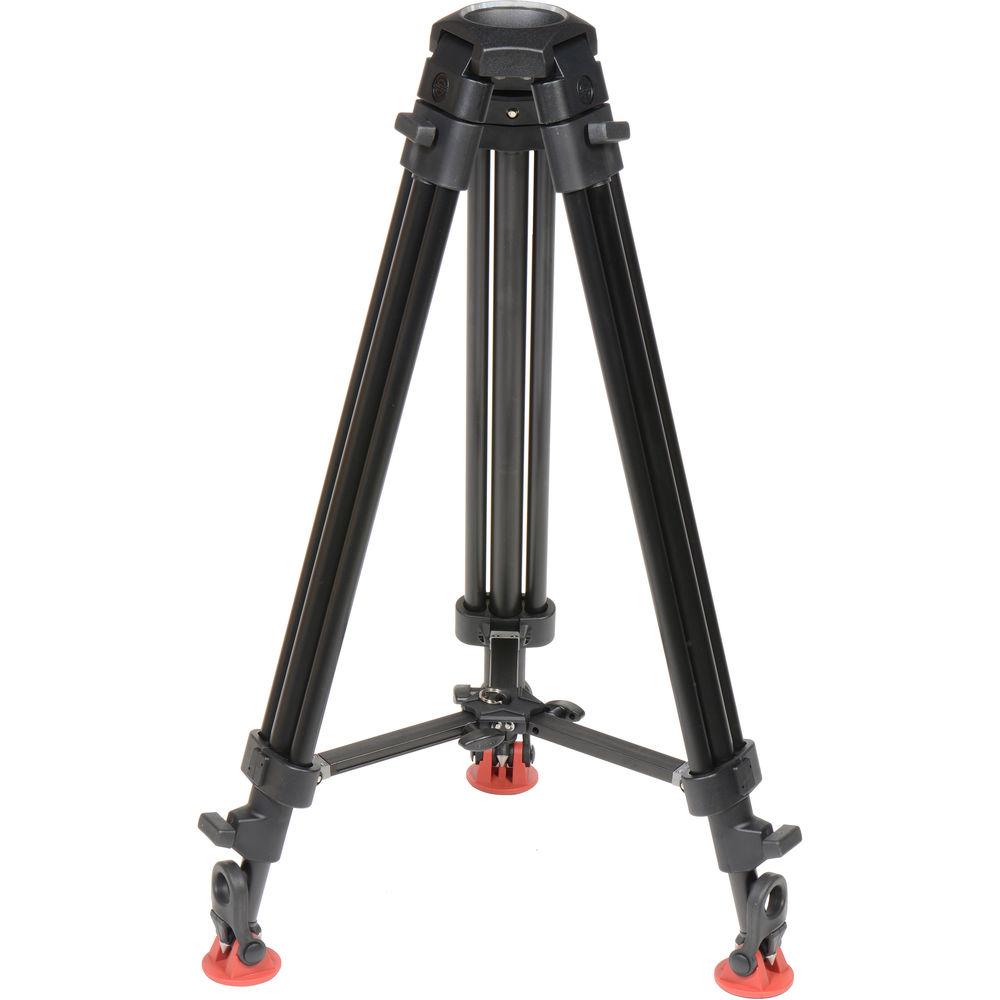

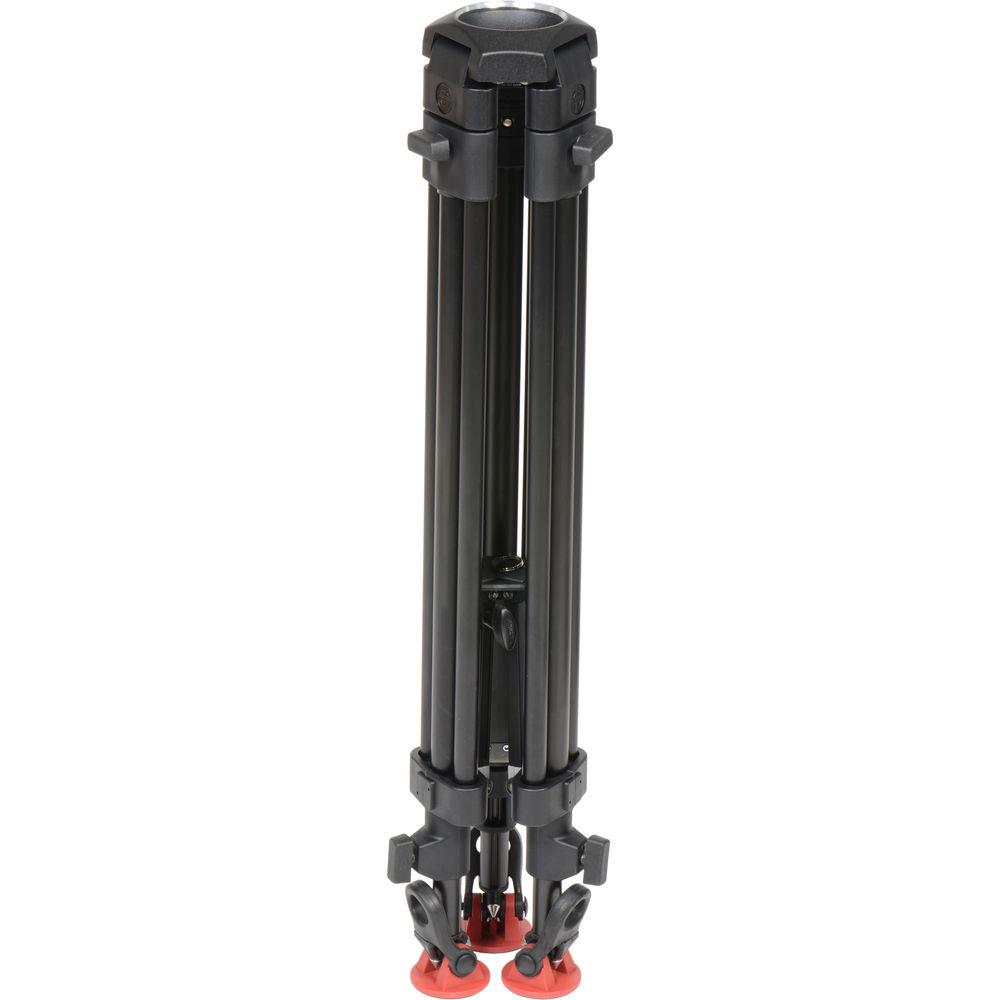

Product description The SST10P1600 Tripod and Spreader Kit from Sachtler includes a 4188 75/2D two-stage aluminum tripod and a 7011 spreader and foot kit. The compact ENG 75/2D tripod is suitable for modern camcorders and video-enabled DSLR cameras. For use with the included tripod, the kit comes with 7011 spreader and foot kit. The spreader, along with the rubber feet, allows you to set the required angle and footprint of the tripod legs to provide stability to the camera. - 4188 DA 75/2D 2-Stage Aluminum Tripod The Sachtler 4188 two stage aluminum tripod is targeted for ultralight DV camcorders with its proven Touch & Go system enabling fast changeovers from the tripod to the shoulder within a matter of seconds. Dural aluminum, an alloy employed in the manufacture of aircraft landing gear, is used for the leg tubes and ensures great strength and reliability at a lower cost than carbon fiber. For shooting on hard surfaces, or interiors, the tripod legs accept available ground level or mid-level spreaders,
- Quick Clamping System
- Locks tripod legs in seconds
- Dural Aluminum Construction
- 16mm (0.63") tube diameter
- Mid-Level Spreader 75 with Rubber Foot Set Unlike a ground spreader, the Mid-Level Spreader 75 with Rubber Foot Set from Sachtler enables you to set your tripod's legs at individual heights. This adjustable spreader is especially useful when positioning the tripod on surfaces of varying heights, including stairs and other stepped platforms. Fasten the included rubber feet (set of three) over the tripod's leg spikes to provide secure footing on flat surfaces. The Mid-Level Spreader 75 is compatible with all Sachtler 75mm tripods except Flowtech, SOOM, Ace M MS 1001 and Ace L TT 1013 systems, and ENG 75/2 D HD.
Features - Compatible with 75mm Sachtler tripods except Flowtech, SOOM, Ace M MS 1001 and Ace L TT 1013 systems, and ENG 75/2 D HD
- Suitable for flat or varying-height surfaces; enables tripod legs to be set at individual heights
- The included set of three rubber feet fasten over the tripod's leg spikes, providing secure footing on flat surfaces
In the Box Bundle Items 4188 DA 75/2D 2-Stage Aluminum Tripod trqxwctfbqytuyuxtczxbwzqry - Limited 1-Year Warranty, Extendable to 2-Years with Product Registration
Mid-Level Spreader 75 with Rubber Foot Set - Limited 1-Year Warranty, Extendable to 2-Year with Registration
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler 4188 75 2D Two-Stage Aluminum Tripod with 7011 Spreader and Foot Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4188 DA 75/2D 2-Stage Aluminum Tripod
| | | Head Mount Type | 75 mm Bowl | | Load Capacity | 44.1 lb / 20 kg | | Maximum Working Height | 57.9" / 147 cm | | Minimum Working Height | 13.2" / 33.5 cm | | Folded Length | 25.6" / 65 cm | | Materials | Aluminum | | Weight | 4.9 lb / 2.2 kg | | | | Leg Lock Type | Rotating Locking Lever | | Independent Leg Spread | Yes | | Leg Sections | 3 | | Feet Features | Spiked | | | | Box Dimensions (LxWxH) | 30.4 x 6.9 x 3.2" | - Mid-Level Spreader 75 with Rubber Foot Set
| Range | 5.9-9.8" (15-25 cm) | | Weight | 1.1 lb (0.5 kg) | | | | Box Dimensions (LxWxH) | 6.4 x 6.35 x 6.25" |
