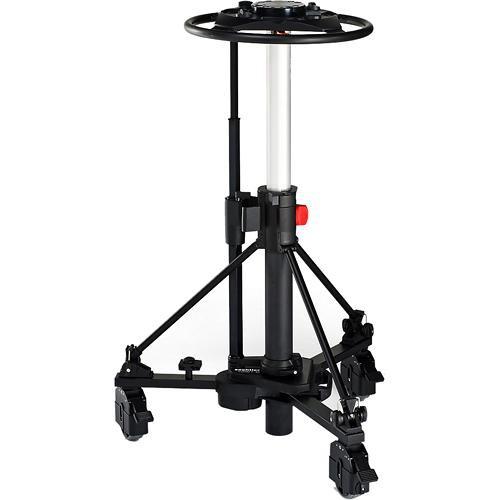

User Manual for Sachtler 5199 Combi Pedestal 1-40 Click to enlarge the picture
Contents of the user manual for the Sachtler 5199 Combi Pedestal 1-40
- Product category: Pedestals Sachtler
- Brand: Sachtler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sachtler Pedestals
|
User manual for the Sachtler 5199 Combi Pedestal 1-40 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sachtler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!
|
Product description The Sachtler 5199 Combi Pedestal 1-40 is a pedestal designed for EFP and OB portable usage. It features smooth height adjustment, column brakes, transport latch and an included air pump. - Quick Set-Up
- This pedestal offers tool free set-up utilizing eccentric clamps
- Column Brake
- The column brake locks the column at any height
- Crab Steering
- Crab steering is offered for optimum movement and maneuvering
- Air Pressure
- An air gauge offers pressure monitoring and this unit comes with a hand air pump for pressure input and a relief valve to pressure down
In the Box Sachtler 5199 Combi Pedestal 1-40 Trim Weight Kit Pedestal Limited 1-Year Warranty, Extendable to 2-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler 5199 Combi Pedestal 1-40 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler Combi Pedestal 1-40 Specs | | | Load Capacity | 88.2 lbs
40kg | | Trim Ring | Yes, provided | | Bowl Diameter/Thread | Flat Base | | Steering Ring Diameter | Not Specified by Manufacturer | | Folded/Transport Length | 31.1"
79cm | | Minimum Height | 31.1"
79cm | | Maximum Height | 52.4"
133cm | | Weight | 54 lbs
24.6kg | | | | Stages | 1 | | On-Shot Stroke | 21.3"
54cm | | | | Doorway Tracking Width | 27.5"
70cm | | Transit Doorway Width | Not Specified by Manufacturer | | Narrow Doorway Width | Not Specified by Manufacturer | | Wheel Diameter | 5"
12.5cm | | Wheel Lock | Yes | | Cable Guards | Yes | | | | Package Weight | 72.0 lb | | Box Dimensions (LxWxH) | 34.0 x 27.0 x 20.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 03 owners. Add your rating and experience with the product.
