User Manual for Sachtler Ace Baseplate Click to enlarge the picture
Contents of the user manual for the Sachtler Ace Baseplate
- Product category: Camcorder Supports & Rigs Sachtler
- Brand: Sachtler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sachtler Camcorder Supports & Rigs
|
User manual for the Sachtler Ace Baseplate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sachtler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!
|

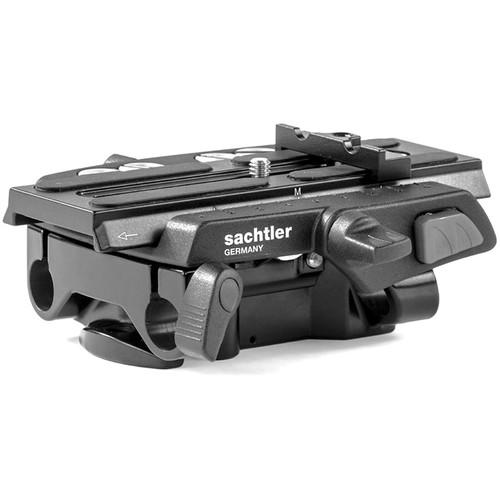

Product description The Sachtler Ace Baseplate is a height-adjustable camera baseplate featuring 15mm rod support and 1/4"-20 and 3/8"-16 tripod mount threads on the bottom. You can attach two 15mm rods, sold separately, to support a follow focus or matte box. One lever secures both rods in place at once. Height is adjustable from 1.9" to 2.8" by simply loosening another lever and lifting the top portion of the baseplate.
A quick release camera plate, anti-twist stop, and spare mounting screws are included with the baseplate. The anti-twist stop attaches on top of the quick release plate using one of the spare mounting screws to prevent your camera from turning, especially useful for DSLRs. It attaches positioned across at any point along the length of the quick release plate. The spare camera screws come recessed within slots on the top side of the baseplate. - Key Features
-
- Supports 15mm rods to accommodate a follow focus or matte box
- Height-adjustable from 1.9" to 2.8"
- Includes quick release camera plate, anti-twist stop, and spare mounting screws
In the Box Sachtler Ace Baseplate Quick Release Camera Plate Anti-Twist Stop Set of Mounting Screws 1-Year Limited Warranty Additional 1-Year Limited Warranty with Product Registration User Manual PDF 6.8mbcvqycdsyzfu Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler Ace Baseplate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler S2154-0001 Specs | Payload | 13.2 lb (6 kg) | | Height Range | 1.9" (4.8 cm) fully retracted
2.8" (7.2 cm) fully extended | | Weight | 1.3 lb (0.6 kg) | | | | Package Weight | 2.195 lb | | Box Dimensions (LxWxH) | 9.75 x 7.85 x 3.85" |
