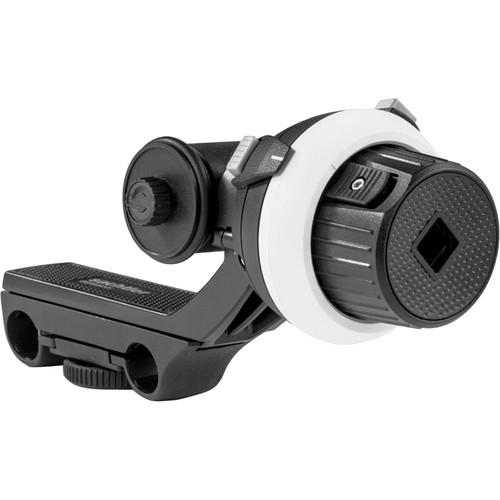

User Manual for Sachtler Ace Follow Focus Click to enlarge the picture
Contents of the user manual for the Sachtler Ace Follow Focus
- Product category: Follow Focus Systems Sachtler
- Brand: Sachtler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sachtler Follow Focus Systems
|
User manual for the Sachtler Ace Follow Focus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sachtler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!
|
Product description The Sachtler Ace Follow Focus is a backlash-free follow focus that's adjustable to support photo and video lenses of different makes and sizes. It features both a 0.8 Mod drive gear and a 35mm diameter friction wheel to accommodate lenses with and without gear rings. The drive gear and friction wheel are positioned on opposite sides of each other and can be swapped as necessary using an included Allen key. The direction of the gear mechanism is also reversible to support lenses with clockwise- and counterclockwise-moving focus rings.
The Ace Follow Focus features a 15mm rod clamp and can be mounted on either side of the lens. The follow focus bridge is adjustable horizontally so you can adjust to different size lenses. Two interchangeable marking discs are included that simply click into place when properly aligned on the handwheel, and they can easily be removed and replaced. Hard stops can be set using an easy to use hard stop slider button, especially useful for some modern photo lenses. The handwheel features a socket for an industry standard focus whip. - Key Features
-
- 15mm rod-mount, double-sided, backlash-free follow focus
- Features a 0.8 Mod drive gear and a 35mm diameter friction wheel
- Reversible gear mechanism
- Horizontally adjustable follow focus bridge
- Includes two interchangeable marking discs
- Hard stop slider button
- Standard focus whip socket
In the Box Sachtler Ace Follow Focus 2 x Marking Discs 0.8 Mod / 50 Tooth Drive Gear Friction Wheel (35mm Diameter) 3mm Allen Key 1-Year Limited Warranty Additional 1-Year Limited Warranty with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler Ace Follow Focus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler S2153-0001 Specs | Rod Support | 15 mm | | Lens Support | 39 - 128 mm diameter | | Friction Wheel | 0.8 Mod / 50 teeth 1.4" (35 mm) diameter | | Weight | 1 lb (0.45 kg) | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 9.3 x 7.4 x 3.9" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
