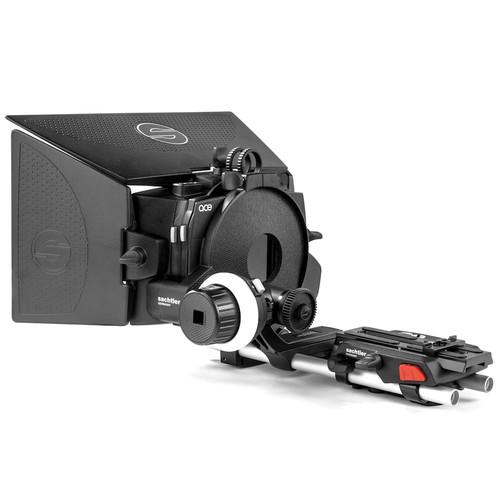

Product description The Sachtler Ace Follow Focus, Matte Box and Baseplate with 15mm Rods is a comprehensive kit supporting any camera and compatible with large and small diameter lenses. The baseplate features 15mm rods that are approximately 12" long, and the follow focus and matte box both attach on by 15mm rod mounts.

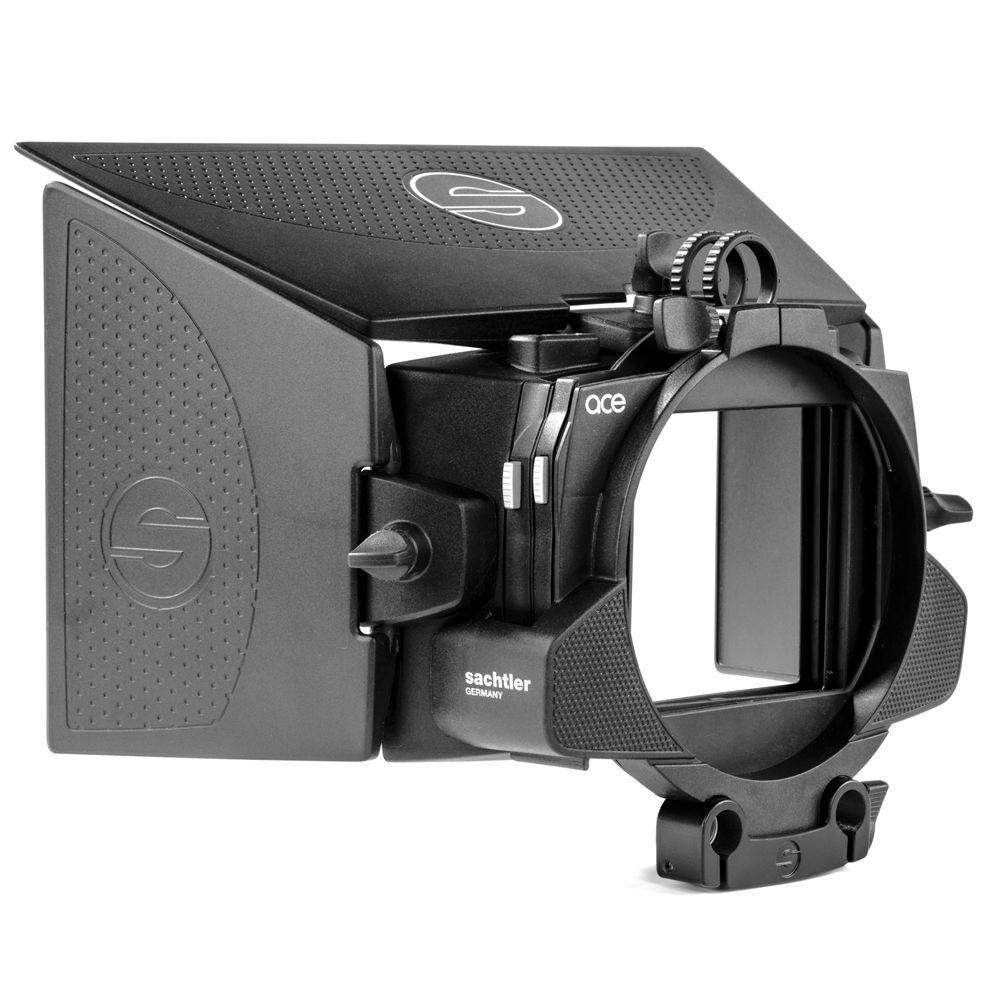

The matte box features a reversible rod bridge that allows support for most lenses sizes. The rod bridge can be screwed on right-side up or upside down to provide either 3.3" or 4.3" of distance between the center of the support rod to the center of the rear clamping interface. Once mounted, it secures with just a single lever. The matte box features two filter stages, one fixed and the rear one rotating up to 90° left or right. It includes adjustable top and side flags, two 4 x 4" and two 4 x 5.65" filter frames, and two different-sized neoprene rings. The flags gently clip on and fix into desired positions when you tighten each one's lever. The filter frames click into place as you insert them while holding a release button. The neoprene rings slide over your lenses to block out any light coming in through the back. They can be cut if necessary for larger lenses. Two small accessory bars are available on the top of the matte box, each featuring two 1/4"-20 threads for mounting articulating arms, lights, mics, and other accessories.

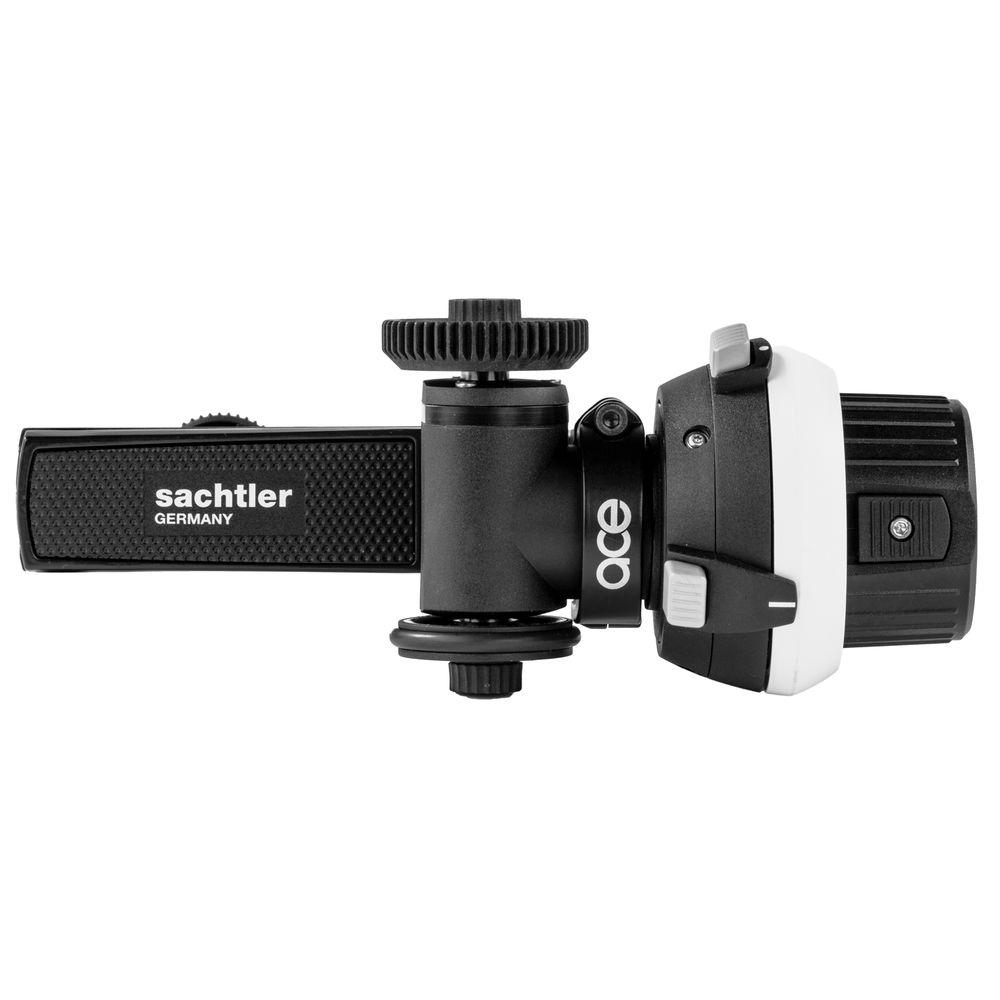

The follow focus is backlash-free and adjustable to support photo and video lenses of different makes and sizes. It features both a 0.8 Mod drive gear and a 35mm diameter friction wheel to accommodate lenses with and without gear rings. The drive gear and friction wheel are positioned on opposite sides of each other and can be swapped as necessary using an included Allen key. The direction of the gear mechanism is also reversible to support lenses with clockwise- and counterclockwise-moving focus rings. The follow focus can be mounted on either side of the lens, and the follow focus bridge is adjustable horizontally so you can adjust to different sized lenses. Two interchangeable marking discs are included that simply click into place when properly aligned on the handwheel, and they can easily be removed and replaced. Hard stops can be set using an easy to use hard stop slider button, especially useful for some modern photo lenses. The handwheel features a mount for an industry standard focus whip.

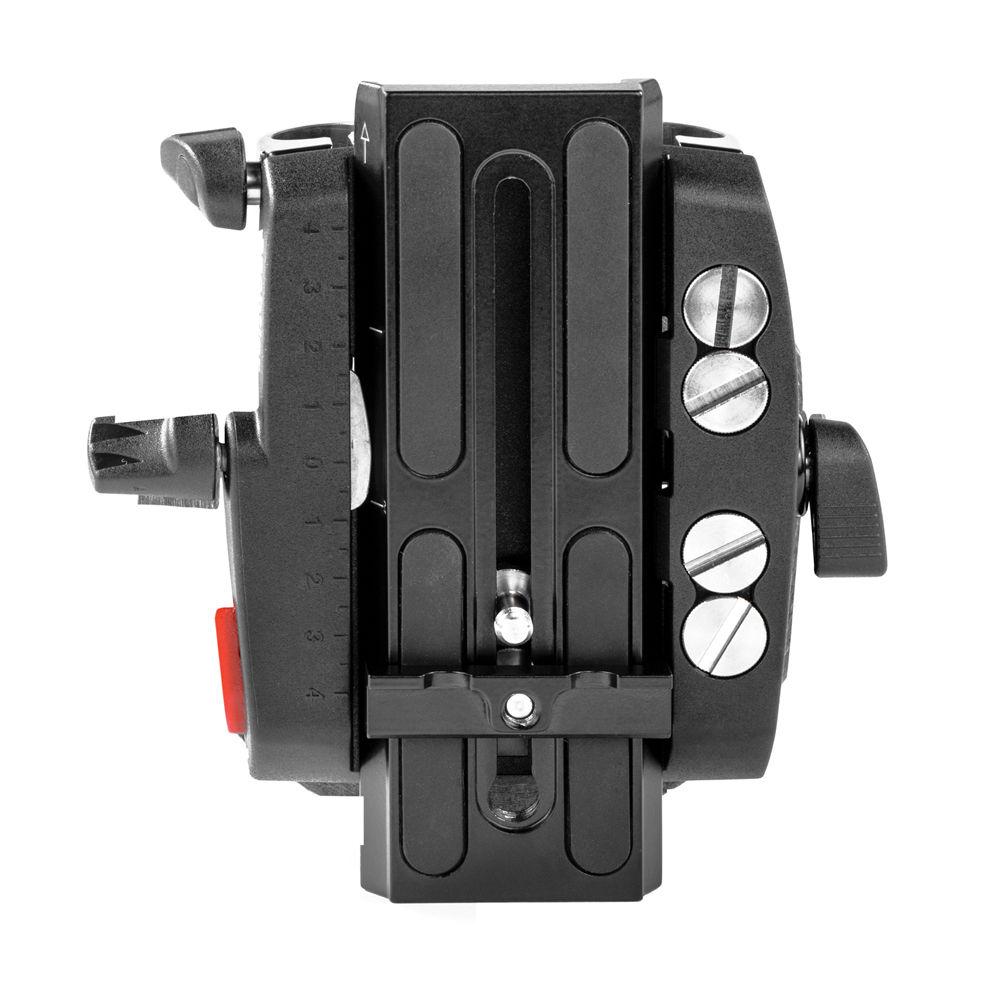

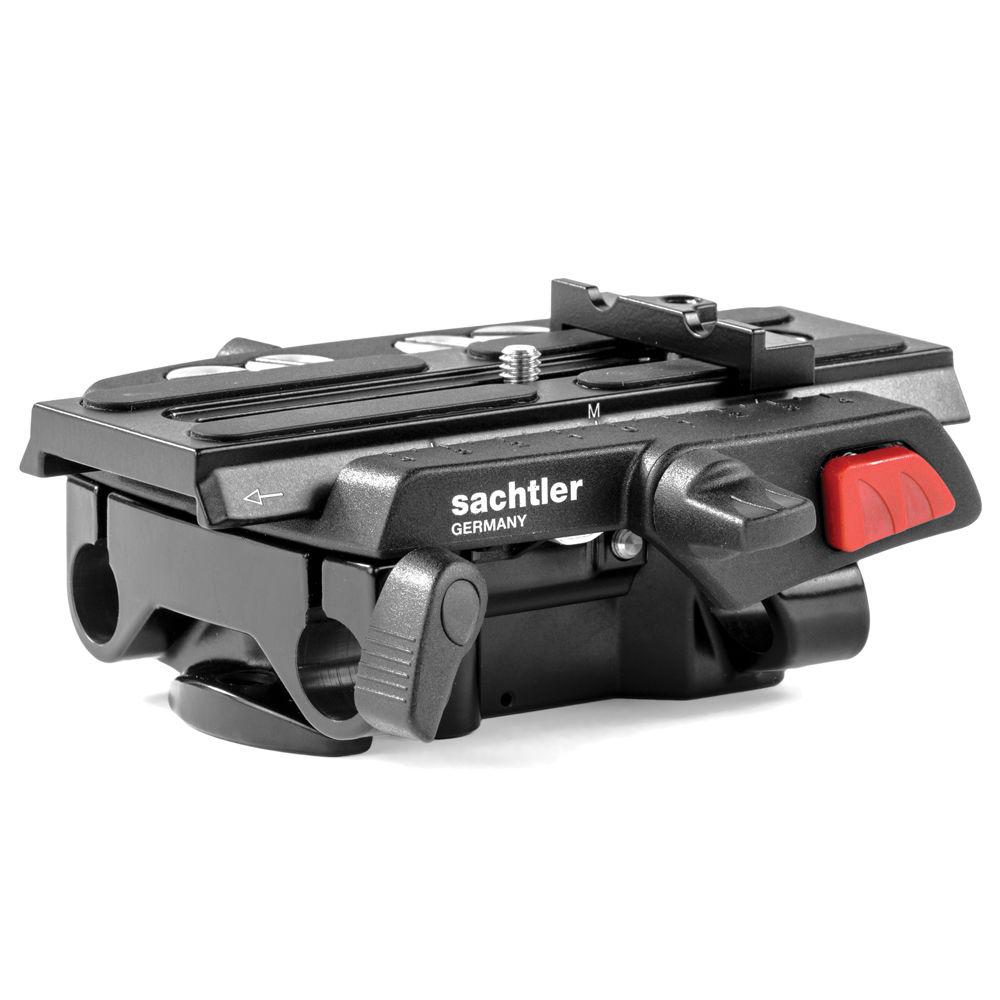

The baseplate is height adjustable and features 1/4"-20 and 3/8"-16 threads on the bottom for attachment to tripods. One lever secures both of the included 15mm rods in place at once. Height is adjustable from 1.9" to 2.8" by simply loosening another lever and lifting the top portion of the baseplate. A quick release camera plate, anti-twist stop, and spare mounting screws are also included. The anti-twist stop attaches on top of the quick release plate using one of the spare mounting screws to prevent your camera from turning, especially useful for DSLRs. It attaches positioned across at any point along the length of the quick release plate. The spare camera screws come recessed within slots on the top side of the baseplate. - Ace Matte Box
-
- Reversible 15mm rod bridge allows use with large and small lenses
- Rear clamping interface
- Two filter stages, one fixed one rotating
- Includes top and side flags, two 4 x 4" and two 4 x 5.65" filter frames, and two neoprene rings
- Two small accessory bars, each featuring two 1/4"-20 accessory mounting threads
- Ace Follow Focus
-
- 15mm rod-mount, double-sided, backlash-free follow focus
- Features a 0.8 Mod drive gear and a 35mm diameter friction wheel
- Reversible gear mechanism
- Horizontally adjustable follow focus bridge
- Includes two interchangeable marking discs
- Hard stop slider button
- Standard focus whip mount
- Ace Baseplate
-
- Height-adjustable from 1.9" to 2.8"
- Includes quick release camera plate, anti-twist stop, and spare mounting screws
In the Box Sachtler Ace Follow Focus, Matte Box, and Baseplate with 15mm Rods Approx. 12" (30.5 cm) 15mm Rods 2 x 4 x 4" Filter Frames 2 x 4 x 5.65" Filter Frame Reversible 15mm Rod Bridge Adjustable Top Flag Adjustable Side Flags 2 x Neoprene Rings (Different Sizes) 2 x Marking Discs 0.8 Mod / 50 Tooth Drive Gear Friction Wheel (35mm Diameter) Quick Release Camera Plate Anti-Twist Stop Set of Mounting Screws Allen Key 1-Year Limited Warranty Additional 1-Year Limited Warranty with Product Registration Data Sheet PDF 3.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler Ace Follow Focus, Matte Box, and Baseplate with 15mm Rods in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler 1021 Specs | | | Rod Support | 15 mm | | Payload | 2.2 lb (1 kg) in accessories on each side | | Max Lens Diameter Supported | 143 mm | | Rod Bridge Height | Small diameter lens configuration: 3.3" (8.5 cm) (center of support rod to center of rear clamping interface)
Large diameter lens configuration: 4.3" (10.9 cm) (center of support rod to center of rear clamping interface) | | Weight | 2 lb (0.9 kg) | | | | Rod Support | 15 mm (2x approx. 12" / 30.5 cm 15 mm rods included) | | Lens Support | 39 - 128 mm diameter | | Friction Wheel | 0.8 Mod / 50 teeth 1.4" (35 mm) diameter | | Weight | 1 lb (0.45 kg) | | | | Payload | 13.2 lb (6 kg) | | Height Range | 1.9" (4.8 cm) fully retracted
2.8" (7.2 cm) fully extended | | Weight | 1.3 lb (0.6 kg) | | | | Package Weight | 11.4 lb | | Box Dimensions (LxWxH) | 16.378 x 12.598 x 10.709" |
