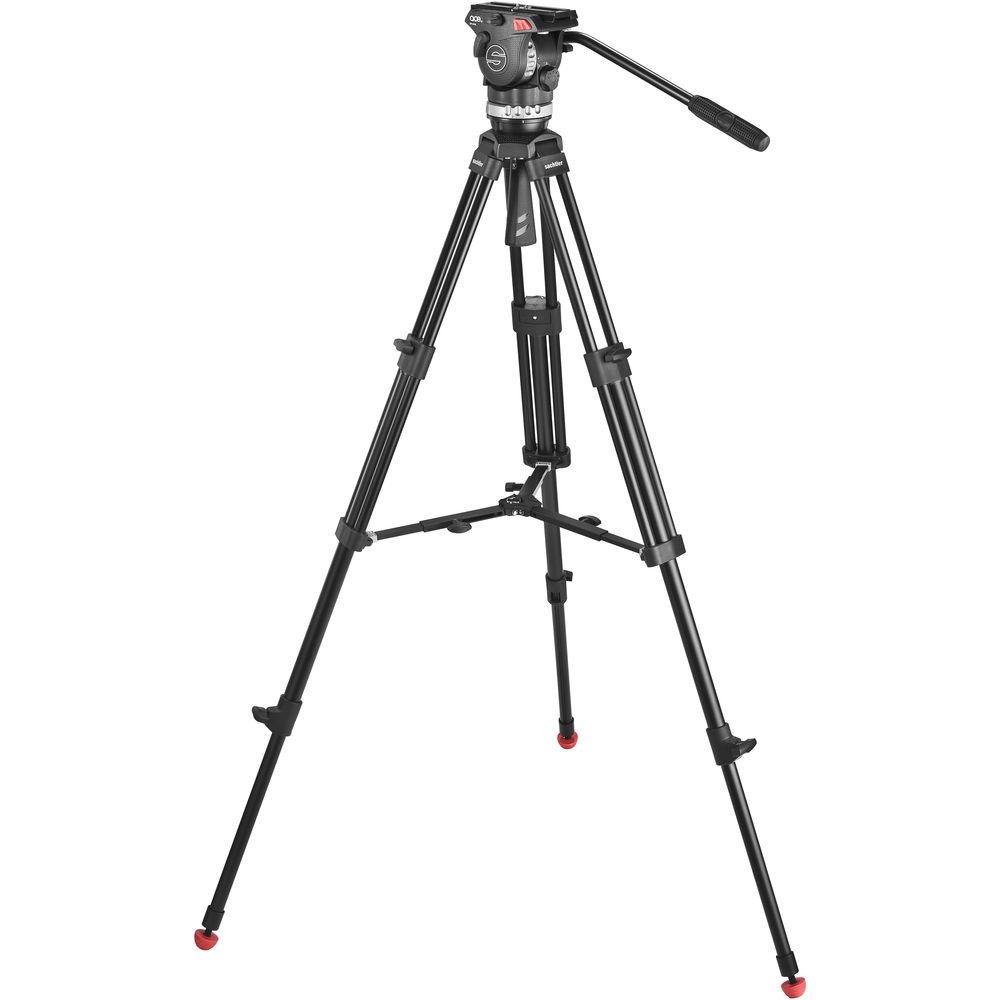

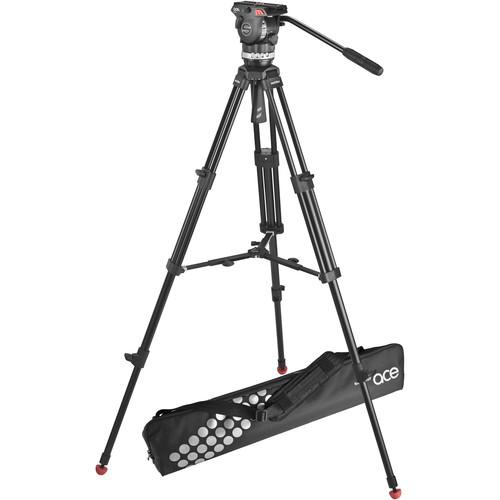

Product description Sachtler Ace Tripods Offer Videographers Professional Performance at an Entry-Level Price Read More razqtefauqeyrywdteabdzbb The Sachtler Ace M Fluid Head with 2-Stage Aluminum Tripod & Mid-Level Spreader is a full tripod system for videographers who use HDSLR cameras and smaller camcorders. Whether you're doing documentaries, ENG, weddings, corporate videos, or any other type of projects with a smaller camera, the Ace M system matches your needs, enabling broadcast-style performance with lightweight components. With its light weight, compact size, and mid-level spreader, this system is perfect for projects that involve multiple setup changes on unpredictable surfaces. With a payload up to 8.8 lb, the Ace M fluid head features five steps of counterbalance as well as a plate that features a 4.1" range of adjustment, so you can balance your small camera to a very precise degree. Designed by Sachtler engineers for the Ace fluid head system, the SA drag system enables smooth, precise panning and tilting via the head's pan bar, with three grades of drag in both the horizontal and vertical dimensions, plus the option of zero drag. The head's tilt range is +90° to -75°. The tripod mounts the head via its 75mm bowl. With the Ace M head attached, the two-stage aluminum model reaches a maximum height of 66.5" for a comfortable working height for almost all users. Also included is a mid-level which adds to the stability of the system on any surface, indoors or out. - SA Drag for Perfect Performance
- For the Ace fluid head system, Sachtler engineers developed a patented drag, SA (synchronized actuated) drag, which guarantees accuracy and repeatability at a remarkable price. With three vertical and three horizontal grades of drag, SA drag enables fine adjustments for precise panning and tilting. Damping can also be completely deactivated
- Lightweight Material
- Weighing just 3.7 lb on its own, the Ace M head is composed of a glass fiber-reinforced composite material, which keeps the head especially light and offers a comfortable, non-slip surface feel. The head enables camera operators to work extremely intuitively and professionally – and with the system's light weight and compact size, operators will want to take Ace on the go
- Familiar Sachtler Features
- The Ace M head reflects Sachtler's 50 years of developing camera support products, which is evident in such practical features as the Ace M camera plate's parking position for spare camera screws and the long 4.1" sliding range. The plate comes with a 1/4"-20 screw and a video pin
- Broadcast Feel for Smaller Cameras
- With its payload range of 0-8.8 lb, the Ace M fluid head and legs are ideal for smaller HD & HDV camcorders as well as HDSLR cameras. The five-step counterbalance makes it easy to achieve proper balance quickly

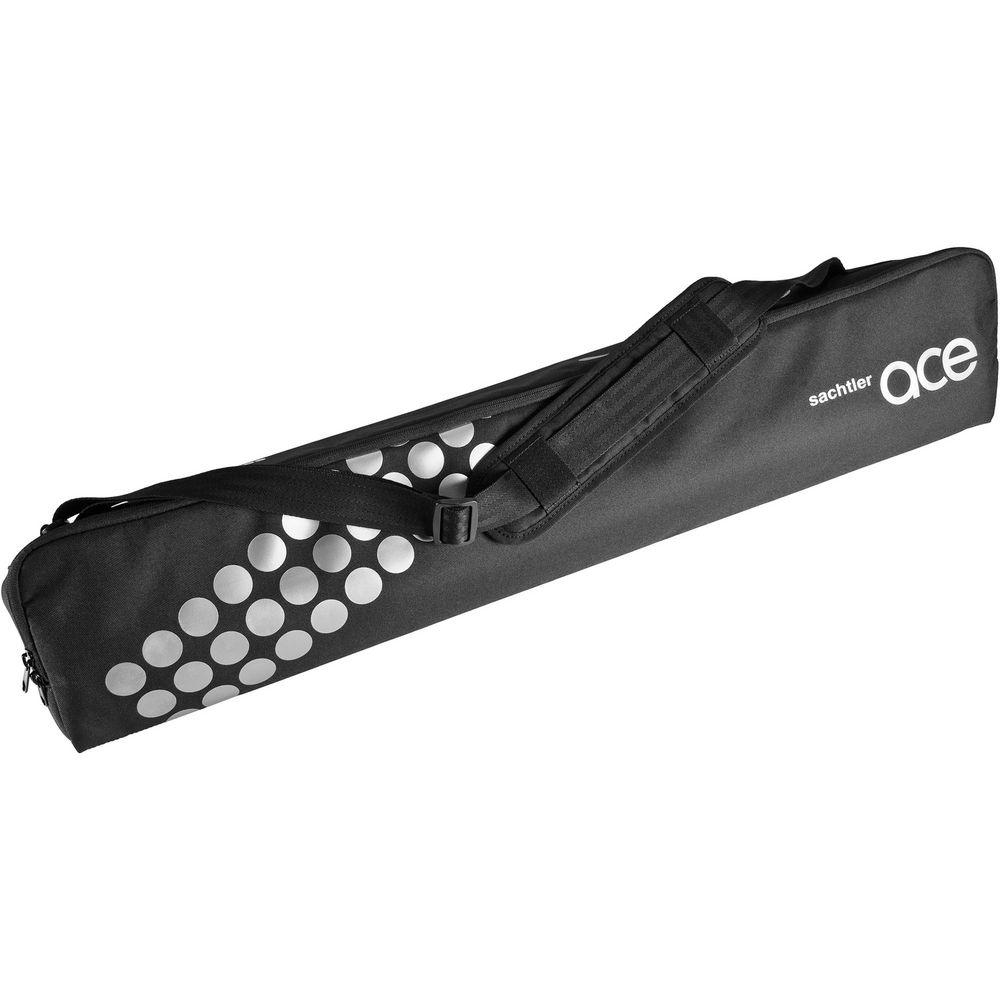

UPC: 440001506949 In the Box Sachtler Ace M Fluid Head with 2-Stage Aluminum Tripod & Mid-Level Spreader Ace Mid-Level Spreader Ace Camera Mounting Plate Ace Bag for Tripods (Black) Pan Bar for Ace Tripods Limited 1-Year Warranty, Extendable to 2-Years with Product Registration User Manual PDF 6.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler Ace M Fluid Head with 2-Stage Aluminum Tripod & Mid-Level Spreader in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler 1001 Specs | | | Load Capacity | 8.8 lb (4 kg) | | Maximum Height | 66.5" (169 cm) | | Maximum Height w/o Column Extended | N/A | | Minimum Height | 30.7" (78 cm) | | Folded Length | 33.5" (85 cm) | | Leveling Bubble/Illuminated | Yes/no | | Weight | 9.7 lb (4.4 kg) | | | | Counter Balance System | 5-step | | Quick Release/Wedge Plate | Yes | | Balance Plate | 4.1" (10.4 cm) range of adjustment | | Tilt Drag | 3 grades each in horizontal and vertical, plus zero | | Tilt Range | +90° / -75° | | Tilt Lock | Not specified by manufacturer | | Spring Loaded Counter Balance | In 5 steps | | Pan Range | Not specified by manufacturer | | Pan Lock | Not specified by manufacturer | | | | Material | Aluminum | | Head Attachment Fitting | 75mm bowl | | Leg Stages/Sections | 2/3 | | Leg Lock Type | Thumb screws | | Independent Leg Spread | Yes, without spreader attached | | Spiked/Retractable Feet | Yes/yes | | Center Brace | Mid-level spreader | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | | | Package Weight | 12.9 lb | | Box Dimensions (LxWxH) | 36.0 x 8.0 x 7.0" |
