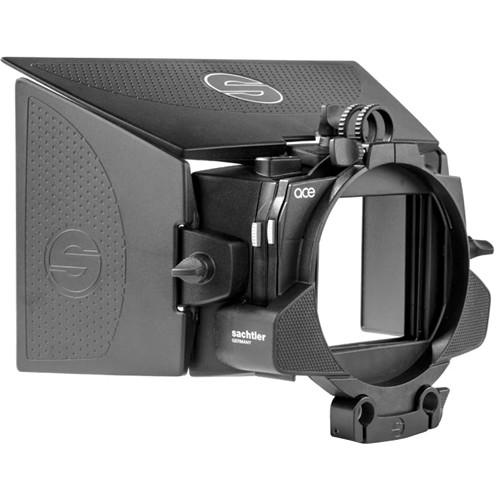

User Manual for Sachtler Ace Matte Box - Open Box Click to enlarge the picture
Contents of the user manual for the Sachtler Ace Matte Box - Open
- Product category: Matte Boxes & Sunshades Sachtler
- Brand: Sachtler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sachtler Matte Boxes & Sunshades
|
User manual for the Sachtler Ace Matte Box - Open contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sachtler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!
|
Product description The Sachtler Ace Matte Box features a reversible 15mm rod bridge that allows you to mount the matte box on rigs with both large and small diameter lenses. The rod bridge can be screwed on right-side up or upside-down to provide either 3.3 or 4.3" of distance between the center of the support rod to the center of the rear clamping interface. Once mounted, it secures with just a single lever.
The Ace Matte Box features two filter stages, one fixed and the rear one rotating up to 90° left or right. Included are adjustable top and side flags, two 4 x 4" and two 4 x 5.65" filter frames, and two different-sized neoprene rings. The flags gently clip on and fix into desired positions when you tighten each one's lever. The filter frames click into place as you insert them while holding a release button. The neoprene rings slide over your lenses to block out any light coming in through the back. They can be cut if necessary for larger lenses.
Two small accessory bars are available on the top of the matte box, each featuring two 1/4"-20 threads for mounting articulating arms, lights, mics, and other accessories. - Key Features
-
- 15mm rod mount matte box for reducing/preventing glare and lens flare
- Reversible 15mm rod bridge allows use with large and small lenses
- Rear clamping interface
- Two filter stages: one fixed, one rotating
- Includes top and side flags, two 4 x 4" and two 4 x 5.65" filter frames, and two neoprene rings
- Two small accessory bars, each featuring two 1/4"-20 accessory mounting threads
In the Box Sachtler Ace Matte Box 2 x 4 x 4" Filter Frame 2 x 4 x 5.65" Filter Frame Reversible 15mm Rod Bridge Adjustable Top Flag Adjustable Side Flag 2 x Neoprene Ring (Different Sizes) Allen Key Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler Ace Matte Box - Open Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler S2152-0001 Specs | Rod Support | 15 mm | | Payload | 2.2 lb / 1 kg in accessories on each side | | Max Lens Diameter Supported | 143mm | | Rod Bridge Height | Small Diameter Lens Configuration: 3.3" / 8.5 cm (center of support rod to center of rear clamping interface)
Large Diameter Lens Configuration: 4.3" / 10.9 cm (center of support rod to center of rear clamping interface) | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 4.85 lb | | Box Dimensions (LxWxH) | 14.646 x 9.291 x 6.221" |
Rating74% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
