User Manual for Sachtler Ace XL Fluid Head Click to enlarge the picture
Contents of the user manual for the Sachtler Ace XL Fluid Head
- Product category: Video Tripod Heads Sachtler
- Brand: Sachtler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sachtler Video Tripod Heads
 |
User manual for the Sachtler Ace XL Fluid Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sachtler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!
|

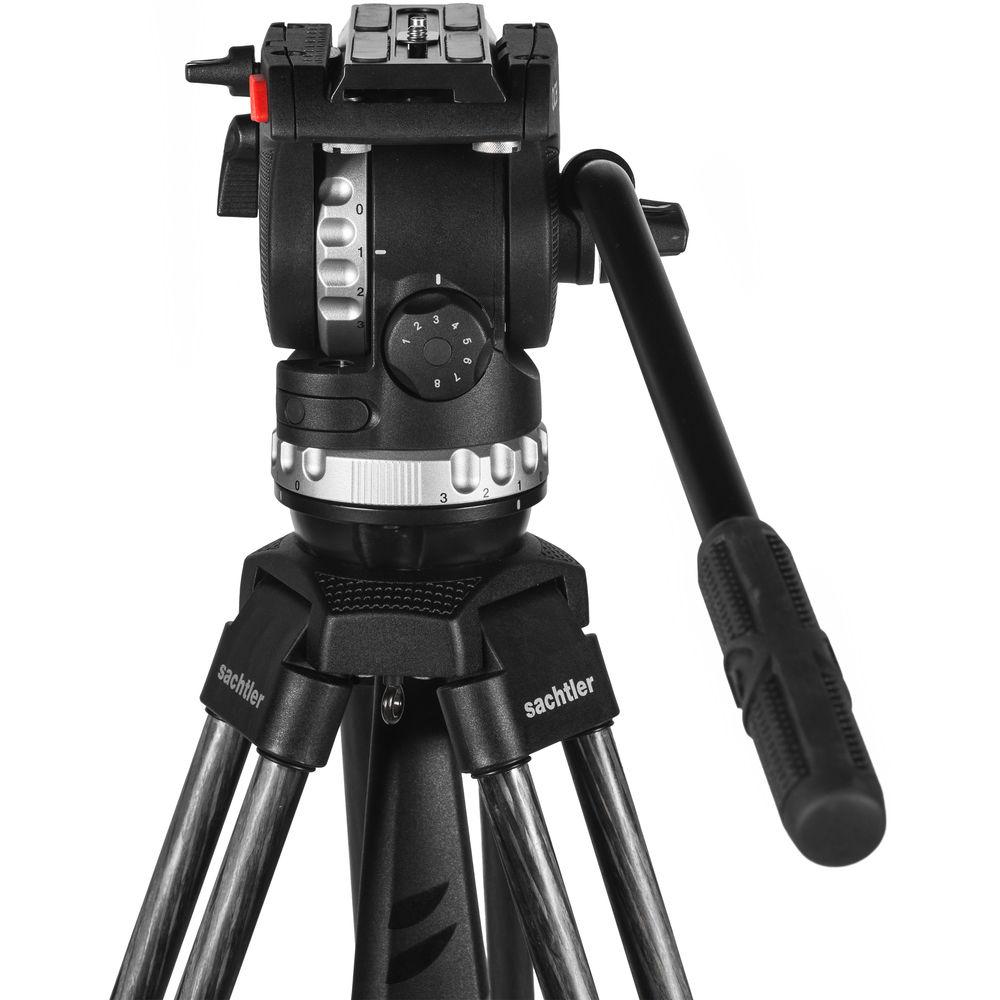

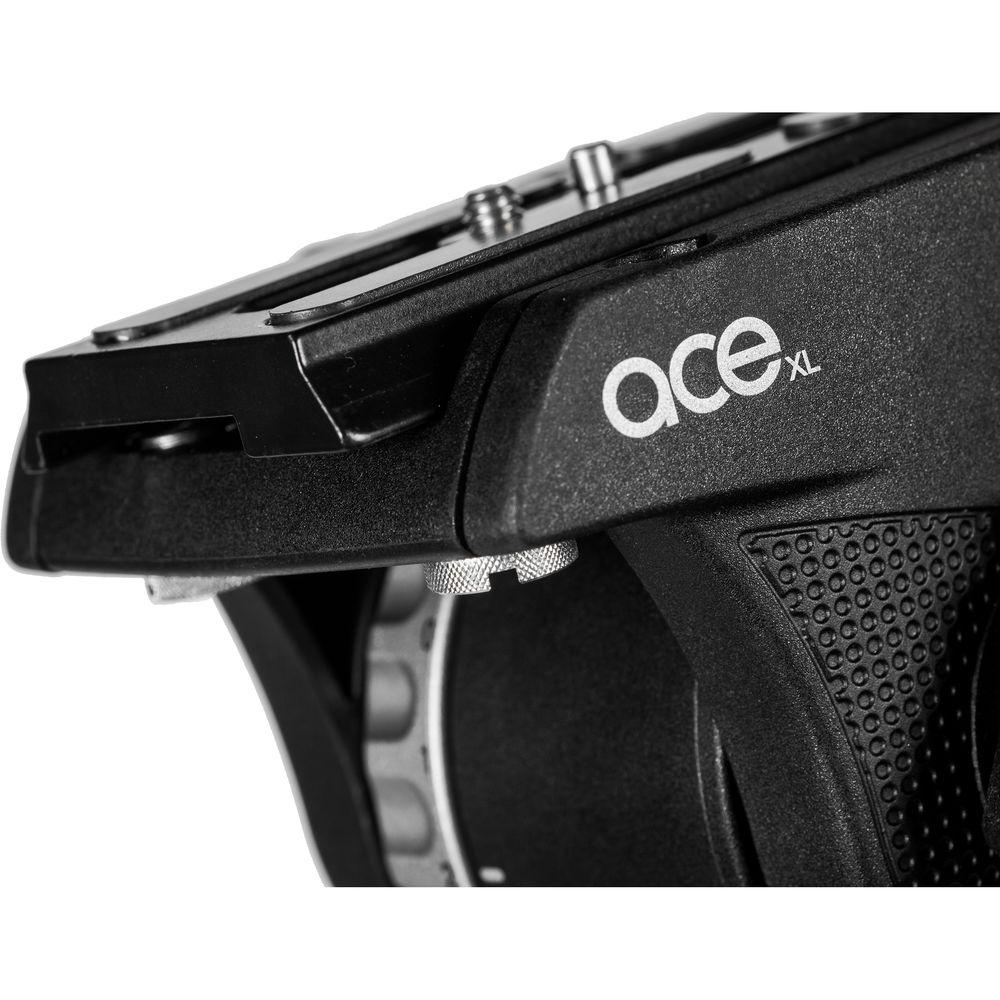

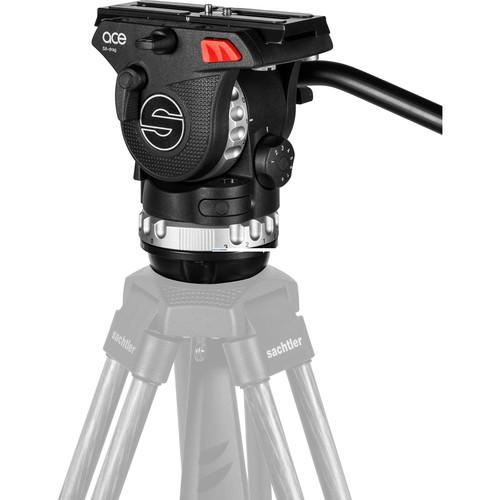

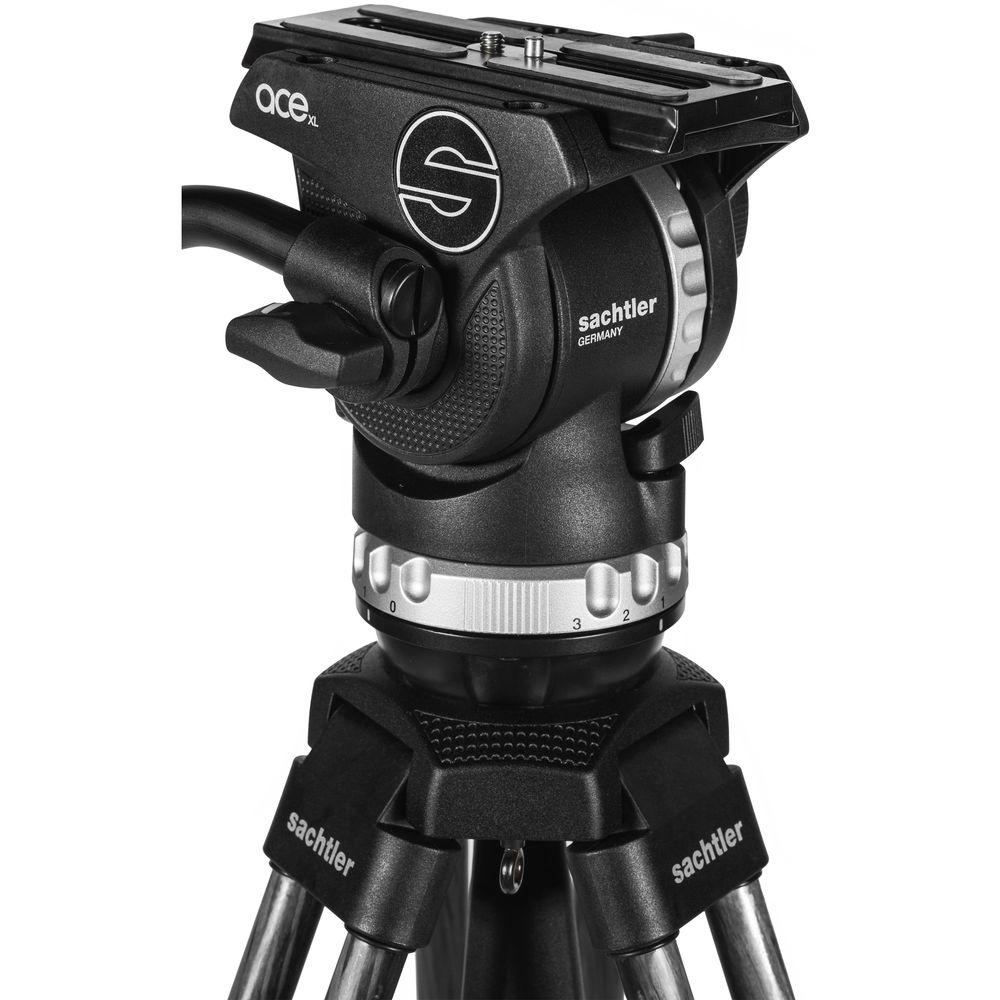

Product description The Sachtler Ace XL Fluid Head (75mm Bowl) is designed for digital cine-style cameras, supporting rigs weighing up to 17.6 pounds. This fluid head is suitable for larger DSLR and mirrorless MFT cameras, as well as pro-style cameras such as the Blackmagic URSA Mini/Pro, Canon C200/C300 Mk II, Sony FS series, and the Panasonic EVA1. The Ace XL fluid head features eight steps of counterbalance and three steps of pan and tilt drag adjustment, plus a zero drag option for pan and tilt. Mount your camera using the Ace XL Fluid Head's slide-in balancing plate with 1/4-20" screw and locating pin. With a sliding range of 4.1" this head can adapt to variously configured rigs. Additional features include a detachable, right-side pan bar and an illuminated bubble level. With an integrated flat head base, the Ace XL can be configured for shooting with a slider. Compatible Cameras - Including but Not Limited To:
Blackmagic URSA Mini/Mini Pro
Canon C200/C300 Mk II
Sony FS series
Panasonic EVA1 Ace XL Fluid Head Features - Fluid head with 17-pound capacity suited for larger DSLR and mirrorless MFT cameras, and for pro-style digital cine cameras
- Eight steps of counterbalance; three steps of pan and drag plus zero settings for disengaging the pan and tilt tension
- 75mm ball-based head has an integrated flat bottom useful for mounting to sliders, etc.
- Additional features include a four-inch sliding plate range, 1/4"-20 camera screw, right-side pan bar and illuminated bubble level
In the Box Sachtler Ace XL Fluid Head (75mm Bowl) Sideload Plate S/Ace Tripod QR Plate xcrzeuwweuuaaqzrzaaretvfarce Pan Bar for Ace Tripods Limited 1-Year Warranty, Extendable to 2-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler Ace XL Fluid Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler Ace XL Specs | | | Camera Plate Features | Sliding Balance Plate | | Balance Plate Sliding Range | 4.1" / 10.4 cm | | | | Base Mount | 75 mm Half Ball | | | | Drag Control | 3-Step Plus 0 | | Vertical Tilt | +90
Rating76% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
