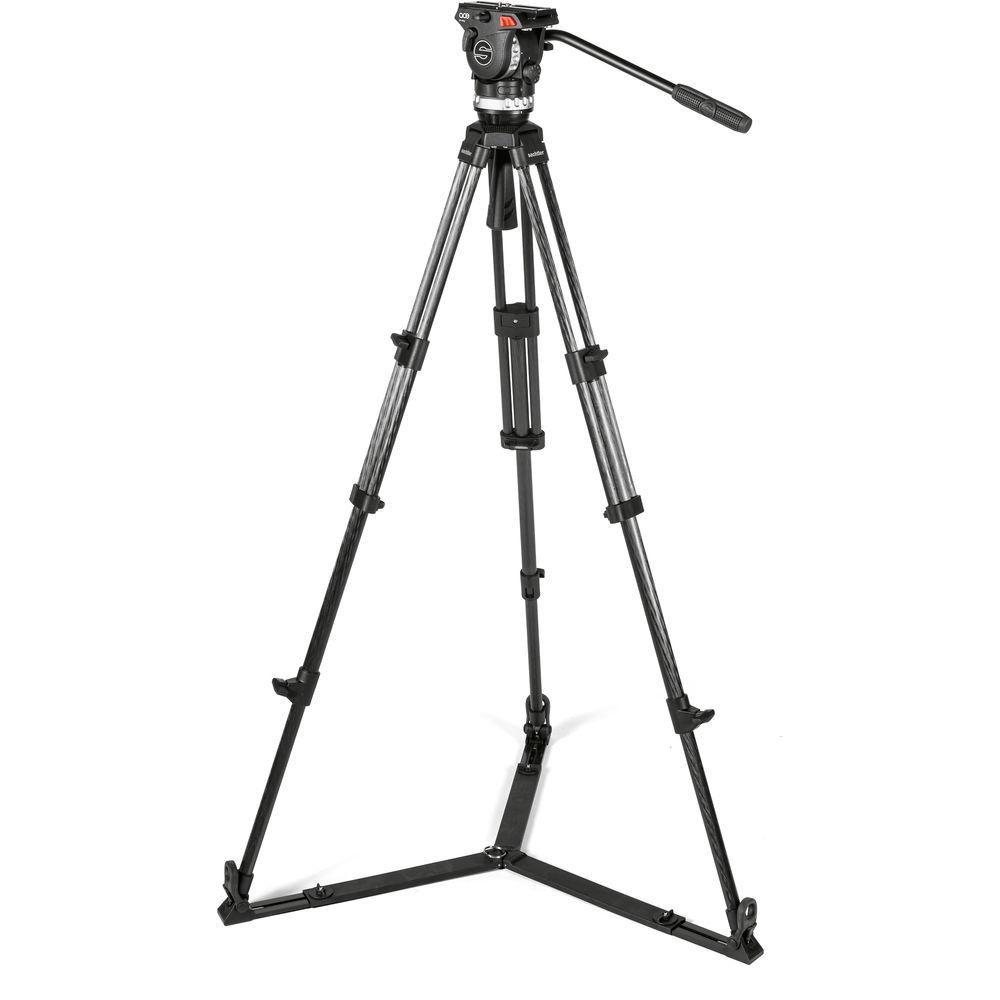

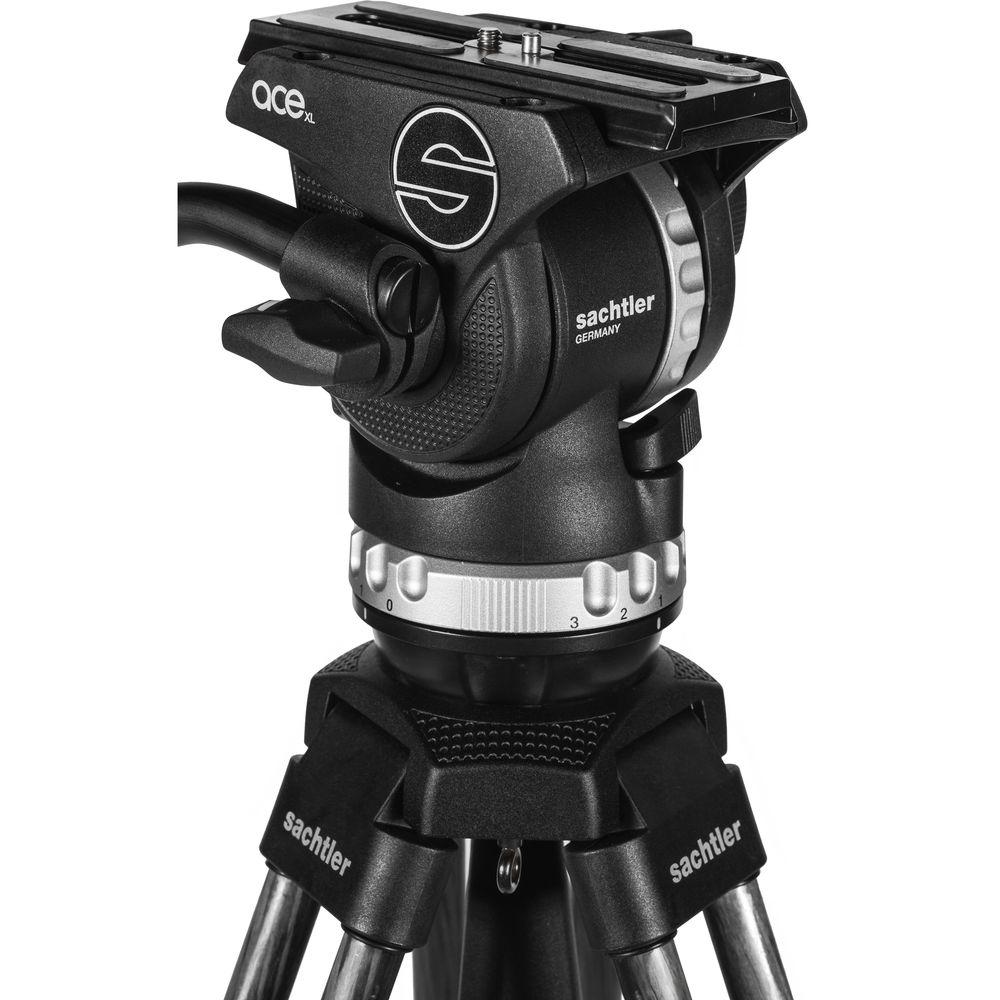

Product description Sachtlers Ace In The Hole: Announcing The New Sachlter Ace XL Tripod Systems Read More The Sachtler Ace XL Tripod System with 75mm bowl combines the Ace XL fluid head with carbon fiber legs and a ground spreader. Designed for digital cine-style cameras, the Ace XL supports rigs weighing up to 17.6 pounds. This system is suitable for larger DSLR and mirrorless MFT cameras, as well as pro-style cameras such as the Blackmagic URSA Mini, Canon C200/C300 Mk II, Sony FS7, and the Panasonic EVA1.The Ace XL fluid head features eight steps of counterbalance and three steps of pan and tilt drag adjustment, plus a zero drag option for pan and tilt. Cameras are mounted using the slide-in balancing plate. With a sliding range of 4.1", this head can adapt to variously-configured rigs. Additional features include a detachable right-side pan bar and an illuminated bubble level. With an integrated flat head base, the Ace XL can be configured for shooting with a slider.This 75mm bowl-based combo has a 22 to 68" height range for capturing low and high shots. Its ground spreader aids in quickly setting the tripod up on level ground, and can be removed when working on an uneven surface. When the rubber spreader is removed, it exposes dual spikes for extra stability outdoors. When you've completed shooting, collapse the Ace XL Tripod System to its 34" folded length and pack it into the included padded case. Compatible Cameras - Including but not limited to:
Blackmagic URSA Mini/Mini Pro
Canon C200/C300 Mk II
Sony FS series

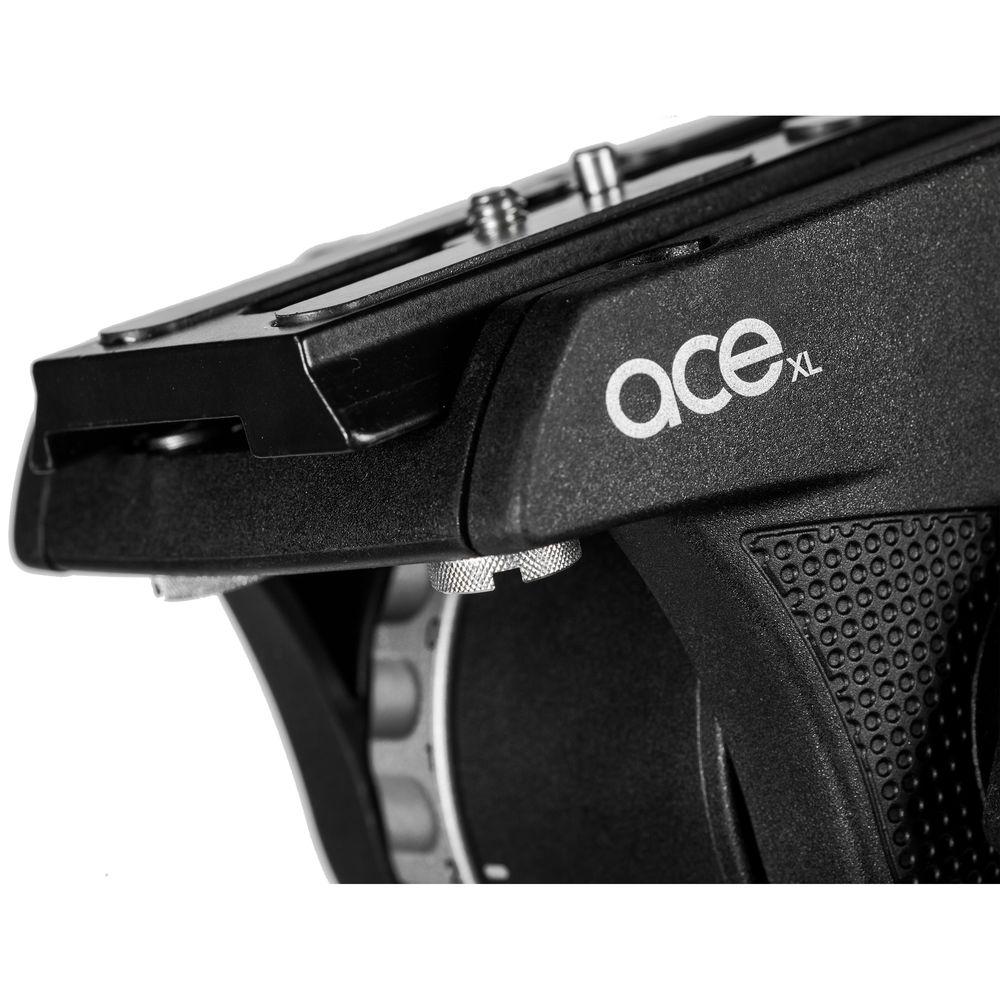

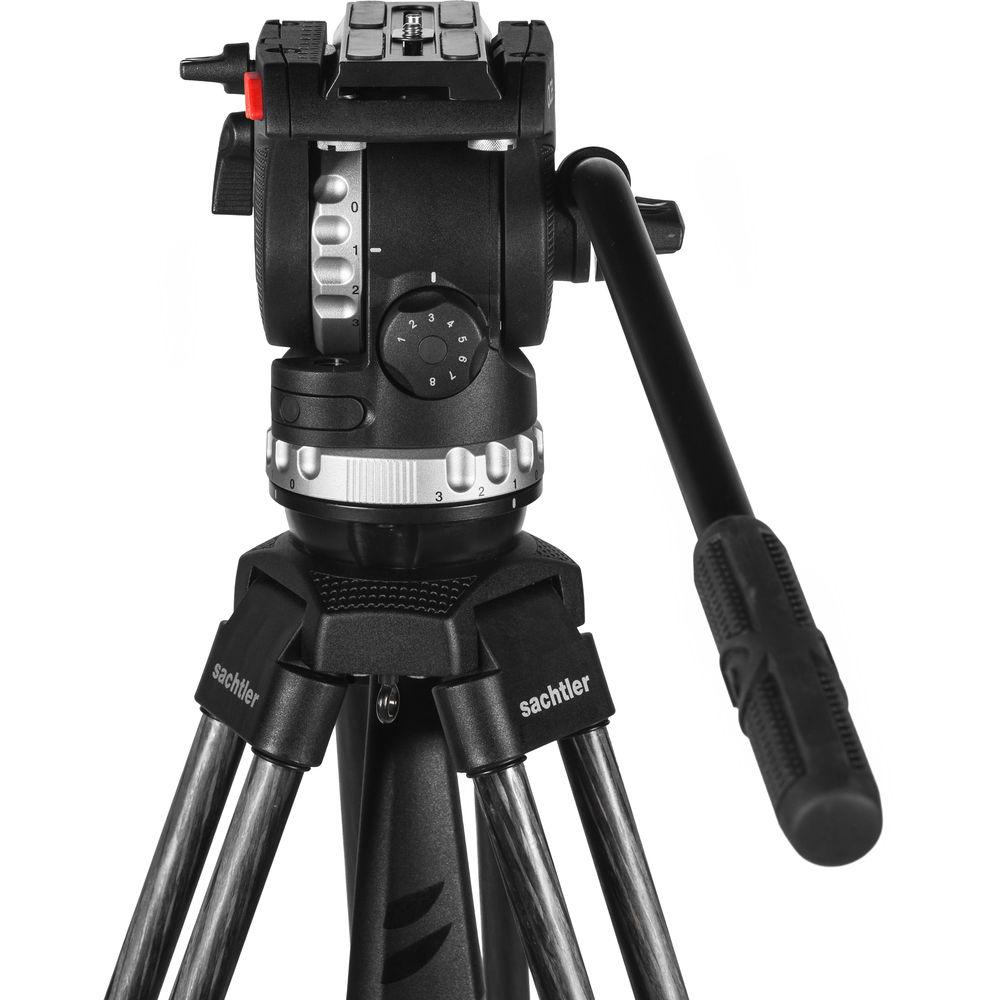

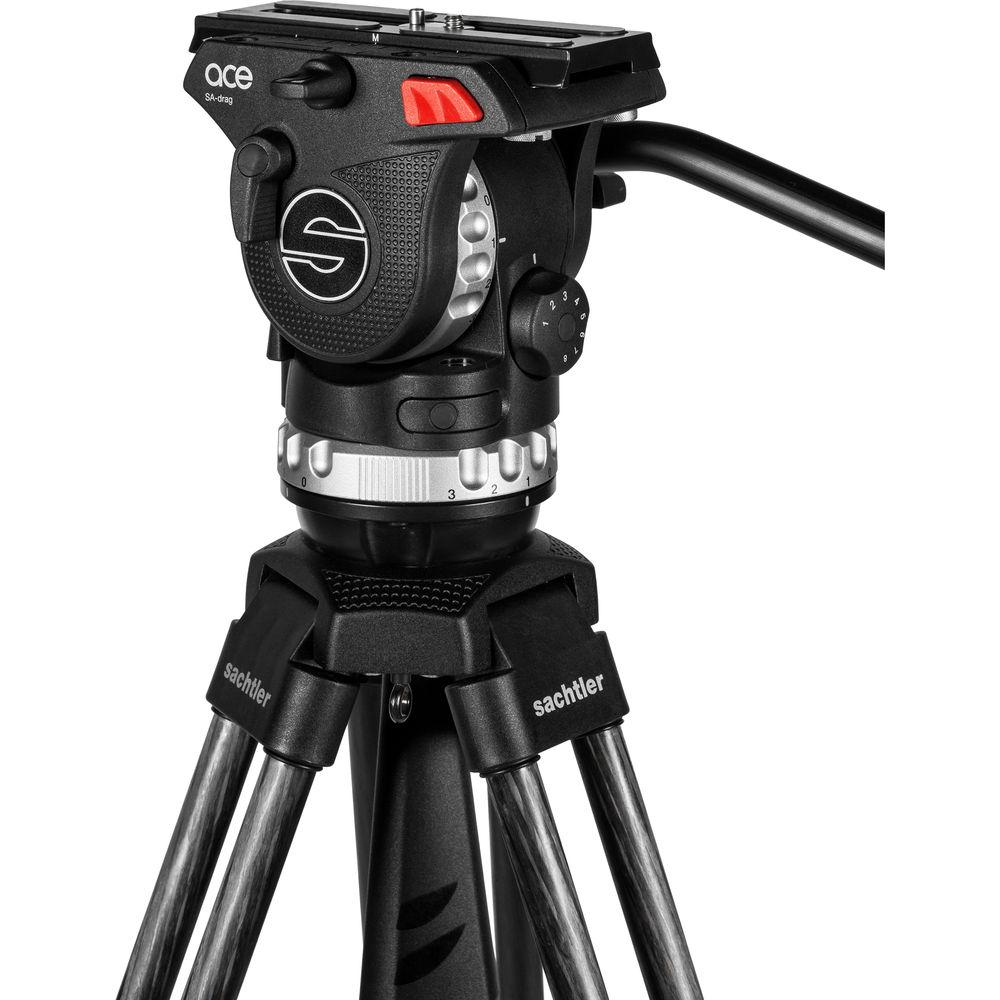

Panasonic EVA1 Ace XL Fluid Head Features - Fluid head with 17-pound capacity is suited for larger DSLR and mirrorless MFT cameras, and for pro-style digital cine cameras
- Eight steps of counterbalance; three steps of pan and drag plus zero settings for disengaging the pan and tilt tension
- 75mm ball-based head has an integrated flat bottom useful for mounting to sliders, etc.

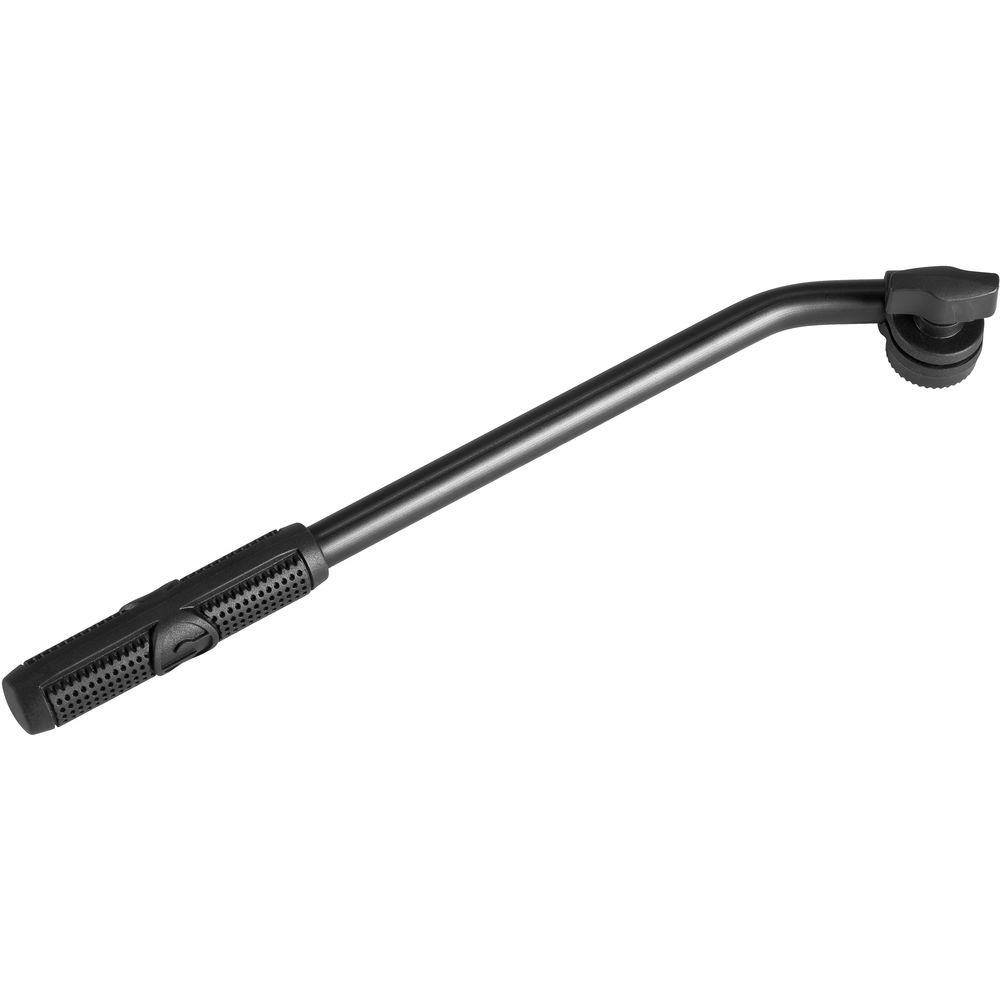

- Additional features include a four-inch sliding plate range, 1/4"-20 camera screw, right-side pan bar, and illuminated bubble level
Ace 75/2 CF Tripod Features - Lightweight, two-stage carbon fiber tripod weighs approximately five pounds
- Wide height range extends from 22 to 68" (with head attached)
- Three-section legs end in dual spikes; the rubber ground spreader provides additional stability on flat surfaces

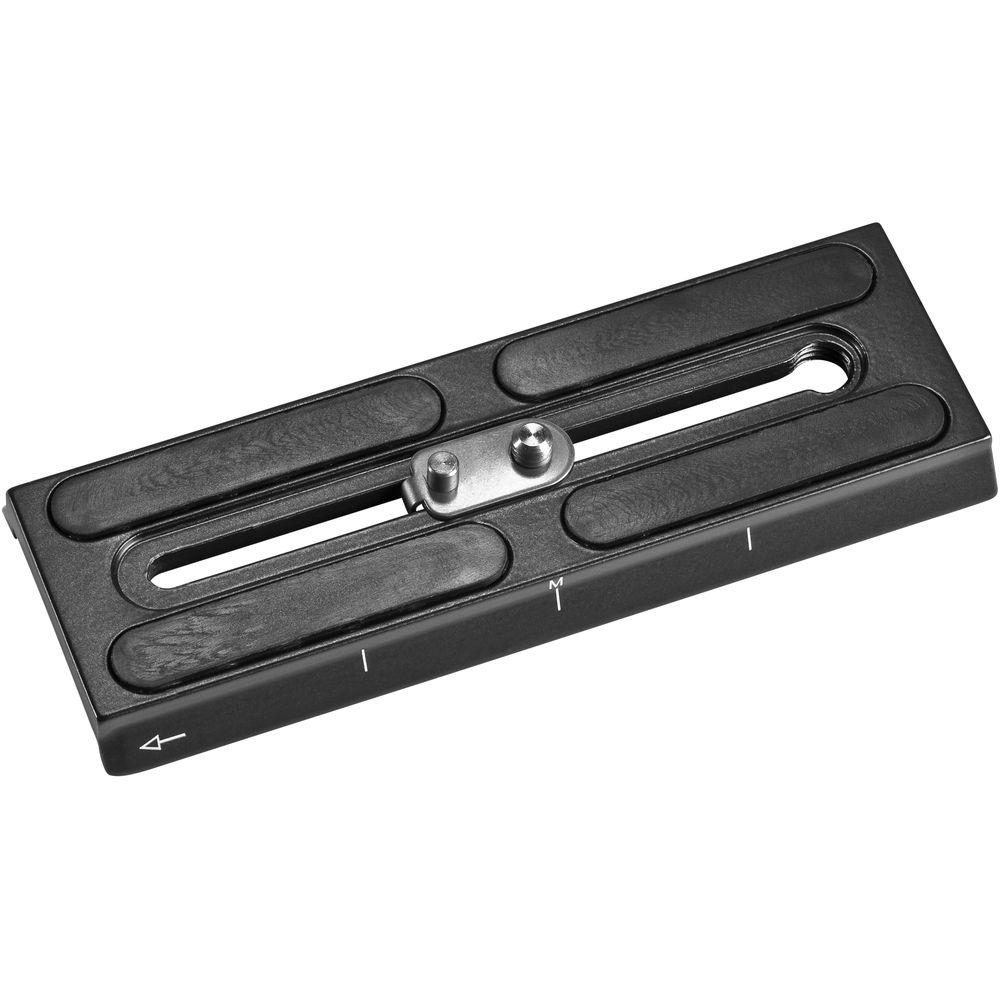

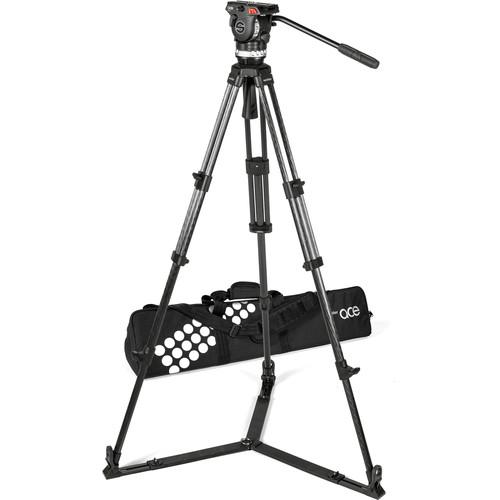

In the Box Sachtler Ace XL Tripod System with CF Legs & Ground Spreader (75mm Bowl) Ace 75/2 Carbon Fiber Tripod Spreader SP 75 Ground Tripod Spreader svwruxucusrydf Sideload Plate S/Ace Tripod QR Plate Pan Bar for Ace Tripods Padded Bag Limited 1-Year Warranty, Extendable to 2-Years with Product Registration User Manual PDF 1.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler Ace XL Tripod System with CF Legs & Ground Spreader in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler Ace XL Specs | Payload Capacity | Fluid Head: 4.4 to 17.6 lb (2 to 8 kg)
Tripod: 44 lb (20 kg), with appropriate head | | Height Range | Tripod: 22 to 68" (56 to 173 cm) | | Folded Length | Complete System: 34" (86 cm) | | Counterbalance | 8 steps | | Pan / Tilt Drag | 3 steps + zero | | Sliding Balance Plate Travel | 4.1" (10.4 cm) | | Tilt Range | +90 to -75° | | Head Attachment Fitting | 75 mm bowl, integrated flat base | | Leveling Bubble | Illuminated | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Material of Construction | Fluid Head: Aluminum
Tripod: Carbon fiber
Spreader: Rubber | | Weight | Complete System: 9 lb (4.1 kg)
Fluid Head: 3.7 lb (1.7 kg)
Tripod: 5.3 (2.4 kg) | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 38.0 x 8.5 x 7.5" |
