Sachtler DV 12SB Carbon Fiber Tripod

Search your instruction manual in PDF to download

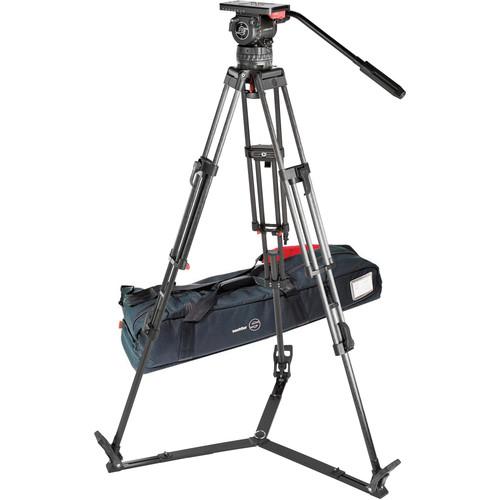

User Manual for Sachtler DV 12SB Carbon Fiber Tripod System

Click to enlarge the picture
Sachtler DV 12SB Carbon Fiber Tripod System Contents of the user manual for the Sachtler DV 12SB Carbon Fiber Tripod
  • Product category: Tripod Systems Sachtler
  • Brand: Sachtler
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Sachtler Tripod Systems

User manual for the Sachtler DV 12SB Carbon Fiber Tripod contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Sachtler product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!



Product description

The Sachtler DV 12SB Carbon Fiber Tripod System, which includes the DV 12SB fluid head, ENG 2 CF legs, SP 100 spreader and ENG 2 Case is the choice for the professional videographer utilizing heavy camcorders and demands the smoothest pan and tilt during his days work. The 12-step counterbalance system creates the perfect counterbalance of the camera whether using a light or a heavy lens.Among other features, it also offers five (5) steps of vertical and horizontal drag, as well as the Touch & Go quick release and automatic locking system for quick setup. It also includes the ENG 2CF Carbon Fiber Tripod, which is fitted with the Sachtler rotary clamping system for complete flexibility and ease of operation without any restrictions.

DV-12SB Fluid Head

    Frictionless Leak Proof Fluid Damping
  • Frictionless leak proof fluid damping with five level of drag, for perfect pictures while panning, without jerks and vibrations. Identical across both horizontal and vertical planes, and allows complete disengagement of drag for fast panning.
    Quick Release
  • Touch & Go Quick Release / Automatic Locking System, for quick set up without having to bother to screwing the camera to head and then having to unscrew it again. Also features a safety lock lever that prevents inadvertent disengagement of the camera latch.
    Sliding Balance Plate
  • Sliding camera mount and plate with a 2.8" sliding range, makes a fast balancing system for the camera and ensures perfect balance across the horizontal plane.
    Dynamic Counterbalancing System
  • 12-step dynamic counterbalancing system, compensates for torques as the camera tilts, preventing the camera from inadvertently tipping, and ensuring that it is positioned securely at any tilt angle. And can be can be activated and deactivated individually.
  • Safe at any temperature, operates without any frictions from -40 to +140°F
  • Vibrationless vertical / horizontal brakes
  • Built-in illuminated bubble for horizontal leveling

ENG 2CF Tripod

  • Dural carbon fiber construction with 16mm (0.63") tube diameter
  • 100mm / 4" bowl base
  • Double extension design
  • Maximum height of 61" (not including head)
  • Rotary clamping system
In the Box Sachtler DV 12SB Carbon Fiber Tripod System
  • DV 12SB Fluid Head (100mm)
  • CF-100ENG 2CF Carbon Fiber Tripod Legs
  • Spreader SP 100 On-Ground Tripod Spreader
  • Cover ENG II Hard Shipping Case
  • 1075 Pan Bar DV 100
  • Quick Release / Wedge Plate (#1063)
  • Limited 1-Year Warranty, Extendable to 2-Years with Product Registration
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Sachtler DV 12SB Carbon Fiber Tripod System in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Sachtler DV-12SB Specs

    Load Capacity 30 lbs (14 kg)
    Mount/Base 100mm 4" Half Ball
    Balance Plate Yes, 2.8" Sliding Range
    Pan & Tilt Range 360° / +90 to -75°
    Pan & Tilt Drag 6 steps, 0 to 5
    Leveling Bubble/Illuminated Yes / Illuminated
    Material Carbon Fiber
    Leg Stages/Sections 2/3
    Minimum Height 24.8" (63 cm)
    Maximum Height 67.7" (172 cm)
    Folded Length 35" (89 cm)
    Weight 14.5 lbs (6.6 kg)
    Package Weight 25.6 lb
    Box Dimensions (LxWxH) 43.0 x 11.0 x 11.0"
