Product description

• Sachtler DV 12SB Fluid Head (100mm) The Sachtler DV 12SB Fluid Head with a 100 mm bowl and integrated flat base fitting, and a load capacity of up to 31 lbs (14kg), is the choice for the professional videographer utilizing heavy camcorders who demands the smoothest pans and tilts as well as rapid setup. It features a 12-step counterbalance system with a 2.8" (70mm) sliding plate for perfect balance, and 5 steps of drag plus zero in both axes for whip pans. The Touch & Go quick-release system makes mounting and takedown a nonissue: no fumbling, no struggling, no worries. For complete flexibility and ease of operation in unforgiving circumstances, the DV-12SB is a sound choice.
  • Stepped counterbalance and fluid drag systems facilitate rapid, accurate setups
  • Illuminated bubble level is adjustable between 20 and 45 seconds
  • Touch & Go quick release system ensures rapid, accurate, and secure camera mounting
• Sachtler CF-100ENG 2CF Carbon Fiber Tripod Legs The CF 100 ENG 2CF two stage tripod, provides maximum stability and carrying capacity. Constructed and drawn out of one-piece carbon fiber material, it is twist resistant and lighter than dural aluminum. It features a 100mm / 4" bowl, tube diameter of 22mm (0.87") and is fitted with the Sachtler quick clamping system, so you can securely - and visibly - lock the tripod. The CF 100 ENG 2CF's double extension provides greater stability, allowing an extended height range with a payload of 88 lb., and with a weight of only 5.3-lb it's extremely lightweight, solid and stable.
  • Carbon fiber construction with 22mm (0.87") tube diameter
  • 100mm / 4" bowl base
  • Double extension design
  • Maximum height of 59.0-inch
  • Quick clamping system, locks tripod legs in seconds
  • Supports up to 88 lb.
  • Built-in transport safety cord, preventing the legs from opening while in transport
  • Folding tripod handle, for comfortable carrying of tripod in horizontal position
  • for extra stability the CF-100 ENG HD 2CF is also available for a load capacity of 210 lb at a height of 61.8-inch
• Sachtler Mid-Level Tripod Spreader This Mid-Level Spreader from Sachtler fits all 100 and 150mm bowls (except for short tripods), OB-2000M, Cine 2000, and Cine 2000 medium tripods. It is used when shooting on uneven surfaces such as steps, rocky ground, or slopes. It allows for rapid setup and pull-down by keeping tripod legs at an equal or preset distance relative to each other. It attaches to the center bracket of a tripod and its arms are telescopic to allow for extension of a tripod leg without detaching the spreader. UPC: 806576213925
• Sachtler Rubber Feet (Set of 3) Set of three Sachtler Rubber Feet. Snap these feet onto your tripod when it's not possible to use the dual spiked feet, ideal on slippery and glossy floors. For all Tripods with Off-Ground Spreaders (Except OB-2000/M and Cine 2000/M tripods).
• Sachtler ENG 2 Padded Bag The Sachtler ENG 2 Padded Bag is a soft tripod bag designed to carry various Sachtler tripods with fluid heads up to 35" long. The case is made from water-resistant Cordura nylon and can be carried by the interlocking handles or the attached, adjustable shoulder strap.
  Construction
  • • Water-resistant Cordura nylon
    • Padded interior
    • Zipper closure
  Carrying options
  • • Interlocking handles
    • Attached, adjustable shoulder strap
  Compatible with
  • • Sachtler DV 2, DV 4, DV 6 and DV 8 systems on ENG 75/2 D tripod
    • Sachtler DV 8 with 100mm ball, DV 12, DV 15, Video 15, Video 18, Video 20 fluid heads on 2-fold extension or Speed Lock CF tripods

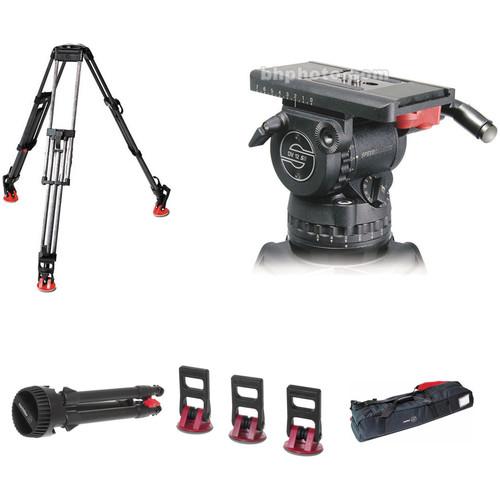

• DV 12SB Fluid Head (100mm) dbdtaevrxsecvfasrqxqaf
• Single Section Pan Bar (DV-100)
• Quick Release / Wedge Plate (#1063)
• Limited 1-Year Warranty, Extendable to 2-Years with Product Registration

• CF-100ENG 2CF Carbon Fiber 2-Stage Tripod Legs (100mm Bowl) - Supports 88 lbs

• Mid-Level Spreader for 100mm/150mm Tripods, OB-2000M & Cine 2000 (Except Short Tripods)

• Rubber Feet (Set of 3)

• ENG 2 Padded Bag

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sachtler DV 12SB Fluid Head (100mm)

  Camera Plate Features	Sliding Balance Plate, Quick Release
  Camera Plate Type	Sachtler Touch & Go Plate 16
  Balance Plate Sliding Range	2.8" / 70 mm

  Base Mount	100 mm Half Ball

  Drag Control	Tilt: 5-Step Plus 0
  Vertical Tilt	+90 Rating 50% users recommend this product to others. And what about you? This product has already been rated by 10 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
