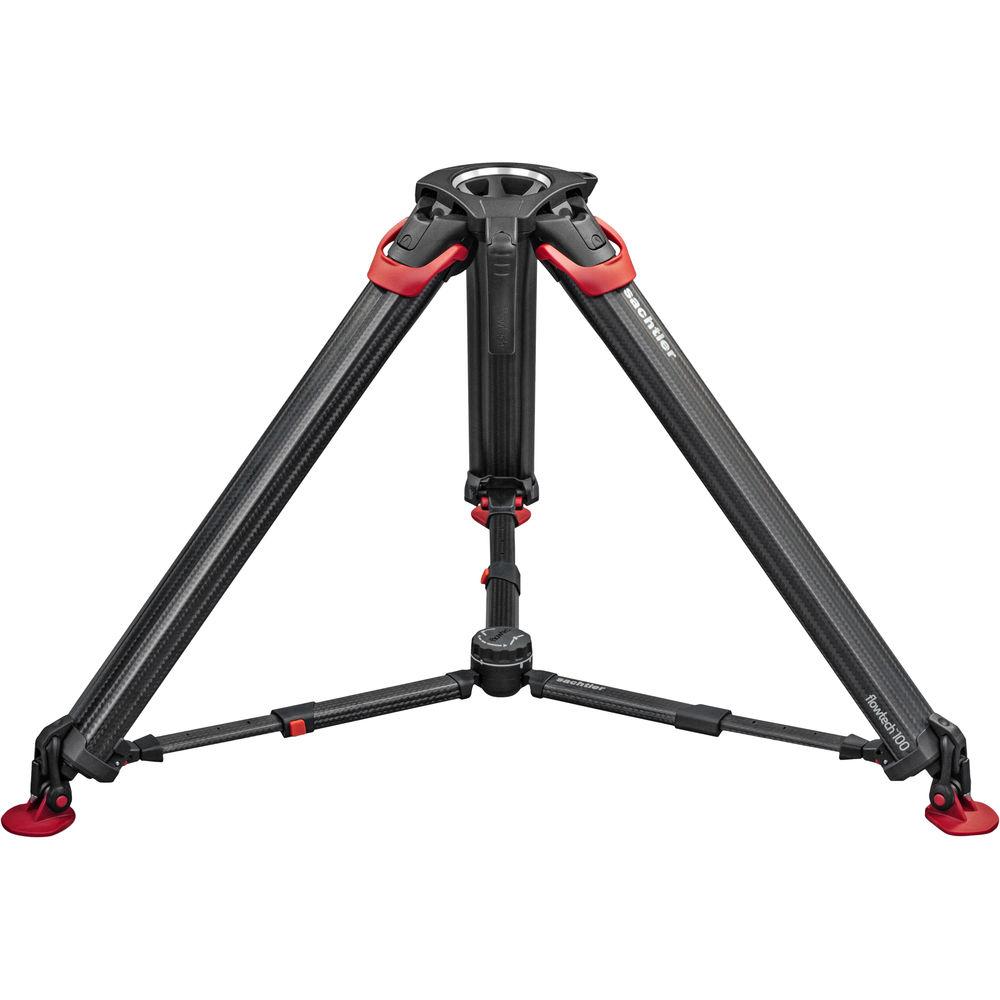

User Manual for Sachtler flowtech 100 MS Carbon Fiber Tripod with Mid-Level Spreader & Rubber Feet Click to enlarge the picture
Contents of the user manual for the Sachtler flowtech 100 MS Carbon Fiber
- Product category: Tripod Legs Sachtler
- Brand: Sachtler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sachtler Tripod Legs
 |
User manual for the Sachtler flowtech 100 MS Carbon Fiber contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sachtler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!
|
Product description Go Big with the New Sachtler flowtech 100 MS Tripod Legs and Kits Read More - Sachtler/Vinten Flowtech 100
- Dan Martland uses flowtech100, the world's fastest tripod

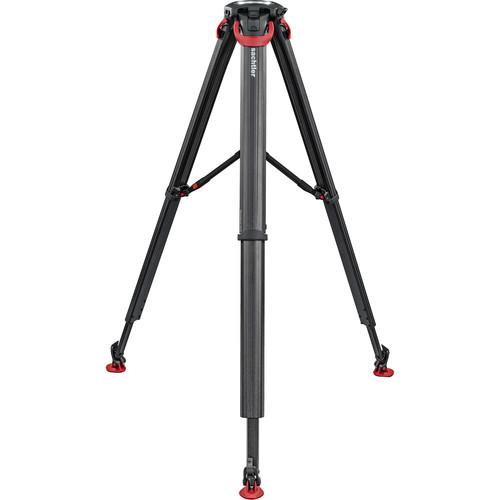

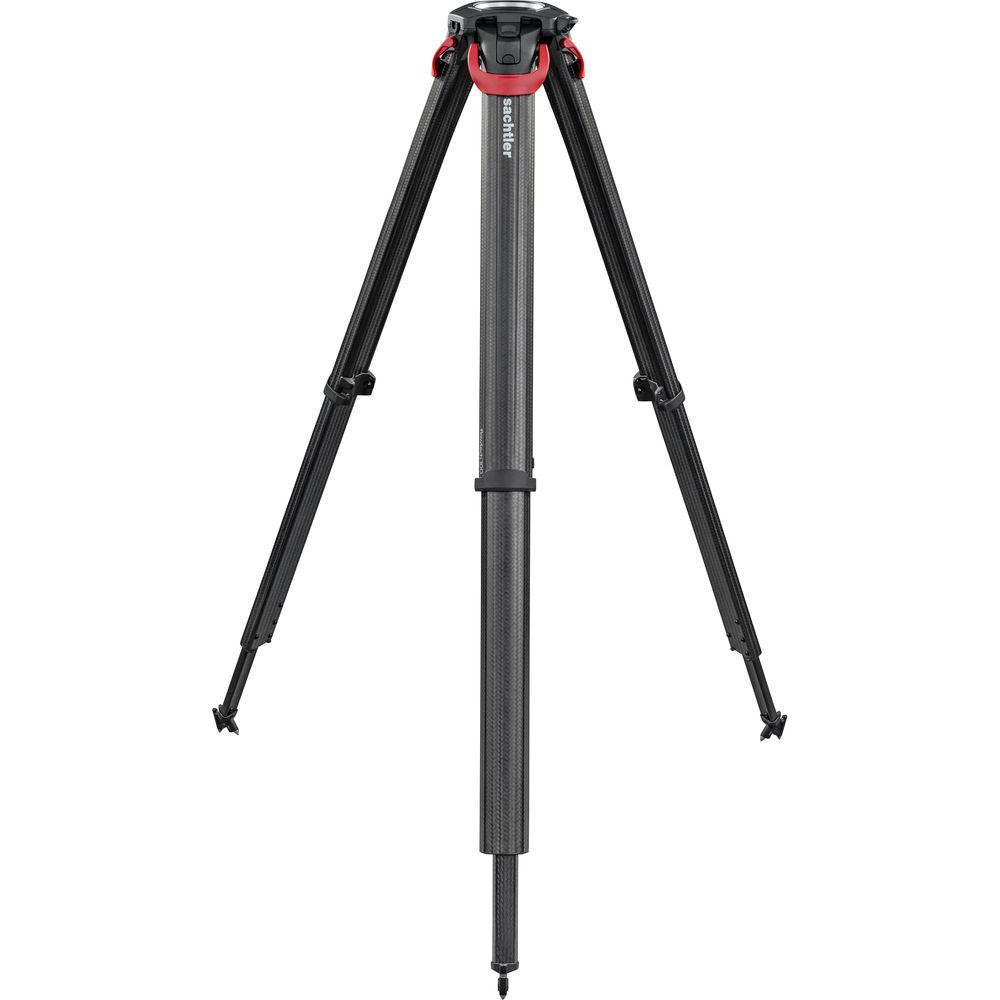

The lightweight Sachtler flowtech 100 MS Carbon Fiber Tripod with Mid-Level Spreader offers notable stability and quick setup and adjustments for payloads up to 66 lb. The novel flowtech design features quick release locks at the top of the legs, eliminating the need to stoop while adjusting the tripod height. All three legs can be deployed simultaneously to quickly find their individual levels on uneven ground.The flowtech 100's versatile leg hinges adjust freely or can be locked at 20, 46, and 72° angles, providing a height range from 10" to 5' and reducing the need to carry a set of baby legs. Additional ergonomic features include a flatter leg design that's more comfortable when carrying on your shoulder, and magnetic locks that neatly snap the legs together for travel. Three handy 3/8"-16 threaded mounts can be used to attach a variety of accessories.Weighing only nine pounds with its spreader and feet, the flowtech 100 can support a payload of up to 66 pounds and extends from a minimum height of 20" to a maximum height of 61" when using the included mid-level spreader. Each leg features a single clamping lever that quickly and easily locks and unlocks the three sections.Designed with dual-spiked feet, this 100mm bowl tripod includes rubber feet that feature a quick release design for easy attaching and removal. A flowtech Carry Handle is included to enable carrying your flowtech system in one hand. - Features
-
- Dual-stage, carbon fiber 100mm bowl tripod
- Supports up to 66 pounds, yet weighs only 9 pounds
- High torsional stability prevents the legs from twisting when panning your head

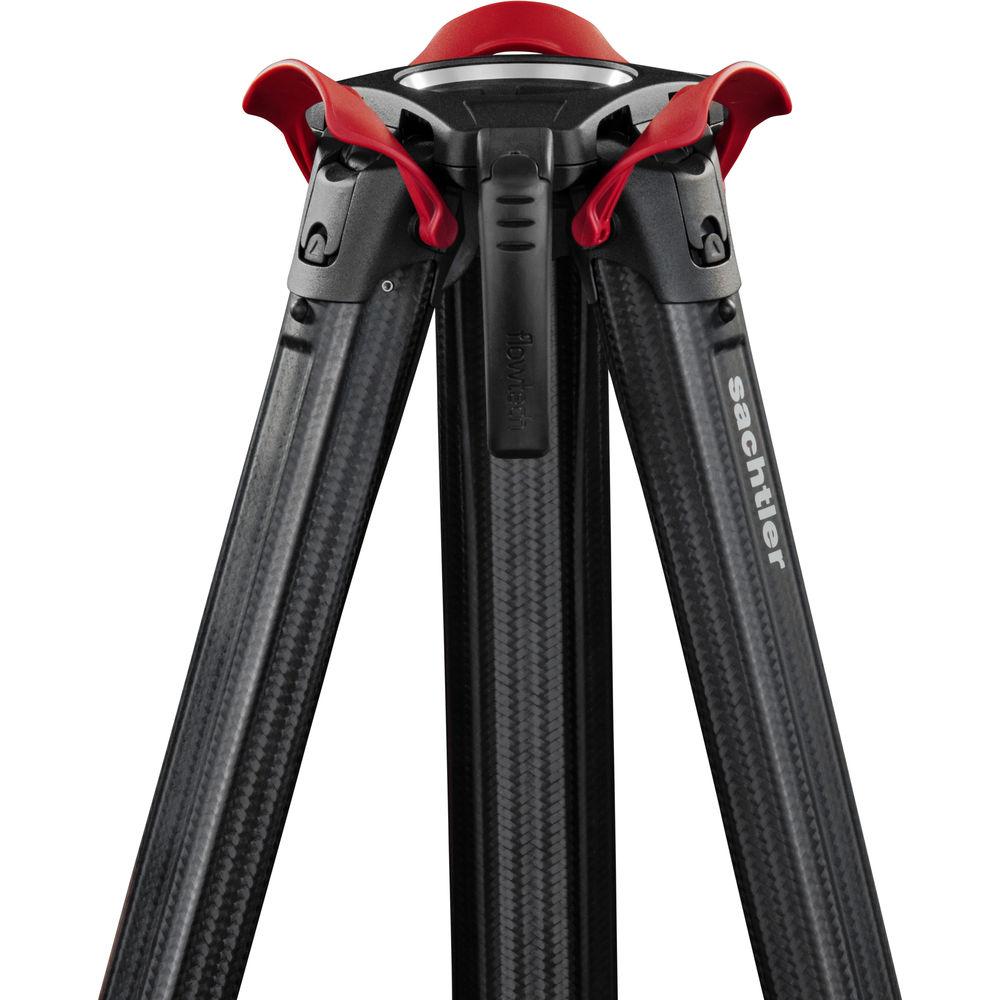

- Brake levers at the top of the tripod quickly release all three sections simultaneously, enabling speedy setups
- Flatter, ergonomic leg design for more comfortable over-the-shoulder carrying

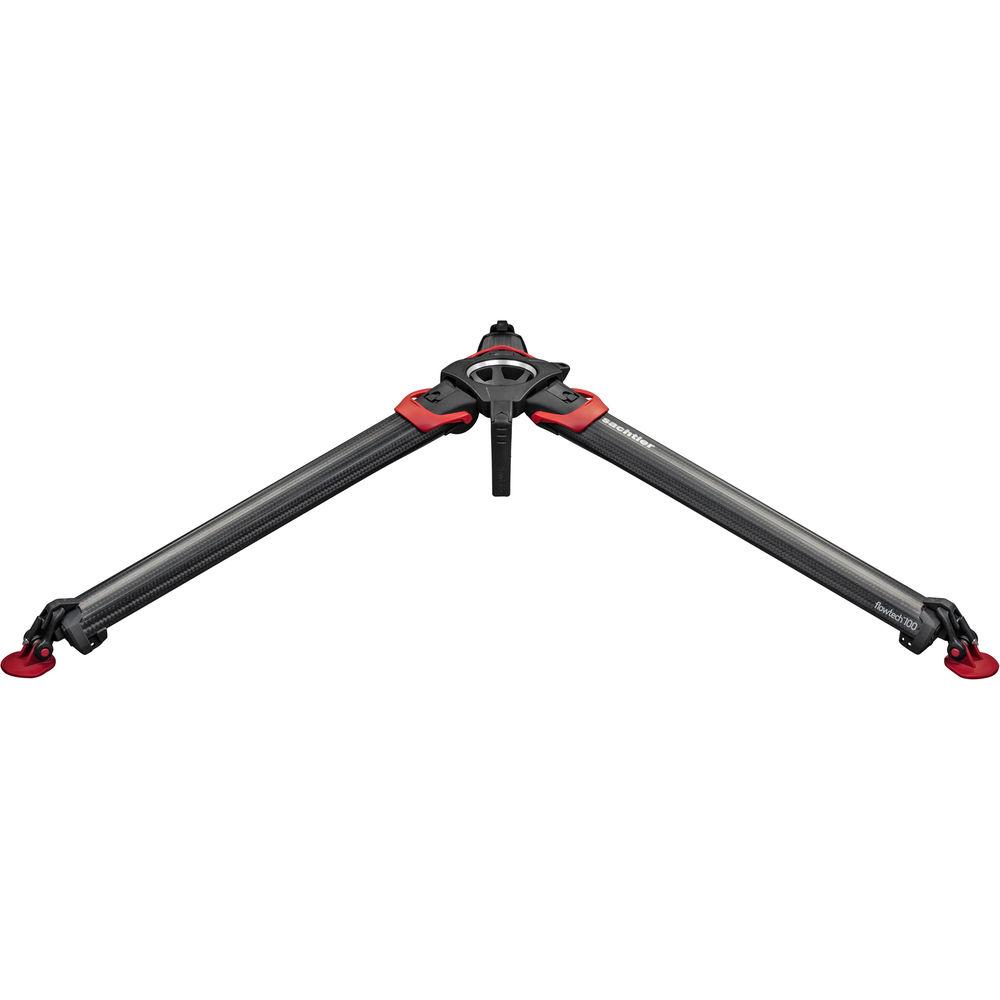

- A flexible hinge design enables high and low angles

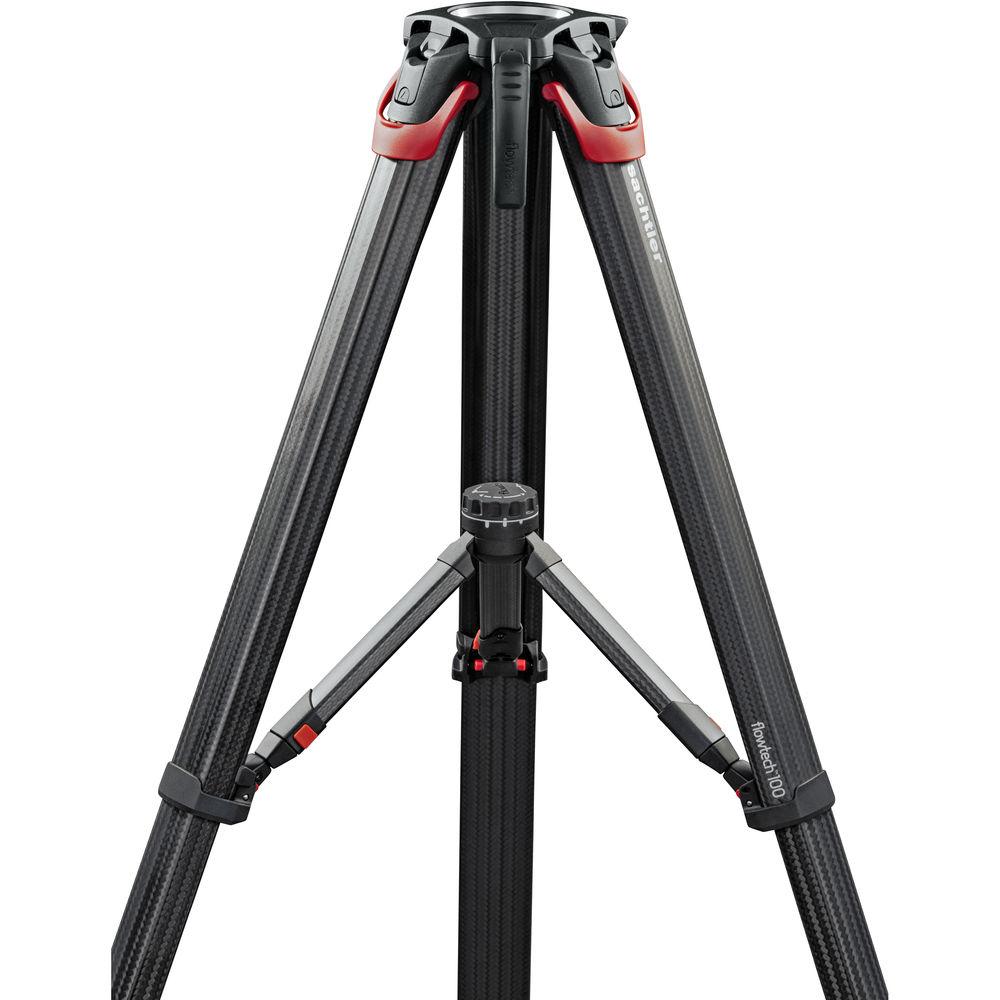

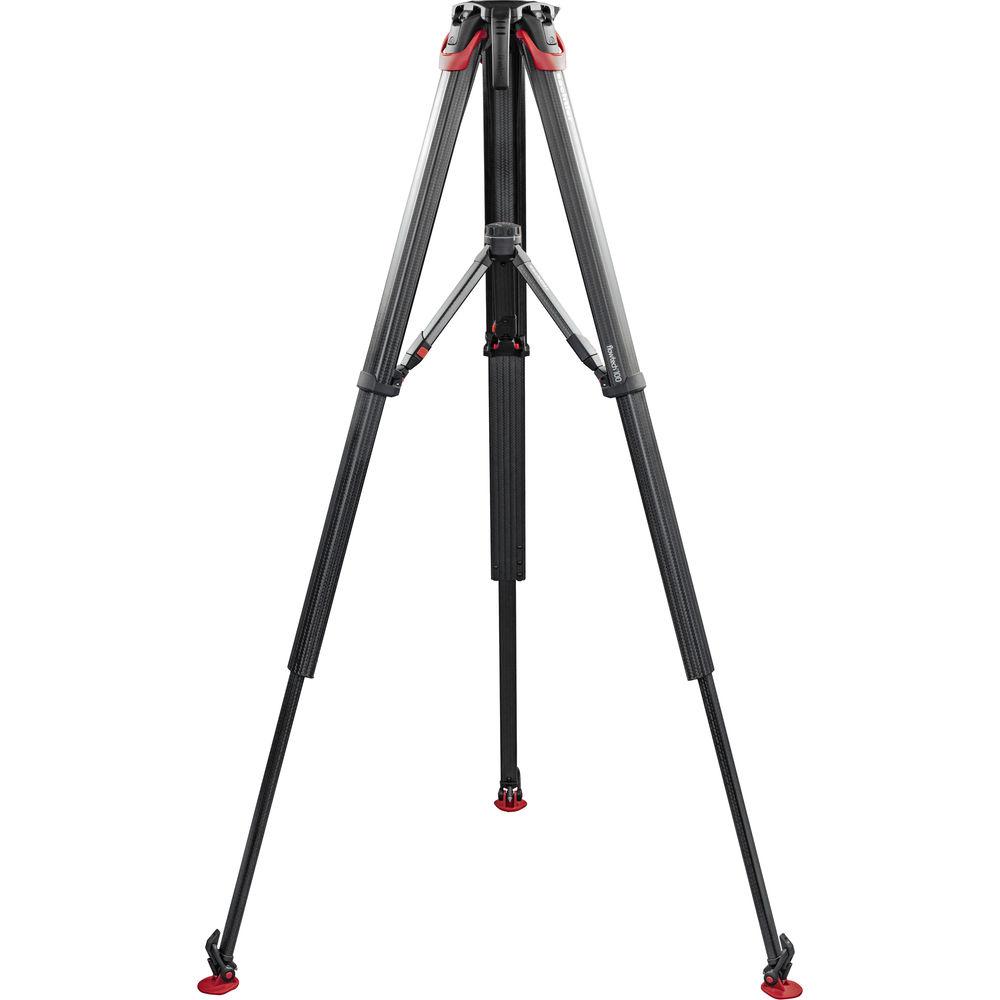

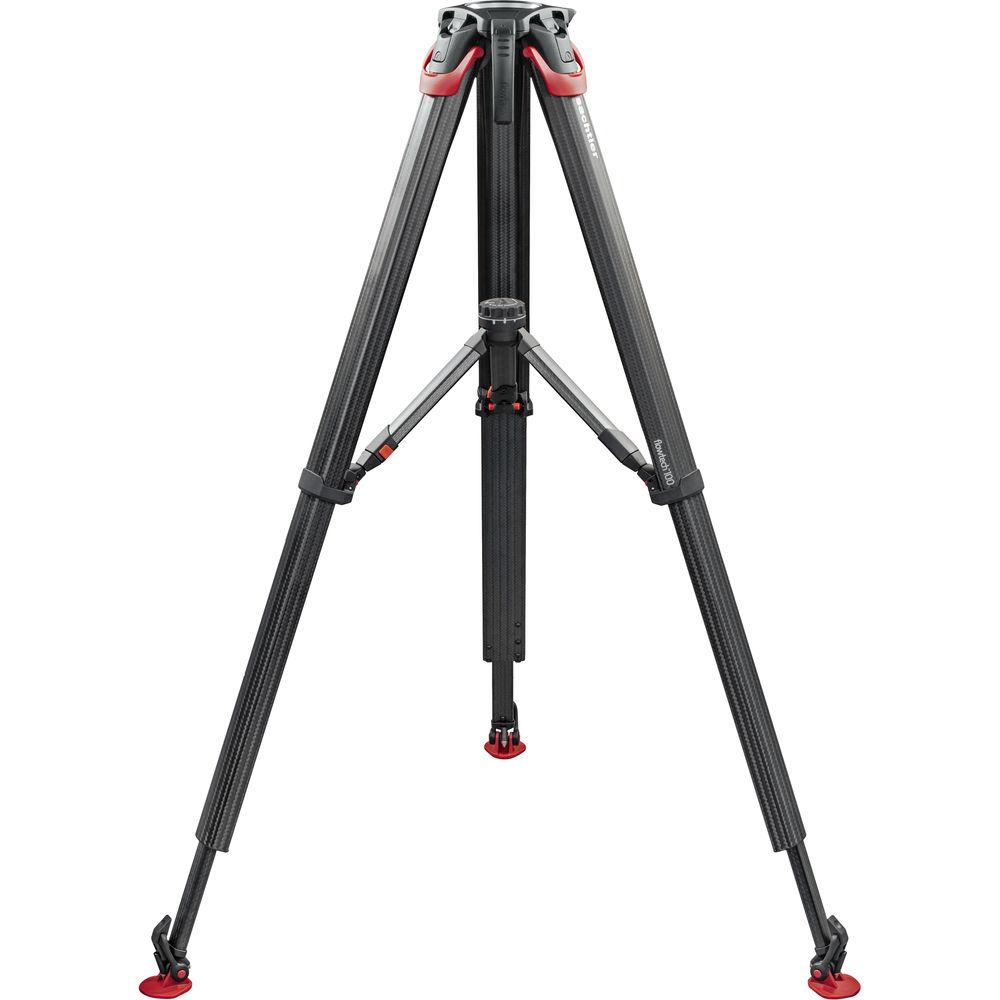

- The included mid-level spreader provides additional stability while enabling individual leg adjustment on uneven or stepped surfaces
- Dual-spiked feet tripod includes quick release rubber feet for delicate or slippery surfaces

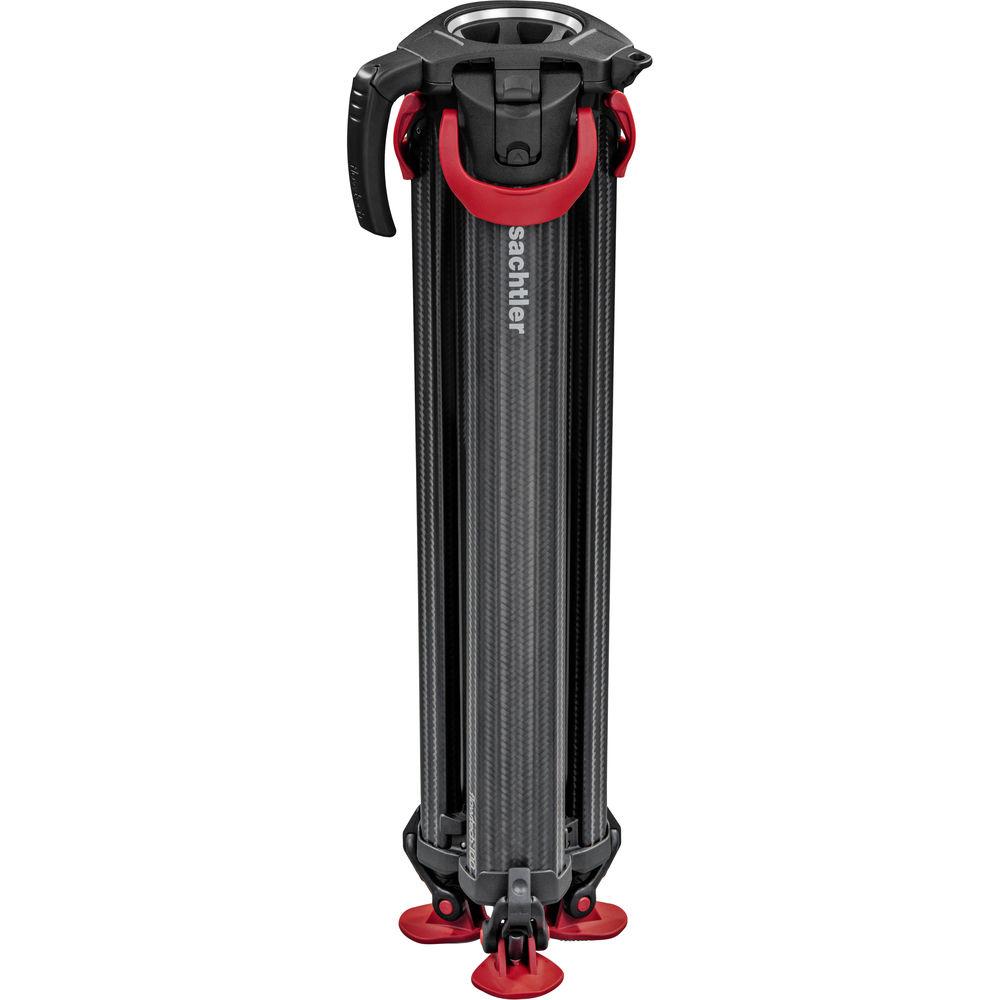

- Magnetic locks snap the legs together for transport, but easily release for setup

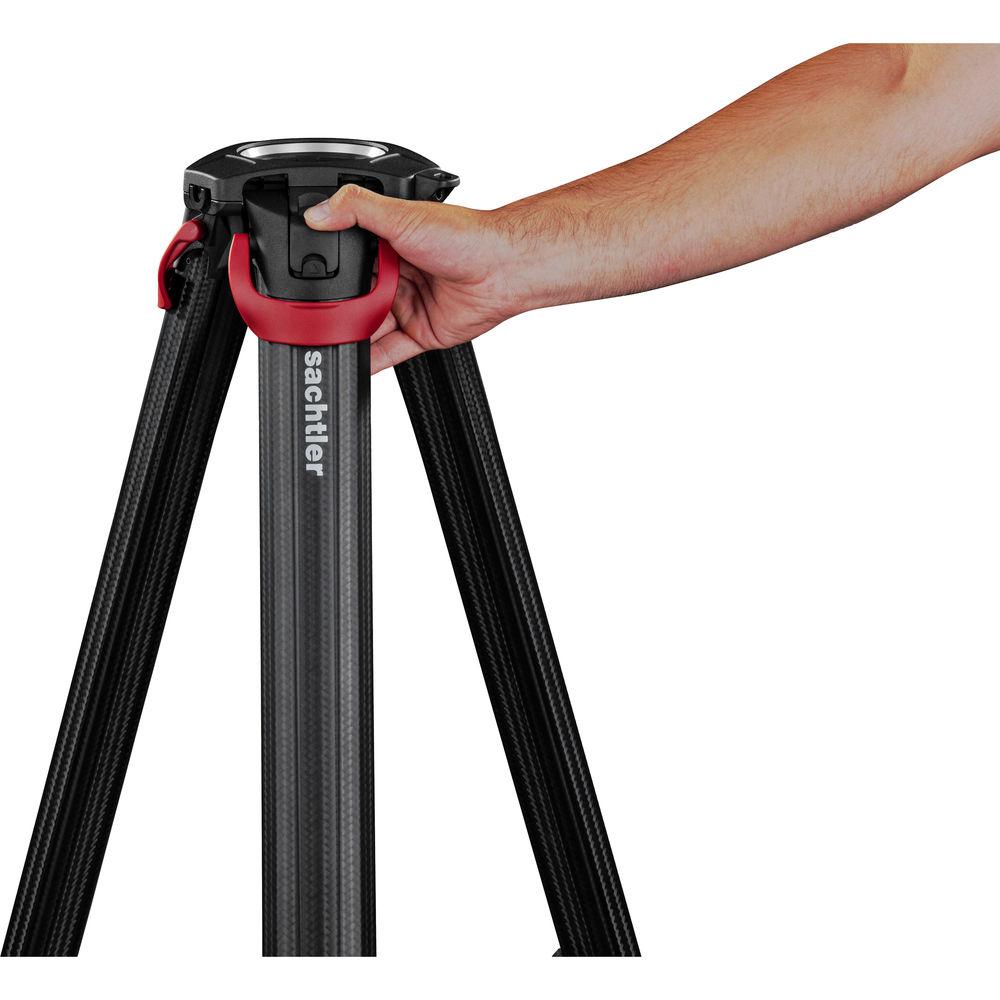

- Includes a carry handle for one-handed transportation
In the Box Sachtler flowtech 100 MS Carbon Fiber Tripod with Mid-Level Spreader & Rubber Feet Mid-Level Carbon Fiber Spreader for flowtech 100 Rubber Feet with Quick Release for flowtech 75/100 Tripod Carry Handle for flowtech Tripods Attachment Mount for flowtech 75 Tripod Tie-Down for flowtech 100 Tripod Limited 1-Year Warranty, Extendable to 2-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler flowtech 100 MS Carbon Fiber Tripod with Mid-Level Spreader & Rubber Feet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler Flowtech 100 Specs | | | Head Mount Type | 100 mm Bowl | | Load Capacity | 66.14 lb / 30 kg | | Maximum Working Height | 61.02" / 155 cm (with Spreader)
60.24" / 153 cm (without Spreader) | | Minimum Working Height | 20.47" / 52 cm (with Spreader)
10.24" / 26 cm (without Spreader) | | Folded Length | 26.77" / 68 cm | | Materials | Carbon Fiber | | Accessory Mounting | 3 x 3/8"-16 Female Thread | | Weight | 9.04 lb / 4.1 kg With spreader and feet. | | | | Leg Lock Type | Flip Lock | | Leg Positions | Locking 3 Positions and Continuously Adjustable | | Independent Leg Spread | Yes | | Leg Sections | 3 | | Feet Features | Rubber, Removable, Dual Spiked | | Spreader | Mid-Level | | | | Package Weight | 11.05 lb | | Box Dimensions (LxWxH) | 28.5 x 7.4 x 7.1" |
