Product description

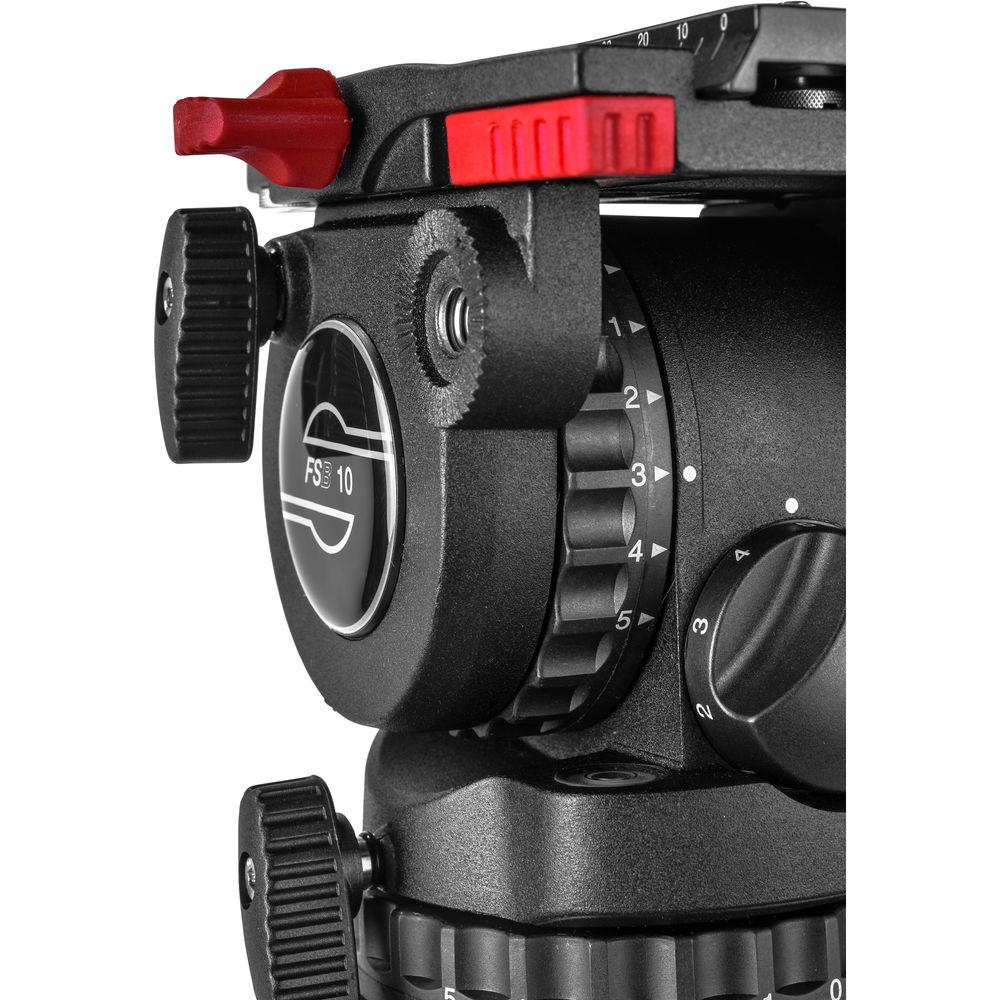

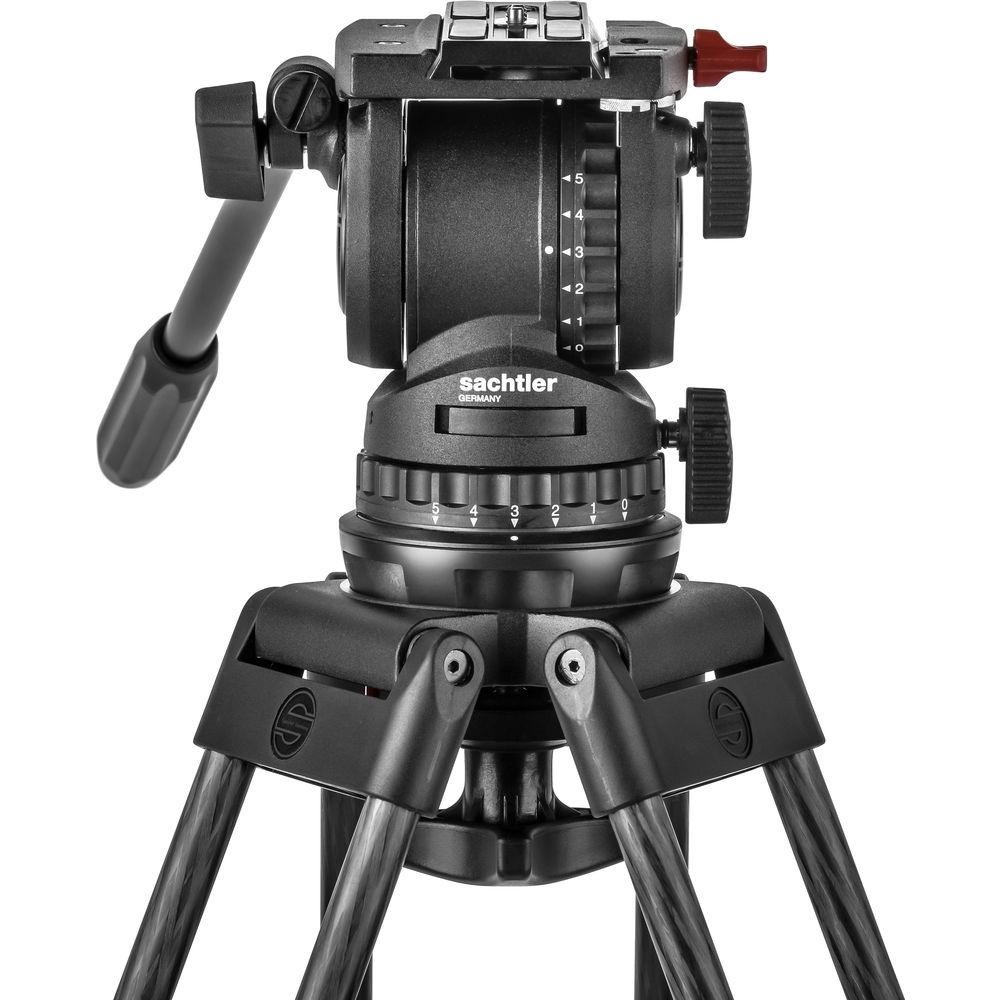

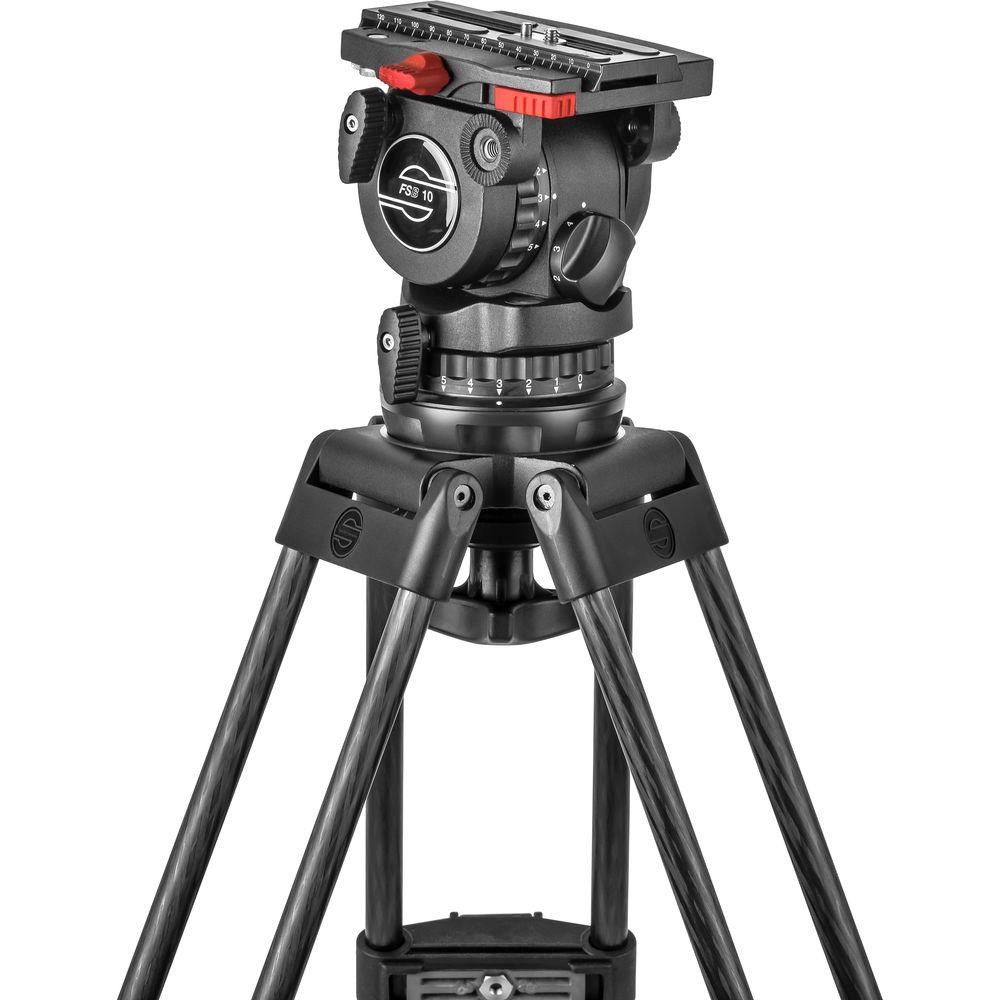

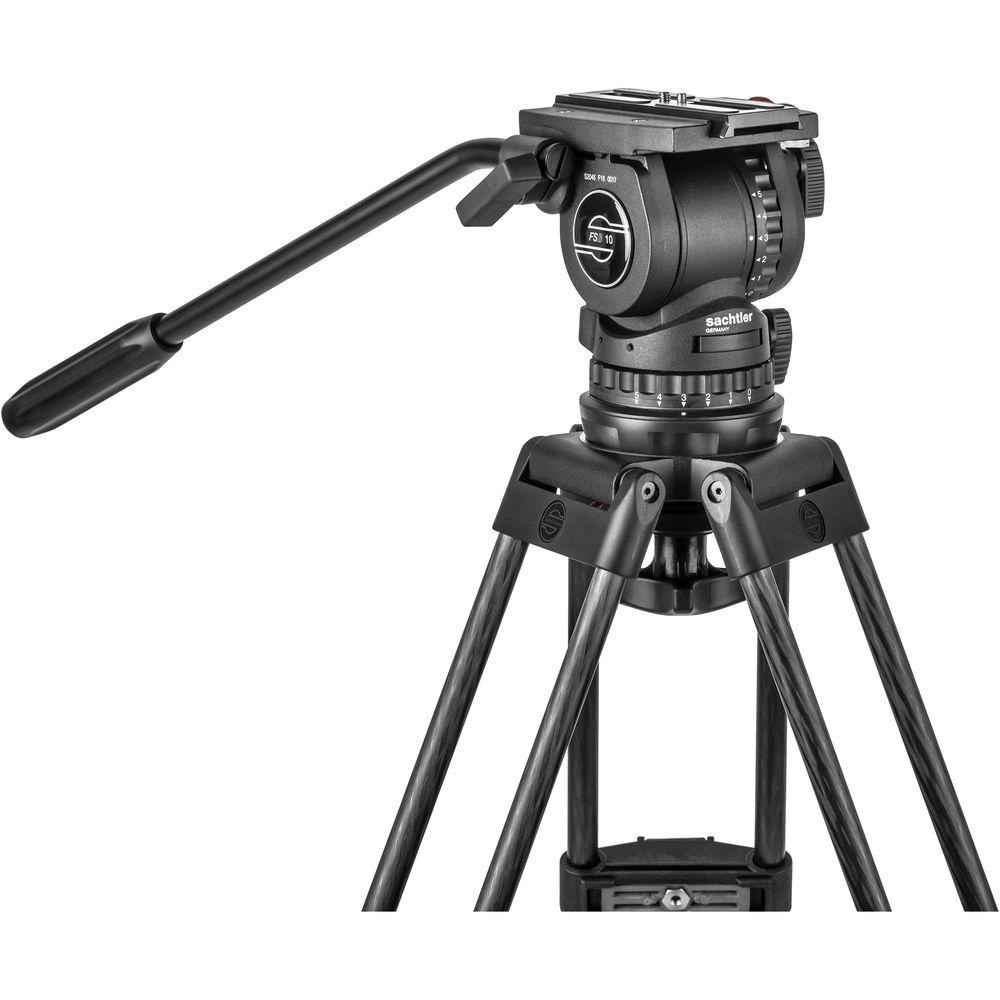

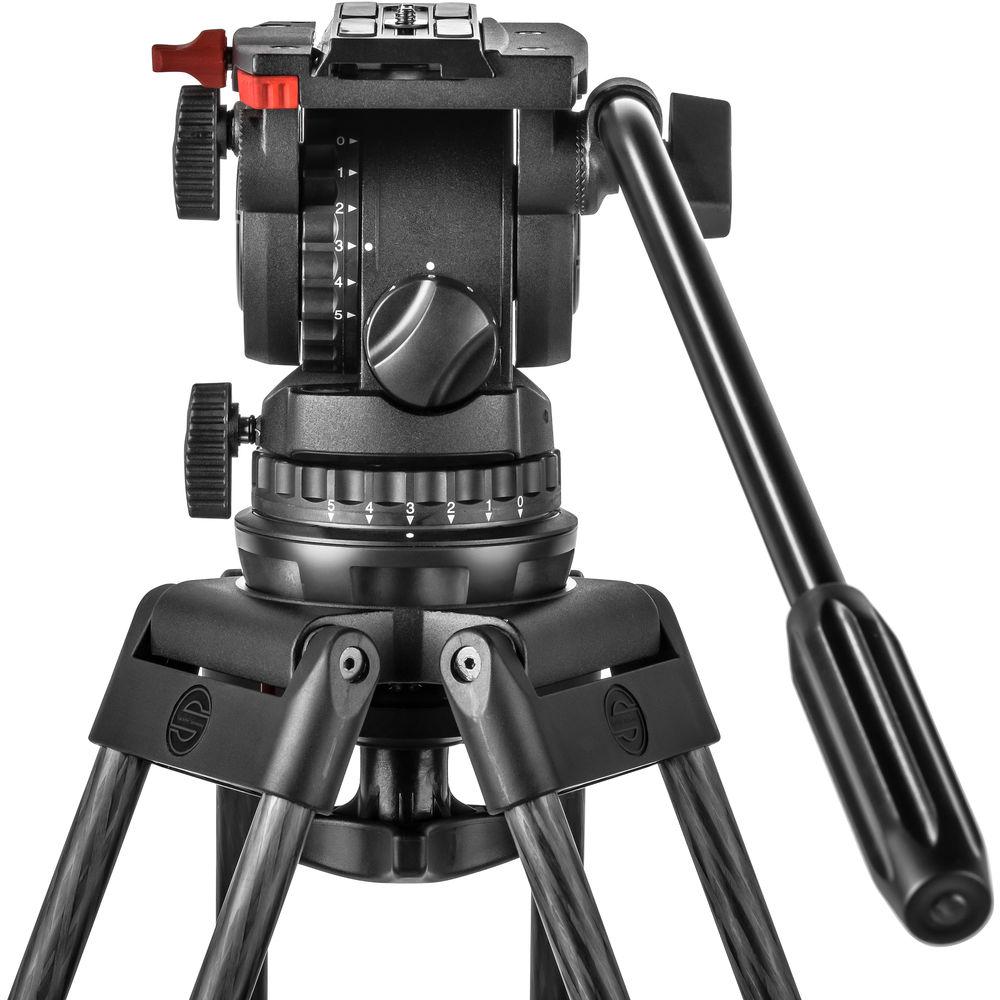

• FSB 10 Fluid Head with Sideload Mechanism The FSB 10 Fluid Head from Sachtler supports payloads up to 26.5 lb. Designed to accommodate digital cinema-style cameras, such as the Sony FS7, Canon C500, and Blackmagic Ursa Mini. The head offers Sachtler's Sideload mechanism with a sliding range of 4.7". It also features a 10-step counterbalance along with horizontal and vertical 5-step drag controls. In addition, a zero setting on the pan and tilt drag controls allows for unencumbered movement of the head.

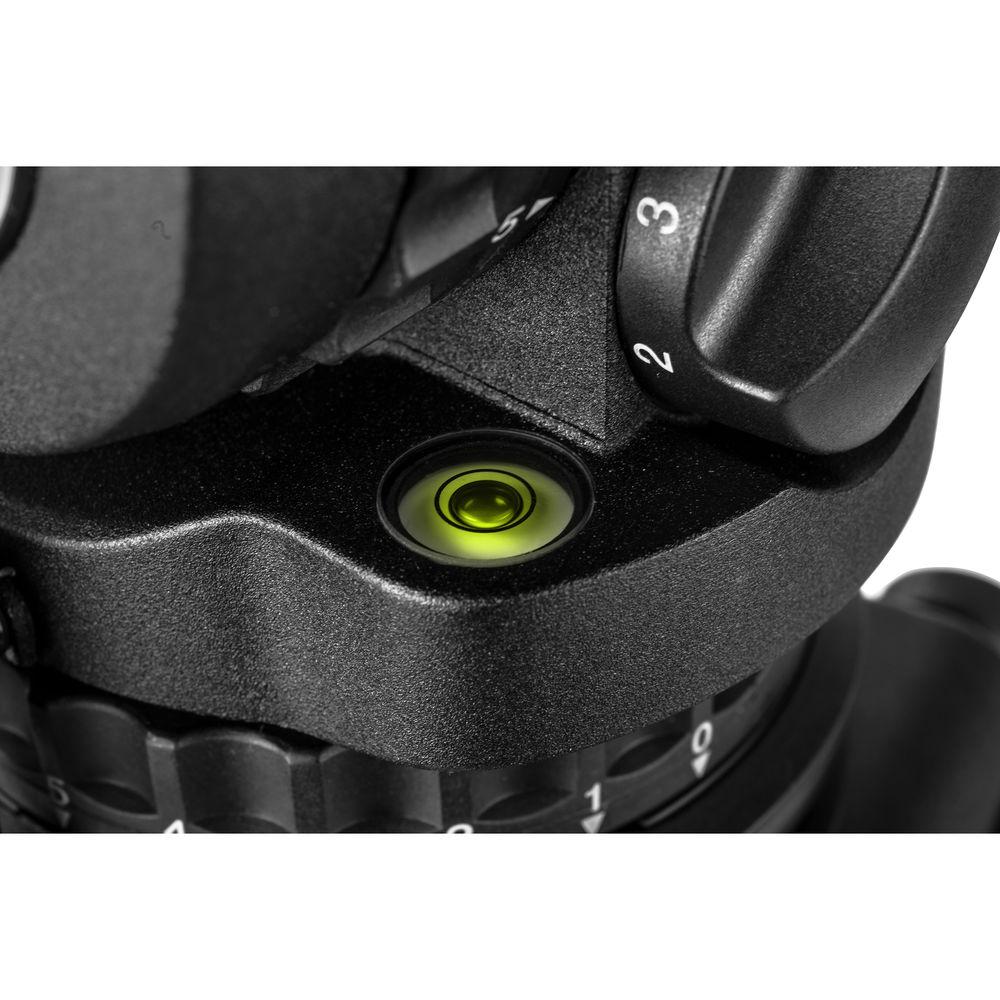

  The fluid head features a 100mm bowl interface for tripod mounting and incorporates an illuminated bubble level for easy leveling in poor light conditions. A pan handle, which can be mounted on either side of the head, is also included.
  Leveling Ball with Flat Base
  • The fluid head features a 100mm ball for quick leveling on your tripod legs. The ball features a flat base so you can also mount it on a flat surface.
  Frictionless Leak-Proof Fluid Damping

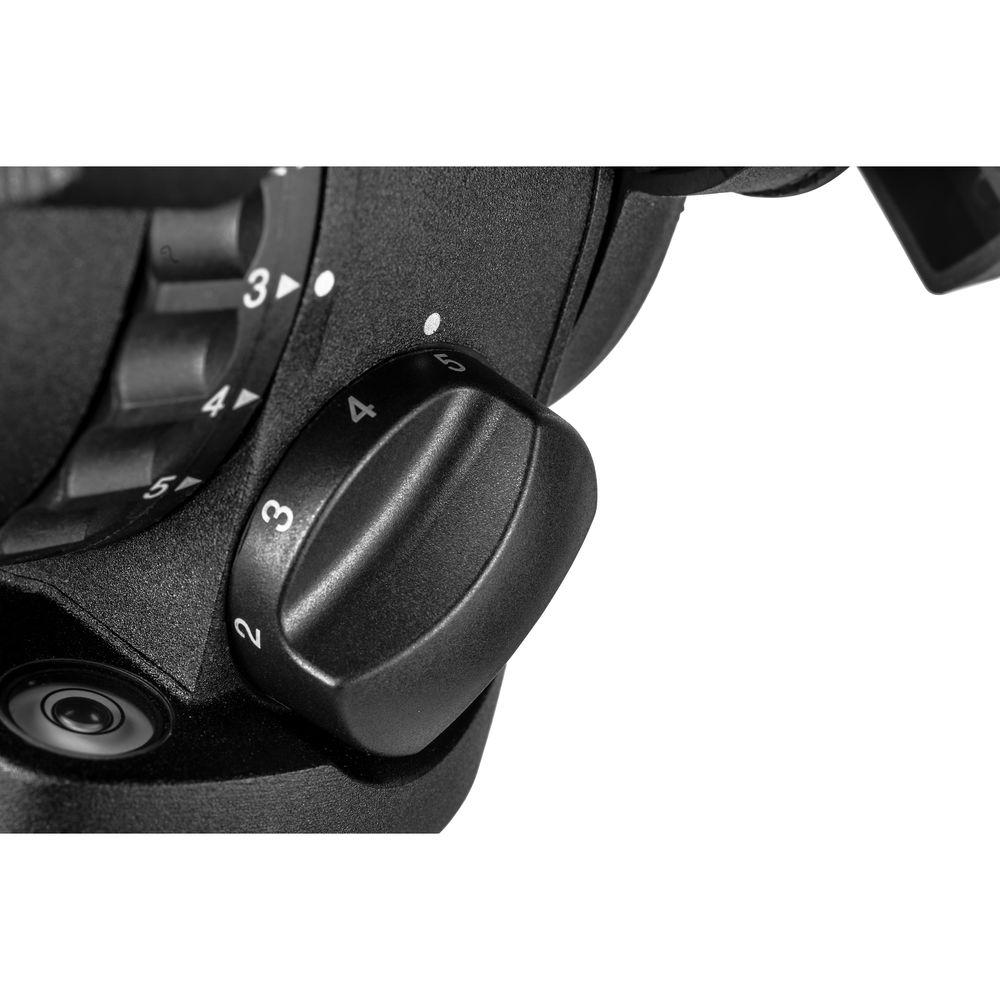

  • Frictionless leak-proof fluid damping with five levels of drag enable precision adjustment to match the needs of your shot. A zero setting allows complete disengagement of drag for fast panning.
  Camera Mounting and Balancing

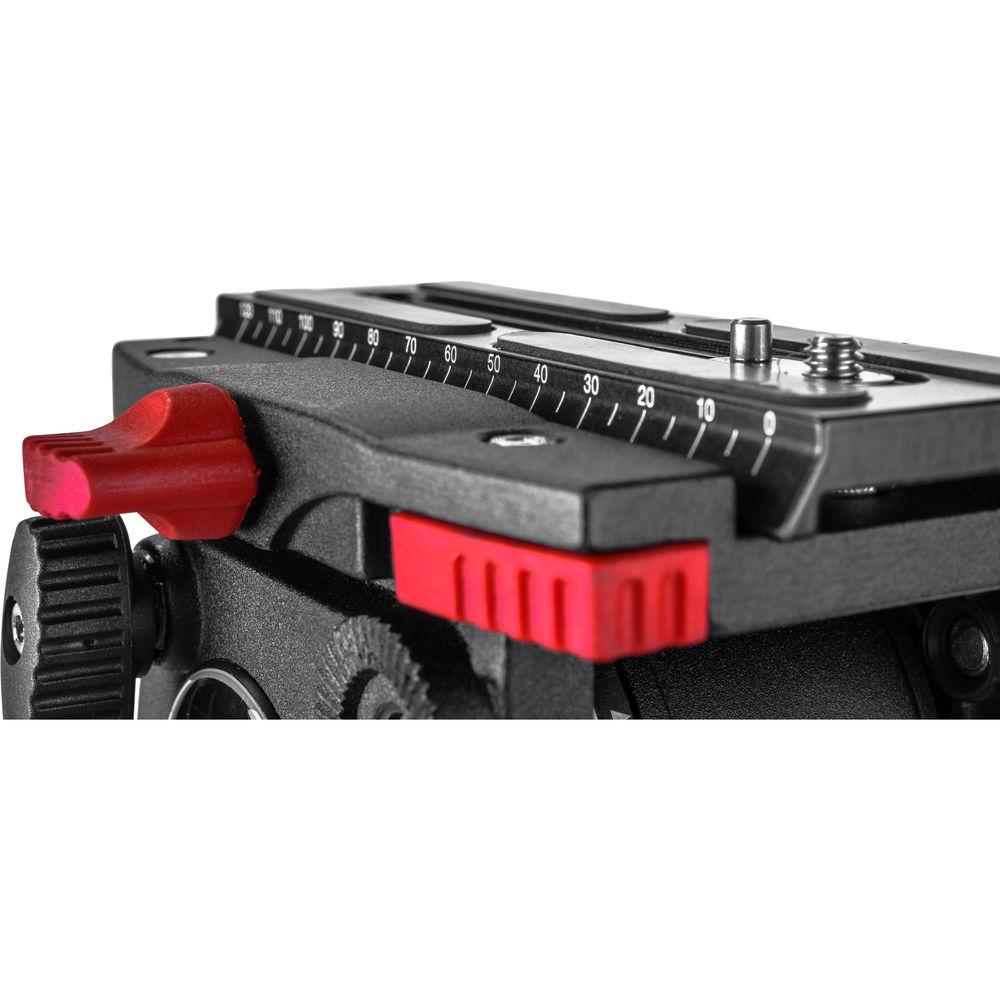

  • Featuring a sideload mechanism with a sliding range of 4.7" that offers the ease of a touch and go quick release plate and the balancing capability of a sliding baseplate. This sideload setup allows for up to 4.7" of balance plate travel.

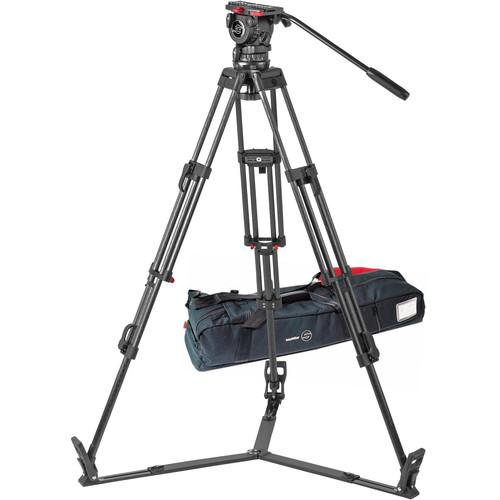

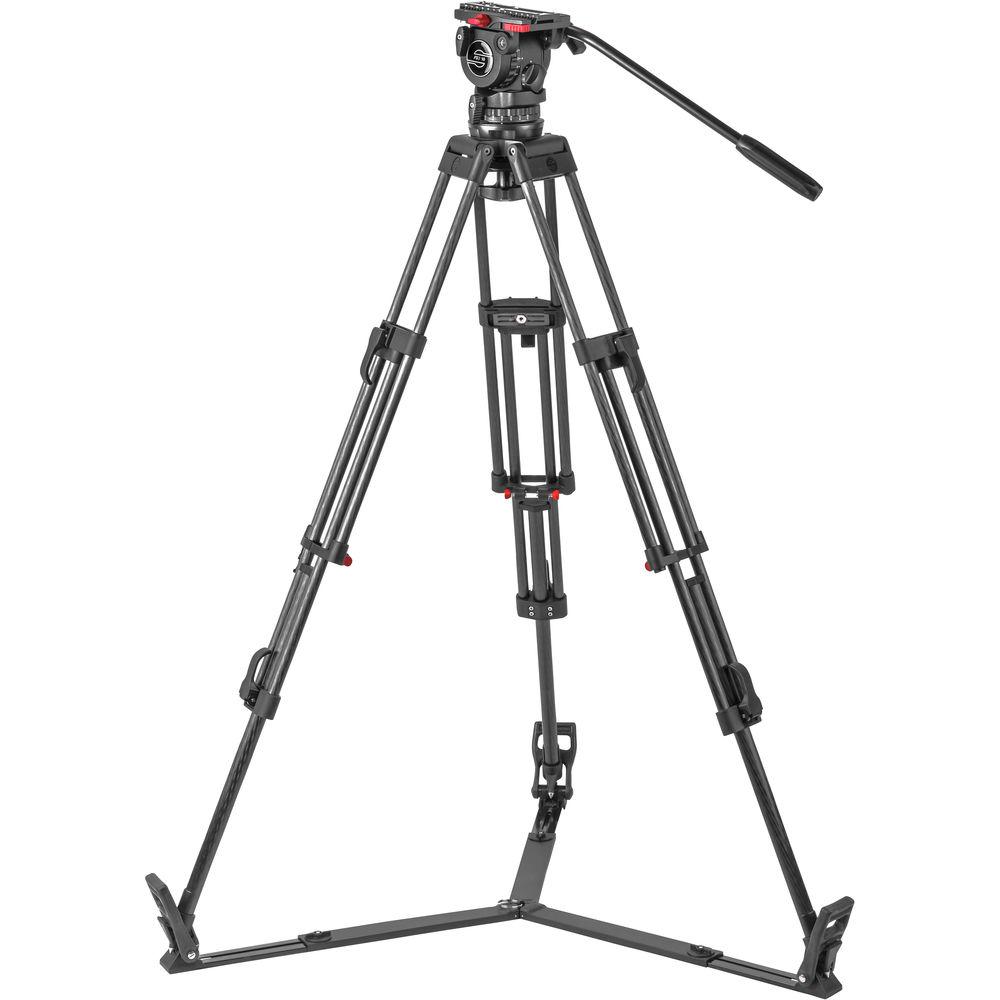

• CF-100ENG 2CF Carbon Fiber Tripod Legs The CF 100 ENG 2CF two stage tripod, provides maximum stability and carrying capacity. Constructed and drawn out of one-piece carbon fiber material, it is twist resistant and lighter than dural aluminum. It features a 100mm / 4" bowl, tube diameter of 22mm (0.87") and is fitted with the Sachtler quick clamping system, so you can securely - and visibly - lock the tripod. The CF 100 ENG 2CF's double extension provides greater stability, allowing an extended height range with a payload of 88 lb., and with a weight of only 5.3-lb it's extremely lightweight, solid and stable.
  • Carbon fiber construction with 22mm (0.87") tube diameter
  • 100mm / 4" bowl base
  • Double extension design
  • Maximum height of 59.0-inch
  • Quick clamping system, locks tripod legs in seconds
  • Supports up to 88 lb.
  • Built-in transport safety cord, preventing the legs from opening while in transport
  • Folding tripod handle, for comfortable carrying of tripod in horizontal position
  • for extra stability the CF-100 ENG HD 2CF is also available for a load capacity of 210 lb at a height of 61.8-inch
• Spreader SP 100 On-Ground Tripod Spreader A On-Ground Spreader is chosen when shooting is performed on a level surface, such as studio, city streets, offices, sport fields and stadiums. It allows for rapid set-up and pull down by keeping tripod legs at an equal or preset distance relative to each other. Attaches directly to the feet at the bottom of a tripod and its arms are telescopic to allow extension of a tripod leg without detaching the spreader. Fits all 100mm bowl tripods (except DA-100 Short tripod)
• ENG 2 Padded Bag The Sachtler ENG 2 Padded Bag is a soft tripod bag designed to carry various Sachtler tripods with fluid heads up to 35" long. The case is made from water-resistant Cordura nylon and can be carried by the interlocking handles or the attached, adjustable shoulder strap.
  Construction
  • • Water-resistant Cordura nylon
    • Padded interior
    • Zipper closure
  Carrying options
  • • Interlocking handles
    • Attached, adjustable shoulder strap
  Compatible with
  • • Sachtler DV 2, DV 4, DV 6 and DV 8 systems on ENG 75/2 D tripod
    • Sachtler DV 8 with 100mm ball, DV 12, DV 15, Video 15, Video 18, Video 20 fluid heads on 2-fold extension or Speed Lock CF tripods

• Sideload Plate S/Ace Tripod QR Plate

• Tie Down Knob for 100mm Halfball Clamping Bowl

• Pan Handle DV 75

• CR2032 Battery (3 V)

• Limited 1-Year Warranty

• Limited 1-Year Warranty, Extendable to 2-Years with Product Registration

• Limited 1-Year Warranty, Extendable to 2-Year with Product Registration

• Shoulder Strap

• Limited 1-Year Warranty, Extendable to 2-Years with Product Registration

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• FSB 10 Fluid Head with Sideload Mechanism

  Camera Plate Features	Sliding Balance Plate, Quick Release
  Camera Plate Type	Sideload Plate S

  Base Mount	100 mm Half Ball

  Drag Control	Tilt: 5-Step Plus 0
  Vertical Tilt	+90 Rating 100% users recommend this product to others. And what about you? This product has already been rated by 74 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
