Sachtler FSB 10 FT MS flowtech

User Manual for Sachtler FSB 10 FT MS flowtech 100 Tripod System

• Product category: Tripod Systems Sachtler
• Brand: Sachtler
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sachtler Tripod Systems

Product description

• FSB 10 Fluid Head with Sideload Mechanism
  • Sachtler/Vinten Flowtech 100

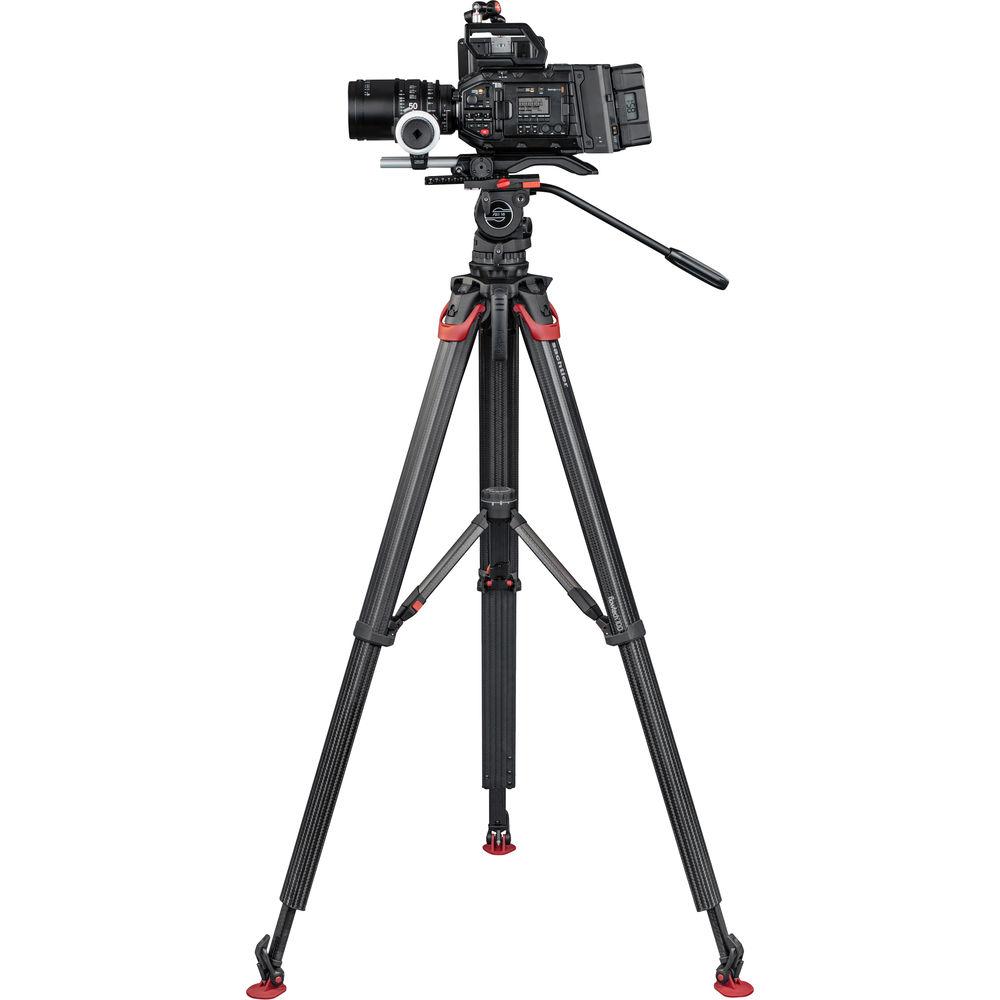

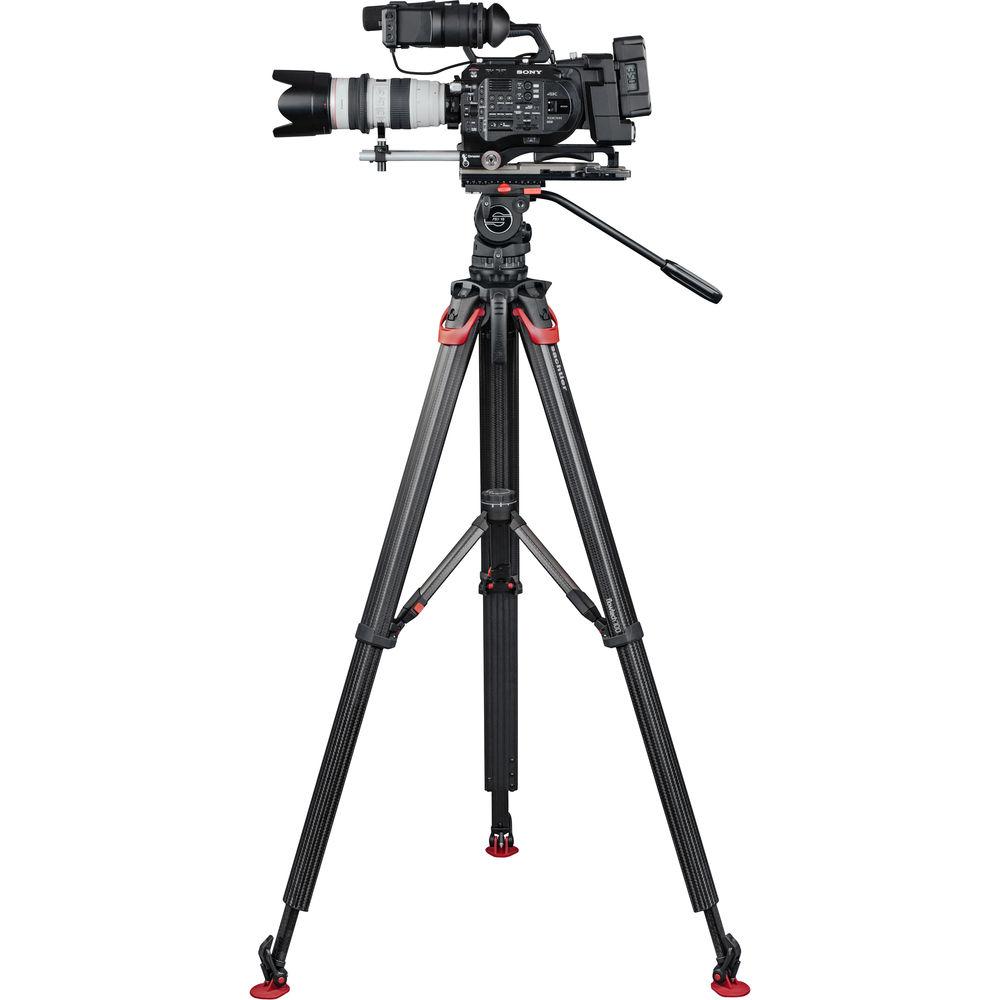

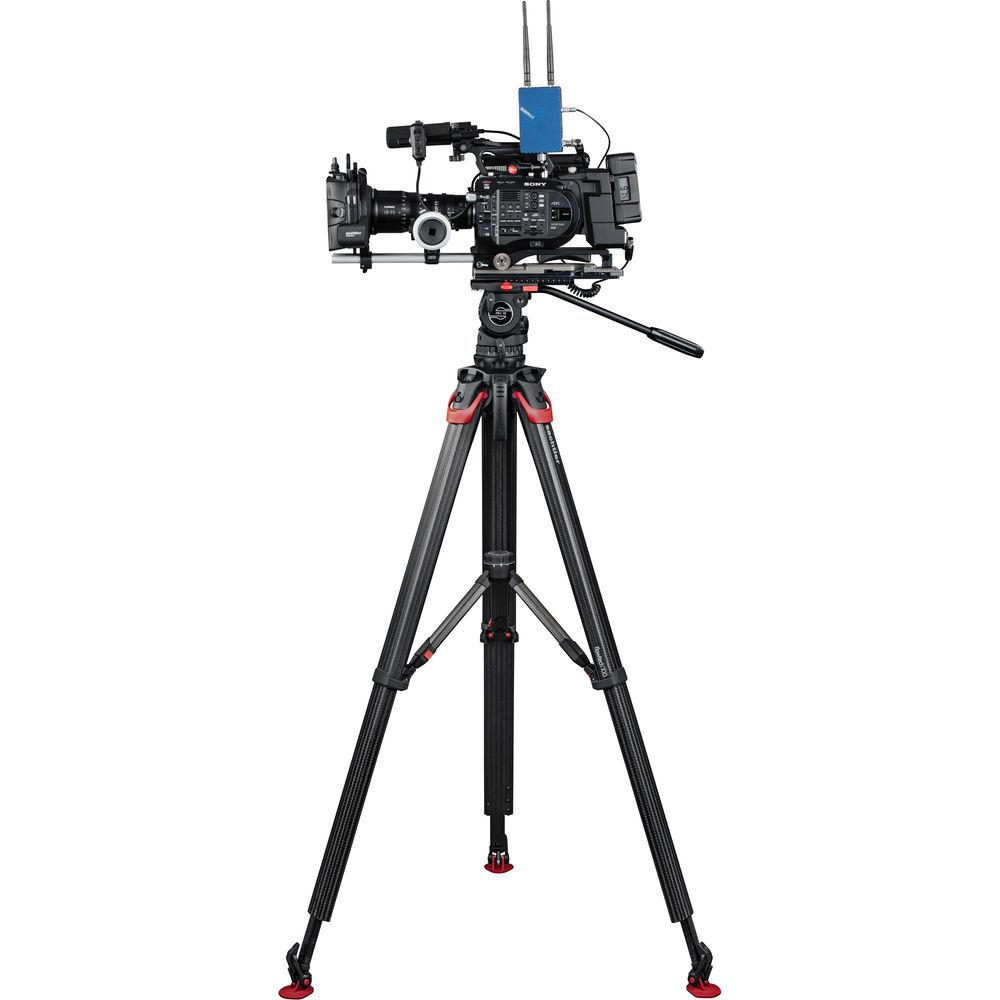

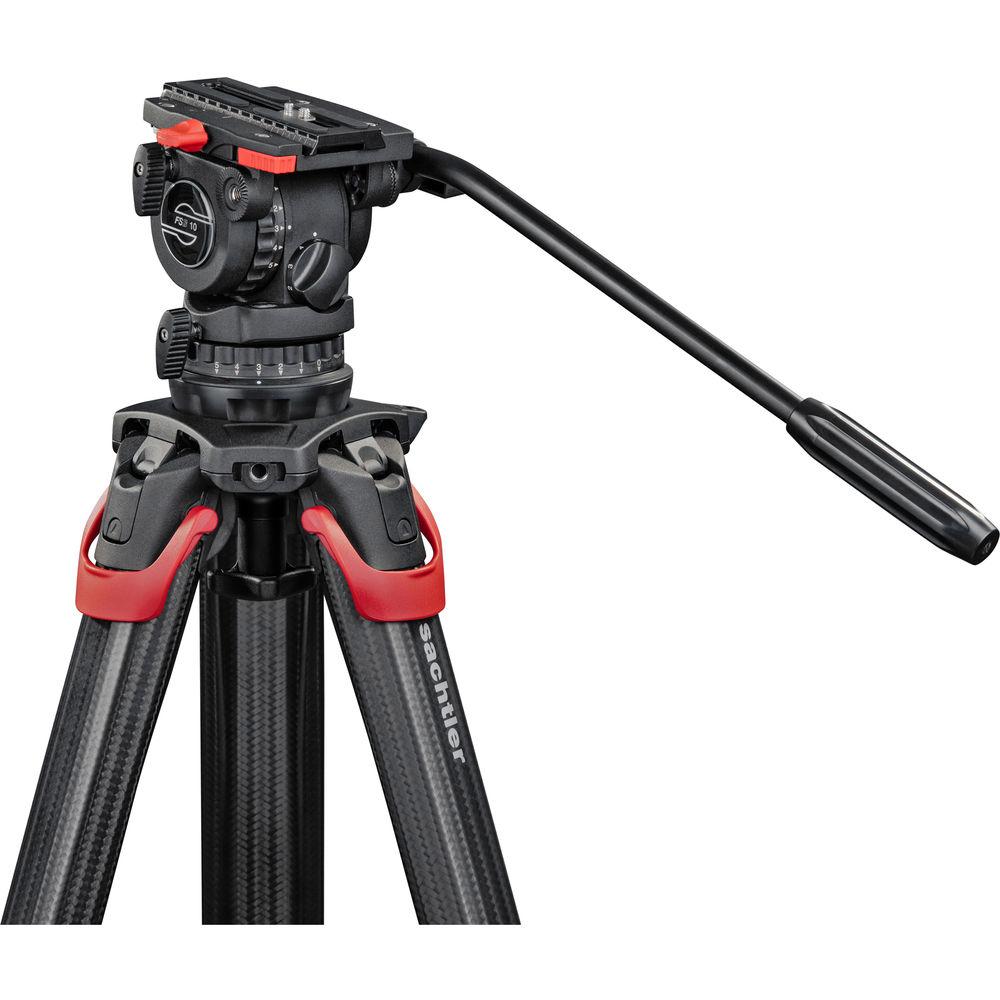

  The FSB 10 Fluid Head from Sachtler supports payloads up to 26.5 lb. Designed to accommodate digital cinema-style cameras, such as the Sony FS7, Canon C500, and Blackmagic Ursa Mini. The head offers Sachtler's Sideload mechanism with a sliding range of 4.7". It also features a 10-step counterbalance along with horizontal and vertical 5-step drag controls. In addition, a zero setting on the pan and tilt drag controls allows for unencumbered movement of the head.

  The fluid head features a 100mm bowl interface for tripod mounting and incorporates an illuminated bubble level for easy leveling in poor light conditions. A pan handle, which can be mounted on either side of the head, is also included.
  Leveling Ball with Flat Base
  • The fluid head features a 100mm ball for quick leveling on your tripod legs. The ball features a flat base so you can also mount it on a flat surface.
  Frictionless Leak-Proof Fluid Damping
  • Frictionless leak-proof fluid damping with five levels of drag enable precision adjustment to match the needs of your shot. A zero setting allows complete disengagement of drag for fast panning.
  Camera Mounting and Balancing
  • Featuring a sideload mechanism with a sliding range of 4.7" that offers the ease of a touch and go quick release plate and the balancing capability of a sliding baseplate. This sideload setup allows for up to 4.7" of balance plate travel.

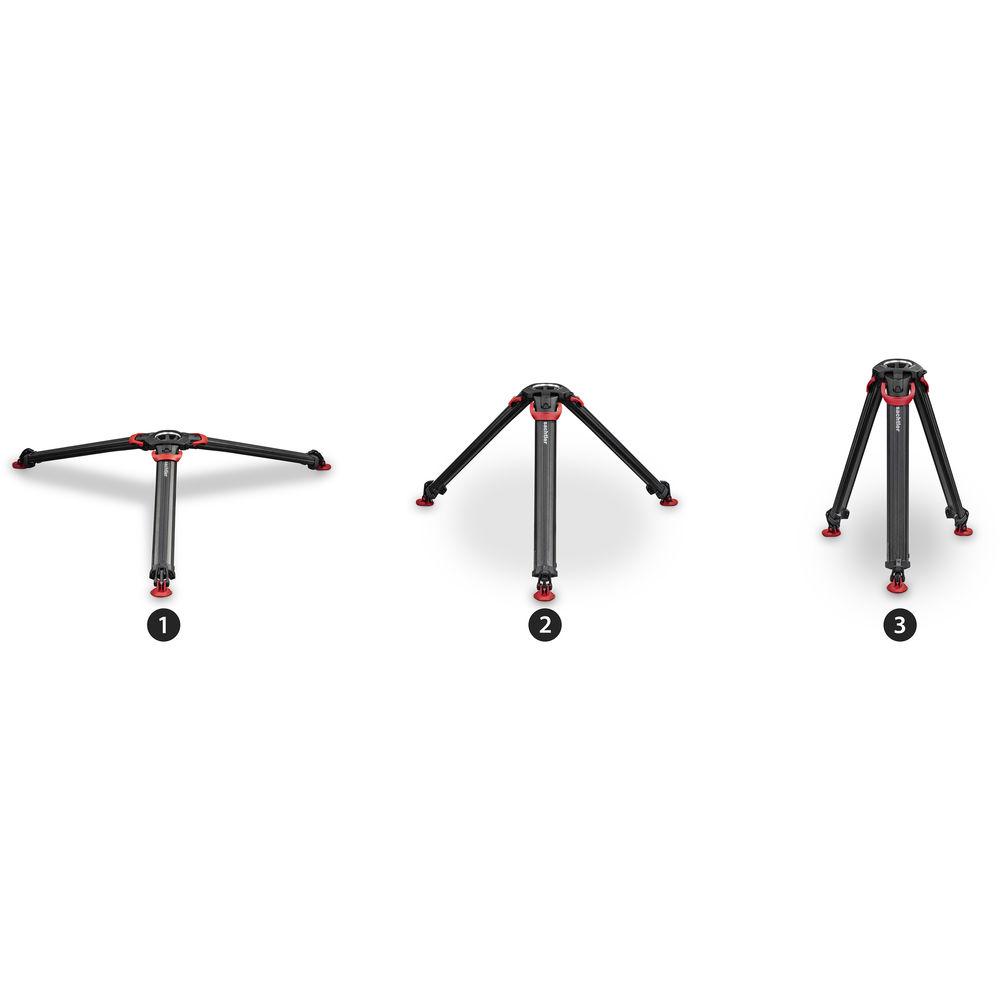

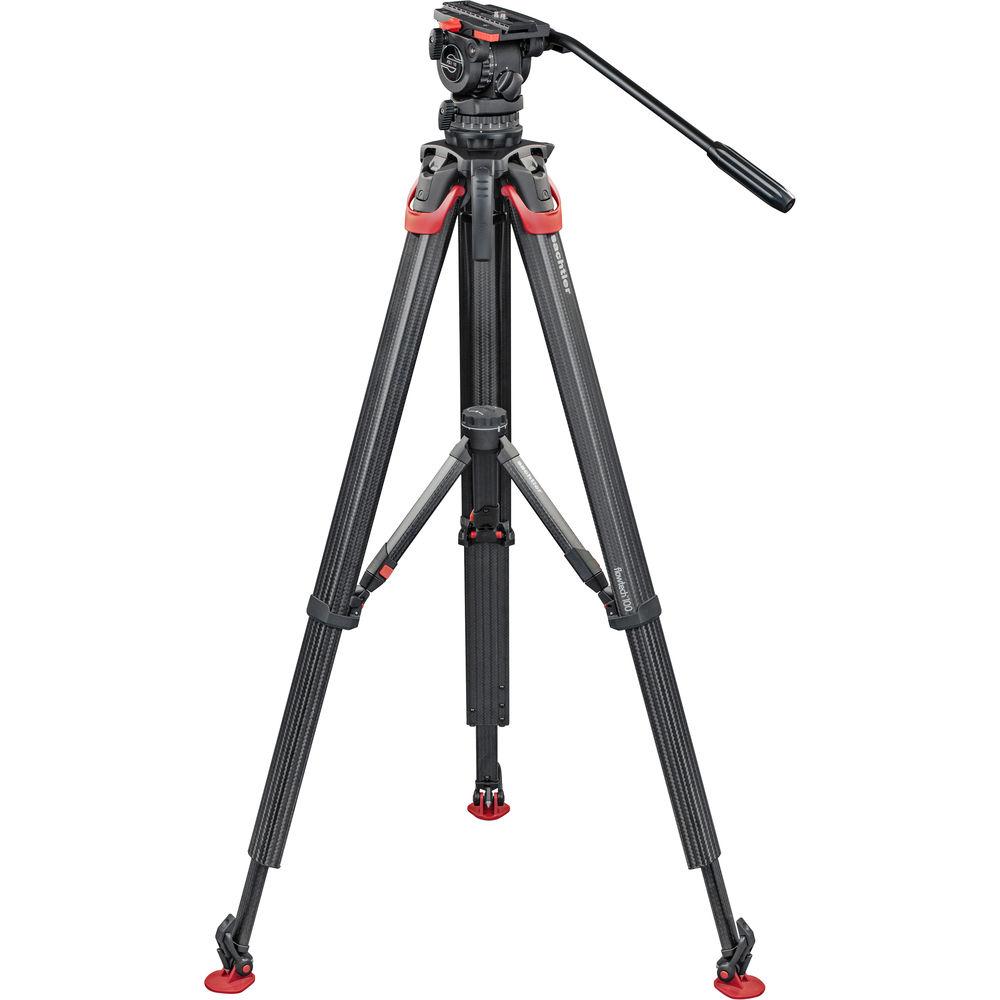

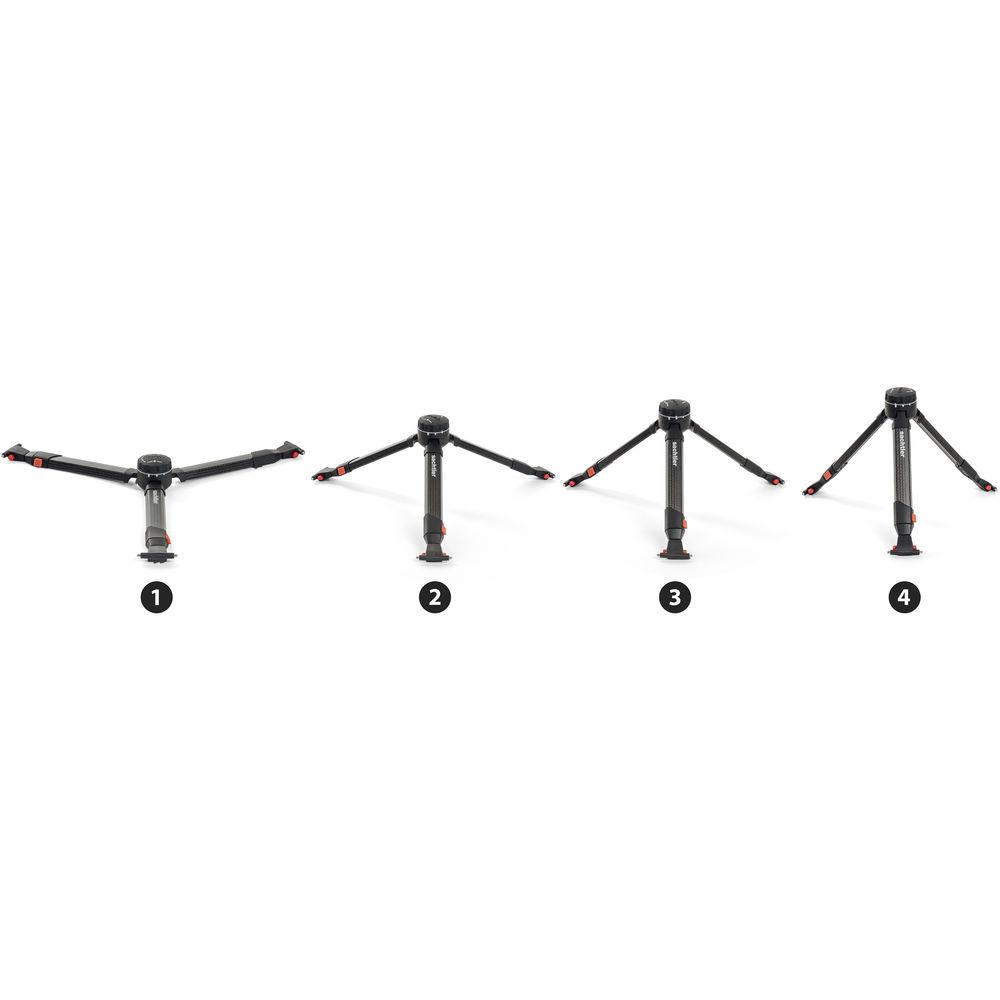

• flowtech 100 MS Carbon Fiber Tripod with Mid-Level Spreader & Rubber Feet The lightweight Sachtler flowtech 100 MS Carbon Fiber Tripod with Mid-Level Spreader offers notable stability and quick setup and adjustments for payloads up to 66 lb. The novel flowtech design features quick release locks at the top of the legs, eliminating the need to stoop while adjusting the tripod height. All three legs can be deployed simultaneously to quickly find their individual levels on uneven ground.The flowtech 100's versatile leg hinges adjust freely or can be locked at 20, 46, and 72° angles, providing a height range from 10" to 5' and reducing the need to carry a set of baby legs. Additional ergonomic features include a flatter leg design that's more comfortable when carrying on your shoulder, and magnetic locks that neatly snap the legs together for travel. Three handy 3/8"-16 threaded mounts can be used to attach a variety of accessories.Weighing only nine pounds with its spreader and feet, the flowtech 100 can support a payload of up to 66 pounds and extends from a minimum height of 20" to a maximum height of 61" when using the included mid-level spreader. Each leg features a single clamping lever that quickly and easily locks and unlocks the three sections.Designed with dual-spiked feet, this 100mm bowl tripod includes rubber feet that feature a quick release design for easy attaching and removal. A flowtech Carry Handle is included to enable carrying your flowtech system in one hand.
  Features
  • • Dual-stage, carbon fiber 100mm bowl tripod
    • Supports up to 66 pounds, yet weighs only 9 pounds
    • High torsional stability prevents the legs from twisting when panning your head
    • Brake levers at the top of the tripod quickly release all three sections simultaneously, enabling speedy setups
    • Flatter, ergonomic leg design for more comfortable over-the-shoulder carrying
    • A flexible hinge design enables high and low angles
    • The included mid-level spreader provides additional stability while enabling individual leg adjustment on uneven or stepped surfaces
    • Dual-spiked feet tripod includes quick release rubber feet for delicate or slippery surfaces
    • Magnetic locks snap the legs together for transport, but easily release for setup
    • Includes a carry handle for one-handed transportation
• ENG 2 Padded Bag The Sachtler ENG 2 Padded Bag is a soft tripod bag designed to carry various Sachtler tripods with fluid heads up to 35" long. The case is made from water-resistant Cordura nylon and can be carried by the interlocking handles or the attached, adjustable shoulder strap.
  Construction
  • • Water-resistant Cordura nylon
    • Padded interior
    • Zipper closure
  Carrying options
  • • Interlocking handles
    • Attached, adjustable shoulder strap
  Compatible with
  • • Sachtler DV 2, DV 4, DV 6 and DV 8 systems on ENG 75/2 D tripod
    • Sachtler DV 8 with 100mm ball, DV 12, DV 15, Video 15, Video 18, Video 20 fluid heads on 2-fold extension or Speed Lock CF tripods

• Sideload Plate S/Ace Tripod QR Plate

• Tie Down Knob for 100mm Halfball Clamping Bowl

• Pan Handle DV 75

• CR2032 Battery (3 V)

• Limited 1-Year Warranty

• Mid-Level Carbon Fiber Spreader for flowtech 100

• Rubber Feet with Quick Release for flowtech 75/100 Tripod

• Carry Handle for flowtech Tripods

• Attachment Mount for flowtech 75 Tripod

• Tie-Down for flowtech 100 Tripod

• Limited 1-Year Warranty, Extendable to 2-Years with Product Registration

• Shoulder Strap

• Limited 1-Year Warranty, Extendable to 2-Years with Product Registration

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• FSB 10 Fluid Head with Sideload Mechanism

  Camera Plate Features	Sliding Balance Plate, Quick Release
  Camera Plate Type	Sideload Plate S

  Base Mount	100 mm Half Ball

  Drag Control	Tilt: 5-Step Plus 0
  Vertical Tilt	+90 Rating 60% users recommend this product to others. And what about you? This product has already been rated by 39 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
