User Manual for Sachtler FSB 10 T ENG 2 D Aluminum Tripod System with Touch & Go Plate Click to enlarge the picture
Contents of the user manual for the Sachtler FSB 10 T ENG 2
- Product category: Tripod Systems Sachtler
- Brand: Sachtler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sachtler Tripod Systems
 |
User manual for the Sachtler FSB 10 T ENG 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sachtler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!
|

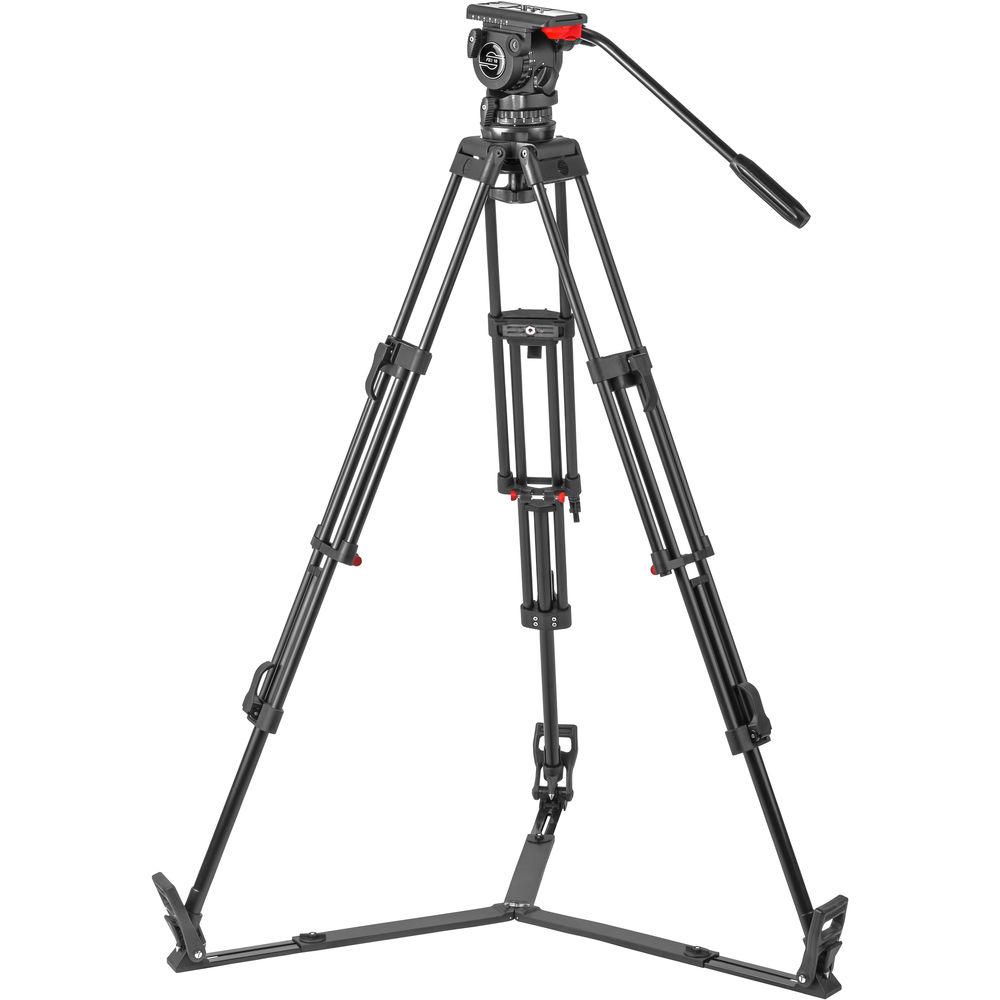

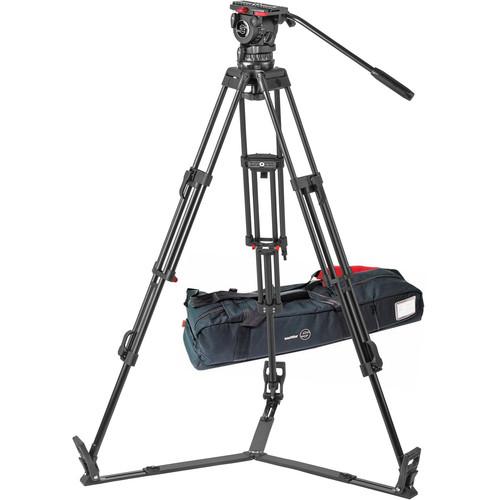

Product description The Sachtler FSB 10 T ENG 2 D Aluminum Tripod System is a complete 100mm tripod system for loads up to 26.5 lb. It includes the FSB 10 T Fluid Head, ENG 2 D 2-Stage Aluminum Tripod Legs, ground spreader, and padded carry case that fits the entire system.

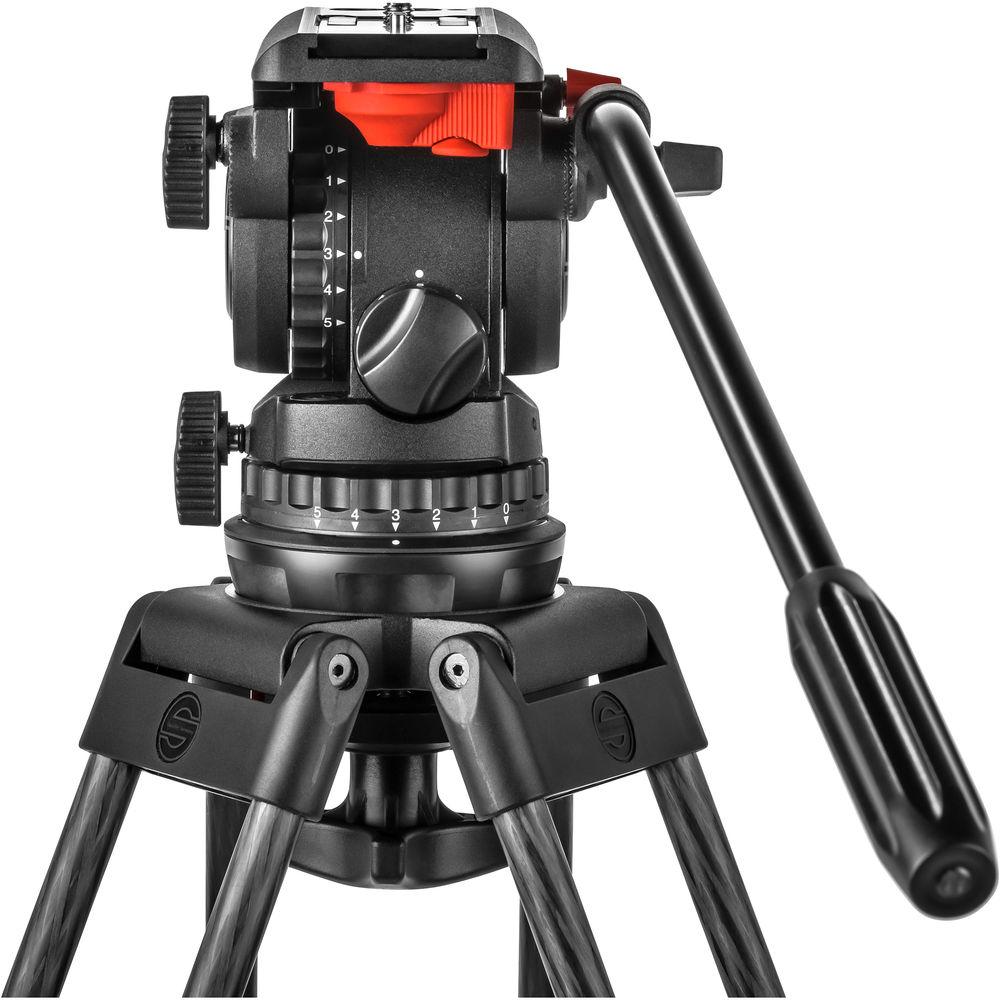

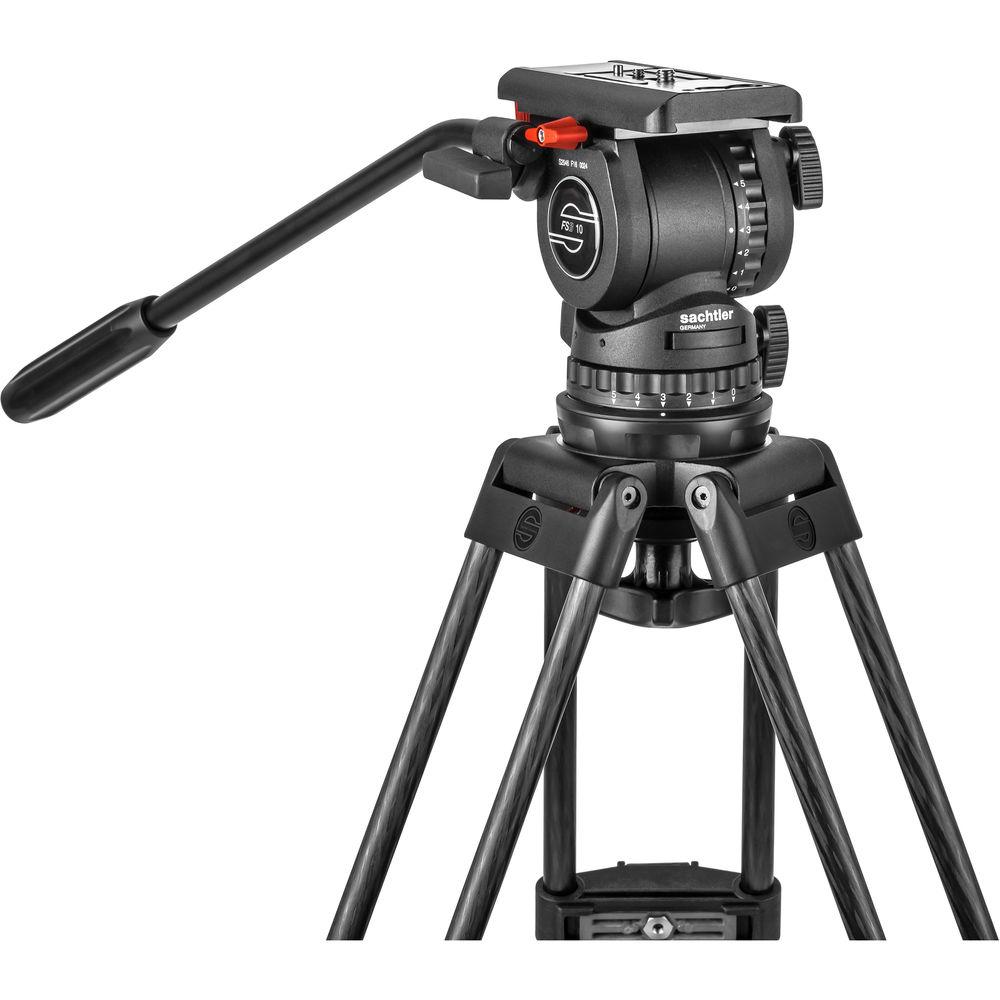

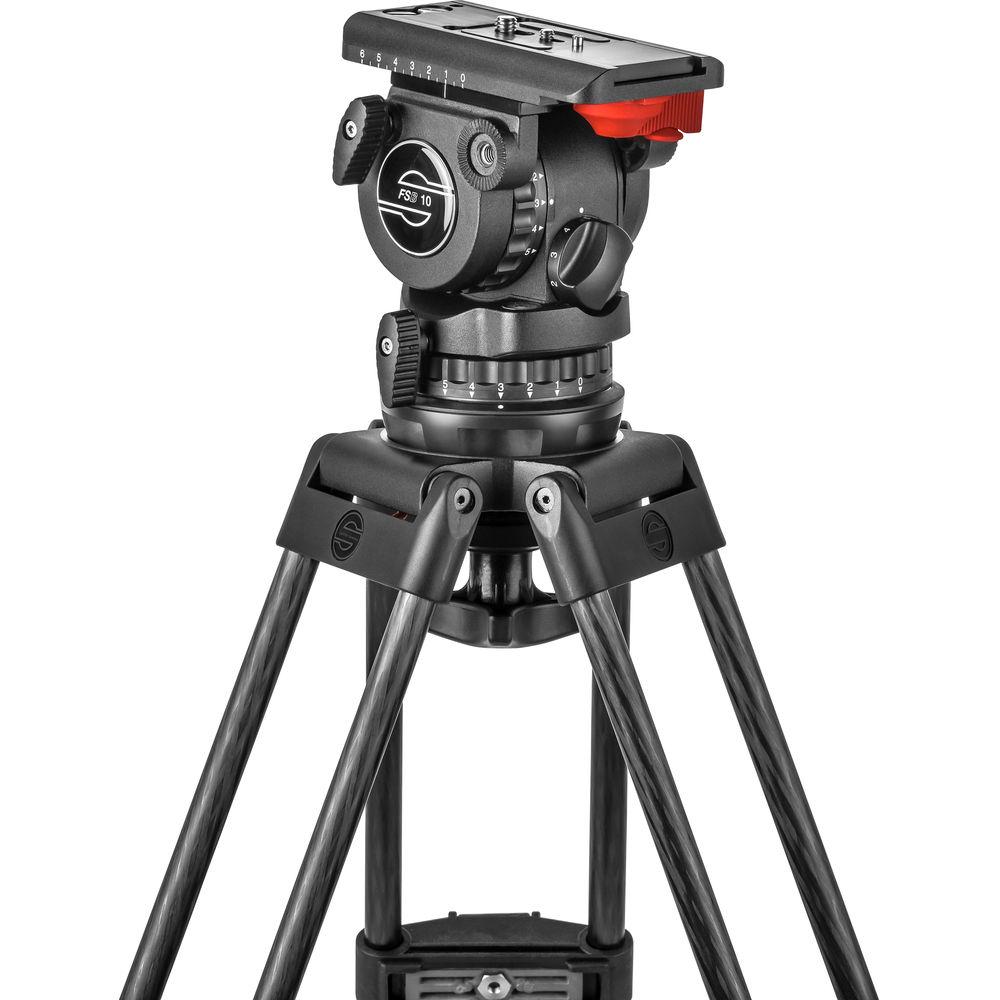

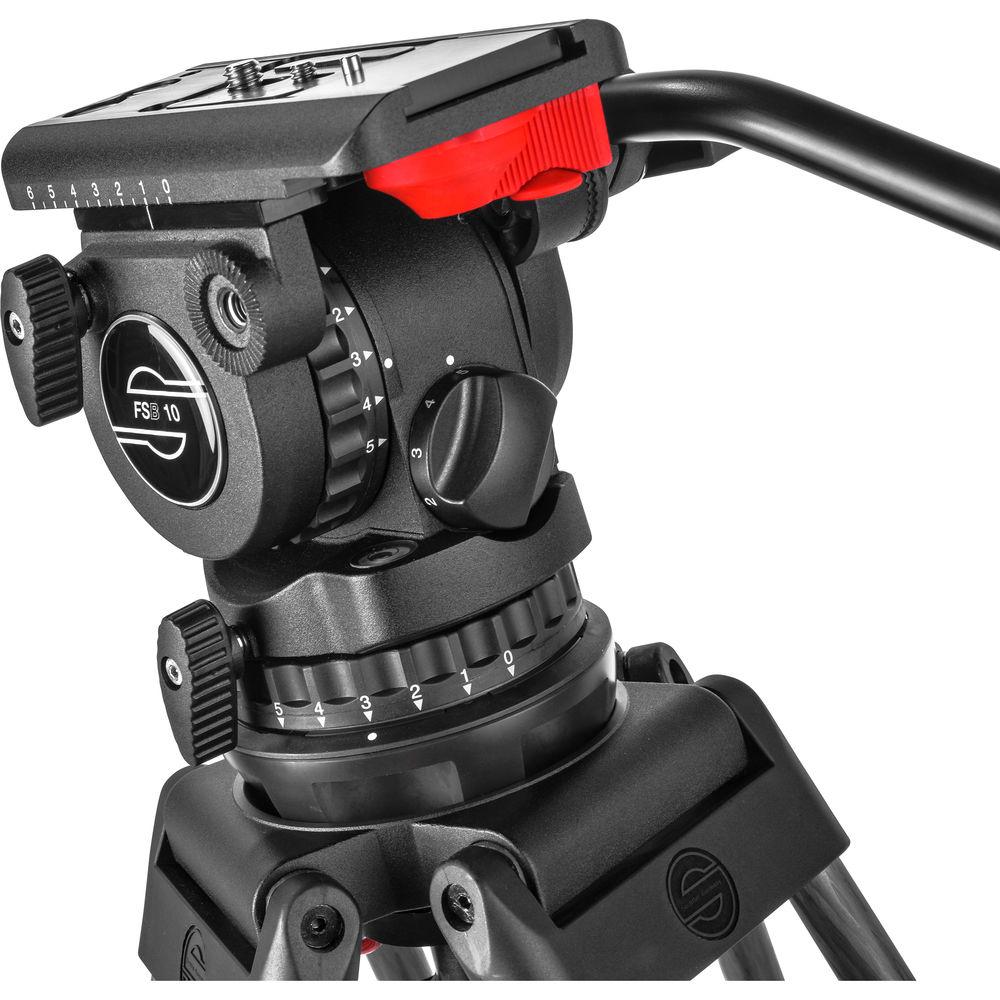

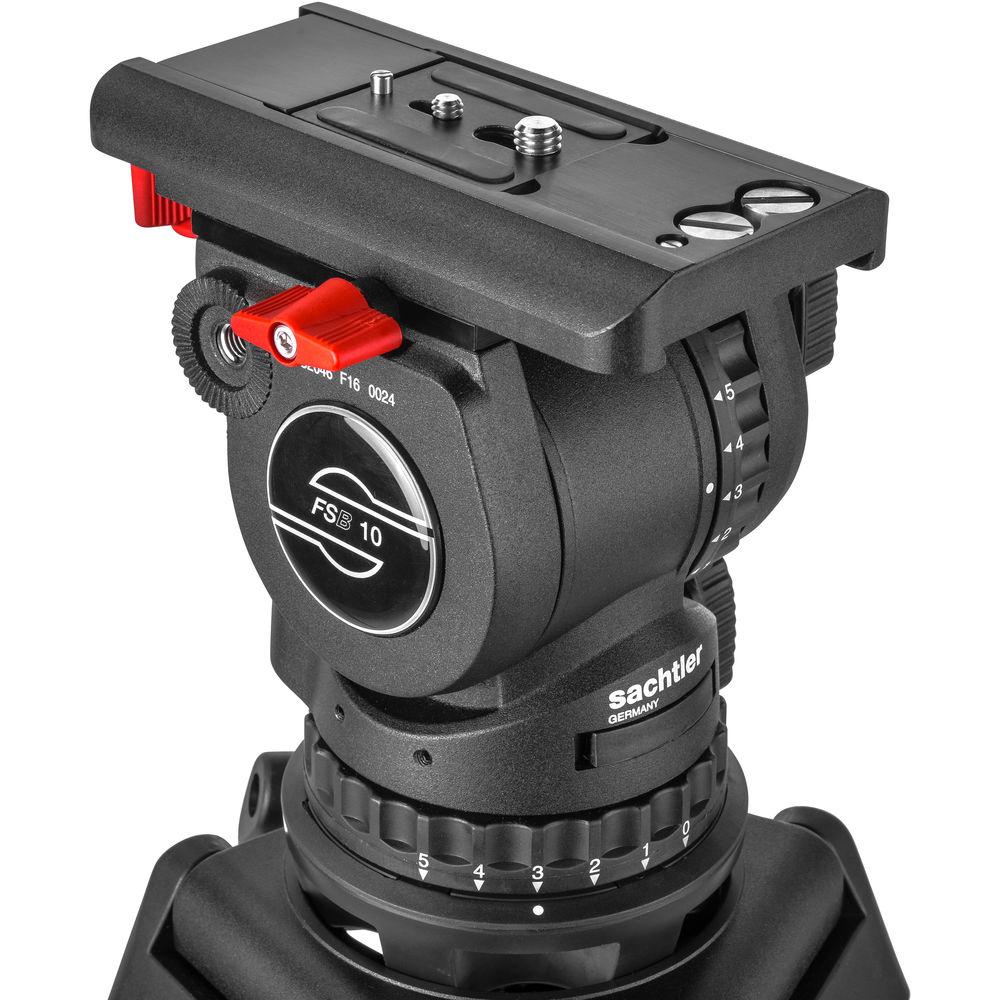

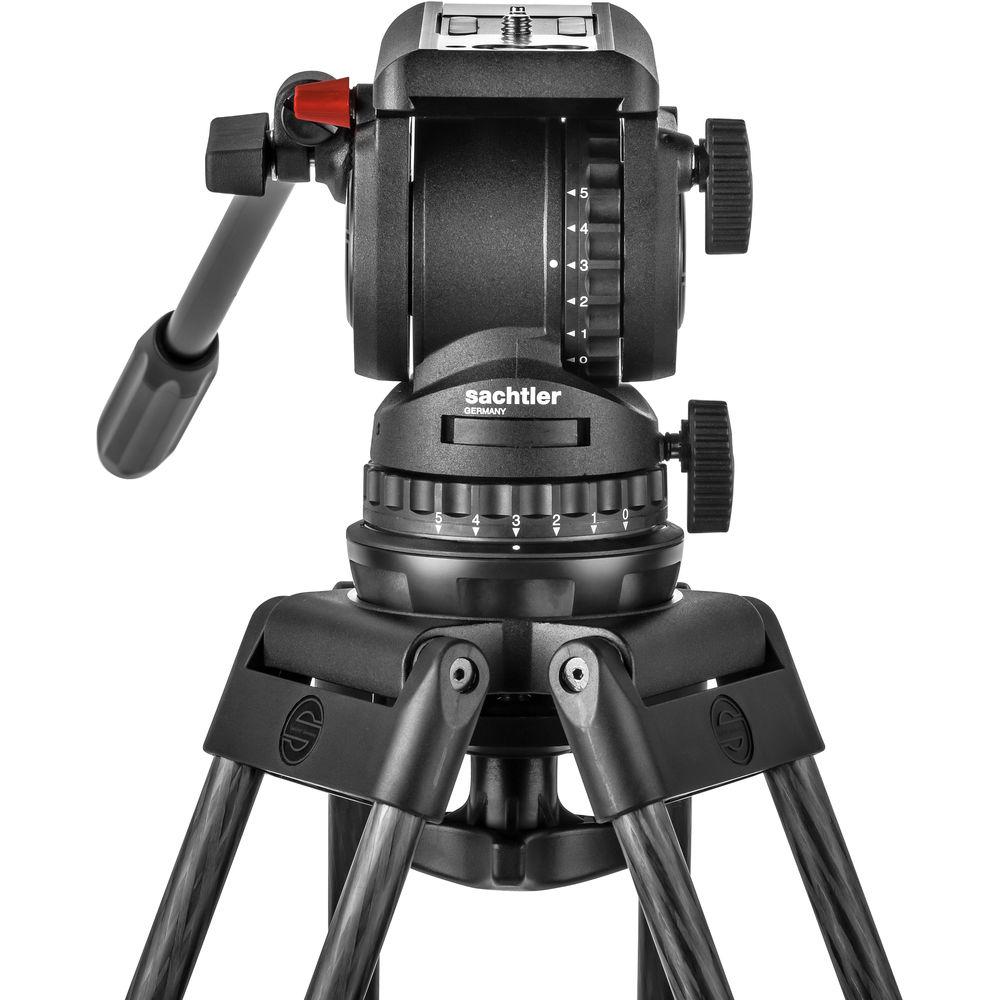

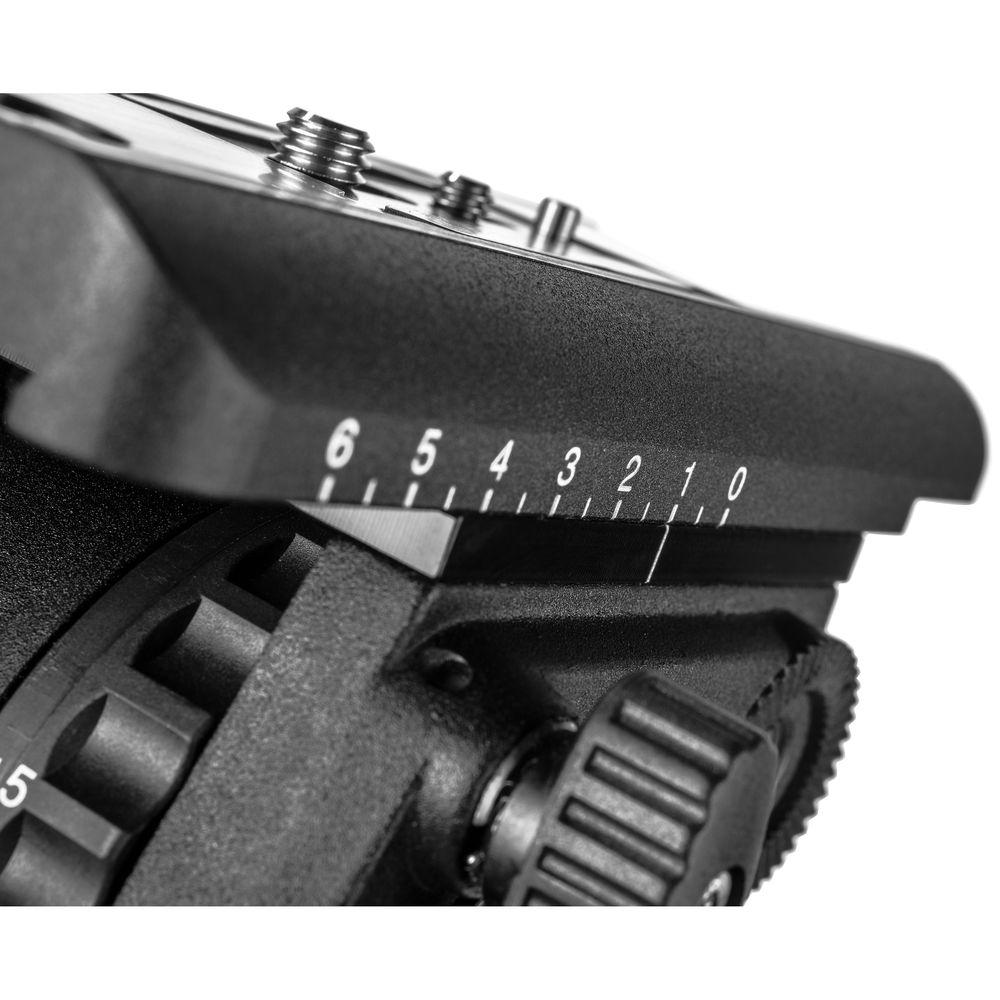

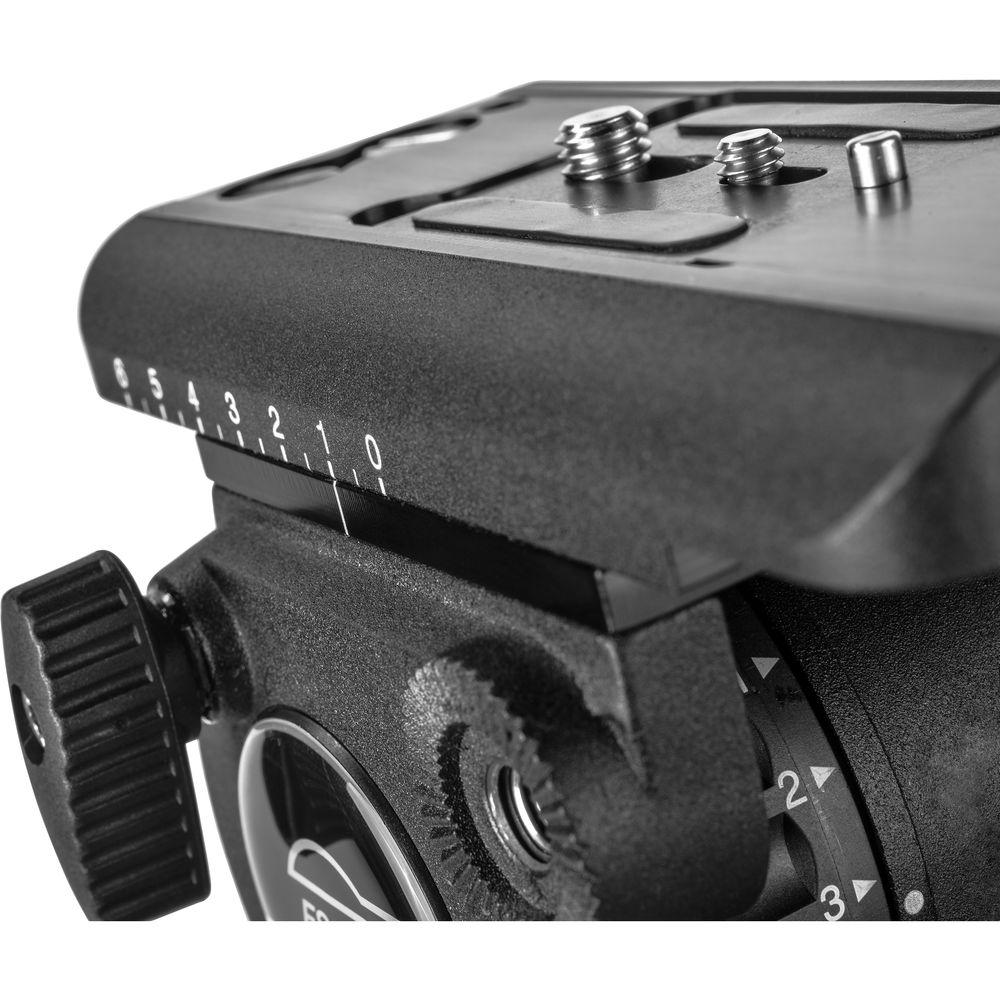

The FSB 10 T Fluid Head is designed for cine-style cameras, such as the Sony FS7 and Canon C500. It features a Touch & Go mounting mechanism with a 2.4" sliding range, and offers a spring-loaded ten-step counterbalance and 5+0 step pan/tilt drag. The pan range is a full 360°, and tilt range is +90 to -70°. The FSB 10 also has an illuminated bubble level ideal for dark environments, and comes with a pan bar that can be attached to either side.
The ENG 2 D 2-Stage Tripod Legs feature a minimum height of 15.5" and maximum height of 59", with a convenient Quick Clamp Torque Lock system. A built-in safety cord prevents the legs from opening while in transport, and a folding handle provides for comfortable carrying in the horizontal position.
The ground spreader is constructed of plastic and doesn't add much weight to the tripod. The tripod bag is made of water-resistant Cordura nylon and can be carried by its handles or adjustable shoulder strap. Various optional accessories can be incorporated into the system, including the SpeedLevel Clamp (model # S2044-0001), 150mm Bowl Adapter (# 3901), Pedestal Adapter (# 1030), Accessory Mount Kit (# 3987), and Multi-Disc Universal Flat Base Adapter (# 3914). In the Box Sachtler FSB 10 T ENG 2 D Aluminum Tripod System with Touch & Go Plate (100mm) FSB 10T Fluid Head with Touch & Go Mechanism DA-100 ENG 2D Aluminum Tripod Legs Spreader SP 100 On-Ground Tripod Spreader ENG 2 Padded Bag User Manual-FSB 10 Fluid Head PDF 5.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler FSB 10 T ENG 2 D Aluminum Tripod System with Touch & Go Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler 1046 Specs | | | Package Weight | 22.5 lb | | Box Dimensions (LxWxH) | 43.0 x 10.3 x 10.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
