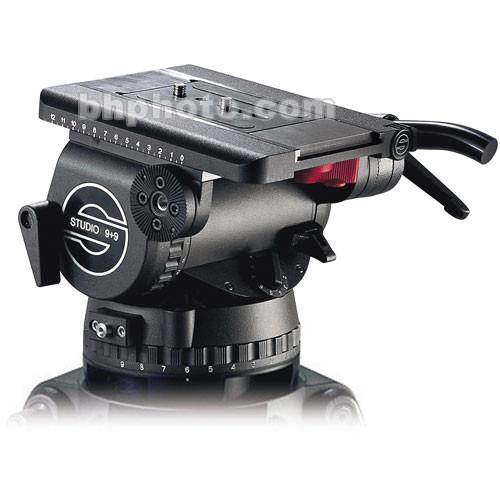

User Manual for Sachtler STUDIO 9 9 Fluid Head Click to enlarge the picture
Contents of the user manual for the Sachtler STUDIO 9 9 Fluid Head
- Product category: Video Tripod Heads Sachtler
- Brand: Sachtler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sachtler Video Tripod Heads
|
User manual for the Sachtler STUDIO 9 9 Fluid Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sachtler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!
|
Product description Ideal for 16 and 35mm film cameras, the Sachtler STUDIO 9+9 Fluid Head with 150 mm Ball Base, features Sachtler's unique, patented damping system that has been significantly extended. As the name indicates, there are now nine levels of extra-powerful drag on the pan and tilt as well as a zero setting for no drag. Drag levels 2 to 7 feature fairly fine gradations, while the jump from levels 7 to 9 is much greater. Its 18-step counterbalance allows adjustments via dial, in 9 stages and fine tune by half step function, and can be activated and deactivated individually.
The fluid head also boasts a new sliding plate, which has an integrated spindle drive. Centering the camera weight is now fast and easy - just slide the plate quickly into place and fine tune with the spindle drive if required. The counterbalance system combines the renowned Sachtler system with a dial knob system, compensating perfectly for any load from 18 lb to 121 lb.
In addition, viewfinder extension and front box connections are standard features of this head. - Frictionless leak proof fluid damping with Nine levels of drag
- A prerequisite for perfect pictures is a panning movement without jerks and vibrations. Sachtler's patented damping system takes everything in stride. The individual modules are frictionless and contain no hydraulic oil. This means they are permanently leak proof. The damping action of heads is identical across both horizontal and vertical planes and offers you nine steps of drag plus a zero setting, for smooth camerawork under the toughest of rough conditions. You can completely disengage the drag for fast panning without affecting the dynamic counterbalance system.
- Touch & Go Quick Release / Automatic Locking System
- Stop wasting time by fumbling around with clumsy attachments, or bother screwing the camera to head and then having to unscrew it again. With the Touch & Go system invented by Sachtler, the camera plate is secured to the camera, while the mating balance plate is mounted on the fluid head.
All you need to do is slip the camera into position, engage the mechanism, and the camera is locked firmly in place, when finished just disengage the latch and go. When you set up the camera for the next shot you still have all the original settings. Also features a safety lock lever that prevents inadvertent disengagement of the camera latch. - Sliding Balance Plate
- The sliding camera mount and plate with a 4.5-inch sliding range, allows you to compensates precisely for a variety of configuration weights. Ensuring perfect balance across the horizontal plane. Most importantly, once adjusted, the settings cannot be lost.
- 18 Step dynamic counterbalancing system
- Built with torsion springs the dynamic counterbalancing system compensates for torque as the camera tilts, preventing the camera from inadvertently tipping, and ensuring that it is positioned securely at any tilt angle. Freeing you to concentrate fully on your camerawork. The counterbalance is adjustable in 18 steps using the rotating counterbalance knob, which features settings from 1 to 9, in conjunction with the small lever near the counterbalance knob that will apply or release half of a counterbalance spring. Using the knob and lever together provides you with an adjustment range of 18 counterbalance steps that are independent from the damping system.
- Safe at any temperature
- Pressure or temperature does not influence the damping system, it has an operating range from
-40°F to +140°F, and works without friction. Shoot wherever you want, from torrid heat to cold climates. - Front box fixing capability - essential for every camera assistant in the movie industry.
- Ideal combination with the Dutch Head 35, to enable the camera to tilt the horizon.
- Load capacity of: 121 lb.
In the Box Sachtler STUDIO 9+9 Fluid Head (150mm Ball Base) 1x Telescopic Pan Bar (#3170) Camera Plate 35 Wedge Plate (#3051) Limited 1-Year Warranty, Extendable to 2-Years with Product Registration User Manual PDF 432.9kbxbdcqcvtuzyabzesxvxxuyedtwfetdzzbscs Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler STUDIO 9 9 Fluid Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler Studio 9+9 Specs | | | Camera Plate Features | Sliding Balance Plate, Quick Release | | Camera Plate Type | Sachtler Camera Plate 35 Touch and Go | | Balance Plate Sliding Range | 4.5" / 114.3 mm | | | | Base Mount | 150 mm Half Ball | | | | Drag Control | 9-Step Plus 0 | | Vertical Tilt | +90
