User Manual for Sachtler System 20 S1 HD CF Click to enlarge the picture
Contents of the user manual for the Sachtler System 20 S1 HD CF
- Product category: Tripod Systems Sachtler
- Brand: Sachtler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sachtler Tripod Systems
 |
User manual for the Sachtler System 20 S1 HD CF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sachtler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!
|

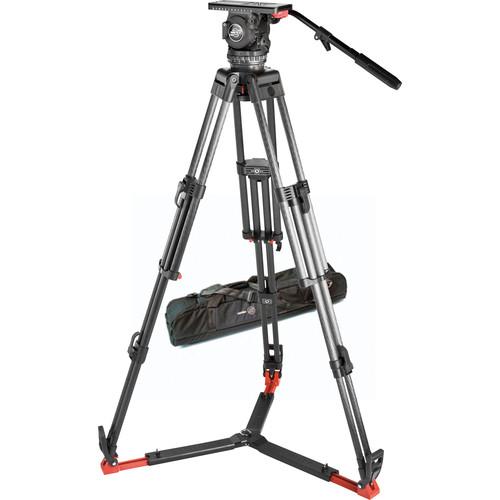

Product description The Sachtler System 20 S1 HD CF brings together the update of a classic fluid head with a quick-action, double extension tripod to provide a professional level of support for today's news-gathering videographer. Whether you're shooting with a large ENG camcorder or the latest video DSLR, this system--which also includes ground spreaders and a padded carry bag--will give you the quick, easy balance and flexible control you need. - Video 20 S1 Fluid Head

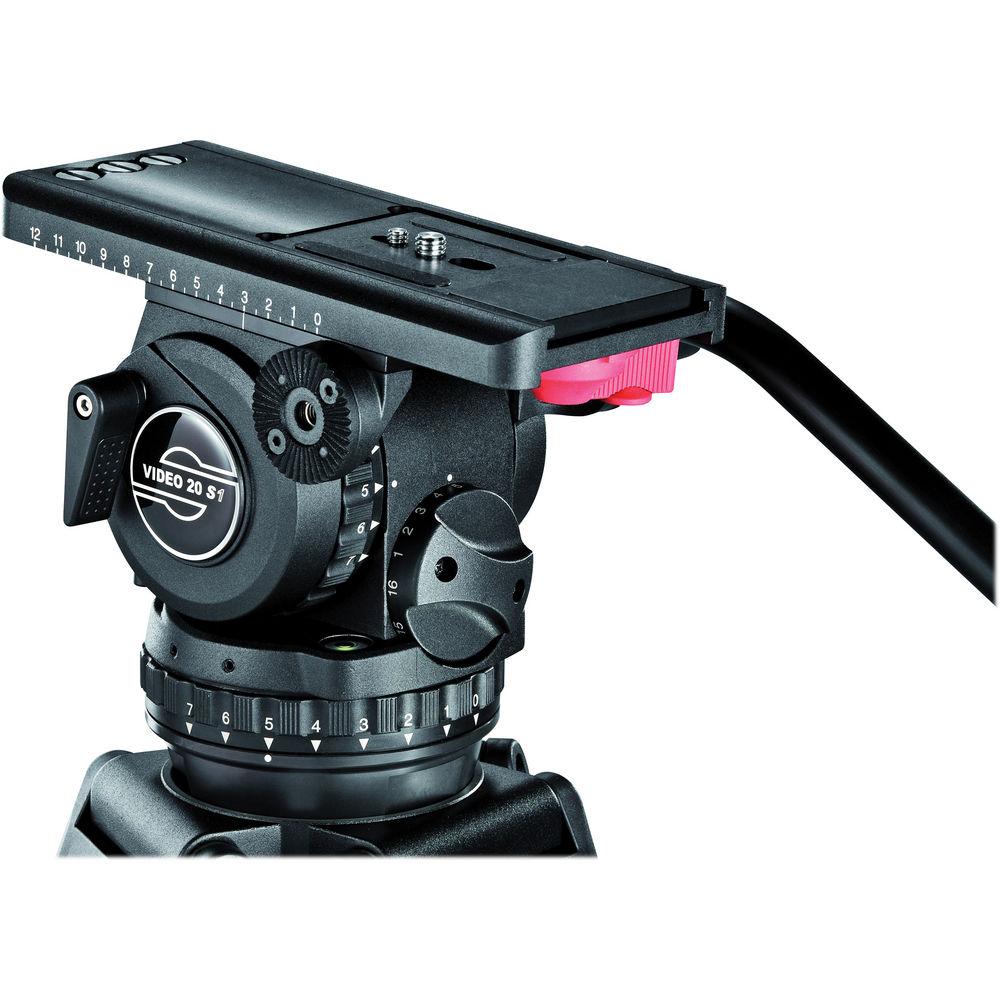

- This relaunch of the legendary Video 20 head incorporates a wider payload range and a faster, simpler balancing system. The increased range means that even lightweight cameras--such as video DSLRs--can be used effectively, aided by a 16-step counterbalance system that allows for fine degrees of tuning. Like its predecessor, the Video 20 S1 can also easily handle heavier ENG and EFP camcorders, with a Boost Button included for sudden shifts in payload range. Other features include 7 levels of drag, a self-illuminating bubble level, a Touch and Go plate for speedy mounting and removal, and Sachtler's already proven Speedbalance technology.
- ENG 2 CF HD Tripod
- The ENG 2 CF is extremely lightweight, solid and stable. Weighing in at just 8.8 lbs (4kg), its completely dual tube design ensures it can safely carry payloads of up to 209 lbs (95kg) even at its maximum height. Double extension tripods are ideal for a much wider variety of applications, due to their expanded height range--i.e., lower bottom and higher top positions--which makes transport length even shorter. A folding handle lets you easily carry the tripod in a horizontal position, while Sachtler's quick clamping system means you can securely--and visibly--lock the tripod.
- Ground-level Spreader, Carry Bag

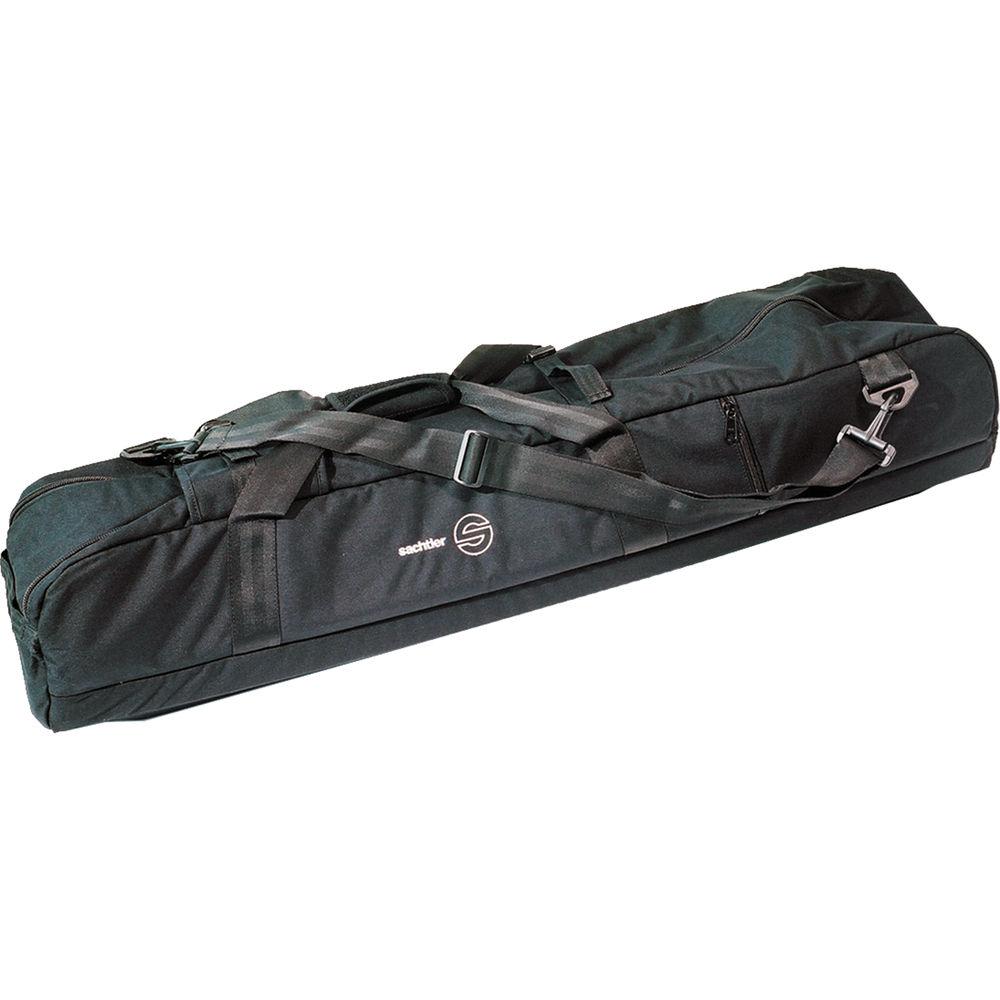

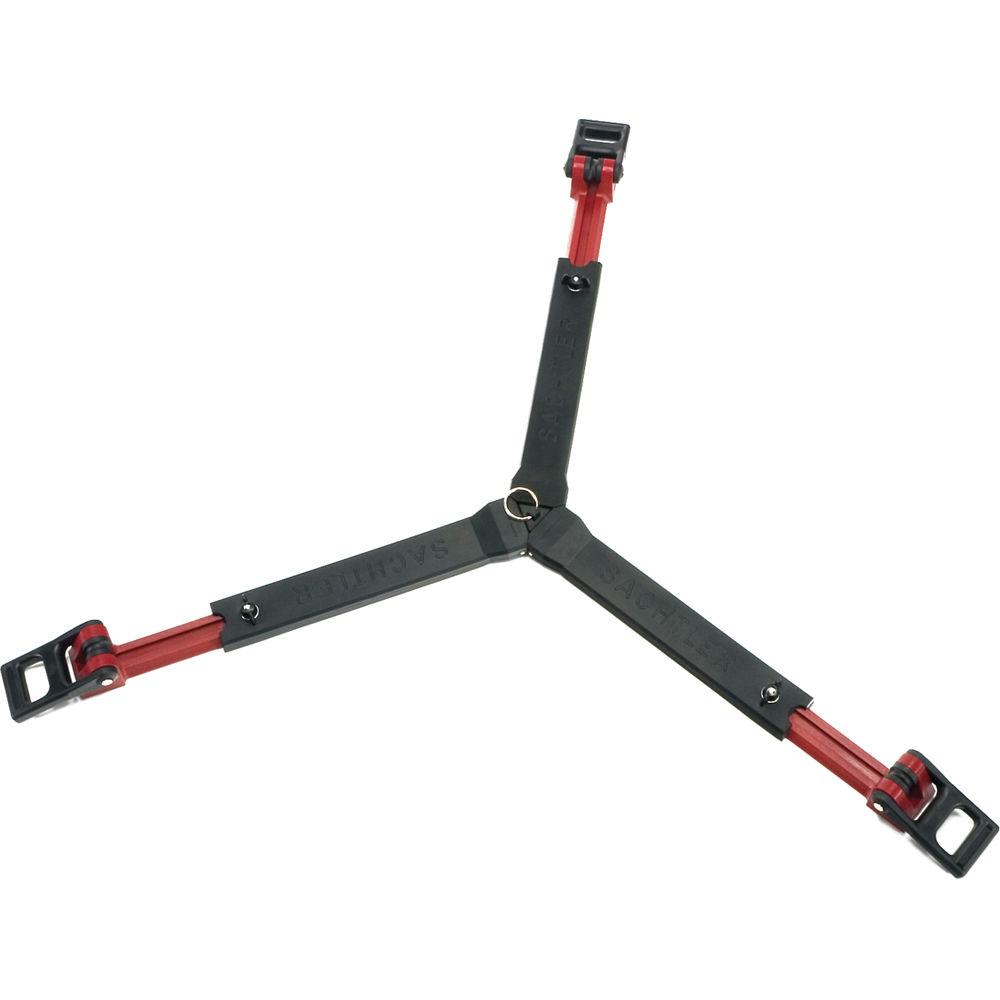

- The included ground-level spreader ensures absolute stability on flat surfaces, while the ENG/EFP padded bag comfortably and quickly contains the whole kit for efficient transport.
In the Box Sachtler System 20 S1 HD CF Video 20 S1 Fluid Head Telescoping Pan Bar ENG 2 CF HD Tripod Ground-level Spreader Padded Bag Limited 1-Year Warranty, Extendable to 2-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler System 20 S1 HD CF in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler S1 Specs | | | Load Capacity | 4-55 lbs (2-25kg) | | Maximum Height | 70.1" (178cm) | | Maximum Height w/o Column Extended | N/A | | Minimum Height | 28.3" (72cm) | | Folded Length | 37" (94cm) | | Leveling Bubble/Illuminated | Yes/Yes | | Weight | 22.9 lbs (10.4kg) | | | | Counter Balance System | 16 Steps + Boost Button | | Quick Release/Wedge Plate | Touch & Go Plate 16 | | Balance Plate | 4.7" (120mm) | | Tilt Drag | 7 Steps | | Tilt Range | +90° to -70° | | Tilt Lock | Independent | | Spring Loaded Counter Balance | 7 Steps | | Pan Range | 360° | | Pan Lock | Independent | | | | Material | Carbon Fiber | | Head Attachment Fitting | 100mm | | Leg Stages/Sections | 2/3 | | Leg Lock Type | Quick Clamp Torque Lock | | Independent Leg Spread | Yes | | Spiked/Retractable Feet | Spiked | | Center Brace | Ground-level | | | | Package Weight | 30.6 lb | | Box Dimensions (LxWxH) | 43.0 x 12.0 x 11.0" |
