User Manual for Sachtler System 20 S1 SL HD MCF Click to enlarge the picture
Contents of the user manual for the Sachtler System 20 S1 SL HD
- Product category: Tripod Systems Sachtler
- Brand: Sachtler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sachtler Tripod Systems
 |
User manual for the Sachtler System 20 S1 SL HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sachtler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!
|

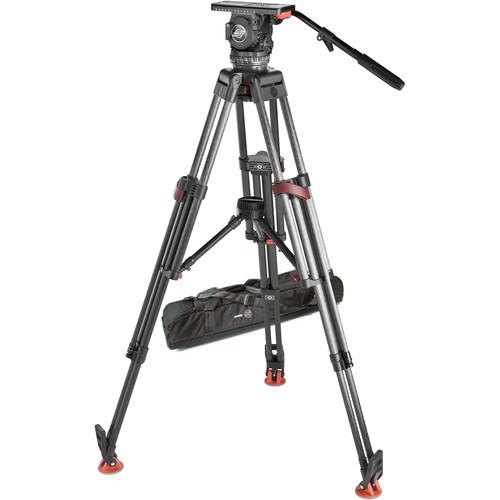

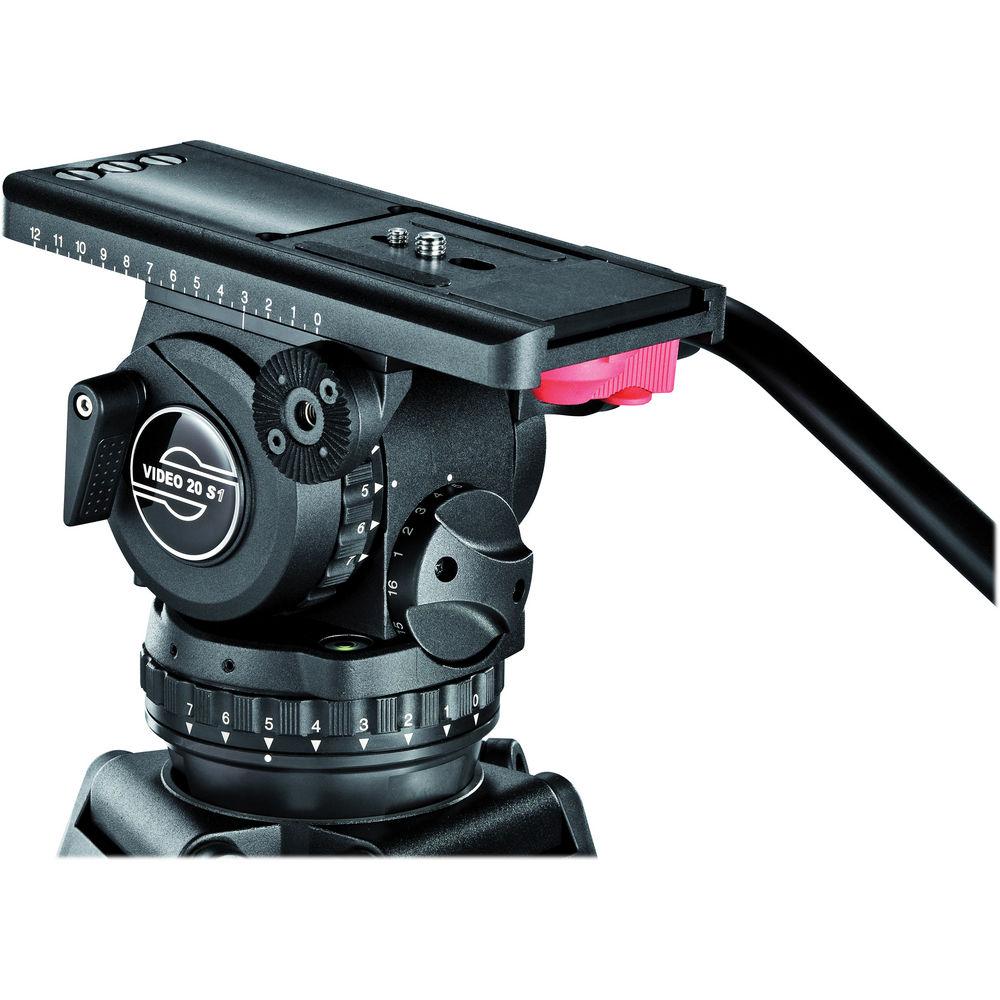

Product description The Sachtler System 20 S1 SL HD MCF brings together the update of a classic fluid head with a solid, quick-action tripod to provide a professional level of support for today's news-gathering videographer. Whether you're shooting with a large ENG camcorder or the latest video DSLR, this system--which also includes mid-level spreader, rubber feet, and a carry bag--will give you the quick, easy balance and flexible control you need. - Video 20 S1 Fluid Head
- This relaunch of the legendary Video 20 head incorporates a wider payload range and a faster, simpler balancing system. The increased range means that even lightweight cameras--such as video DSLRs--can be used effectively, aided by a 16-step counterbalance system that allows for fine degrees of tuning. Like its predecessor, the Video 20 S1 can also easily handle heavier ENG and EFP camcorders, with a Boost Button included for sudden shifts in payload range. Other features include 7 levels of drag, a self-illuminating bubble level, a Touch and Go plate for speedy mounting and removal, and Sachtler's already proven Speedbalance technology.
- Speed Lock CF Tripod
- The Speed Lock CF is among the fastest two-stage tripods in the world. This extremely sturdy and twist-resistant carbon fiber tripod ensures that you're already shooting while everyone else is still setting up. Simply release the three easy-to-reach clamps and you're ready for action. The patented clamping system lets you adjust the tripod smoothly and safely, even with a camera mounted, while the carbon fiber construction ensures minimal load-free weight, increasing stability and twist resistance.

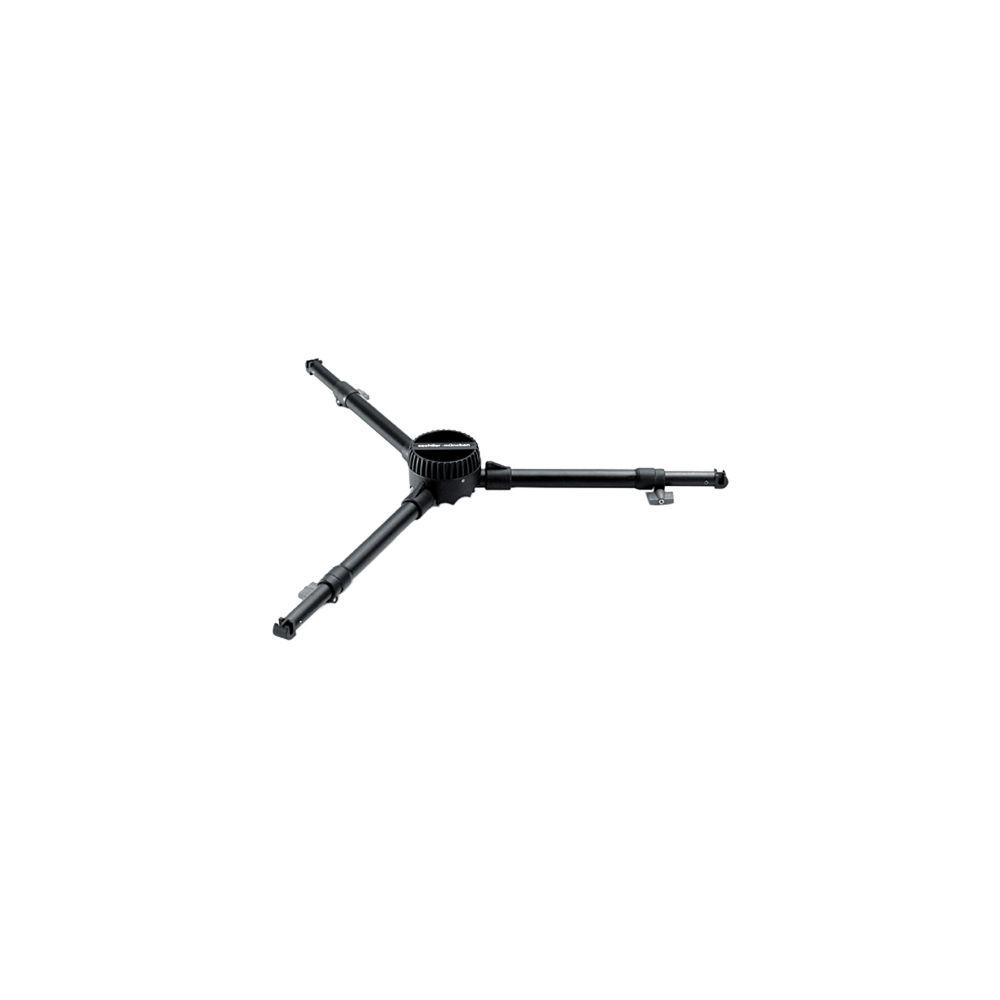

- Mid-level Spreader, Rubber Feet, Carry Bag

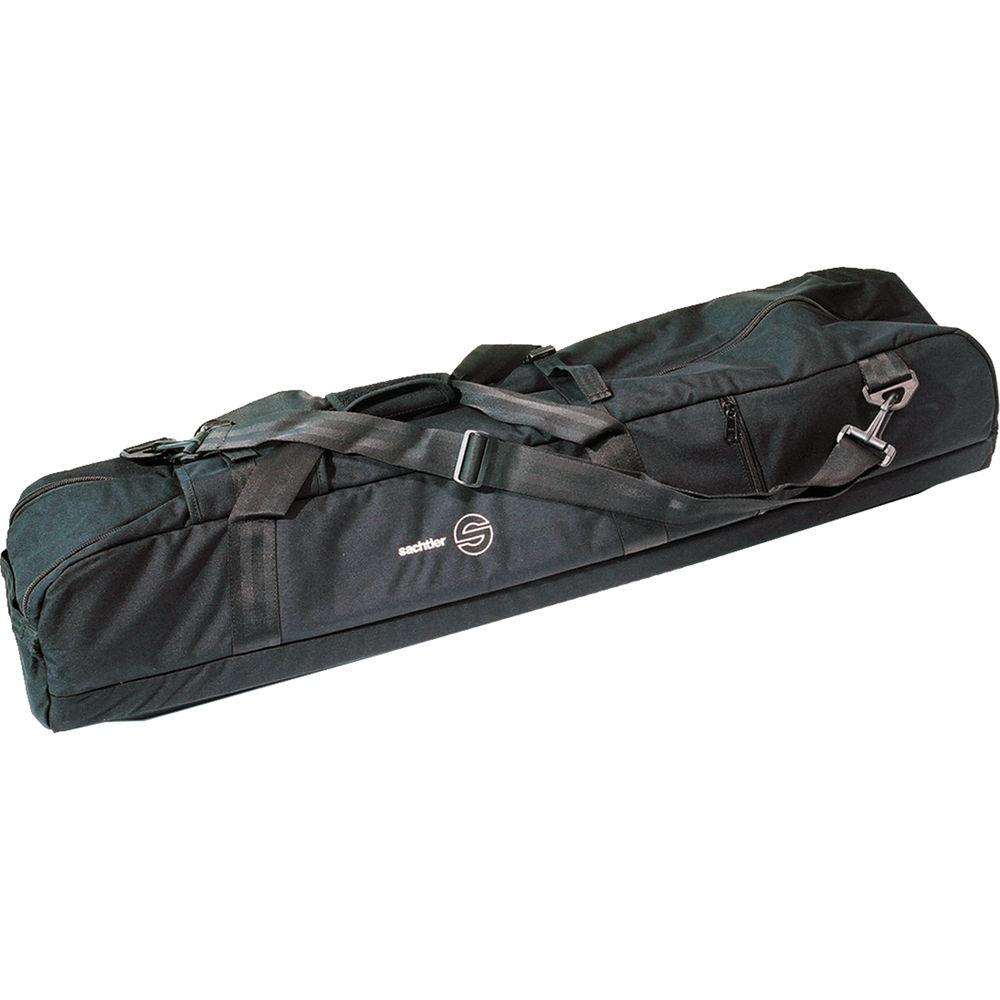

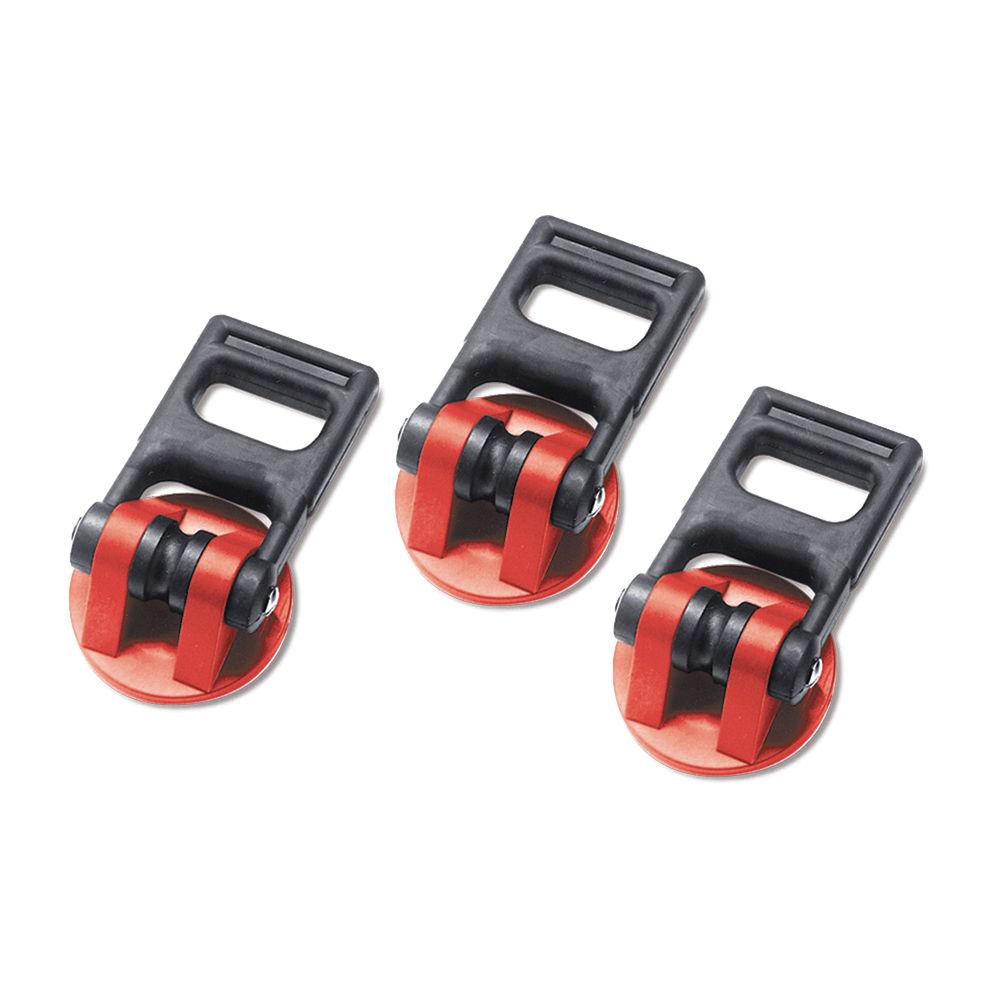

- The included mid-level spreader ensures absolute stability regardless of the working surface, while a set of rubber feet will protect floors from scratching. Topping off the system is the ENG/EFP padded bag, which comfortably and quickly contains the whole kit for efficient transport.
In the Box Sachtler System 20 S1 SL HD MCF Video 20 S1 Fluid Head frucau Telescoping Pan Bar Speed Lock CF HD Tripod Mid-level Spreader 3 x Rubber Feet Padded Bag Limited 1-Year Warranty, Extendable to 2-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler System 20 S1 SL HD MCF in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler S1 Specs | | | Load Capacity | 4-55 lbs (2-25kg) | | Maximum Height | 68.5" (174cm) | | Maximum Height w/o Column Extended | N/A | | Minimum Height | 28.7" (73cm) | | Folded Length | 37" (94cm) | | Leveling Bubble/Illuminated | Yes/Yes | | Weight | 22.7 lbs (10.3kg) | | | | Counter Balance System | 16 Steps + Boost Button | | Quick Release/Wedge Plate | Touch & Go Plate 16 | | Balance Plate | 4.7" (120mm) | | Tilt Drag | 7 Steps | | Tilt Range | +90° to -70° | | Tilt Lock | Independent | | Spring Loaded Counter Balance | 7 Steps | | Pan Range | 360° | | Pan Lock | Independent | | | | Material | Carbon Fiber | | Head Attachment Fitting | 100mm | | Leg Stages/Sections | 2/3 | | Leg Lock Type | Quick Clamp Torque Lock | | Independent Leg Spread | Yes | | Spiked/Retractable Feet | Spiked | | Center Brace | Mid-level | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 41.0 x 10.0 x 10.0" |
