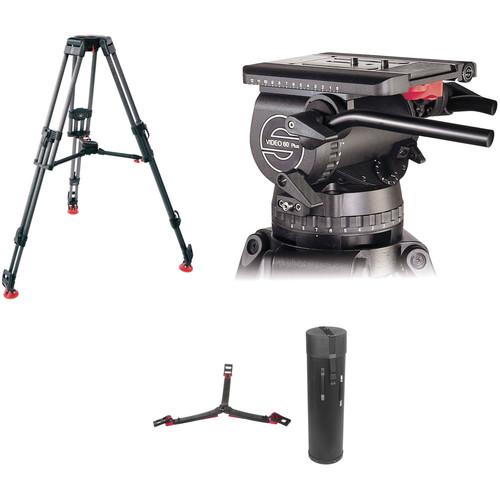

Sachtler System 60 Plus EFP Tripod

User Manual for Sachtler System 60 Plus EFP Tripod System

• Product category: Tripod Systems Sachtler
• Brand: Sachtler
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sachtler Tripod Systems

Product description

• Sachtler Video 60 Plus EFP Fluid Head (150mm Ball Base) The Video 60 Plus with a weight of 8.4 kg /18.5 lb is extremely lightweight for an EFP fluid head. Even the flat base OB and studio model is only 9.4 kg / 21 lb. With a 150mm / 5.9" center of gravity height, it easily supports weights up to 65 kg /145 lb. Due to it's ergonomic, robust, squeeze-proof design, which ensures safe operation in any position. The Video 60 Plus displays an 18 step counterbalance which can be adjusted easily and safely in 9 stages with the well known Sachtler dial. Fine-tuning is achieved via a half step function, which can either be engaged or disengaged. And for even more precise adjustment the balance plate has a sliding range of up to 115mm / 4.5", and up to 120mm / 4.7" for the studio version. This allows you to safely balance the camera at any tilt angle. The Video 60 Plus fluid head has a modular design, allowing you to change it for different applications. Various configuration options are available like; 150mm Ball Base with the Touch & Go quick release system and camera plate 35 wedge or Flat Base with the V-shaped wedge plate, or you can even mount it on a Mitchell Mount base.
  Frictionless leak proof fluid damping with Nine levels of drag
  • A prerequisite for perfect pictures is a panning movement without jerks and vibrations. Sachtler's patented damping system takes everything is stride. The individual modules are frictionless and contain no hydraulic oil. This means they are permanently leak proof. The damping action of heads is identical across both horizontal and vertical planes and offers you nine steps of drag, for smooth camerawork under the toughest of rough conditions. You can completely disengage the drag for fast panning without affecting the dynamic counterbalance system.
  Touch & Go Quick Release / Automatic Locking System
  • Stop wasting time by fumbling around with clumsy attachments, or bother screwing the camera to head and then having to unscrew it again. With the Touch & Go system invented by Sachtler, the camera plate is secured to the camera, while the mating balance plate is mounted on the fluid head.
    All you need to do is slip the camera into position, engage the mechanism, and the camera is locked firmly in place, when finished just disengage the latch and go. When you set up the camera for the next shot you still have all the original settings. Also features a safety lock lever that prevents inadvertent disengagement of the camera latch.
  Sliding Balance Plate
  • The sliding camera mount and plate with a 4.5-inch (150mm Ball Base) or 4.7-inch (Flatbase) sliding range, allows you to compensates precisely for a variety of configuration weights. Ensuring perfect balance across the horizontal plane. Most importantly, once adjusted, the settings cannot be lost.
  18 Step dynamic counterbalancing system
  • Built with torsion springs the dynamic counterbalancing system compensates for torques as the camera tilts, preventing the camera from inadvertently tipping, and ensuring that it is positioned securely at any tilt angle. Freeing you to concentrate fully on your camerawork. Its 18-step counterbalance allows adjustments via dial, in 9 stages and fine tune by half step function, and can be activated and deactivated individually. Independent from the damping system, they work silently and without the need for maintenance.
  Safe at any temperature
  • Pressure or temperature does not influence the damping system, it has an operating range from
    -40°F to +140°F, and works without friction. Shoot wherever you want, from torrid heat to cold climates.
  • Vibrationless vertical / horizontal brakes, for maximum safety in fast-paced reporting situations.
  • Built-in illuminated bubble for horizontal leveling, uses a conventional battery and ensures easy leveling even under unfavorable lighting conditions.
  • Load capacity of: 132 lb.
• Sachtler 150 EFP 2 CF Carbon Fiber Tripod Legs The Sachtler 150 EFP 2 CF Carbon Fiber Tripod Legs two stage tripod, provides maximum stability and carrying capacity. Constructed and drawn out of one-piece carbon fiber material, makes it twist resistant and lighter than dural aluminum. It features a 150mm / 6" bowl, tube diameter of 22mm (0.87") and is fitted with the Sachtler quick clamping system, so you can securely - and visibly - lock the tripod. The 150 EFP 2 CF's double extension provides greater stability, allowing an extended height range with a payload of 209 lb., and with a weight of only 9.6-lb it's extremely lightweight, solid and stable.
  • Carbon Fiber construction with 22mm (0.87") tube diameter
  • 150mm / 6" bowl base
  • Double extension design
  • Maximum height of 62.2-inch
  • Quick clamping system, locks tripod legs in seconds
  • Supports up to 209 lb.
• Sachtler Spreader SP 100/150 HD On-Ground Tripod Spreader A On-Ground Spreader is chosen when shooting is performed on a level surface, such as studio, city streets, offices, sport fields and stadiums. It allows for rapid set-up and pull down by keeping tripod legs at an equal or preset distance relative to each other. Attaches directly to the feet at the bottom of a tripod and its arms are telescopic to allow extension of a tripod leg without detaching the spreader. Fits all 100mm and 150mm bowl tripods (except Short, OB-2000, OB-2000M and Cine 2000 tripods)
• Sachtler Cover 150 II Hard Tripod Case (Black, New) Confidently ship, store, and protect your Video 25 or 60 fluid head on select tripods with the black, new Cover 150 II Hard Tripod Case from Sachtler. This well-made case has a top cover with about 3.5" leeway, and a carry handle on the side. The cover may be used with or without a tripod head, depending on the dimensions of your tripod.
  Compatible With:
  • • Video 25 fluid head on long or medium tripod with spreader
    • Video 60 Plus EFP fluid head on EFP2 tripod
    • Video 25 Plus FB fluid head on OB 2000 tripod
    • DV 8/100, DV 12, Video 15, or Video 60 Plus (except Cine 30 HD) on Combi Pedestal
    • Similar-sized Sachtler tripods 40 to 44 x 11"
  • Hard shipping case with adjustable top section
  • Carried by a strap on the side of the case

• Video 60 Plus EFP Fluid Head (150mm Ball Base) - Supports 35-145 lbs zfvdtbqtdextwbscvswdsrbb
• 1x Right Telescopic Pan Bar (#3270)
• 1x Left Telescopic Pan Bar (#3271)
• Quick Release / Wedge Plate (#3051)
• Limited 1-Year Warranty, Extendable to 2-Years with Product Registration

• 150 EFP 2 CF Carbon Fiber Tripod Legs

• Spreader SP 100/150 HD On-Ground Tripod Spreader

• Cover 150 II Hard Tripod Case (Black, New)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sachtler Video 60 Plus EFP Fluid Head (150mm Ball Base)

  Camera Plate Features	Sliding Balance Plate, Quick Release
  Camera Plate Type	Sachtler Camera Plate 35 Touch and Go
  Balance Plate Sliding Range	4.5" / 114.3 mm

  Base Mount	150 mm Half Ball

  Drag Control	Tilt: 10-Step Plus 0
  Vertical Tilt	+90 Rating 90% users recommend this product to others. And what about you? This product has already been rated by 16 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
