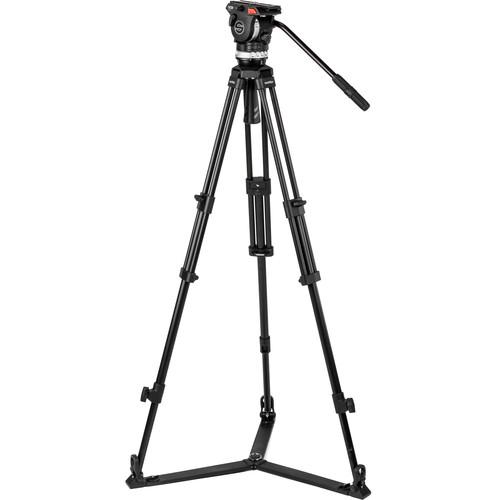

Product description Another Ace in The Hole: The Sachtler Ace XL with Aluminum Tripod Read More The Sachtler System Ace XL GS AL with Fluid Head, Ace 75/2 D Tripod, Ground Spreader & Bag is a full tripod system for videographers who use cameras and accessories up to 17.6 pounds. The Ace XL fluid head is suitable for larger DSLR and mirrorless MFT cameras, as well as pro-style cameras such as the Blackmagic URSA Mini/Pro, Canon C200/C300 Mk II, Sony FS series, and the Panasonic EVA1. The Ace XL fluid head features eight steps of counterbalance and three steps of pan and tilt drag adjustment, plus a zero drag option for pan and tilt.
The Ace 75/2 D aluminum legs can support up to 77 pounds, which easily handles the weight of the head, your camera, and accessories. Each leg is individually adjustable, providing a stable platform, even when working on uneven terrain. The included ground spreader is suitable for working on smooth level surfaces. Compatible Cameras - Including but not limited to:
Blackmagic URSA Mini/Mini Pro
Canon C200/C300 Mk II
Sony FS series
Panasonic EVA1 Ace XL Fluid Head Features - Fluid head with 17-pound capacity suited for larger DSLR and mirrorless MFT cameras, and for pro-style digital cine cameras
- Eight steps of counterbalance; three steps of pan and drag plus zero settings for disengaging the pan and tilt tension
- The 75mm ball-based head has an integrated flat bottom useful for mounting to sliders, etc.

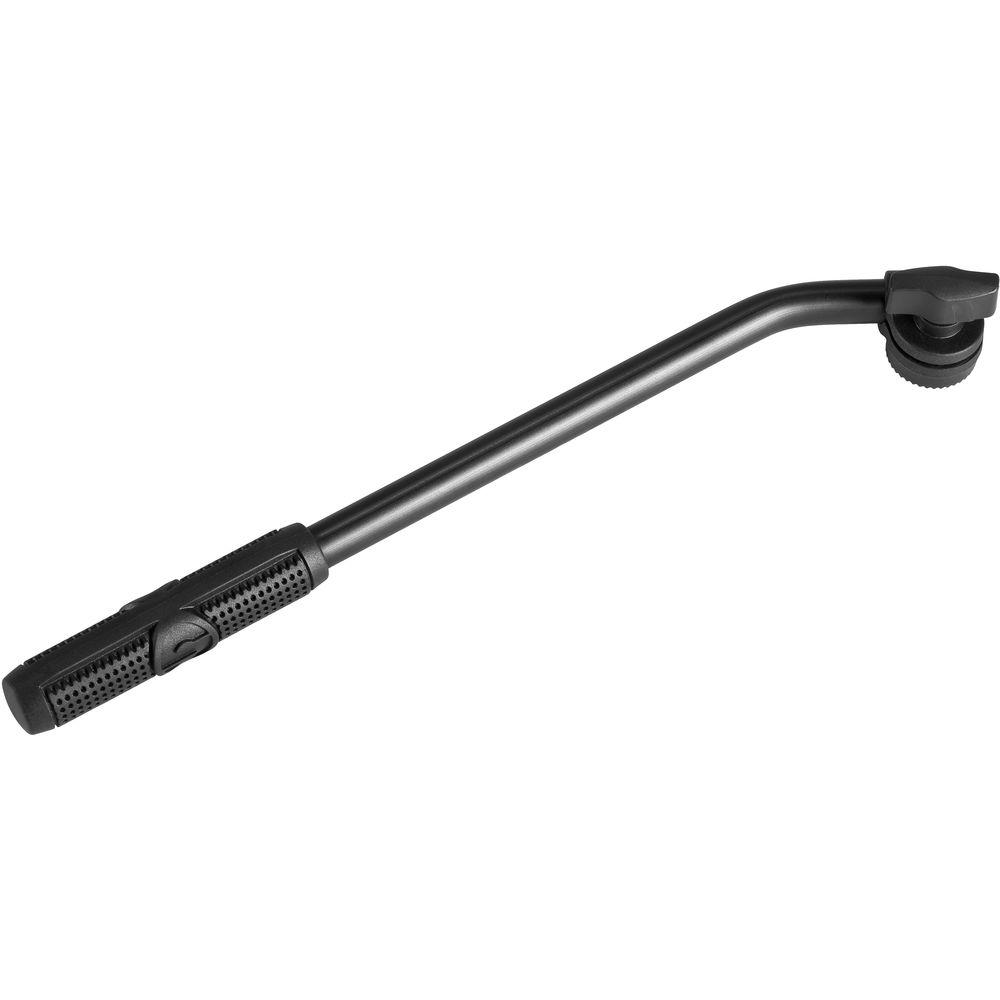

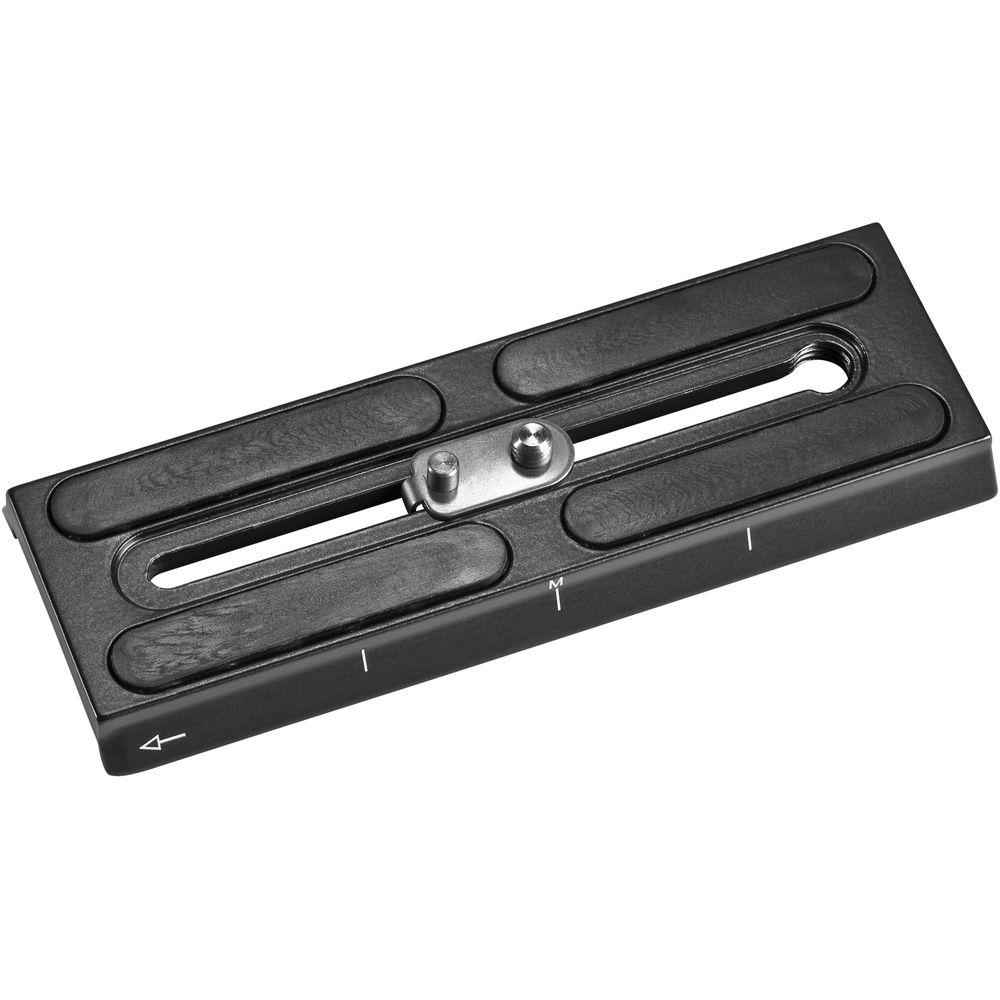

- Additional features include a four-inch sliding plate range, 1/4"-20 camera screw, right-side pan bar, and illuminated bubble level
Legs - The legs feature independent height adjustments and spread, which allow the legs to remain stable on rough terrain and uneven surfaces including stairs
- The dual-spiked feet provide grip in soft surfaces, such as earth or sand, when the legs are at a normal height, or when you need to spread them wide for low-angle shots
- A removable ground spreader slips over the spiked feet and enables working on hard surfaces and interiors

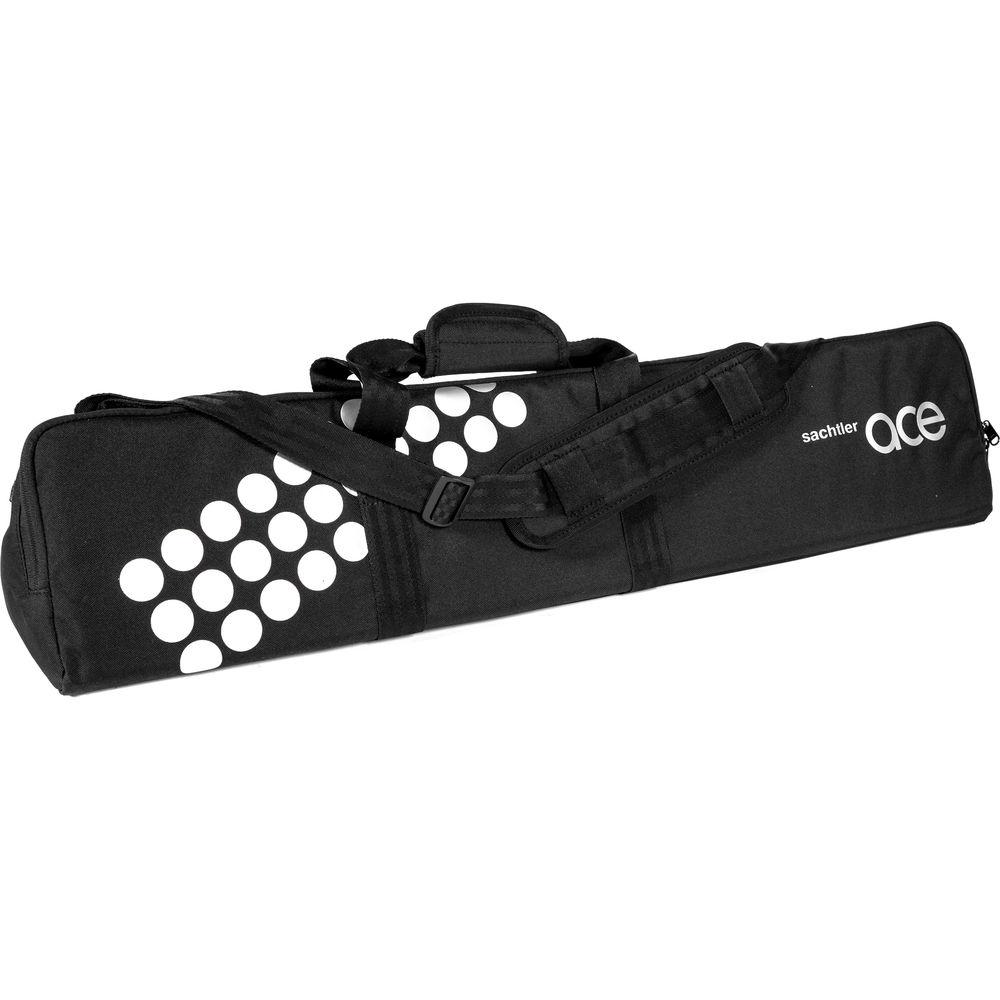

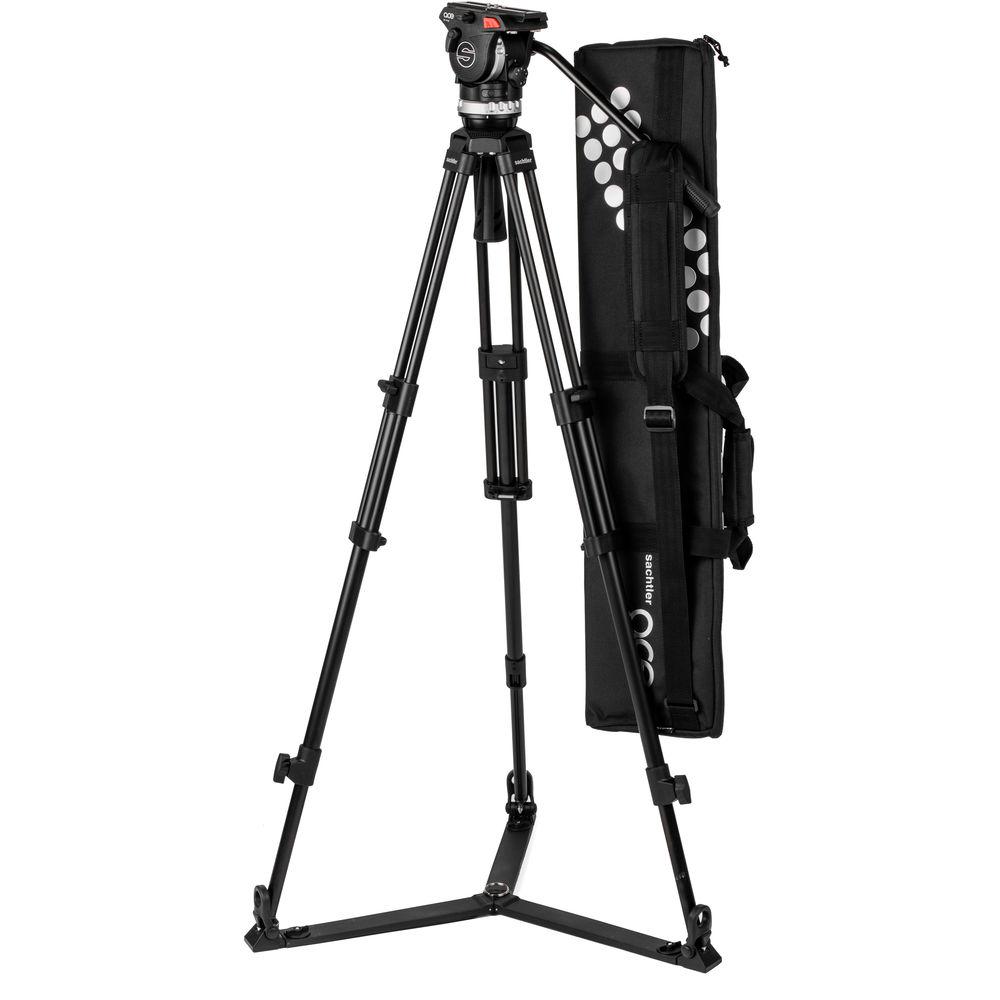

In the Box Sachtler System Ace XL GS AL with Fluid Head, Ace 75/2 D Tripod, Ground Spreader & Bag Ace XL Fluid Head (75mm Bowl) raxarfqwyxtrutrqraysxtsfxe Ace 75/2 D Tripod Legs Ground Spreader Padded Bag (9115) Limited 1-Year Warranty, Extendable to 2-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler System Ace XL GS AL with Fluid Head, Ace 75 2 D Tripod, Ground Spreader & Bag in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler System Ace XL Specs | | | Load Capacity | 4.4 to 17.6 lb / 2 to 8 kg | | Height Range | 22.1 to 68.1" / 56 to 173 cm | | Folded Length | 33.9" / 86 cm | | Leveling Bubble/Illuminated | Yes/no | | Weight | 10.4 lb / 4.7 kg | | | | Counterbalance System | 8 steps | | Quick Release/Wedge Plate | Yes | | Balance Plate | 4.1" / 10.4 cm range of adjustment | | Pan Drag | 3 steps plus zero | | Tilt Drag | 3 steps plus zero | | Tilt Range | +90 / -75° | | Operating Temperature | -22 to 140°F / -30 to 60°C | | | | Material | Aluminum | | Head Attachment Fitting | 75 mm bowl | | Leg Stages | 4 | | Leg Lock Type | Lever | | Independent Leg Spread | Yes, without spreader attached | | Spiked/Retractable Feet | Yes/no | | | | Package Weight | 16.1 lb | | Box Dimensions (LxWxH) | 38.0 x 8.75 x 8.25" |
