Product description

• 0707 FSB-8 Fluid Head
  • Video Tripod for Filmmakers! - Sachtler Flowtech 75

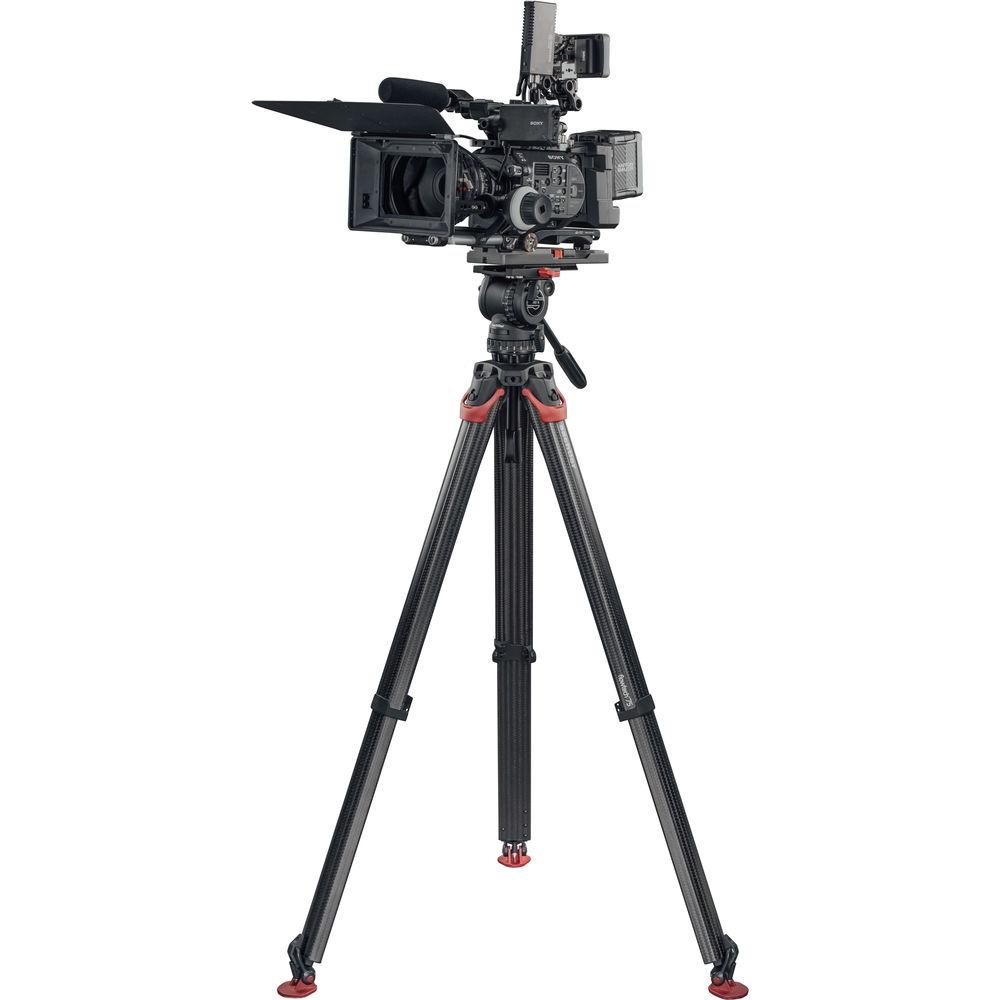

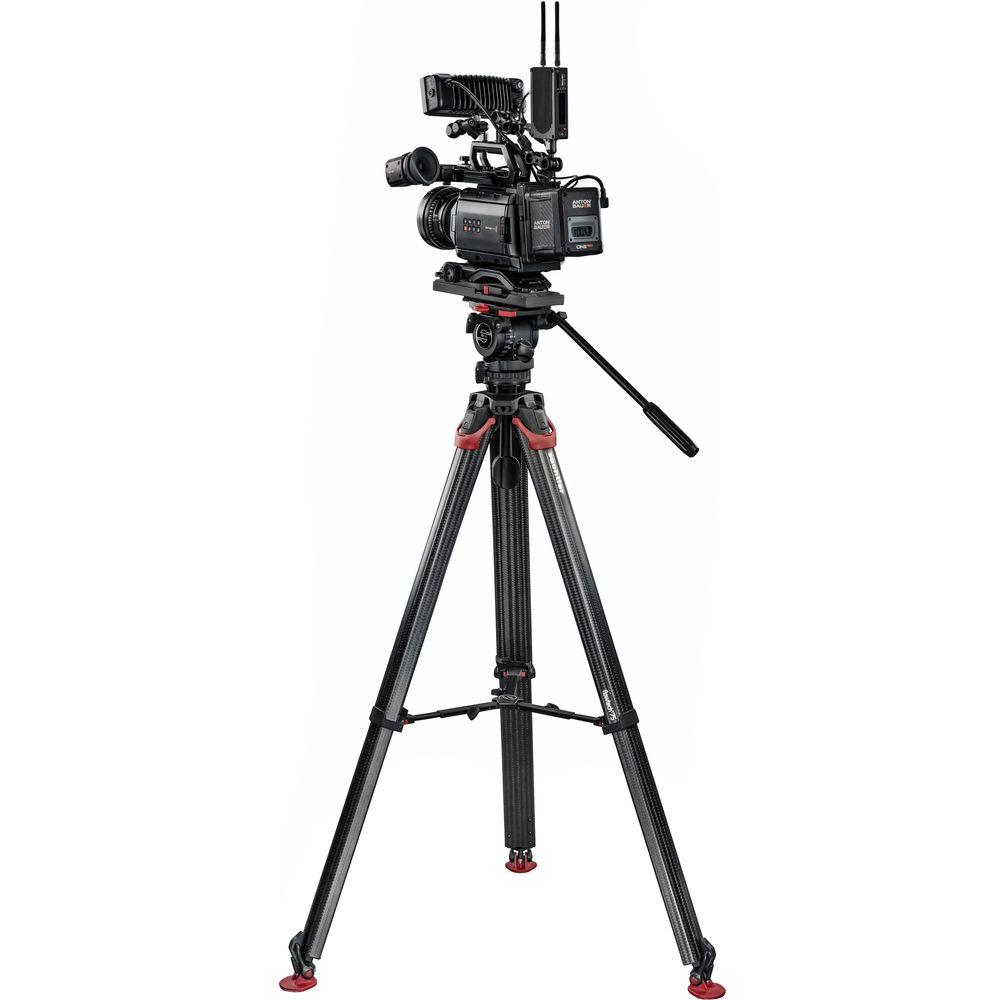

  The Sachtler FSB-8 is a fluid head designed to work with the handheld size of DV, DVCAM, HVX and HDV camcorders. This head offers Sachtler's Sideload mechanism which boasts an exceptionally large sliding range of 120mm (4.7"). It also features a 10-step counterbalance. This ensures extremely fine and fast balancing.
  Frictionless Leak-Proof Fluid Damping
  • Frictionless leak proof fluid damping with five levels of drag, for perfect pictures while panning, without jerks and vibrations. Identical across both horizontal and vertical planes, and allows complete disengagement of drag for fast panning.
  Quick Release
  • The FSB-8 features Sachtler's Sideload mechanism which boasts an exceptionally large sliding range of 120mm / 4.7".
  FSB Cell Compatible
  • This head is compatible with lightweight and powerful FSB Power Cell.

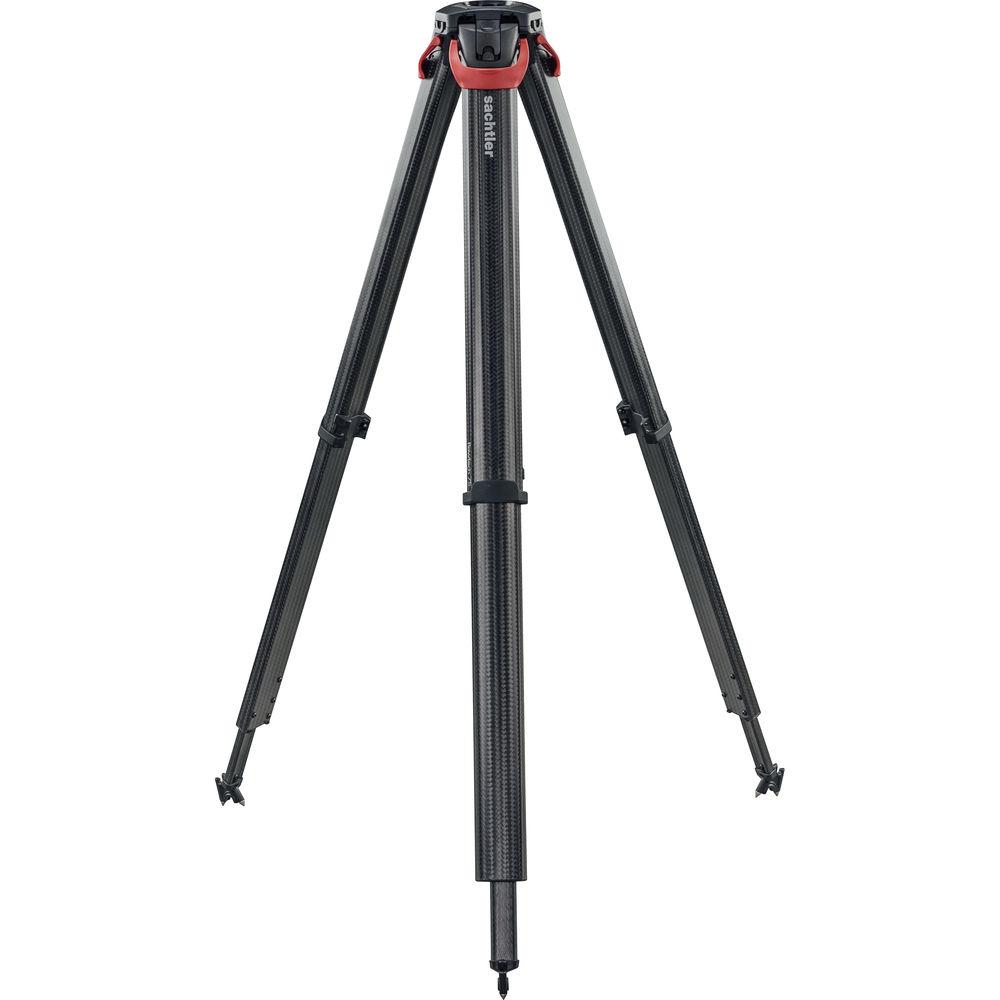

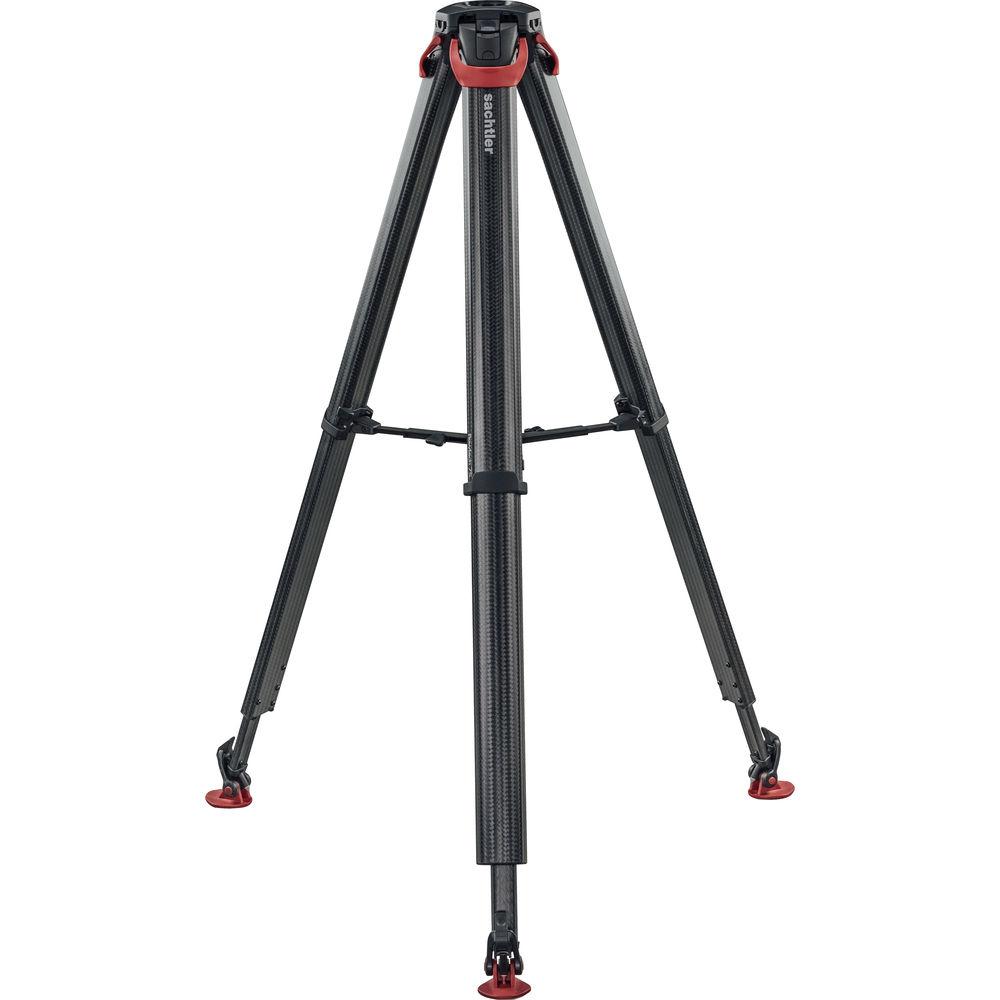

• Flowtech 75 MS Carbon Fiber Tripod with Mid-Level Spreader and Rubber Feet The Sachtler Flowtech 75 MS Carbon Fiber Tripod with Mid-Level Spreader and Rubber Feet eschews the common single or double carbon fiber tube design and instead has redesigned the shape of the legs for improved torsional strength. The legs work weigh just under 7 pounds yet they can support a payload of up to 44 pounds, and extend from a minimum height of 24" to a maximum height of 61" when using the included removable mid-level spreader. Each leg features a single clamping lever that locks and unlocks the sections.

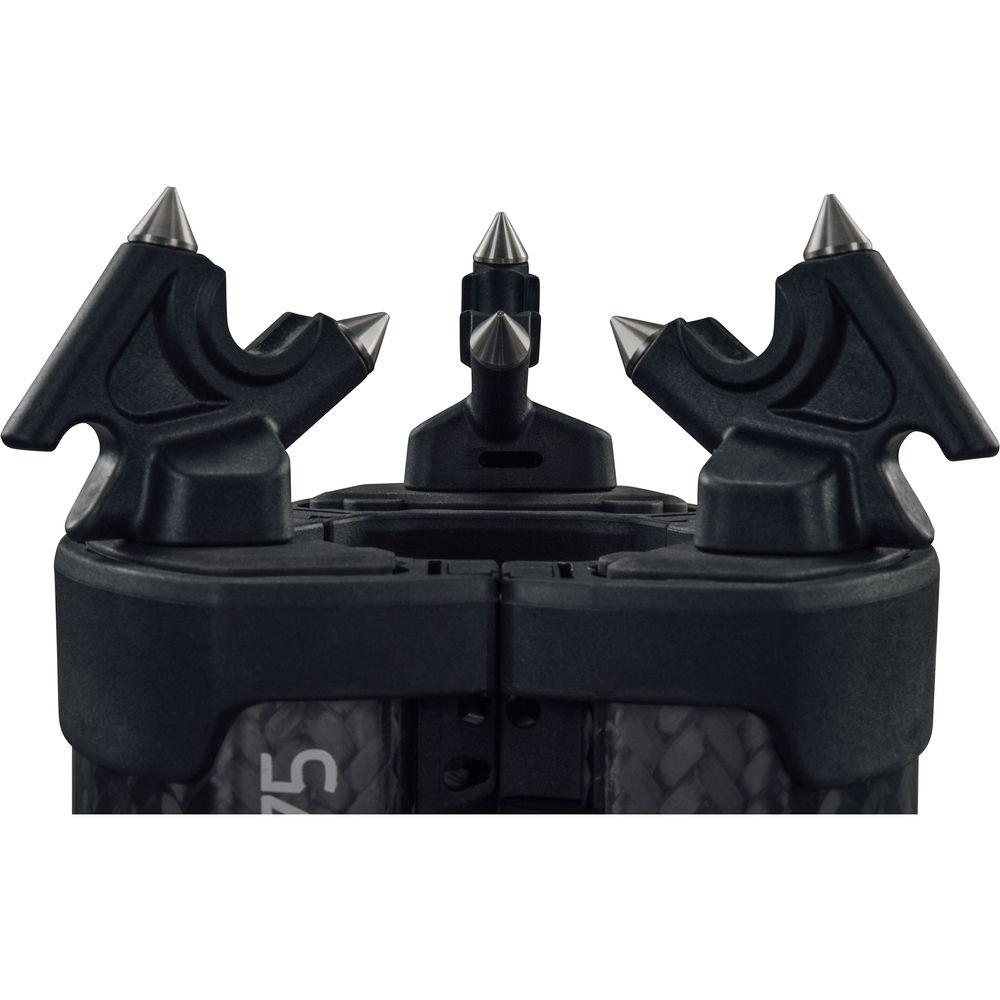

  Each leg extends or retracts independently from the other two, and when it is detached from the spreader each leg can pivot without affecting the other legs. This is especially useful when working on rough or uneven terrain. You can remove the spreader completely and lock each leg in one of three positions, so you can work without a spreader if you wish. This enables you to spread the legs extremely wide for low shots, while the tripod legs maintain their torsional stability. The dual spikes at the end of each leg provide extra grip when working on softer ground, and you can snap rubber feet onto the dual spikes for better grip when working on hard or delicate surfaces.

  Features

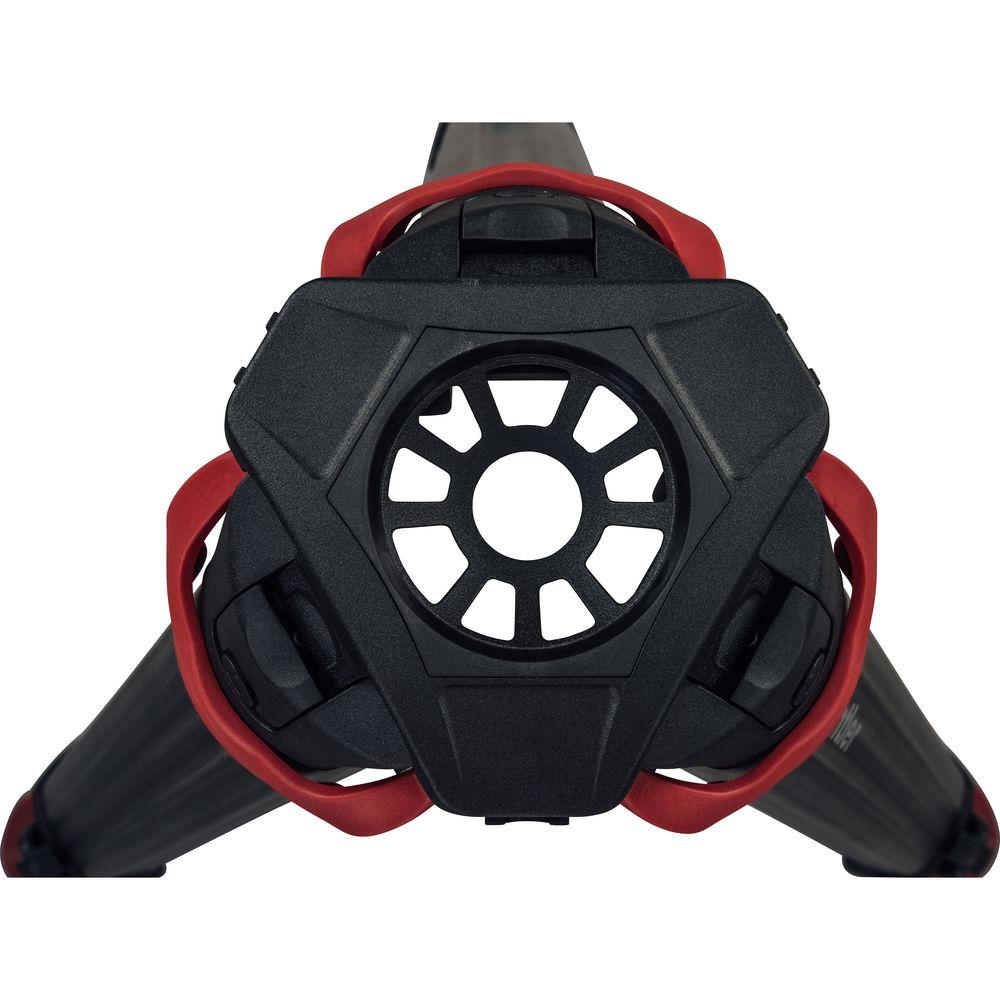

  • Dual-stage, carbon fiber, 75mm bowl tripod
  • Weighs only 6.4 pounds but supports up to 44 pounds
  • The design and construction of the legs provide tremendous torsional stability. In other words, the legs resist twisting when you pan the tripod head.
  • The included mid-level spreader allows you to work on uneven terrain such as stairs or rocks while preventing the legs from flying apart. When using the mid-level spreader, you can use the included rubber feet to protect delicate surfaces from the tripod's foot spikes.

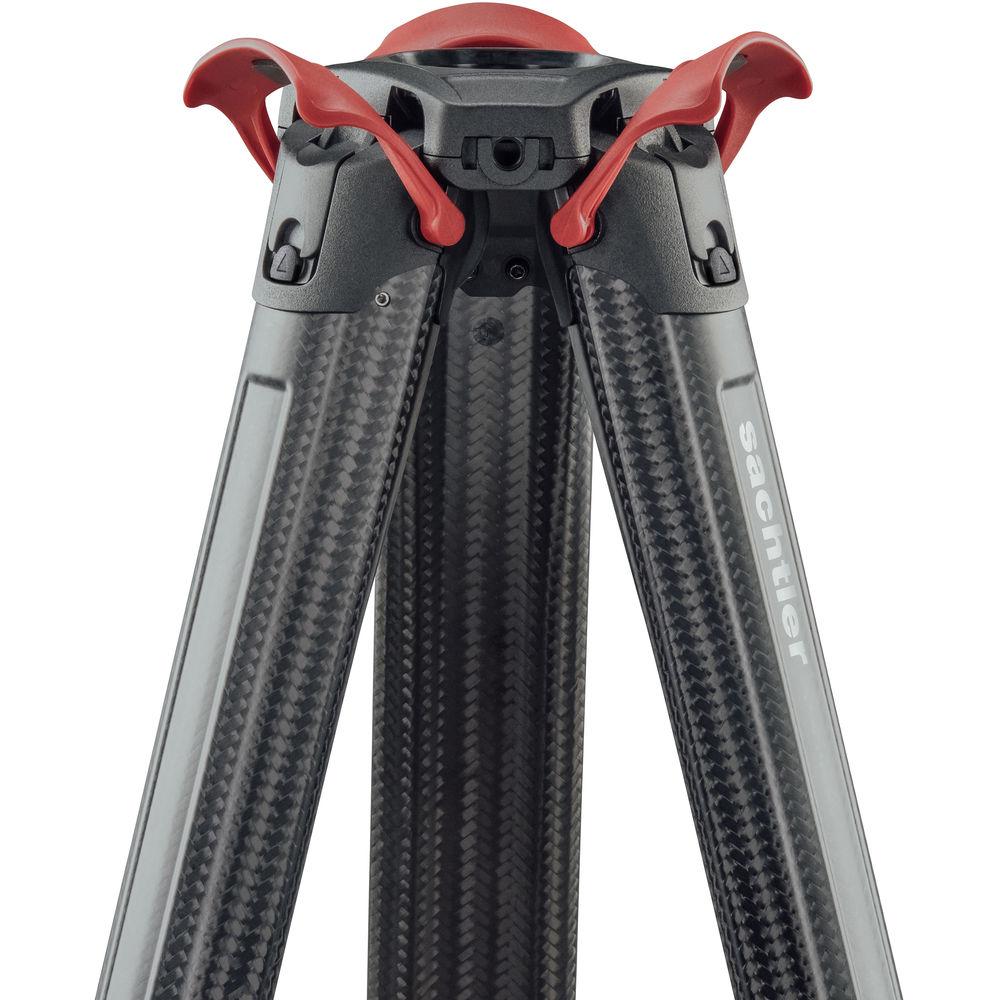

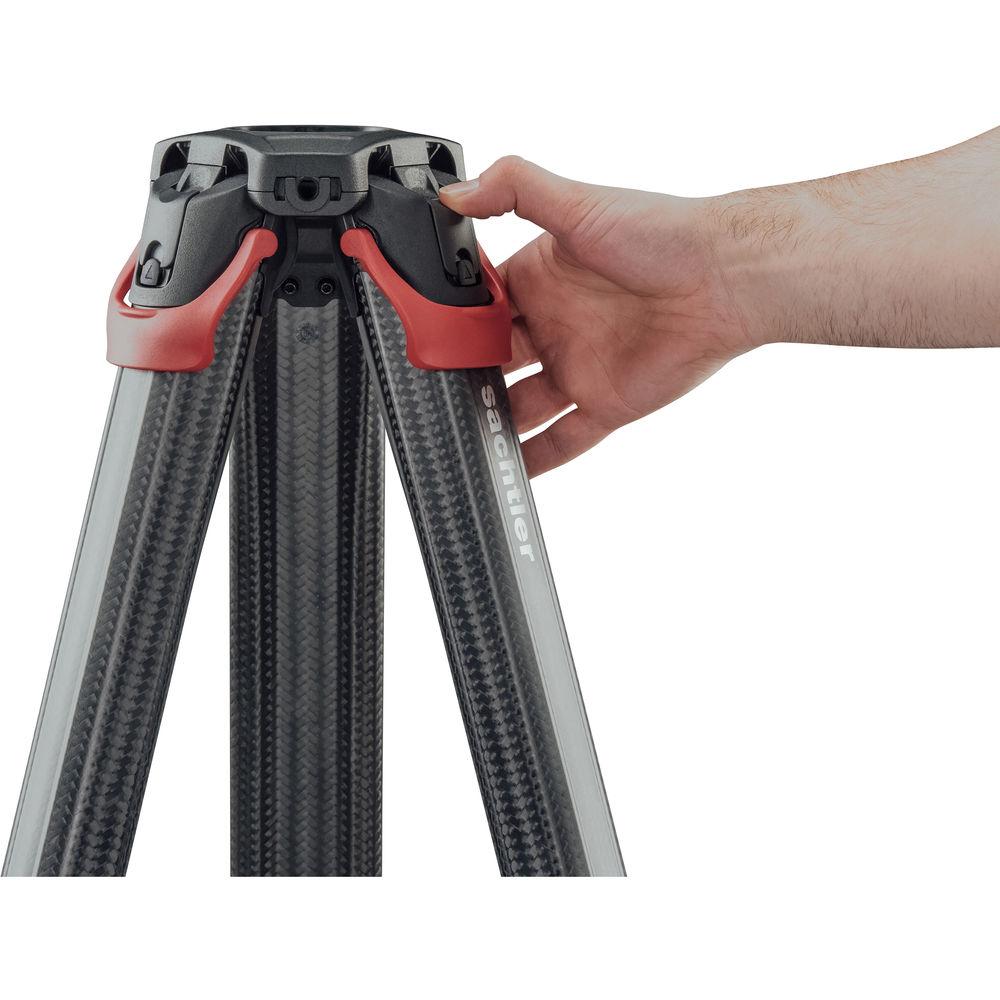

  • Each leg features a single clamping lever lock design at the top of the leg, near the 75mm bowl. This allows you to loosen all three leg sections from a single location, saving you time while reducing the wear and tear on your body as you don't have to bend down to loosen a leg lock at the bottom to lower or raise the legs.
  • The legs incorporate a locking mechanism that enables the legs to move completely freely, suitable when working with a spreader, or to lock at one of three angles, suitable for use when working without a spreader.

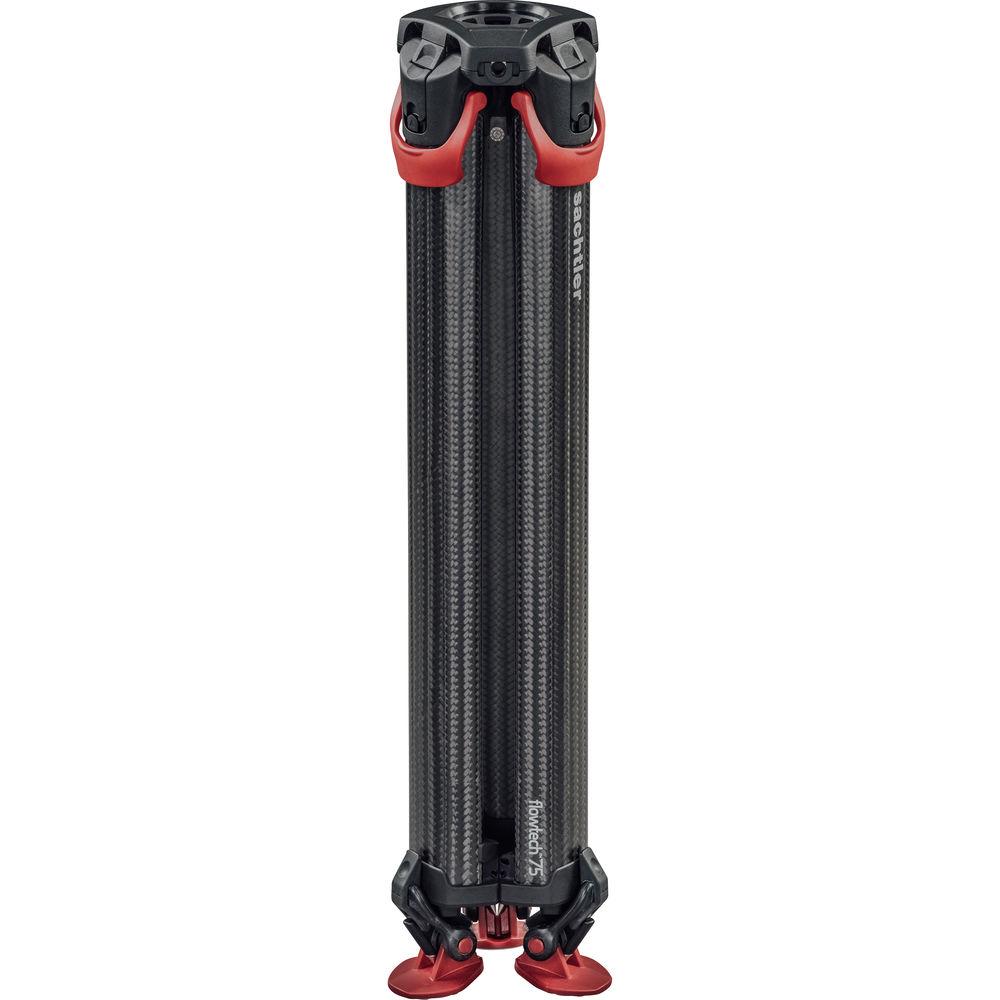

  • When closing the legs, there is room for the mid-level spreader to be folded up while remaining attached. The legs feature a magnetic locking system strong enough to hold them together during transport, but allows you to easily release the legs when you want to set them up.

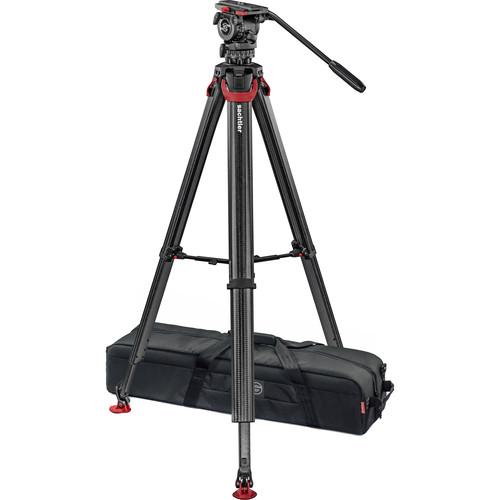

• Padded Bag for flowtech 75 or TT Tripod with FSB Fluid Head With dimensions of 36.6 x 7.9 x 9.1", this Padded Bag from Sachtler is designed specifically for carrying a flowtech 75 or TT tripod equipped with an FSB fluid head. It is made with a high-density 900D fabric, which is both flame retardant and water-resistant to help ensure that your equipment stays safe. Additionally, layers of both open-cell and closed-cell foam are used in the construction to protect your gear against small bumps and shocks.The bag opens via a full-length zipper found at the top, which allows for easy access while shooting. For transport, two straps on each side can be connected to an integrated handgrip for easy carrying. There are also small handles on each side of the bag where the zipper ends, and right next to them are D-rings that can be used to connect an optional shoulder strap. Finally, a clear plastic window on the outside allows you to insert a tag with your name or phone number for easy identification when travelling.
  • • Padded bag with dimensions of 36.6 x 7.9 x 9.1", designed for carrying a flowtech 75 or TT tripod with an FSB fluid head
    • 900D water-resistant fabric on the exterior, with layers of foam to help cushion gear against bumps
    • Full-length zipper allows for easy access to the interior compartment
    • Connecting hand straps, side handles, and D-rings available for transport
    • Clear plastic window on one of the sides allows you to insert a name tag for easy identification

• Fluid Head

• Pan Bar

• Quick Release Camera Plate

• Limited 1-Year Warranty, Extendable to 2-Years with Product Registration

• Mid-Level Spreader

• 3 x Removable Rubber Feet

• Limited 1-Year Warranty, Extendable to 2-Years with Product Registration

• Limited 1-Year Warranty

• Limited 2-Year Warranty Extension upon Online Registration

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 0707 FSB-8 Fluid Head

  Camera Plate Features	Sliding Balance Plate, Quick Release
  Balance Plate Sliding Range	4.7" / 120 mm

  Base Mount	75 mm Half Ball

  Drag Control	Tilt: 5-Step Plus 0
  Vertical Tilt	+90 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 49 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
