User manual
Sachtler Video 15 FT MS flowtech

User Manual for Sachtler Video 15 FT MS flowtech 100 Tripod System

• Product category: Tripod Systems Sachtler
• Brand: Sachtler
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sachtler Tripod Systems

Product description

• Video 15 SB Professional Fluid Head
  • Sachtler/Vinten Flowtech 100

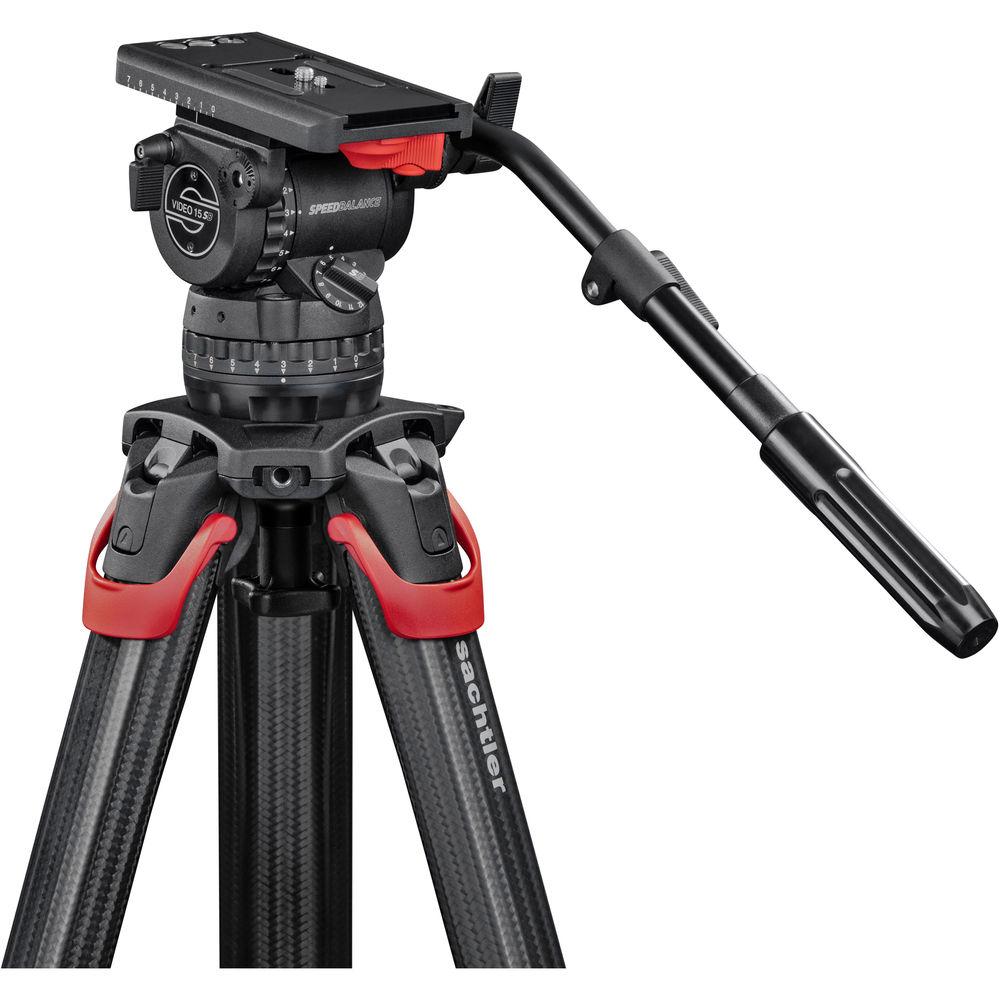

  The SB in the Sachtler Video 15 SB stands for SpeedBalance, because it features 12 counterbalance presets, greatly reducing setup time. Similar to larger filmic fluid heads, it has self-illuminated Touch Bubbles for easy leveling with the 100mm half-ball base in poor light conditions.
  • 7 horizontal and vertical drag levels plus zero
  • 12 step counterbalance
  • Bubble level illumination adjustable between 20 and 45 seconds

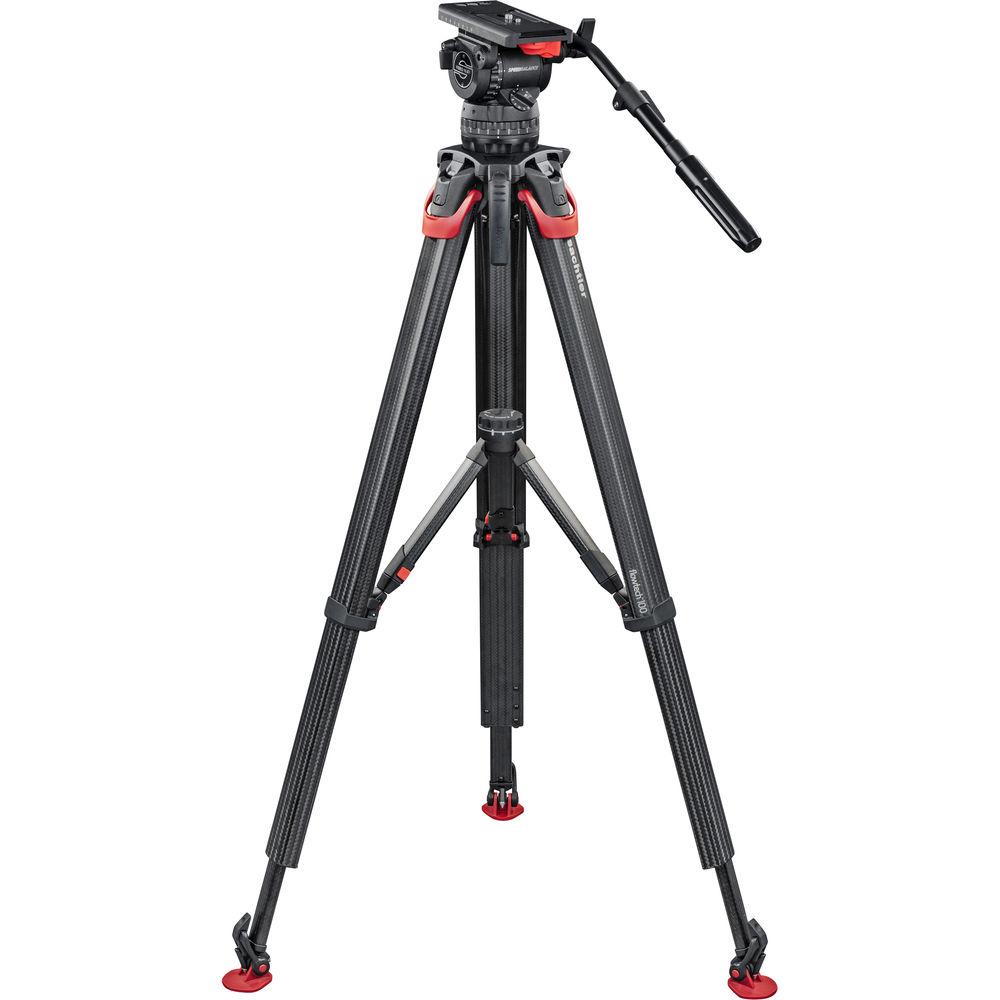

• flowtech 100 MS Carbon Fiber Tripod with Mid-Level Spreader & Rubber Feet The lightweight Sachtler flowtech 100 MS Carbon Fiber Tripod with Mid-Level Spreader offers notable stability and quick setup and adjustments for payloads up to 66 lb. The novel flowtech design features quick release locks at the top of the legs, eliminating the need to stoop while adjusting the tripod height. All three legs can be deployed simultaneously to quickly find their individual levels on uneven ground.The flowtech 100's versatile leg hinges adjust freely or can be locked at 20, 46, and 72° angles, providing a height range from 10" to 5' and reducing the need to carry a set of baby legs. Additional ergonomic features include a flatter leg design that's more comfortable when carrying on your shoulder, and magnetic locks that neatly snap the legs together for travel. Three handy 3/8"-16 threaded mounts can be used to attach a variety of accessories.Weighing only nine pounds with its spreader and feet, the flowtech 100 can support a payload of up to 66 pounds and extends from a minimum height of 20" to a maximum height of 61" when using the included mid-level spreader. Each leg features a single clamping lever that quickly and easily locks and unlocks the three sections.Designed with dual-spiked feet, this 100mm bowl tripod includes rubber feet that feature a quick release design for easy attaching and removal. A flowtech Carry Handle is included to enable carrying your flowtech system in one hand.
  Features
  • • Dual-stage, carbon fiber 100mm bowl tripod
    • Supports up to 66 pounds, yet weighs only 9 pounds
    • High torsional stability prevents the legs from twisting when panning your head
    • Brake levers at the top of the tripod quickly release all three sections simultaneously, enabling speedy setups
    • Flatter, ergonomic leg design for more comfortable over-the-shoulder carrying

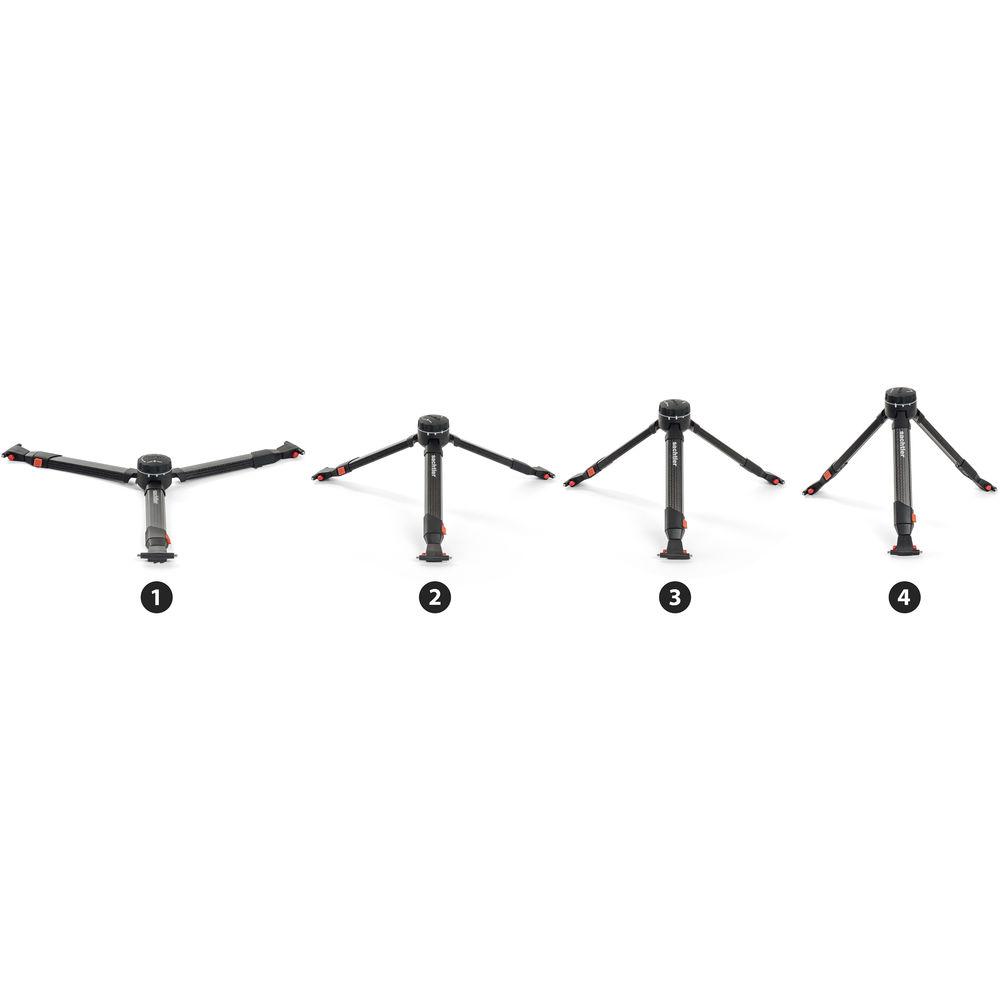

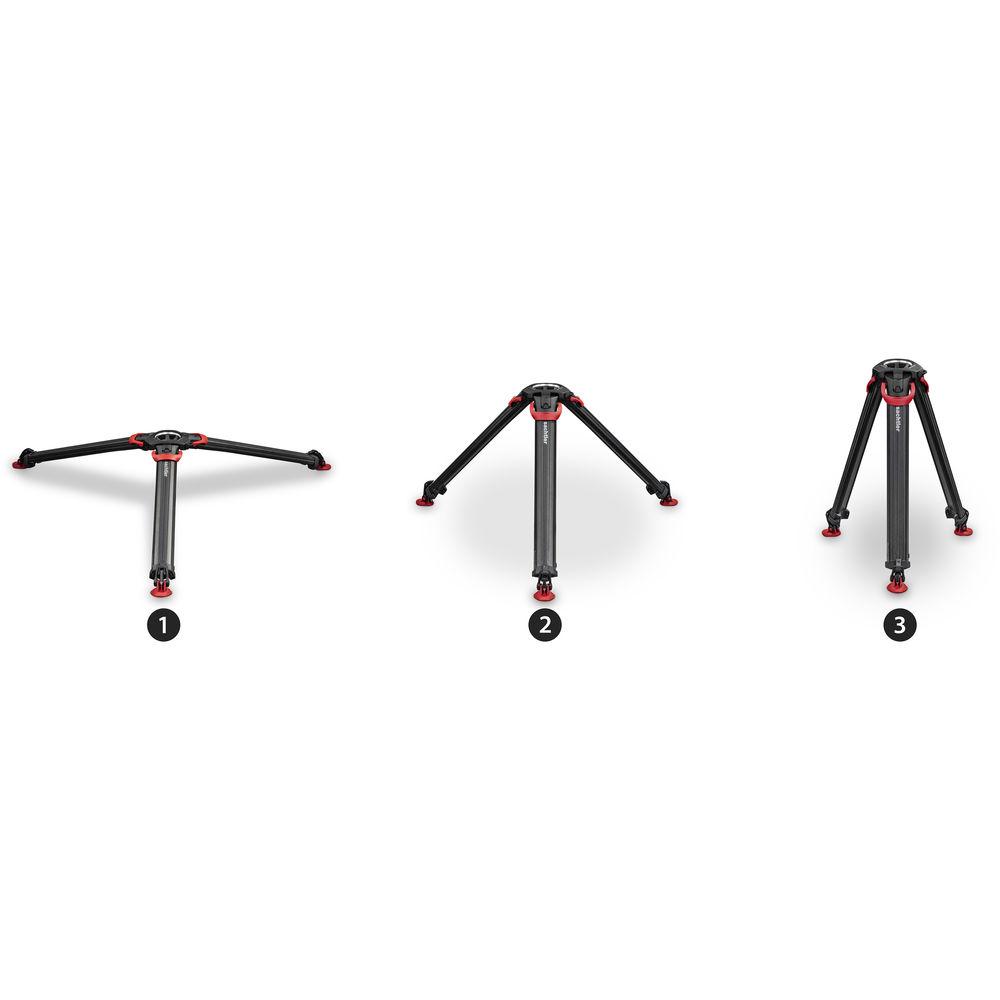

    • A flexible hinge design enables high and low angles
    • The included mid-level spreader provides additional stability while enabling individual leg adjustment on uneven or stepped surfaces
    • Dual-spiked feet tripod includes quick release rubber feet for delicate or slippery surfaces
    • Magnetic locks snap the legs together for transport, but easily release for setup
    • Includes a carry handle for one-handed transportation

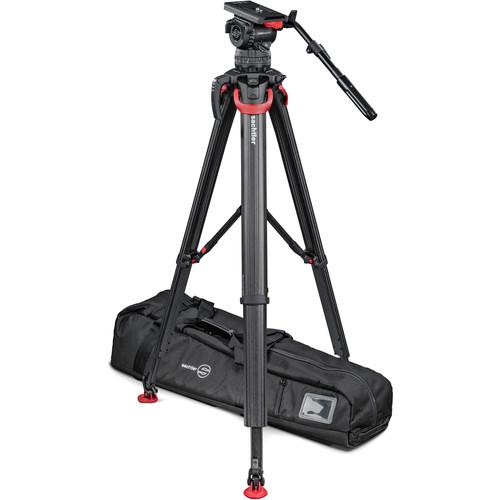

• ENG 2 Padded Bag The Sachtler ENG 2 Padded Bag is a soft tripod bag designed to carry various Sachtler tripods with fluid heads up to 35" long. The case is made from water-resistant Cordura nylon and can be carried by the interlocking handles or the attached, adjustable shoulder strap.
  Construction
  • • Water-resistant Cordura nylon
    • Padded interior
    • Zipper closure
  Carrying options
  • • Interlocking handles
    • Attached, adjustable shoulder strap
  Compatible with
  • • Sachtler DV 2, DV 4, DV 6 and DV 8 systems on ENG 75/2 D tripod
    • Sachtler DV 8 with 100mm ball, DV 12, DV 15, Video 15, Video 18, Video 20 fluid heads on 2-fold extension or Speed Lock CF tripods

• 16 mm Pan Bar

• #1064 Quick-Release Plate

• CR2032 Lithium Battery for Illuminated Level

• Limited 1-Year Warranty, Extendable to 2-Years with Product Registration

• Mid-Level Carbon Fiber Spreader for flowtech 100

• Rubber Feet with Quick Release for flowtech 75/100 Tripod

• Carry Handle for flowtech Tripods

• Attachment Mount for flowtech 75 Tripod

• Tie-Down for flowtech 100 Tripod

• Limited 1-Year Warranty, Extendable to 2-Years with Product Registration

• Shoulder Strap

• Limited 1-Year Warranty, Extendable to 2-Years with Product Registration

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Video 15 SB Professional Fluid Head

  Camera Plate Features	Quick Release
  Camera Plate Type	Sachtler Touch & Go Plate 16
  Balance Plate Sliding Range	2.8" / 120 mm

  Base Mount	100 mm Half Ball

  Drag Control	Tilt: 7-Step Plus 0
  Vertical Tilt	+90 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 67 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
