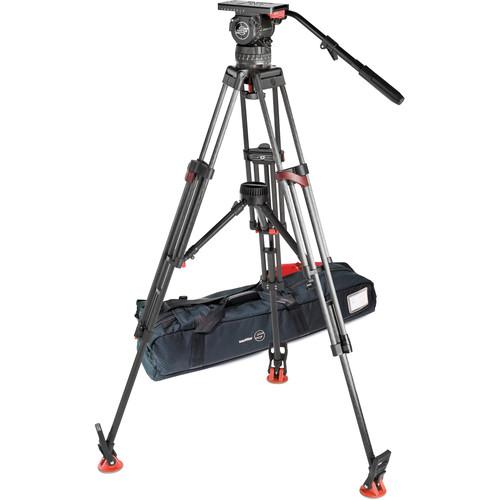

Sachtler Video-15SB Carbon Fiber Tripod System

Search your instruction manual in PDF to download

User Manual for Sachtler Video-15SB Carbon Fiber Tripod System

Click to enlarge the picture
Sachtler Video-15SB Carbon Fiber Tripod System Contents of the user manual for the Sachtler Video-15SB Carbon Fiber Tripod System
  • Product category: Tripod Systems Sachtler
  • Brand: Sachtler
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Sachtler Tripod Systems

User manual for the Sachtler Video-15SB Carbon Fiber Tripod System contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Sachtler product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!



Product description

The Video-15SB Carbon Fiber Tripod System with the load capacity of up to 35.3 lbs, is perfectly designed for the latest generation of professional digital camcorders in today market.
It features a 12-step counterbalance system for the perfect counterbalance of the camera with either a light or a heavy lens. It also offers 7-steps of vertical and horizontal drag, for smooth camerawork under the toughest of rough conditions. Also includes the Speed-Lock CF double extension carbon fiber tripod, delivering greater stability and allowing an extended height range.

Video-15SB Fluid Head

    Frictionless Leak Proof Fluid Damping
  • Frictionless leak proof fluid damping with 7 level of drag, for perfect pictures while panning, without jerks and vibrations. Identical across both horizontal and vertical planes, and allows complete disengagement of drag for fast panning.
    Quick Release
  • Touch & Go Quick Release / Automatic Locking System, for quick set up without having to bother to screwing the camera to head and then having to unscrew it again. Also features a safety lock lever that prevents inadvertent disengagement of the camera latch.
    Sliding Balance Plate
  • Sliding camera mount and plate with a 2.8" sliding range, makes a fast balancing system for the camera and ensures perfect balance across the horizontal plane.
    Dynamic Counterbalancing System
  • 12-step dynamic counterbalancing system, compensates for torques as the camera tilts, preventing the camera from inadvertently tipping, and ensuring that it is positioned securely at any tilt angle. And can be can be activated and deactivated individually.
  • Safe at any temperature, operates without any frictions from -40 to +140°F
  • Vibrationless vertical / horizontal brakes
  • Built-in illuminated bubble for horizontal leveling

Speed-Lock CF Tripod

  • Carbon Fiber construction
  • 100mm / 4" bowl base Double extension design
  • Maximum height of 61" (not including head)
  • Quick clamping system, locks tripod legs in seconds
In the Box Sachtler Video-15SB Carbon Fiber Tripod System
  • Video-15SB Fluid Head (#1505)
  • Speed-Lock CF Tripod Legs (#5586)
  • Mid-Level Spreader (#7007)
  • Rubber Feet - Set of 3 (#7004)
  • ENG II Tripod Padded Bag (#9104)
  • 1x Single Section Pan Bar
  • Quick Release / Wedge Plate (#1064)
  • Limited 1-Year Warranty, Extendable to 2-Years with Product Registration
