Product description

• Video 18 S2 Fluid Head
  • Sachtler/Vinten Flowtech 100

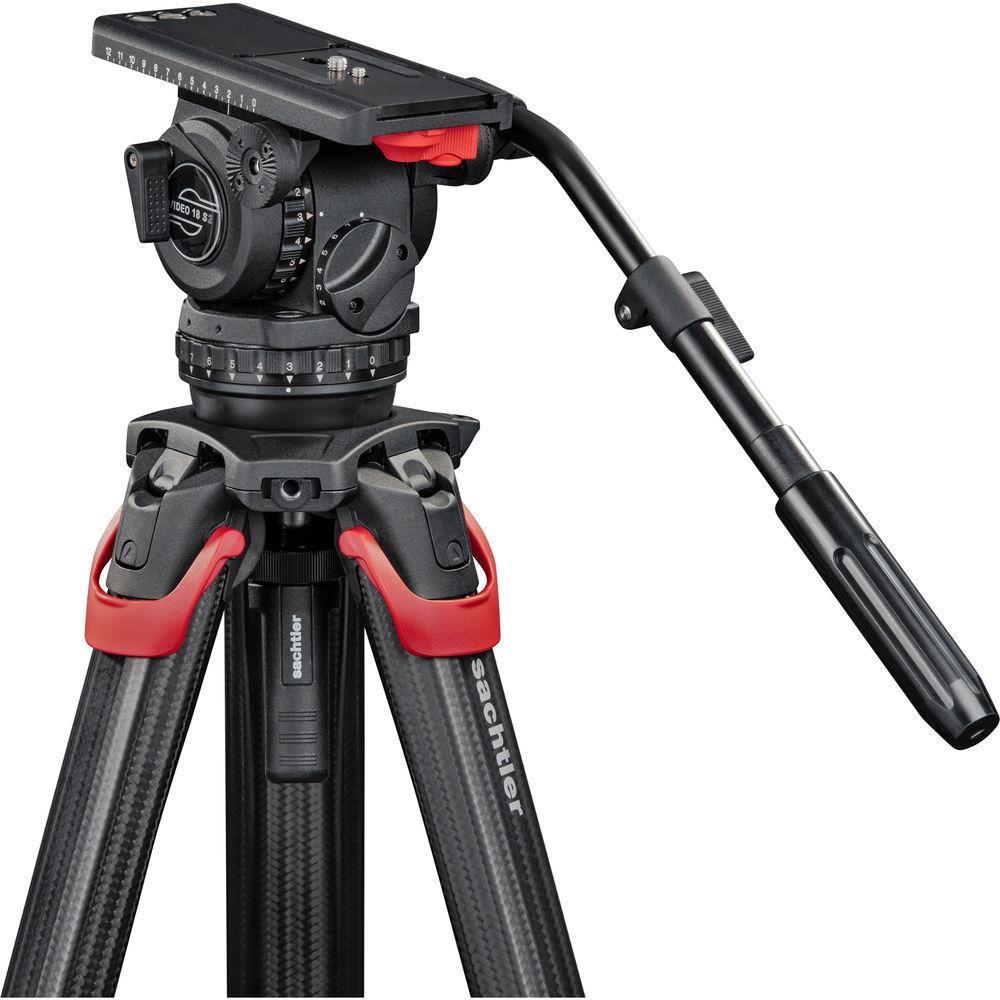

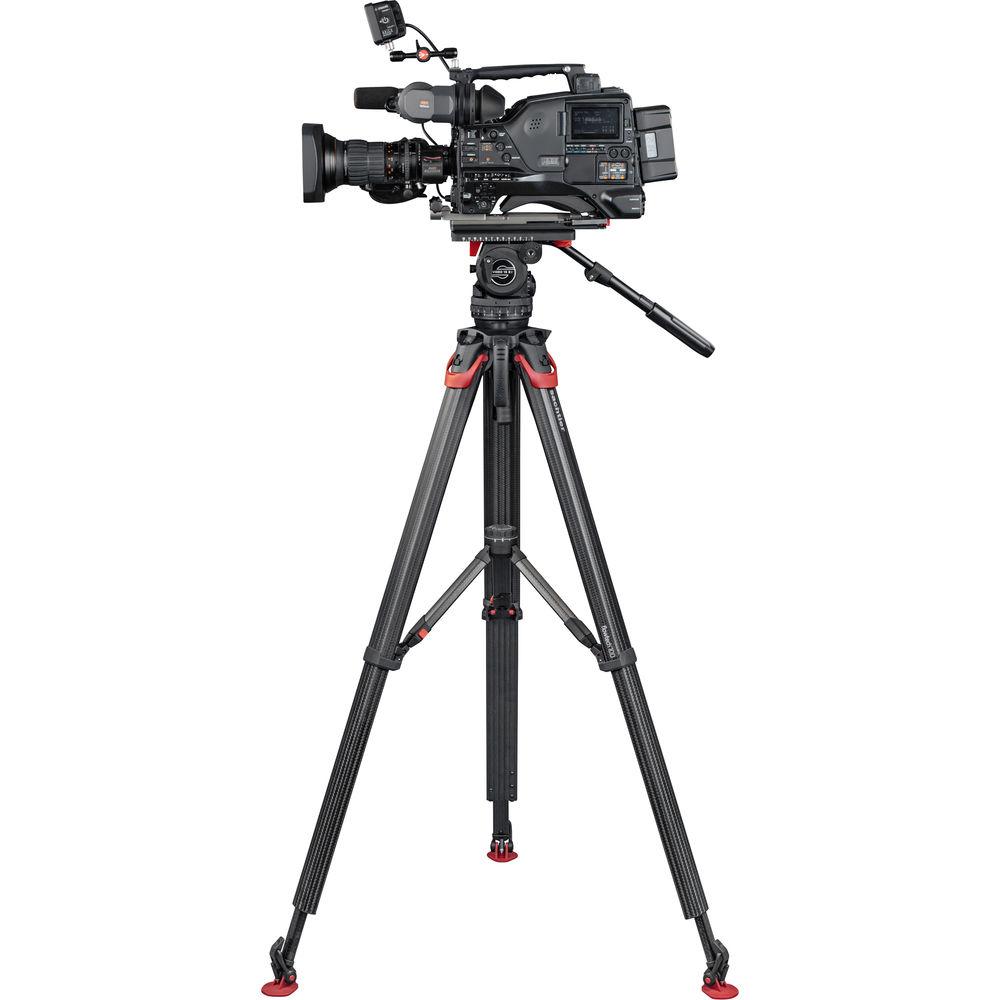

  Able to handle DSLR setups weighing four pounds up to ENG and digital cinema cameras weighing 40 pounds, the Sachtler Video 18 S2 Fluid Head can fit into a wide range of video productions. Sixteen steps of counterbalance and seven steps of pan and tilt drag, along with locks for each axis, let you easily customize the response of the Video 18 S2 to fit your application, be it studio or field production.The top of the Video 18 S2 head is dominated by a sliding balance platform which accepts Sachtler's convenient Touch & Go quick release camera plate. Once the plate is secured, the entire platform adjusts to balance your camera setup. At the front of the platform, parking spaces for 1/4"-20, 3/8"-16, and registration pin screws are available for when they are not being used. Both sides of the head feature rosette mounts for pan handles. A right-side pan handle is included with the Video 18 S2. The base of the head terminates in a 100mm bowl mount for coupling with industry standard tripods, jibs, sliders, or other grip equipment that feature 100mm bowls.

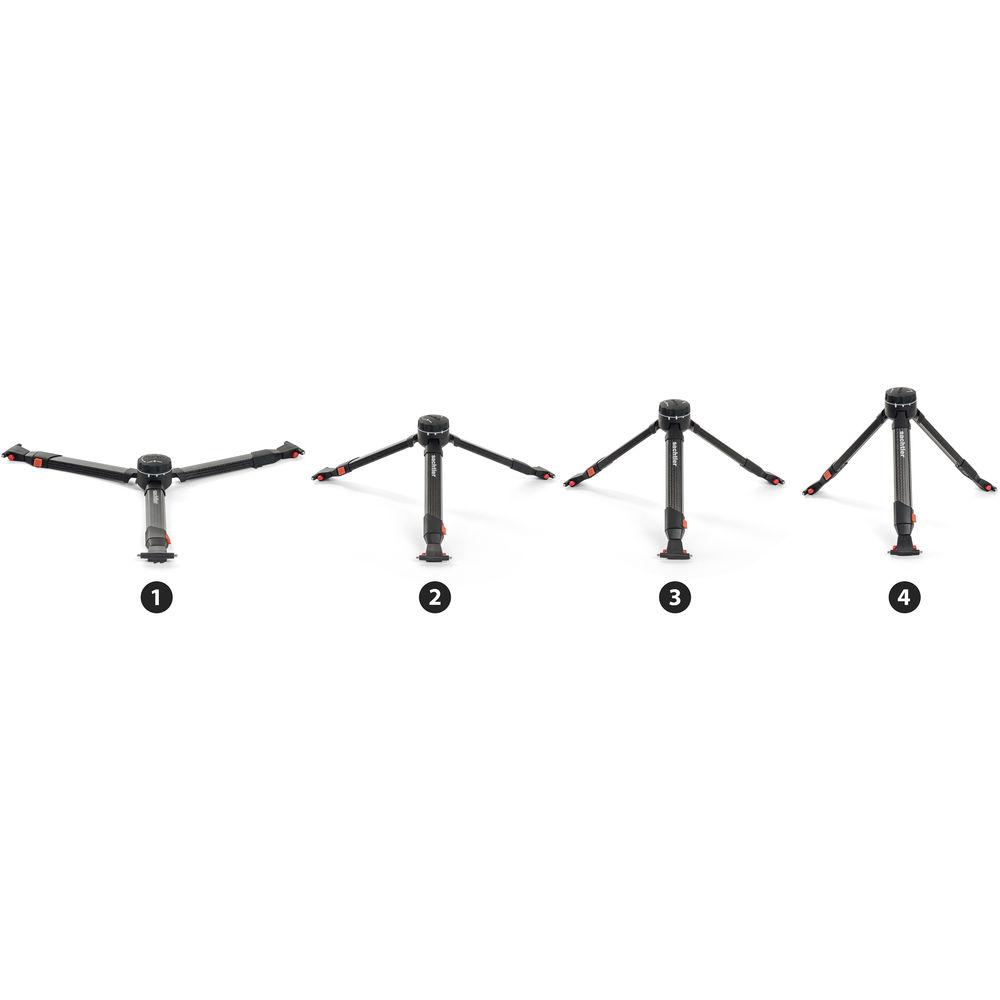

• flowtech 100 MS Carbon Fiber Tripod with Mid-Level Spreader & Rubber Feet The lightweight Sachtler flowtech 100 MS Carbon Fiber Tripod with Mid-Level Spreader offers notable stability and quick setup and adjustments for payloads up to 66 lb. The novel flowtech design features quick release locks at the top of the legs, eliminating the need to stoop while adjusting the tripod height. All three legs can be deployed simultaneously to quickly find their individual levels on uneven ground.The flowtech 100's versatile leg hinges adjust freely or can be locked at 20, 46, and 72° angles, providing a height range from 10" to 5' and reducing the need to carry a set of baby legs. Additional ergonomic features include a flatter leg design that's more comfortable when carrying on your shoulder, and magnetic locks that neatly snap the legs together for travel. Three handy 3/8"-16 threaded mounts can be used to attach a variety of accessories.Weighing only nine pounds with its spreader and feet, the flowtech 100 can support a payload of up to 66 pounds and extends from a minimum height of 20" to a maximum height of 61" when using the included mid-level spreader. Each leg features a single clamping lever that quickly and easily locks and unlocks the three sections.Designed with dual-spiked feet, this 100mm bowl tripod includes rubber feet that feature a quick release design for easy attaching and removal. A flowtech Carry Handle is included to enable carrying your flowtech system in one hand.
  Features
  • • Dual-stage, carbon fiber 100mm bowl tripod
    • Supports up to 66 pounds, yet weighs only 9 pounds
    • High torsional stability prevents the legs from twisting when panning your head
    • Brake levers at the top of the tripod quickly release all three sections simultaneously, enabling speedy setups
    • Flatter, ergonomic leg design for more comfortable over-the-shoulder carrying

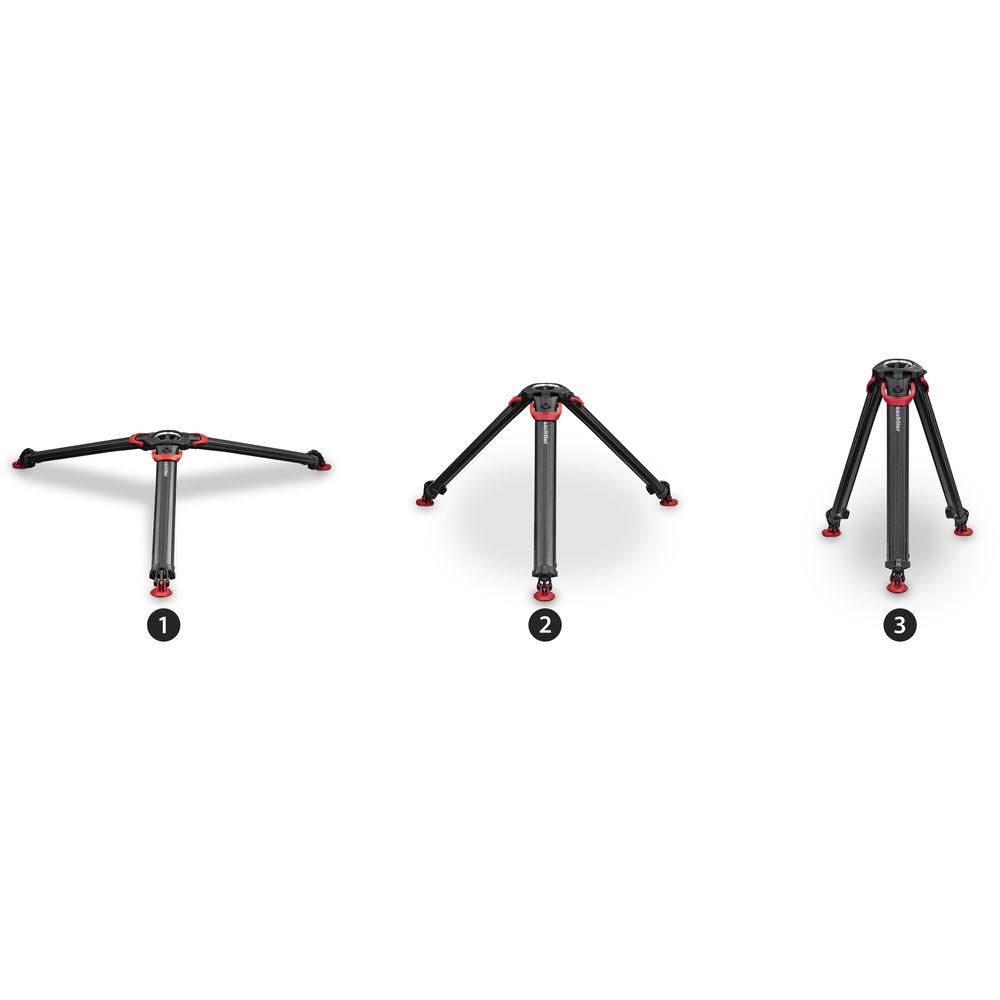

    • A flexible hinge design enables high and low angles

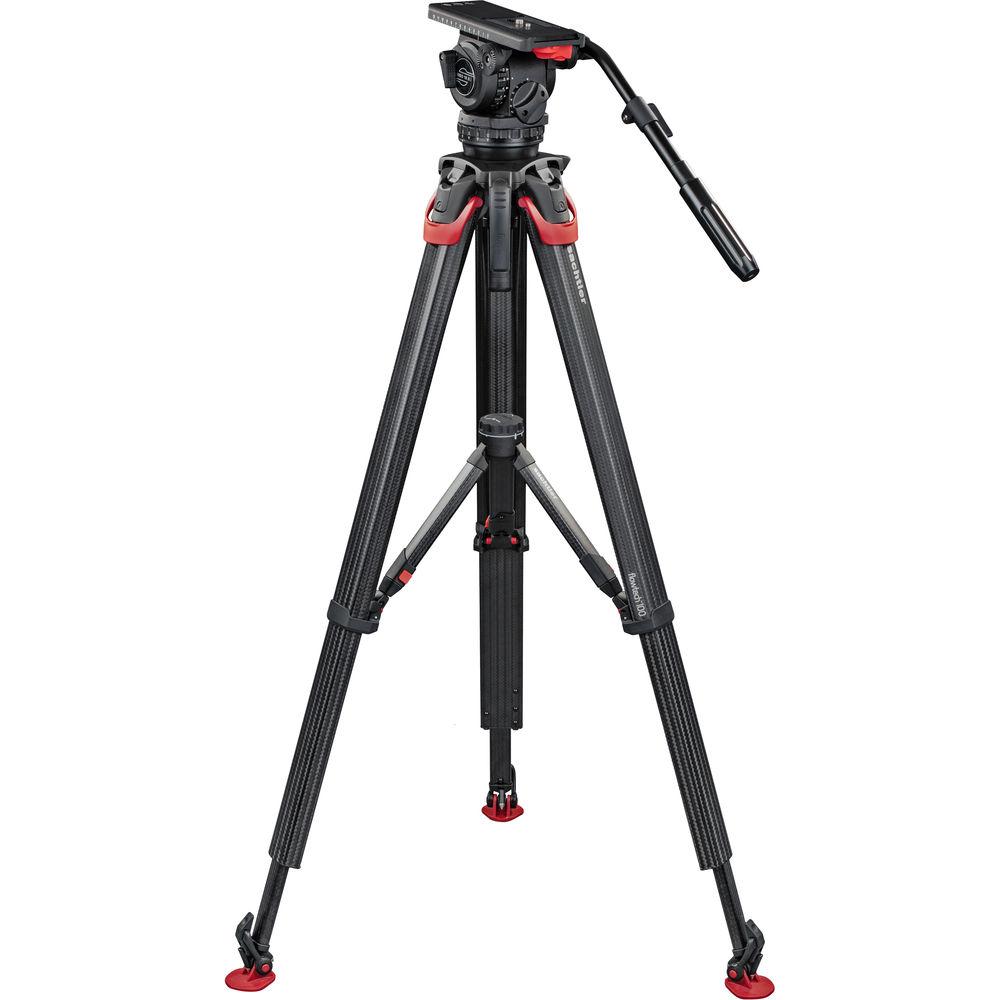

    • The included mid-level spreader provides additional stability while enabling individual leg adjustment on uneven or stepped surfaces
    • Dual-spiked feet tripod includes quick release rubber feet for delicate or slippery surfaces
    • Magnetic locks snap the legs together for transport, but easily release for setup
    • Includes a carry handle for one-handed transportation
• SpeedLevel Clamp for Sachtler 100mm Fluid Heads The Sachtler SpeedLevel Clamp for Sachtler 100mm Fluid Heads is innovatively designed with squeeze handles that let you more accurately and easily level your fluid head. Instead of the traditional twisting and untwisting, the SpeedLevel Clamp loosens the head position when you squeeze the handles and sets the head in place the moment you release the squeeze.

  The SpeedLevel Clamp is compatible with all Sachtler 100mm heads and supports a maximum weight of 55 lb. (Third-party heads may not be compatible because a Sachtler 10mm thread is required.)
  Key Features
  • • Innovative squeeze/release leveling mechanism
    • 55 lb max weight support

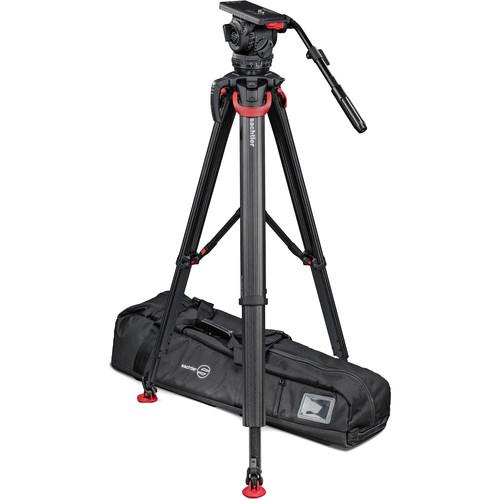

• ENG 2 Padded Bag The Sachtler ENG 2 Padded Bag is a soft tripod bag designed to carry various Sachtler tripods with fluid heads up to 35" long. The case is made from water-resistant Cordura nylon and can be carried by the interlocking handles or the attached, adjustable shoulder strap.
  Construction
  • • Water-resistant Cordura nylon
    • Padded interior
    • Zipper closure
  Carrying options
  • • Interlocking handles
    • Attached, adjustable shoulder strap
  Compatible with
  • • Sachtler DV 2, DV 4, DV 6 and DV 8 systems on ENG 75/2 D tripod
    • Sachtler DV 8 with 100mm ball, DV 12, DV 15, Video 15, Video 18, Video 20 fluid heads on 2-fold extension or Speed Lock CF tripods

• Telescoping Pan Handle

• Limited 1-Year Warranty

• Mid-Level Carbon Fiber Spreader for flowtech 100

• Rubber Feet with Quick Release for flowtech 75/100 Tripod

• Carry Handle for flowtech Tripods

• Attachment Mount for flowtech 75 Tripod

• Tie-Down for flowtech 100 Tripod

• Limited 1-Year Warranty, Extendable to 2-Years with Product Registration

• 1-Year Limited Warranty

• Additional 1-Year Limited Warranty with Product Registration

• Shoulder Strap

• Limited 1-Year Warranty, Extendable to 2-Years with Product Registration

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Video 18 S2 Fluid Head

  Camera Plate Features	Sliding Balance Plate, Quick Release
  Camera Plate Type	Sachtler Touch & Go Plate 16
  Balance Plate Sliding Range	4.7" / 120 mm

  Base Mount	100 mm Half Ball

  Drag Control	Tilt: 7-Step Plus 0
  Vertical Tilt	+90 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 77 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
