Sachtler Video 18 S2 Fluid Head

Search your instruction manual in PDF to download

User Manual for Sachtler Video 18 S2 Fluid Head & ENG 2 CF Tripod System with Mid-Level Spreader

Click to enlarge the picture
Sachtler Video 18 S2 Fluid Head & ENG 2 CF Tripod System with Mid-Level Spreader Contents of the user manual for the Sachtler Video 18 S2 Fluid Head
  • Product category: Tripod Systems Sachtler
  • Brand: Sachtler
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Sachtler Tripod Systems

Sachtler Video 18 S2 Fluid Head & ENG 2 CF Tripod System with Mid-Level Spreader Sachtler Video 18 S2 Fluid Head & ENG 2 CF Tripod System with Mid-Level Spreader Sachtler Video 18 S2 Fluid Head & ENG 2 CF Tripod System with Mid-Level Spreader Sachtler Video 18 S2 Fluid Head & ENG 2 CF Tripod System with Mid-Level Spreader Sachtler Video 18 S2 Fluid Head & ENG 2 CF Tripod System with Mid-Level Spreader Sachtler Video 18 S2 Fluid Head & ENG 2 CF Tripod System with Mid-Level Spreader Sachtler Video 18 S2 Fluid Head & ENG 2 CF Tripod System with Mid-Level Spreader Sachtler Video 18 S2 Fluid Head & ENG 2 CF Tripod System with Mid-Level Spreader Sachtler Video 18 S2 Fluid Head & ENG 2 CF Tripod System with Mid-Level Spreader
User manual for the Sachtler Video 18 S2 Fluid Head contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Sachtler product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!



Product description

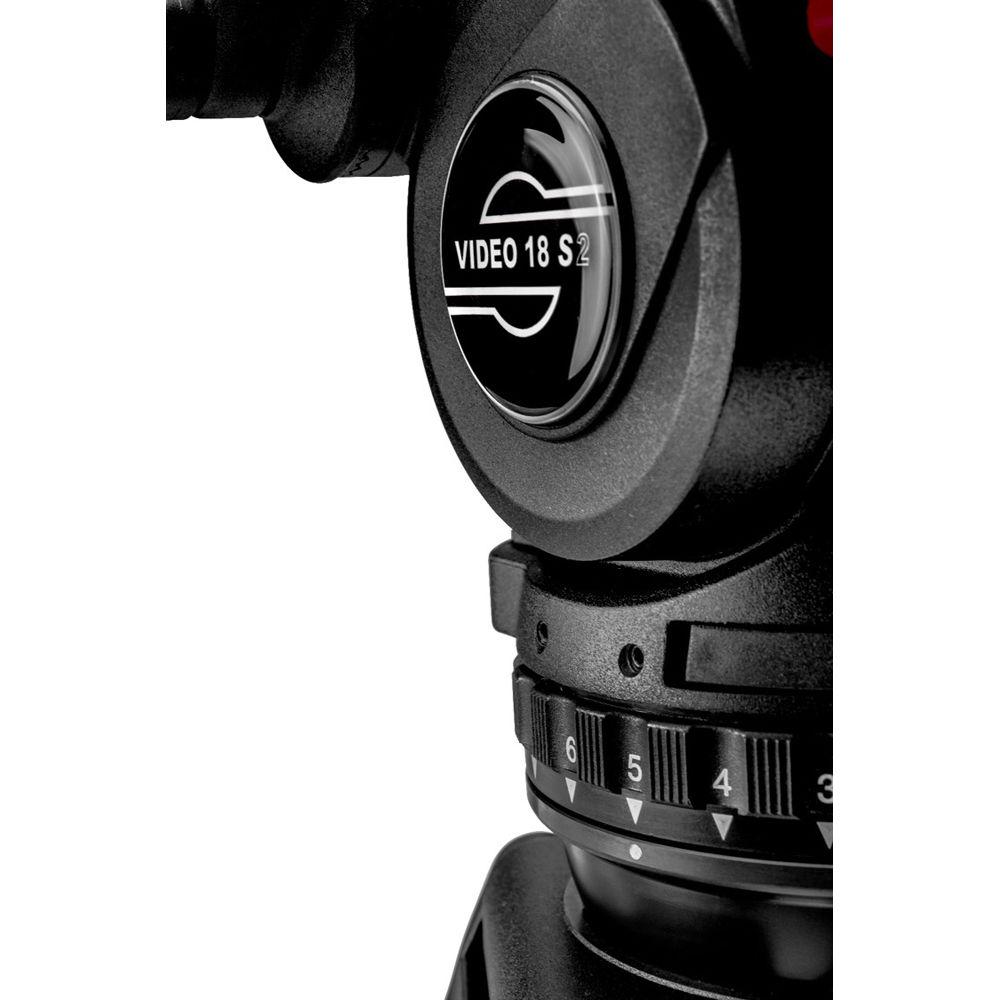

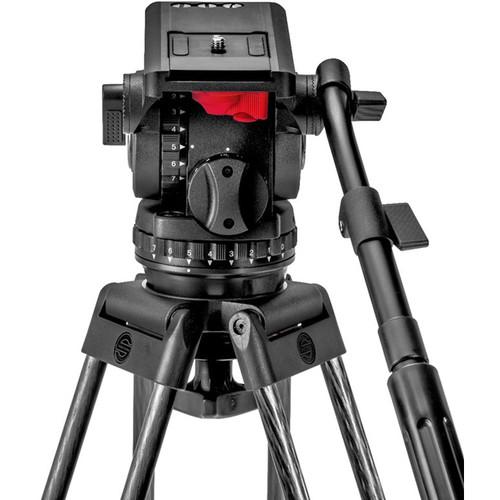

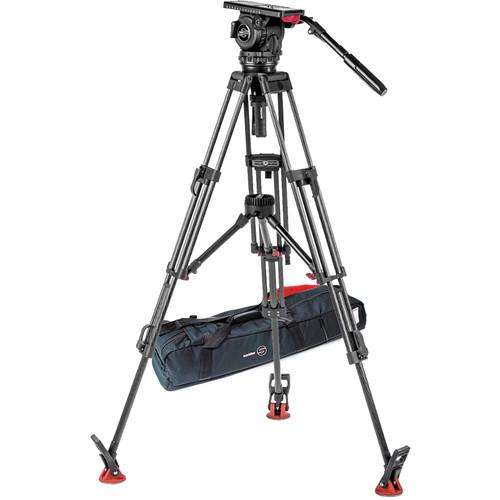

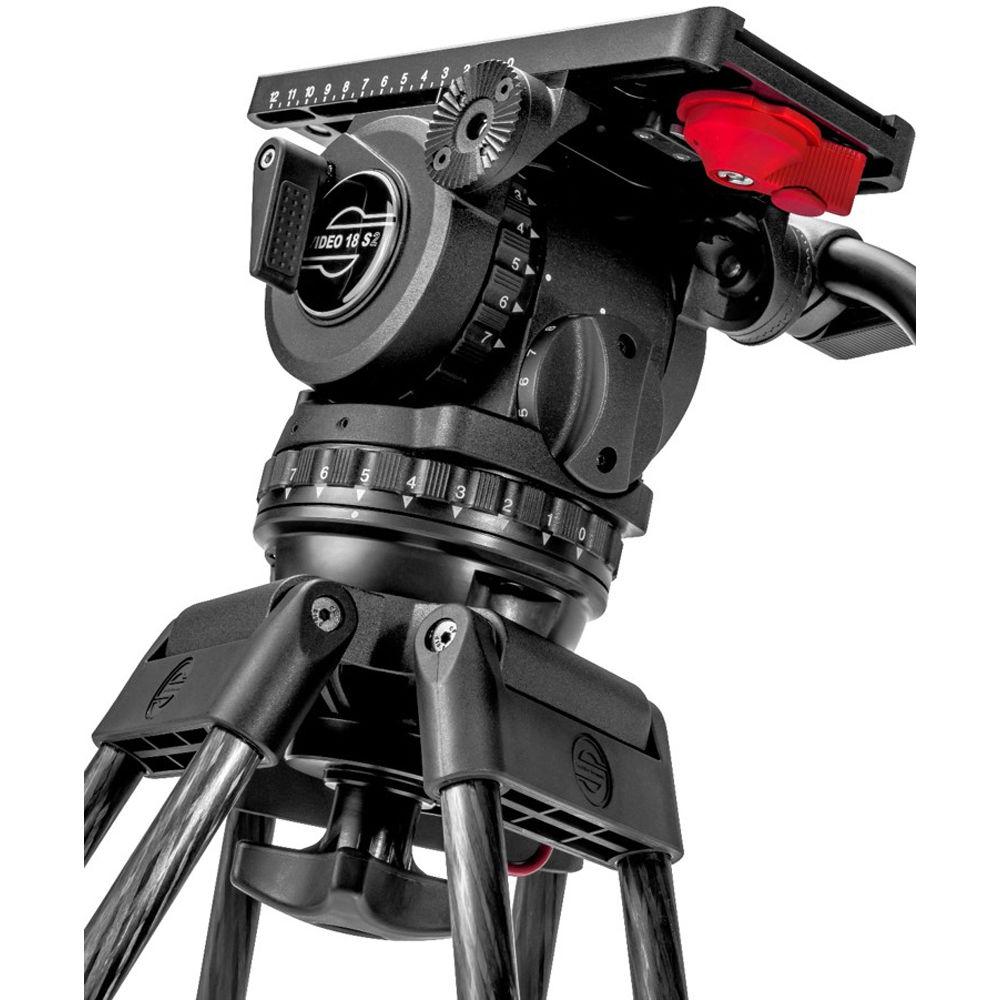

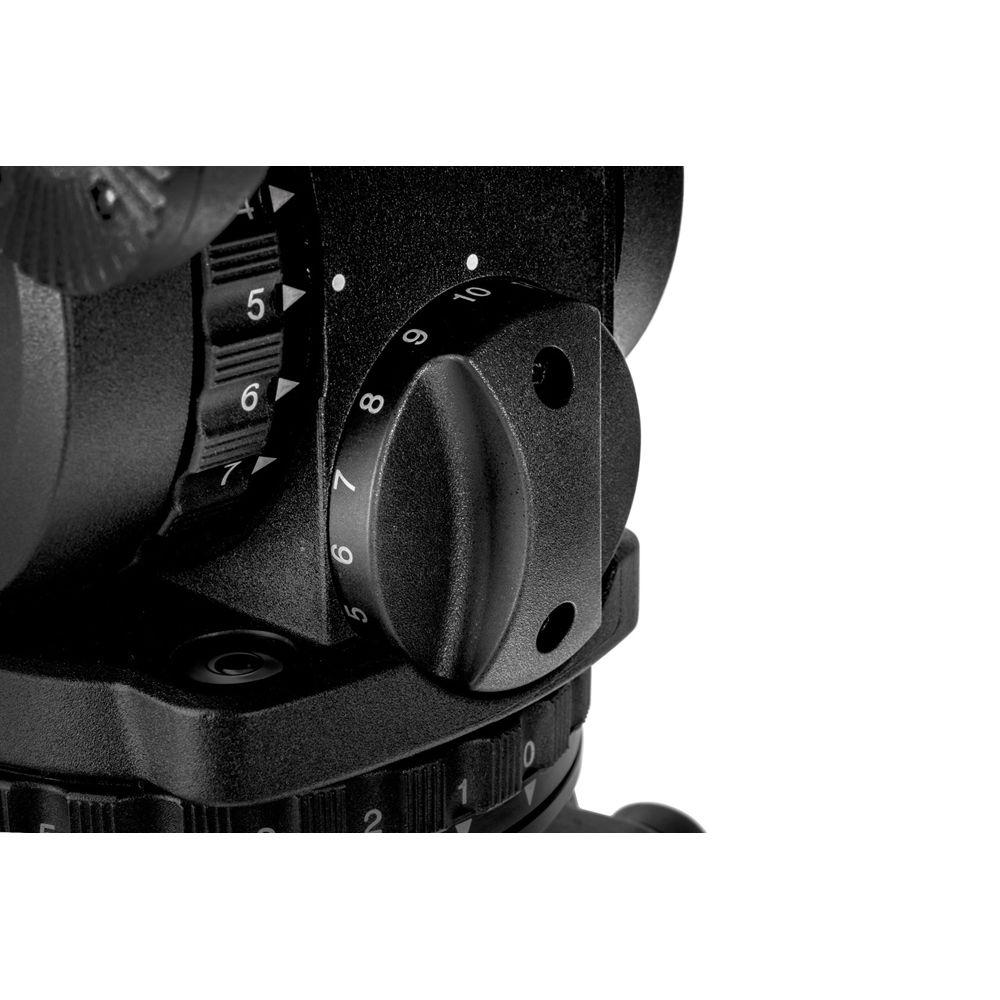

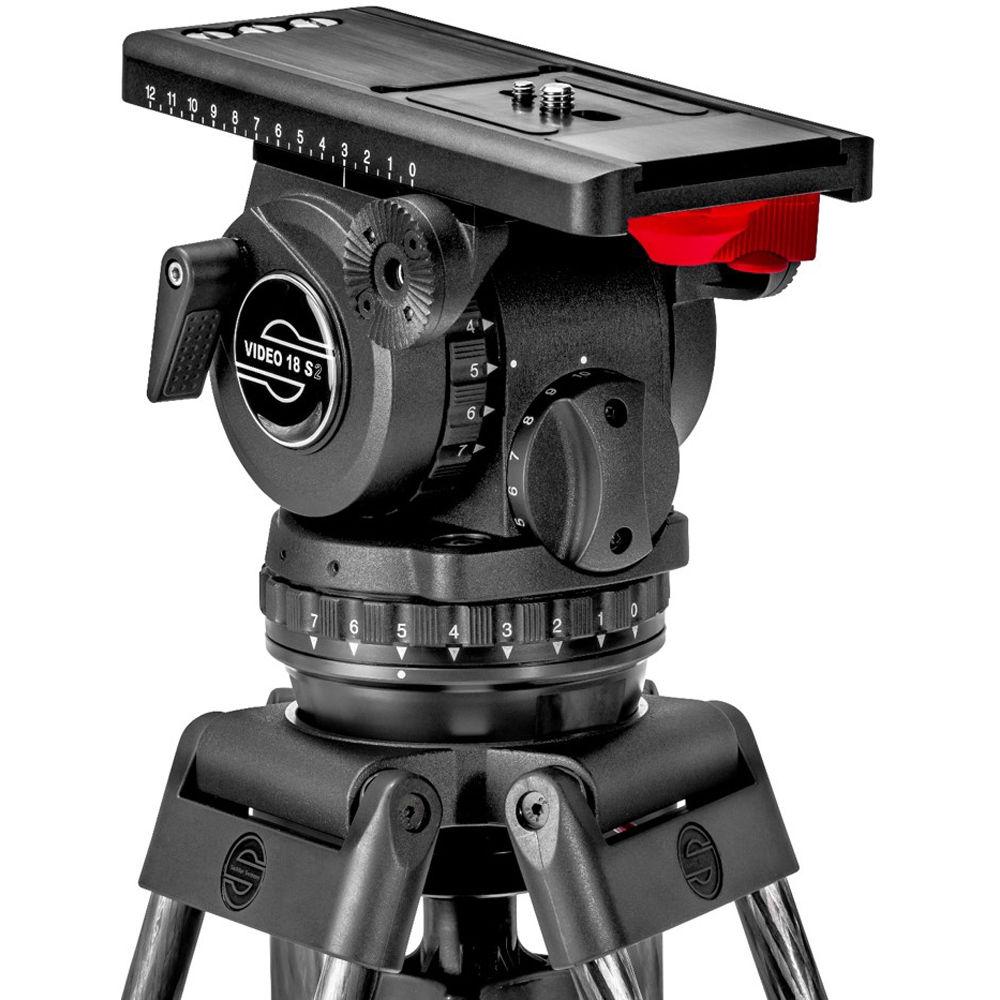

The Sachtler Video 18 S2 Fluid Head & ENG 2 CF Tripod System comprises of the Video 18 S2 head, ENG 2 CF carbon fiber tripod legs, mid-level spreader, set of three rubber feet, and a padded bag. The fluid head has a payload capacity of 4 to 44.1 lb with support for DSLR setups, ENG, and digital cinema cameras. It offers sixteen steps of counterbalance and seven steps of pan and tilt drag, along with locks for each axis. The head is packed with features such as temperature resistance, a Touch & Go quick release camera plate, parking positions for spare camera screws, and an illuminated leveling bubble.The fluid head attaches to the dual-stage tripod via a 100mm bowl interface. With the head attached, the tripod offers a height adjustment of 26.4 to 66.1" and collapses to 35". The mid-level spreader and rubber feet hold the tripod legs in position, providing rigidity and stability. The tripod system packs into the padded bag for easy transportation.

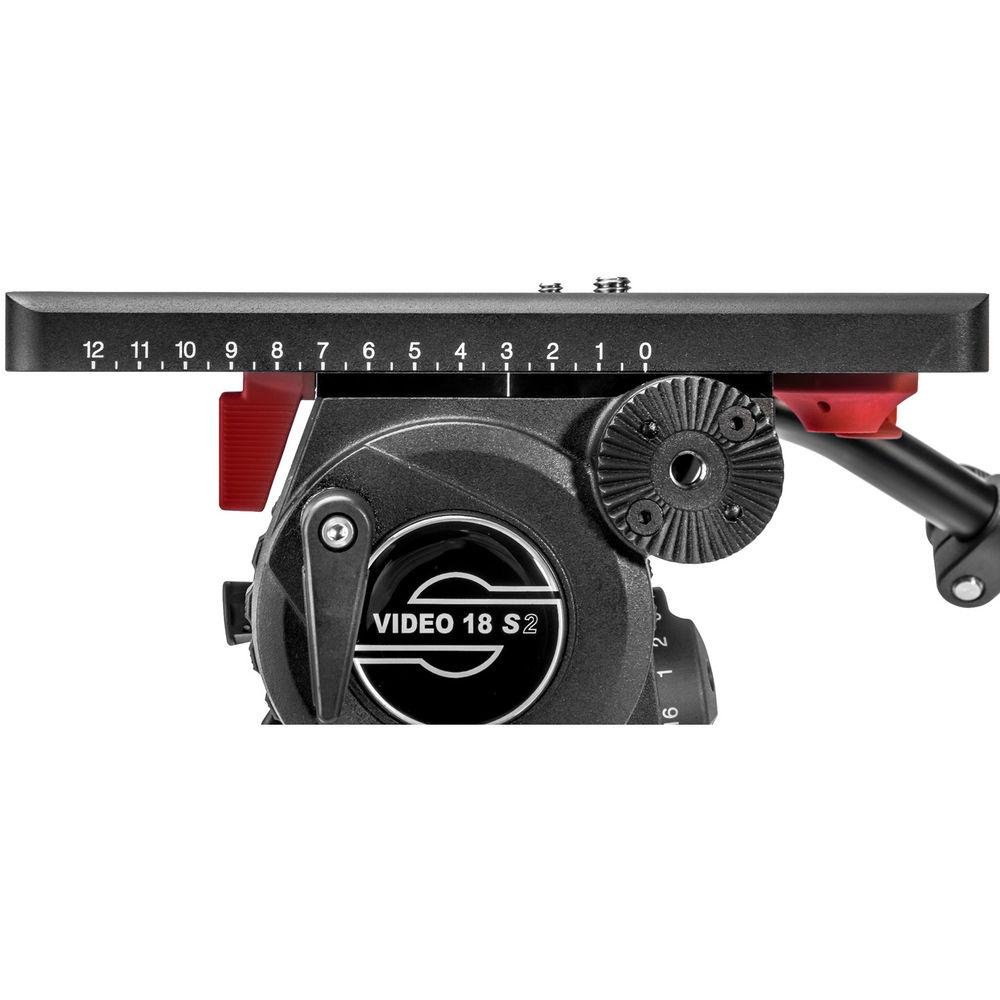

  • Video 18 S2 Fluid Head Able to handle DSLR setups weighing four pounds up to ENG and digital cinema cameras weighing 40 pounds, the Sachtler Video 18 S2 Fluid Head can fit into a wide range of video productions. Sixteen steps of counterbalance and seven steps of pan and tilt drag, along with locks for each axis, let you easily customize the response of the Video 18 S2 to fit your application, be it studio or field production.The top of the Video 18 S2 head is dominated by a sliding balance platform which accepts Sachtler's convenient Touch & Go quick release camera plate. Once the plate is secured, the entire platform adjusts to balance your camera setup. At the front of the platform, parking spaces for 1/4"-20, 3/8"-16, and registration pin screws are available for when they are not being used. Both sides of the head feature rosette mounts for pan handles. A right-side pan handle is included with the Video 18 S2. The base of the head terminates in a 100mm bowl mount for coupling with industry standard tripods, jibs, sliders, or other grip equipment that feature 100mm bowls.
  • CF-100ENG 2CF Carbon Fiber Tripod Legs The CF 100 ENG 2CF two stage tripod, provides maximum stability and carrying capacity. Constructed and drawn out of one-piece carbon fiber material, it is twist resistant and lighter than dural aluminum. It features a 100mm / 4" bowl, tube diameter of 22mm (0.87") and is fitted with the Sachtler quick clamping system, so you can securely - and visibly - lock the tripod. The CF 100 ENG 2CF's double extension provides greater stability, allowing an extended height range with a payload of 88 lb., and with a weight of only 5.3-lb it's extremely lightweight, solid and stable.
    • Carbon fiber construction with 22mm (0.87") tube diameter
    • 100mm / 4" bowl base
    • Double extension design
    • Maximum height of 59.0-inch
    • Quick clamping system, locks tripod legs in seconds
    • Supports up to 88 lb.
    • Built-in transport safety cord, preventing the legs from opening while in transport
    • Folding tripod handle, for comfortable carrying of tripod in horizontal position
    • for extra stability the CF-100 ENG HD 2CF is also available for a load capacity of 210 lb at a height of 61.8-inch
  • Mid-Level Tripod Spreader This Mid-Level Spreader from Sachtler fits all 100 and 150mm bowls (except for short tripods), OB-2000M, Cine 2000, and Cine 2000 medium tripods. It is used when shooting on uneven surfaces such as steps, rocky ground, or slopes. It allows for rapid setup and pull-down by keeping tripod legs at an equal or preset distance relative to each other. It attaches to the center bracket of a tripod and its arms are telescopic to allow for extension of a tripod leg without detaching the spreader. UPC: 806576213925
  • Rubber Feet (Set of 3) Set of three Sachtler Rubber Feet. Snap these feet onto your tripod when it's not possible to use the dual spiked feet, ideal on slippery and glossy floors. For all Tripods with Off-Ground Spreaders (Except OB-2000/M and Cine 2000/M tripods).
  • ENG 2 Padded Bag The Sachtler ENG 2 Padded Bag is a soft tripod bag designed to carry various Sachtler tripods with fluid heads up to 35" long. The case is made from water-resistant Cordura nylon and can be carried by the interlocking handles or the attached, adjustable shoulder strap.
      Construction
      • Water-resistant Cordura nylon
      • Padded interior
      • Zipper closure
      Carrying options
      • Interlocking handles
      • Attached, adjustable shoulder strap
      Compatible with
      • Sachtler DV 2, DV 4, DV 6 and DV 8 systems on ENG 75/2 D tripod
      • Sachtler DV 8 with 100mm ball, DV 12, DV 15, Video 15, Video 18, Video 20 fluid heads on 2-fold extension or Speed Lock CF tripods
In the Box Bundle Items Video 18 S2 Fluid Head zafdusdzzq
  • Telescoping Pan Handle
  • Limited 1-Year Warranty
CF-100ENG 2CF Carbon Fiber Tripod Legs
  • Limited 1-Year Warranty, Extendable to 2-Years with Product Registration
Mid-Level Tripod Spreader
  • Limited 1-Year Warranty, Extendable to 2-Year with Product Registration
Rubber Feet (Set of 3)
  • Limited 1-Year Warranty, Extendable to 2-Years with Product Registration
ENG 2 Padded Bag zafdusdzzq
  • Shoulder Strap
  • Limited 1-Year Warranty, Extendable to 2-Years with Product Registration
18 S2 Fluid Heads User Guide PDF 4.1mb Table of Contents




Upload User Manual

Have you got an user manual for the Sachtler Video 18 S2 Fluid Head & ENG 2 CF Tripod System with Mid-Level Spreader in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • Video 18 S2 Fluid Head

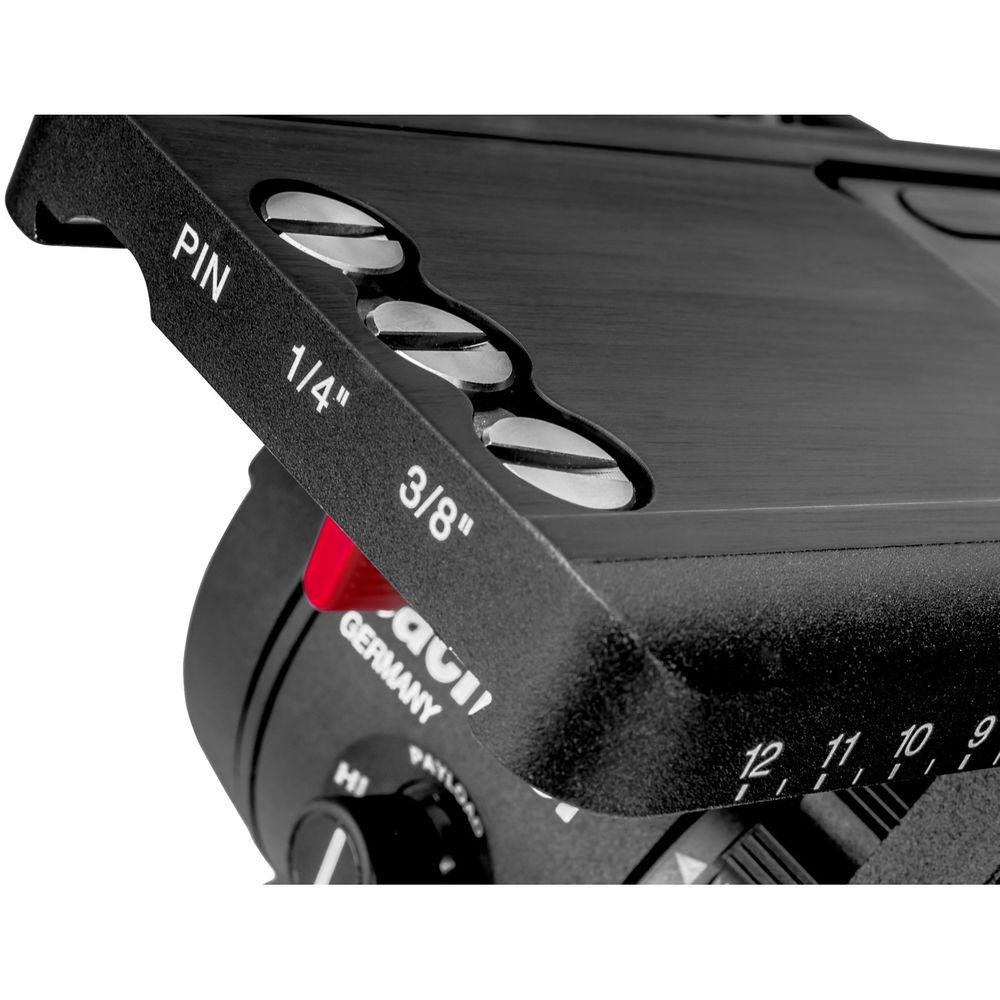

    Camera Plate Features Sliding Balance Plate, Quick Release
    Camera Plate Type Sachtler Touch & Go Plate 16
    Balance Plate Sliding Range 4.7" / 120 mm
    Base Mount 100 mm Half Ball

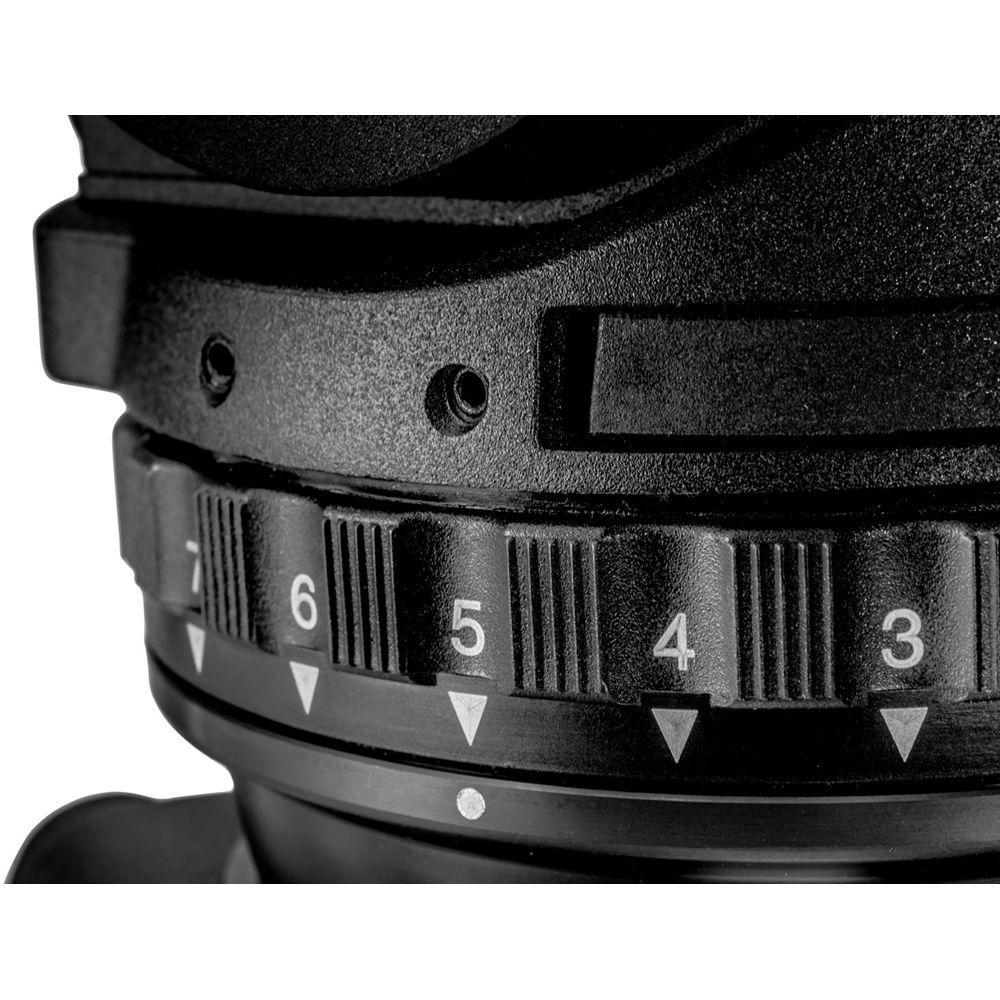

    Drag Control Tilt: 7-Step Plus 0
    Vertical Tilt +90

    Rating

    70% users recommend this product to others. And what about you?
    Rating: 3.5 of 5

    This product has already been rated by 38 owners. Add your rating and experience with the product.
