Sachtler Video 18 S2 Fluid Head

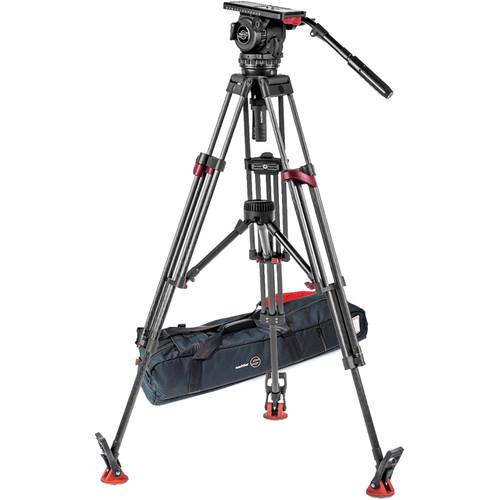

User Manual for Sachtler Video 18 S2 Fluid Head & Speed Lock CF Dual-Stage Tripod System

• Product category: Tripod Systems Sachtler
• Brand: Sachtler
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sachtler Tripod Systems

Product description

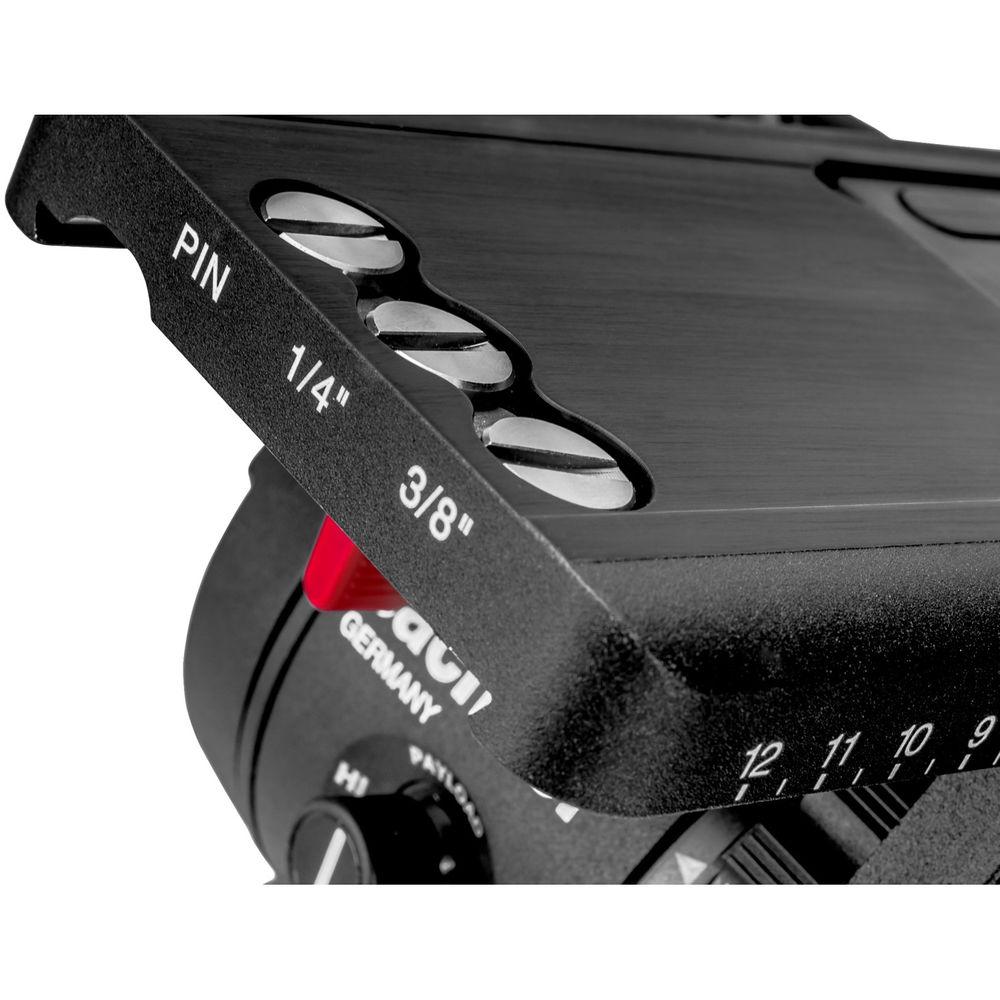

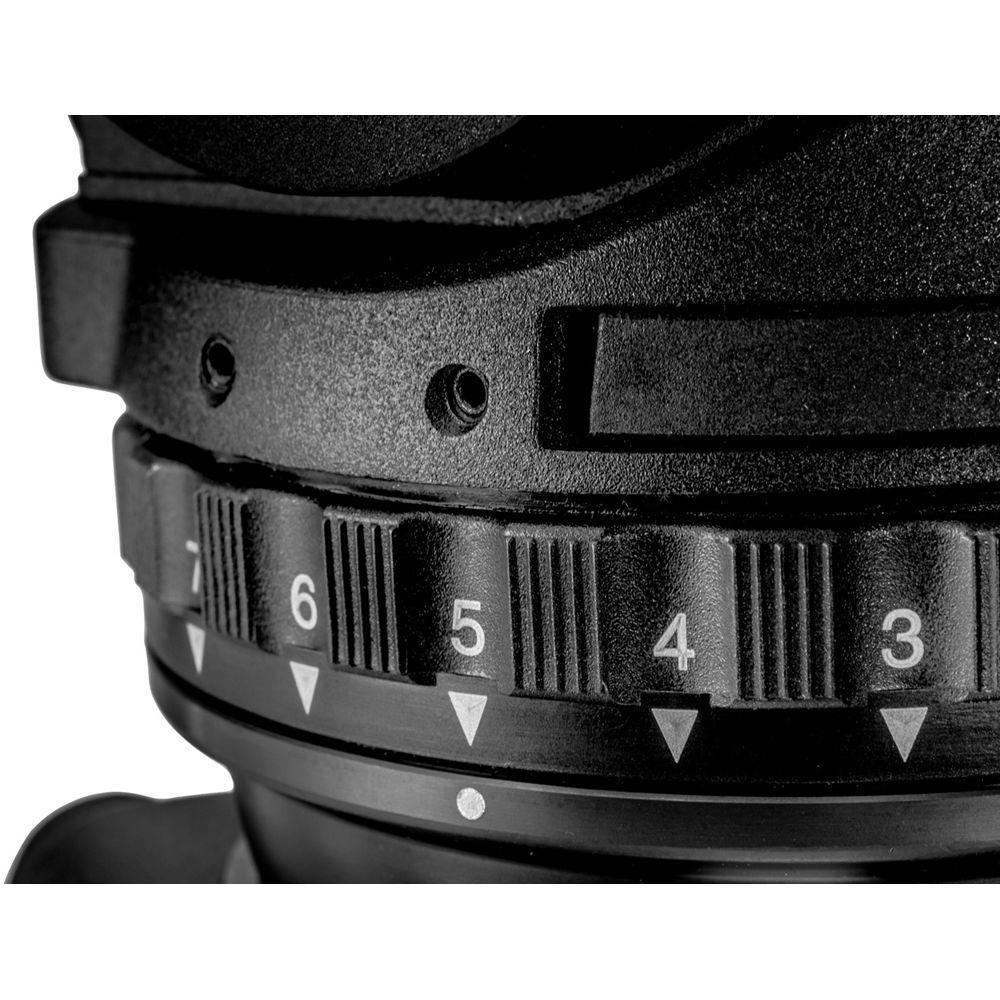

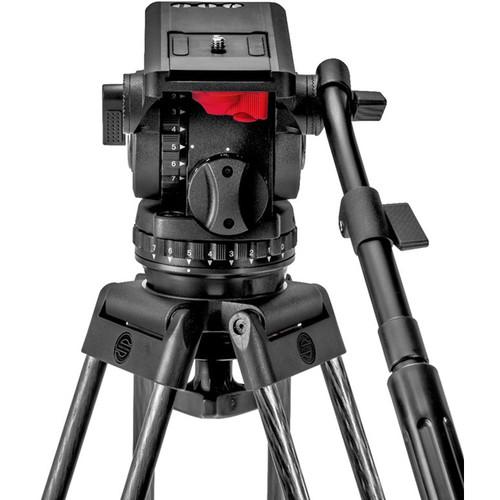

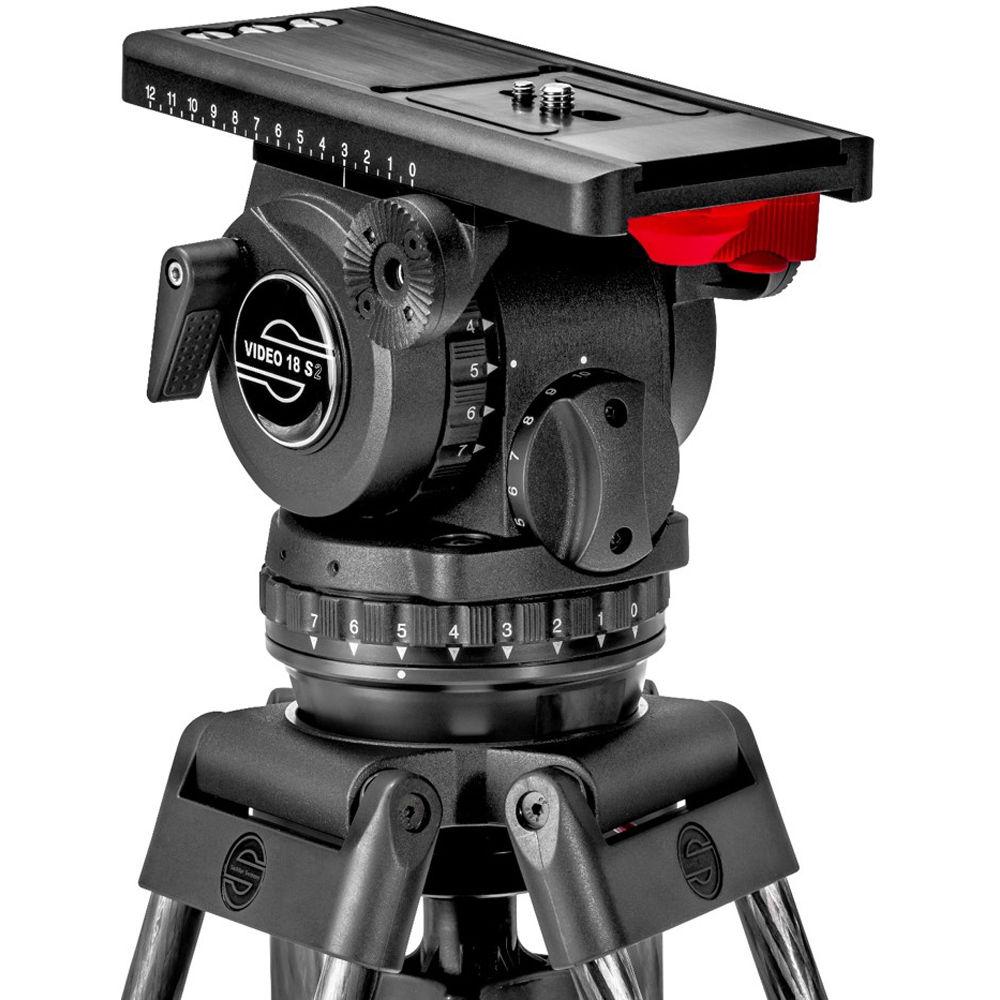

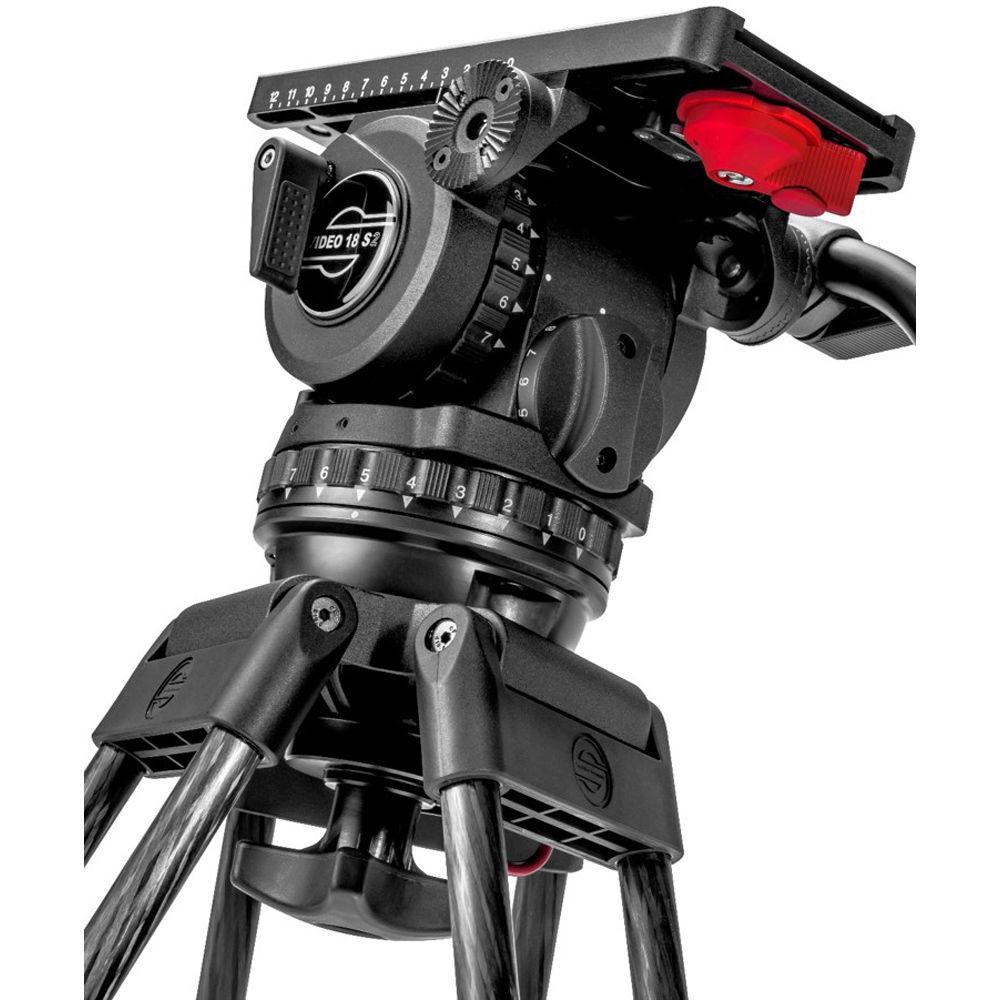

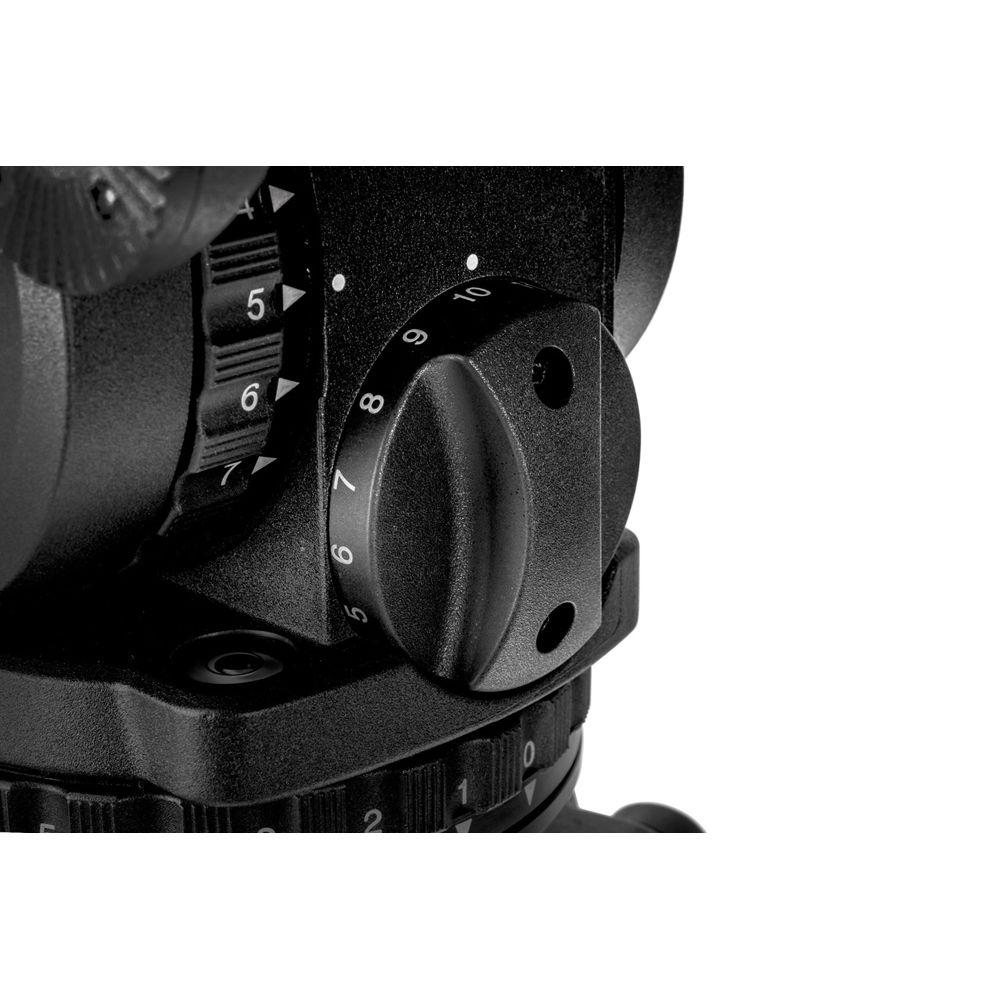

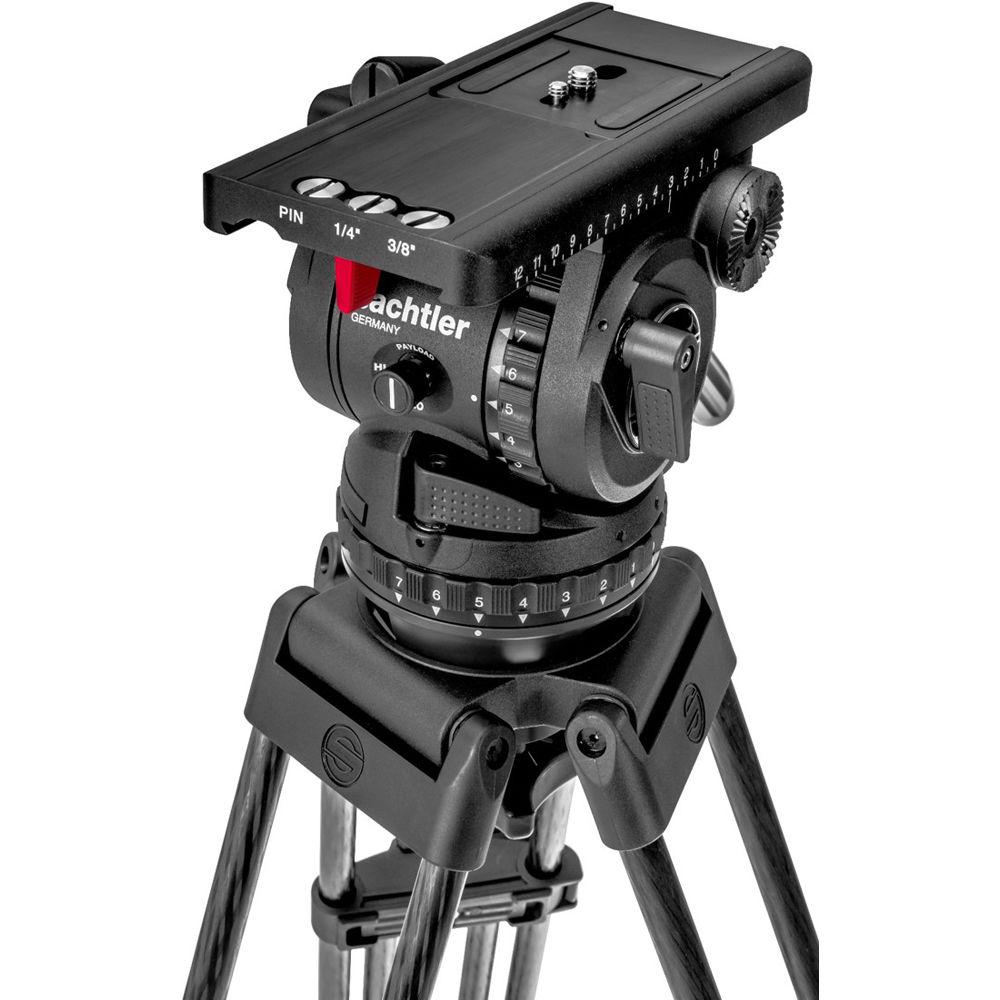

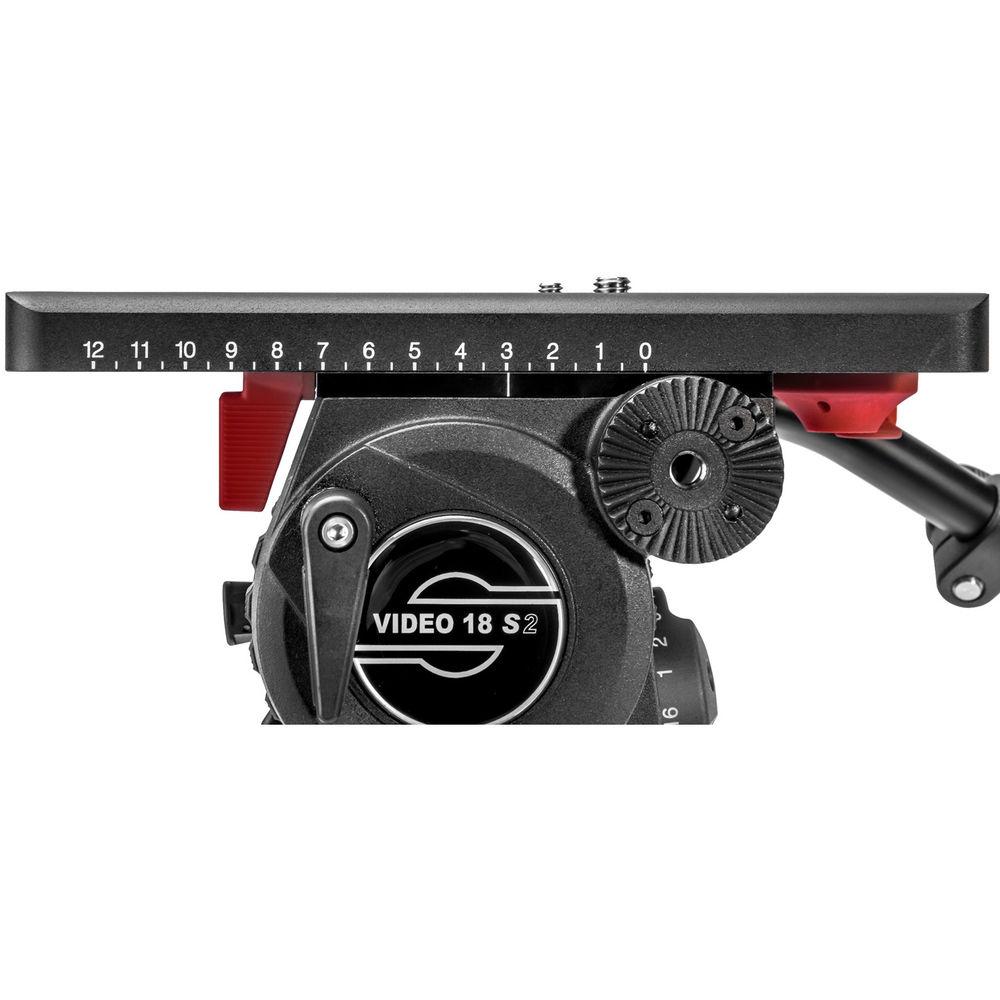

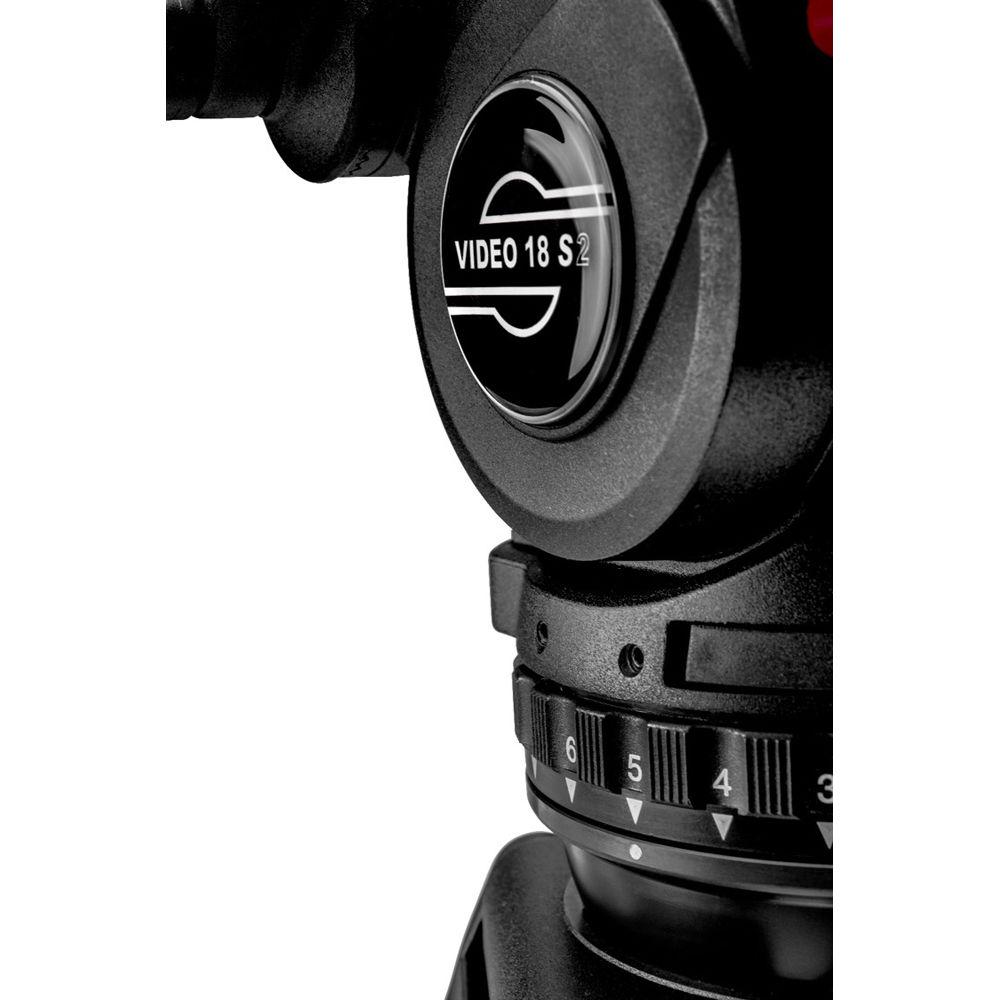

• Video 18 S2 Fluid Head Able to handle DSLR setups weighing four pounds up to ENG and digital cinema cameras weighing 40 pounds, the Sachtler Video 18 S2 Fluid Head can fit into a wide range of video productions. Sixteen steps of counterbalance and seven steps of pan and tilt drag, along with locks for each axis, let you easily customize the response of the Video 18 S2 to fit your application, be it studio or field production.The top of the Video 18 S2 head is dominated by a sliding balance platform which accepts Sachtler's convenient Touch & Go quick release camera plate. Once the plate is secured, the entire platform adjusts to balance your camera setup. At the front of the platform, parking spaces for 1/4"-20, 3/8"-16, and registration pin screws are available for when they are not being used. Both sides of the head feature rosette mounts for pan handles. A right-side pan handle is included with the Video 18 S2. The base of the head terminates in a 100mm bowl mount for coupling with industry standard tripods, jibs, sliders, or other grip equipment that feature 100mm bowls.
• Speed-Lock CF Carbon Fiber Tripod Legs It takes just three quick movements and the Speed Lock CF is ready for action - and users don't even have to bend over! The patented clamping system lets you adjust the tripod smoothly and safely, even with a camera mounted. The Speed Lock CF's carbon fiber construction ensures minimal load-free weight, and increases stability and twist resistance. On top of that, the clamping connection forms a third tube to further increase stability. The ergonomically shaped, high-tech clamps have a rounded design, which ensures that cables slide off without catching. In addition, you can tell at a glance whether the legs are clamped into position. The Speed Lock CF weighs less than 3 kg / 6.6 lb, only a couple of hundred grams more than the ENG 2 CF, highly favored by camera crews all over the world. And of course, it's compatible with all existing 100-mm accessories.
  • Carbon Fiber construction
  • 100mm / 4" bowl base
  • Double extension design
  • Maximum height of 60.9-inch
  • Quick clamping system, locks tripod legs in seconds
  • Supports up to 90 lb.
  • For extra strength, the Speed Lock CF HD is also available for an amazing clamping force of 211 lb at a height of 62.9-inch
• Mid-Level Tripod Spreader This Mid-Level Spreader from Sachtler fits all 100 and 150mm bowls (except for short tripods), OB-2000M, Cine 2000, and Cine 2000 medium tripods. It is used when shooting on uneven surfaces such as steps, rocky ground, or slopes. It allows for rapid setup and pull-down by keeping tripod legs at an equal or preset distance relative to each other. It attaches to the center bracket of a tripod and its arms are telescopic to allow for extension of a tripod leg without detaching the spreader. UPC: 806576213925
• Rubber Feet (Set of 3) Set of three Sachtler Rubber Feet. Snap these feet onto your tripod when it's not possible to use the dual spiked feet, ideal on slippery and glossy floors. For all Tripods with Off-Ground Spreaders (Except OB-2000/M and Cine 2000/M tripods).
• SpeedLevel Clamp for Sachtler 100mm Fluid Heads The Sachtler SpeedLevel Clamp for Sachtler 100mm Fluid Heads is innovatively designed with squeeze handles that let you more accurately and easily level your fluid head. Instead of the traditional twisting and untwisting, the SpeedLevel Clamp loosens the head position when you squeeze the handles and sets the head in place the moment you release the squeeze.

  The SpeedLevel Clamp is compatible with all Sachtler 100mm heads and supports a maximum weight of 55 lb. (Third-party heads may not be compatible because a Sachtler 10mm thread is required.)
  Key Features
  • • Innovative squeeze/release leveling mechanism
    • 55 lb max weight support
• ENG 2 Padded Bag The Sachtler ENG 2 Padded Bag is a soft tripod bag designed to carry various Sachtler tripods with fluid heads up to 35" long. The case is made from water-resistant Cordura nylon and can be carried by the interlocking handles or the attached, adjustable shoulder strap.
  Construction
  • • Water-resistant Cordura nylon
    • Padded interior
    • Zipper closure
  Carrying options
  • • Interlocking handles
    • Attached, adjustable shoulder strap
  Compatible with
  • • Sachtler DV 2, DV 4, DV 6 and DV 8 systems on ENG 75/2 D tripod
    • Sachtler DV 8 with 100mm ball, DV 12, DV 15, Video 15, Video 18, Video 20 fluid heads on 2-fold extension or Speed Lock CF tripods

• Telescoping Pan Handle

• Limited 1-Year Warranty

• Limited 1-Year Warranty, Extendable to 2-Years with Product Registration

• Limited 1-Year Warranty, Extendable to 2-Year with Product Registration

• Limited 1-Year Warranty, Extendable to 2-Years with Product Registration

• 1-Year Limited Warranty

• Additional 1-Year Limited Warranty with Product Registration

• Shoulder Strap

• Limited 1-Year Warranty, Extendable to 2-Years with Product Registration

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Video 18 S2 Fluid Head

  Camera Plate Features	Sliding Balance Plate, Quick Release
  Camera Plate Type	Sachtler Touch & Go Plate 16
  Balance Plate Sliding Range	4.7" / 120 mm

  Base Mount	100 mm Half Ball

  Drag Control	Tilt: 7-Step Plus 0
  Vertical Tilt	+90 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 07 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
