User manual

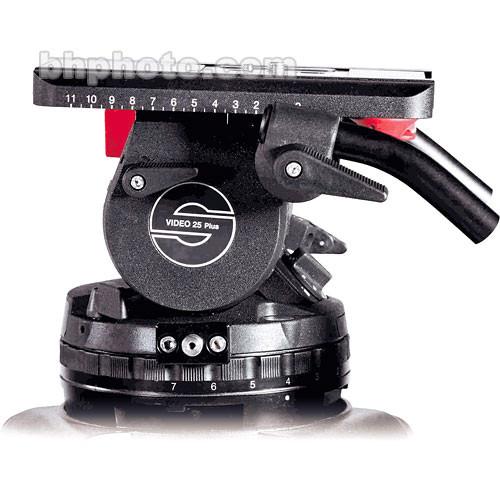

Sachtler Video 25 Plus Fluid Head

User Manual for Sachtler Video 25 Plus Fluid Head

• Product category: Video Tripod Heads Sachtler
• Brand: Sachtler
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sachtler Video Tripod Heads

Product description

Frictionless leak proof fluid damping with Seven levels of drag
• A prerequisite for perfect pictures is a panning movement without jerks and vibrations. Sachtler's patented damping system takes everything is stride. The individual modules are frictionless and contain no hydraulic oil. This means they are permanently leak proof. The damping action of heads is identical across both horizontal and vertical planes and offers you seven steps of drag, for smooth camerawork under the toughest of rough conditions. You can completely disengage the drag for fast panning without affecting the dynamic counterbalance system.

Touch & Go Quick Release / Automatic Locking System
• Stop wasting time by fumbling around with clumsy attachments, or bother screwing the camera to head and then having to unscrew it again. With the Touch & Go system invented by Sachtler, the camera plate is secured to the camera, while the mating balance plate is mounted on the fluid head.
  All you need to do is slip the camera into position, engage the mechanism, and the camera is locked firmly in place, when finished just disengage the latch and go. When you set up the camera for the next shot you still have all the original settings. Also features a safety lock lever that prevents inadvertent disengagement of the camera latch.

Sliding Balance Plate
• The sliding camera mount and plate with a 4.4-inch (150mm Ball Base) or 3.9-inch (Flatbase) sliding range, allows you to compensates precisely for a variety of configuration weights. Ensuring perfect balance across the horizontal plane. Most importantly, once adjusted, the settings cannot be lost.

18 Step dynamic counterbalancing system
• Built with torsion springs the dynamic counterbalancing system compensates for torques as the camera tilts, preventing the camera from inadvertently tipping, and ensuring that it is positioned securely at any tilt angle. Freeing you to concentrate fully on your camerawork. Its 18-step counterbalance allows adjustments via dial, in 9 stages and fine tune by half step function, and can be activated and deactivated individually. Independent from the damping system, they work silently and without the need for maintenance.

Safe at any temperature
• Pressure or temperature does not influence the damping system, it has an operating range from
  -40°F to +140°F, and works without friction. Shoot wherever you want, from torrid heat to cold climates.

• Vibrationless vertical / horizontal brakes, for maximum safety in fast-paced reporting situations.

• Built-in illuminated bubble for horizontal leveling, uses a conventional battery and ensures easy leveling even under unfavorable lighting conditions.

• Load capacity of: 18 - 77 lb, ideally suited for HDTV and Wide Screen cameras.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Sachtler Video 25 Plus Specs

Drag Control	Tilt: 7-Step Plus 0
Vertical Tilt	+90 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 92 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
