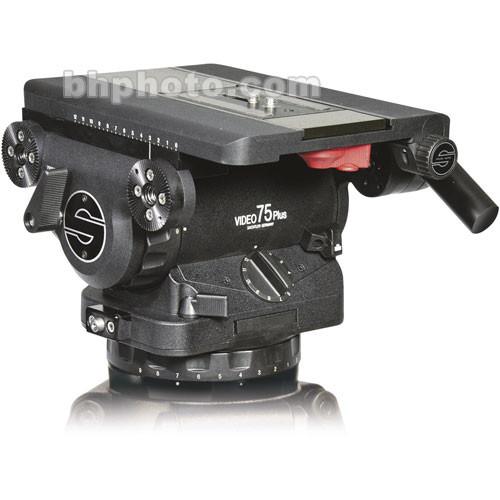

User Manual for Sachtler Video 75 Plus EFP Fluid Head - Supports 25-190 lbs Click to enlarge the picture
Contents of the user manual for the Sachtler Video 75 Plus EFP Fluid
- Product category: Video Tripod Heads Sachtler
- Brand: Sachtler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sachtler Video Tripod Heads
|
User manual for the Sachtler Video 75 Plus EFP Fluid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sachtler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!
|
Product description The Video 75 Plus EFP boasts a outstanding payload range of 12 to 85 kg / 25 to 190 lb. Suitable for a variety of camera configurations and flexible applications in both EFP and studio operation, this all-round talent offers users a broad palette of solutions. The 24 step counterbalance which can be adjusted in 12 stages with the well known Sachtler dial. Fine-tuning is achieved via a half step lever. The Video 75 Plus EFP normally supports up to 165 pounds with a camera center of gravity (C.O.G.)of six inches above the camera platform, however using the boost button allows the fluid head to asupport up to 185.4 pounds at C.O.G. of six inches. For even more precise adjustment the balance plate has a sliding range of up to 120mm / 4.7", and up to 145mm / 5.7" for the studio version. This allows you to safely balance the camera at any tilt angle. The Video 75 Plus EFP fluid head has a modular design, allowing you to change it for different applications. Various configuration options are available like; 150mm Ball Base with the Touch & Go quick release system and camera plate 35 wedge or Flat Base with the V-shaped wedge plate, or you can even mount it on a Mitchell Mount base. - Frictionless leak proof fluid damping with Nine levels of drag
- A prerequisite for perfect pictures is a panning movement without jerks and vibrations. Sachtler's patented damping system takes everything is stride. The individual modules are frictionless and contain no hydraulic oil. This means they are permanently leak proof. The damping action of heads is identical across both horizontal and vertical planes and offers you nine steps of drag, for smooth camerawork under the toughest of rough conditions. You can completely disengage the drag for fast panning without affecting the dynamic counterbalance system.
- Touch & Go Quick Release / Automatic Locking System
- Stop wasting time by fumbling around with clumsy attachments, or bother screwing the camera to head and then having to unscrew it again. With the Touch & Go system invented by Sachtler, the camera plate is secured to the camera, while the mating balance plate is mounted on the fluid head. All you need to do is slip the camera into position, engage the mechanism, and the camera is locked firmly in place, when finished just disengage the latch and go. When you set up the camera for the next shot you still have all the original settings. Also features a safety lock lever that prevents inadvertent disengagement of the camera latch.
- Sliding Balance Plate
- The sliding camera mount and plate with a 4.7-inch (150mm Ball Base) or 5.7-inch (Flatbase) sliding range, allows you to compensate precisely for a variety of configuration weights. Ensuring perfect balance across the horizontal plane. Most importantly, once adjusted, the settings cannot be lost.
- 24 Step dynamic counterbalancing system with Boost Button
- Built with torsion springs the dynamic counterbalancing system compensates for torques as the camera tilts, preventing the camera from inadvertently tipping, and ensuring that it is positioned securely at any tilt angle. Freeing you to concentrate fully on your camerawork. Its 24-step counterbalance allows adjustments via dial, in 12 stages and fine tune by half step function, and can be activated and deactivated individually.
The Boost feature allows you to increase the supported maximum payload the head can support from 75kg to 84.1 kg. - Safe at any temperature
- Pressure or temperature does not influence the damping system, it has an operating range from
-40°F to +140°F, and works without friction. Shoot wherever you want, from torrid heat to cold climates. - Vibrationless vertical / horizontal brakes, for maximum safety in fast-paced reporting situations.
- Built-in illuminated bubble for horizontal leveling, uses a conventional battery and ensures easy leveling even under unfavorable lighting conditions.
In the Box Sachtler Video 75 Plus EFP Fluid Head (150mm Ball Base) - Supports 25-190 lbs 1x Right Telescopic Pan Bar (#3270) 1x Left Telescopic Pan Bar (#3271) Quick Release / Wedge Plate (#3051) Limited 1-Year Warranty, Extendable to 2-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler Video 75 Plus EFP Fluid Head - Supports 25-190 lbs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler Video 75 Plus EFP Specs | | | Camera Plate Features | Sliding Balance Plate, Quick Release | | Camera Plate Type | Sachtler Camera Plate 35 Touch and Go | | Balance Plate Sliding Range | 4.7" / 120 mm | | | | Base Mount | 150 mm Half Ball | | | | Drag Control | Tilt: 10-Step Plus 0 | | Vertical Tilt | +90
