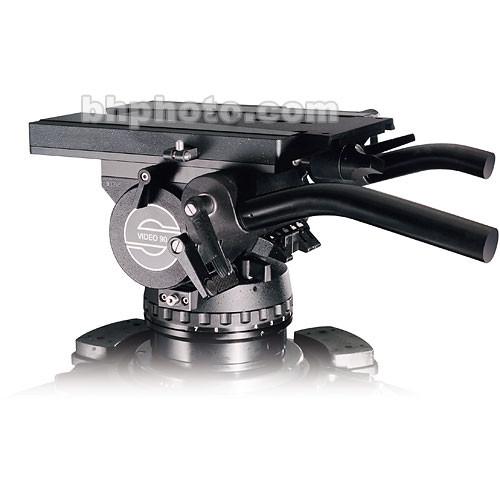

User Manual for Sachtler VIDEO 90 FB Fluid Head - Supports 0-255 lbs Click to enlarge the picture
Contents of the user manual for the Sachtler VIDEO 90 FB Fluid Head
- Product category: Video Tripod Heads Sachtler
- Brand: Sachtler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sachtler Video Tripod Heads
|
User manual for the Sachtler VIDEO 90 FB Fluid Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sachtler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sachtler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sachtler product will considerably shorten its lifespan!
|
Product description Professional camera operators choose the Video 90 for OB and studio applications for good reasons. Lightweight, but able to support loads up to 254 pounds, due to it's ergonomic, robust, squeeze-proof design, which ensures safe operation in any position. Also features a high-performance, jerk-free damping system with Seven Levels of Drag allowing the use of long focal lengths in OB applications, Vibration-Free Vertical and Horizontal Brakes, guaranteeing exceptionally smooth operation. And if you need to change equipment frequently, the Video 90 FB comes with the QuickFix mount allowing you to mount quickly, to save time. - Frictionless leak proof fluid damping with Seven Levels of Drag
- A prerequisite for perfect pictures is a panning movement without jerks and vibrations. Sachtler's patented damping system takes everything is stride. The individual modules are frictionless and contain no hydraulic oil. This means they are permanently leak proof. The damping action of heads is identical across both horizontal and vertical planes and offers you seven steps of drag, for smooth camerawork under the toughest of rough conditions. You can completely disengage the drag for fast panning without affecting the dynamic counterbalance system.
- Sliding Balance Plate
- The sliding camera mount and plate with a 7.1-inch sliding range, allows you to compensates precisely for a variety of configuration weights. Ensuring perfect balance across the horizontal plane. Most importantly, once adjusted, the settings cannot be lost. Also features two built-in threaded holes for the teleprompter tubes, a standard feature of the Video 90 FB sliding plate, allows you to place the teleprompter right next to the rotating axis.
- 24 Step dynamic counterbalancing system plus fine tuning
- Built with torsion springs the dynamic counterbalancing system compensates for torques as the camera tilts, preventing the camera from inadvertently tipping, and ensuring that it is positioned securely at any tilt angle. Freeing you to concentrate fully on your camerawork. Its 24-step counterbalance with fine tuning adjustments allows a variety of equipment to be used, and can be activated and deactivated individually. Independent from the damping system, they work silently and without the need for maintenance.
- Vibration-Free Vertical and Horizontal Brakes
- The Video 90 FB features direct-response horizontal and vertical brakes. Mounted on the back of the head, they are absolutely vibration-free, thus guaranteeing exceptionally smooth operation.
- QuickFix Mount
- The Sachtler Quickfix lets you mount flat base heads with a single screw. This saves a lot of time, especially if you have to change equipment frequently and quickly, which is all in a normal day's work in OB environments.
- Safe at any temperature
- Pressure or temperature does not influence the damping system, it has an operating range from -40°F to +140°F, and works without friction. Shoot wherever you want, from torrid heat to cold climates.
- Using teleprompters and you need to add counterweights, no problem, the Video 90 FB supports maximum loads up to 90 kg / 198 lb.
- Built-in bubble for horizontal leveling
In the Box Sachtler VIDEO 90 FB Fluid Head (Flat Base) - Supports 0-255 lbs 1x Right Front Section Pan Bar (#B-3073-020) 1x Left Front Section Pan Bar (#B-3074-020) Quick Release / Wedge Plate (#3080) Limited 1-Year Warranty, Extendable to 2-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Sachtler VIDEO 90 FB Fluid Head - Supports 0-255 lbs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSachtler Video 90 FB Specs | | | Camera Plate Features | Sliding Balance Plate, Quick Release | | Camera Plate Type | Wedge Plate | | Balance Plate Sliding Range | 7.1" / 180 mm | | | | Base Mount | Sachtler QuickFix Flat Base | | | | Drag Control | Tilt: 7-Step Plus 0
Pan: 7-Step Plus 0 | | Vertical Tilt | +60
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
