User Manual for Samson 4-Channel Mixer with USB and Bluetooth Capability Click to enlarge the picture
Contents of the user manual for the Samson 4-Channel Mixer with USB and
- Product category: Analog Recording Mixers Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Analog Recording Mixers
 |
User manual for the Samson 4-Channel Mixer with USB and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

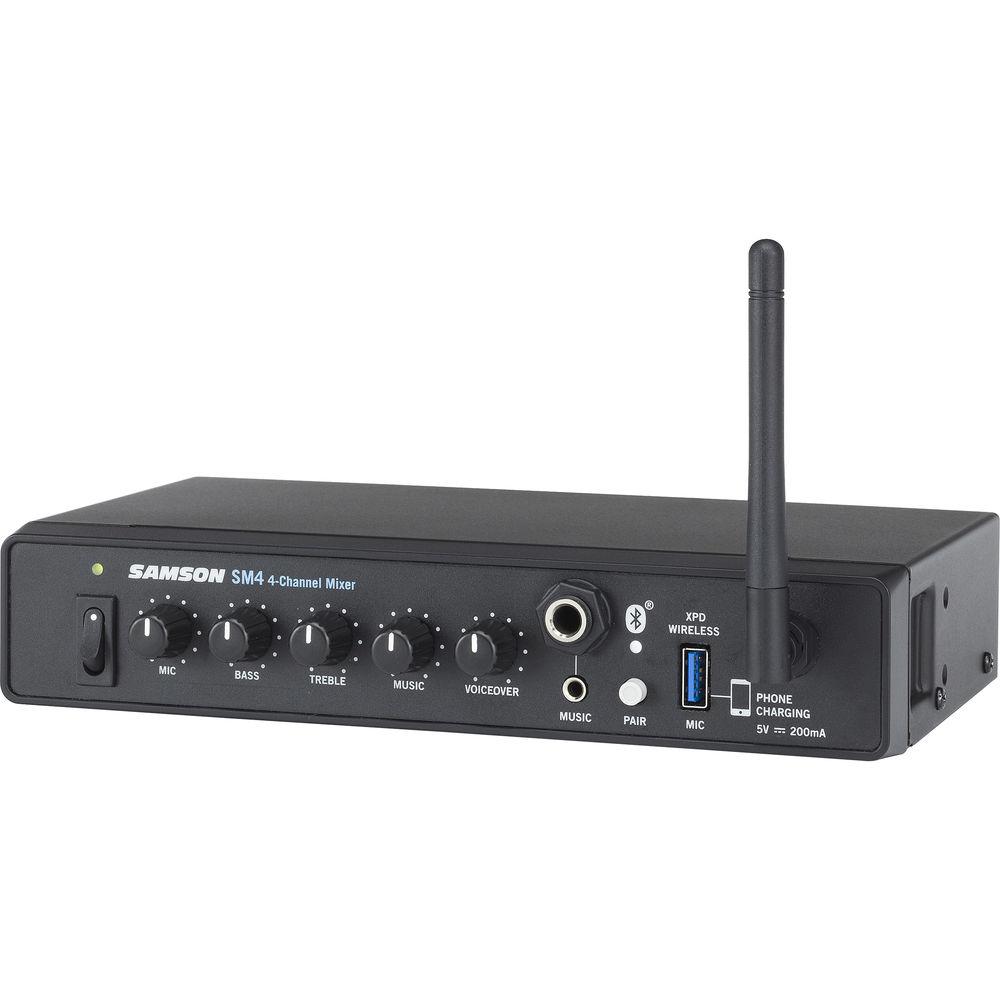

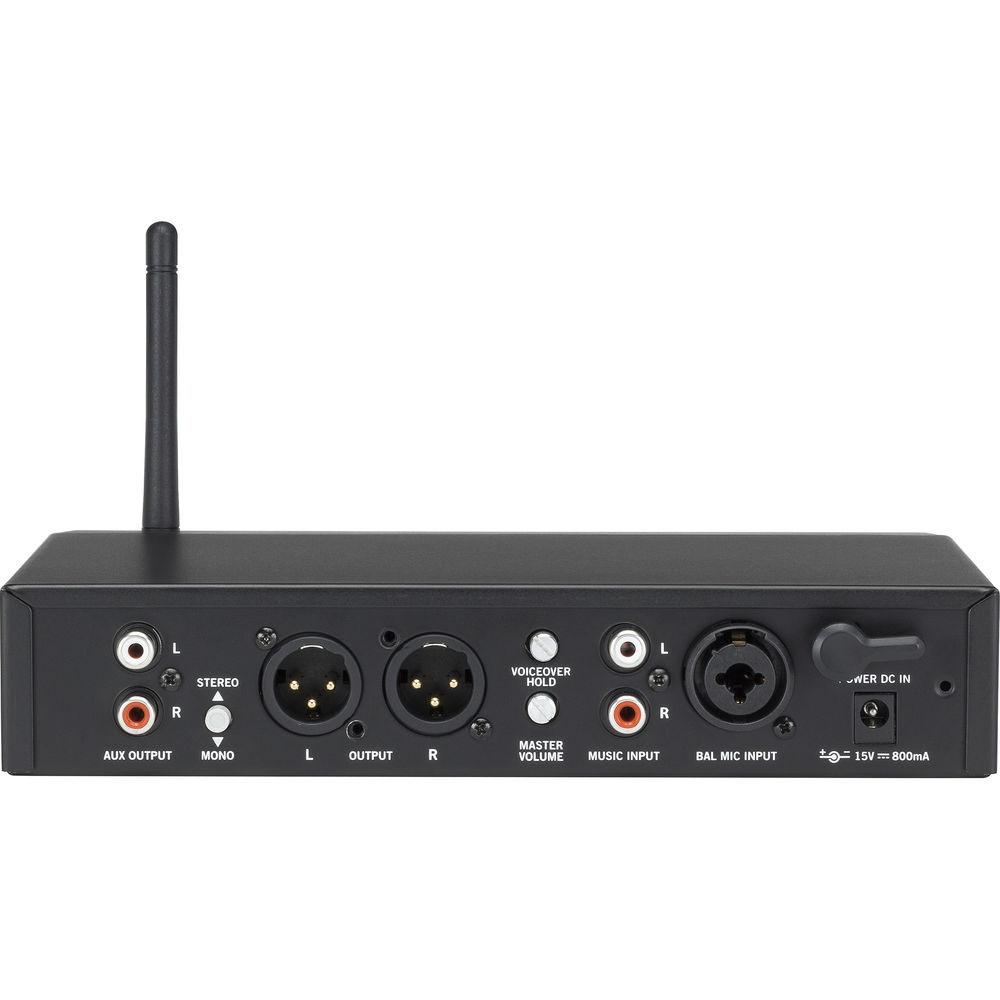

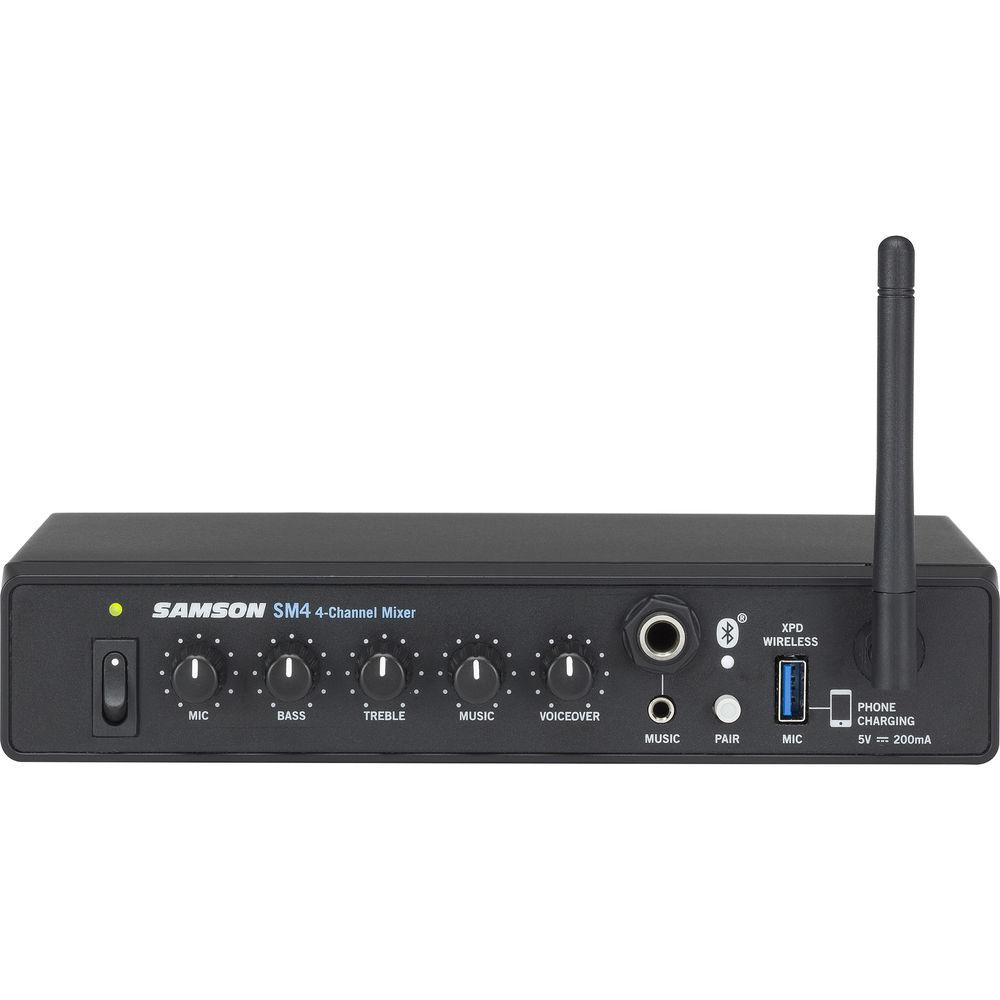

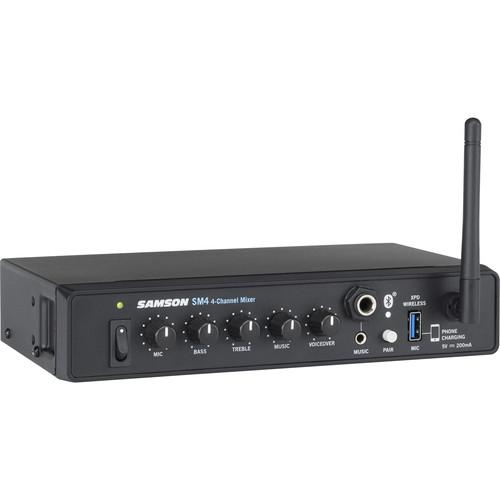

Product description The Samson SM4 is a four-channel mixer able to handle microphones, instruments, line-level signals, and Bluetooth streaming. On its front panel, you’ll find a stereo 1/4" connection for line-level sources, stereo 3.5mm jack for MP3 players, USB port for digital wireless receivers and smartphone charging, and a pairing button for Bluetooth devices. Controls offered on the front panel include separate volume knobs for microphone and music signals, a knob for bass boosts/cuts, and a similar knob for treble. You’ll also note the Voiceover knob, which automatically ducks the music channels when detecting signal on the microphone channel.Speaking of the microphone channel, direct your attention to the rear of the receiver and you’ll see a balanced, combination XLR-1/4” jack for mic-level signal. Two RCA inputs accept signal from line-level devices. XLR outputs allow you to feed power amplifiers and speakers, as does a set of RCA connections, which provide unbalanced audio to the aforementioned destinations. They can also feed computer sound cards and hard disk recorders. Two more controls are offered here: Master Volume—for overall level output—and Voiceover Hold, which dictates the release time of the Voiceover knob, from 0.5 to three seconds. The SM4 supports Bluetooth 4.0 and A2DP, provides 15V phantom power, and ships with a rackmount kit and power adapter. - Key Features at a Glance
-
- 4-channel stereo line mixer
- Microphone input with two-band EQ (balanced XLR-1/4” combo jack)
- Stereo line input (rear-mounted RCA inputs, front-mounted stereo 1/4” and 3.5mm jacks)
- Bluetooth connectivity for wireless music streaming
- USB port for use with Samson’s Stage XPD Series USB Digital Wireless Systems (available separately) and phone charging
- Voiceover control with priority ducking and variable hold time
- Rear-panel master volume control
- 15V phantom power
- Mono/stereo output switch
- Compact, half-rack steel chassis

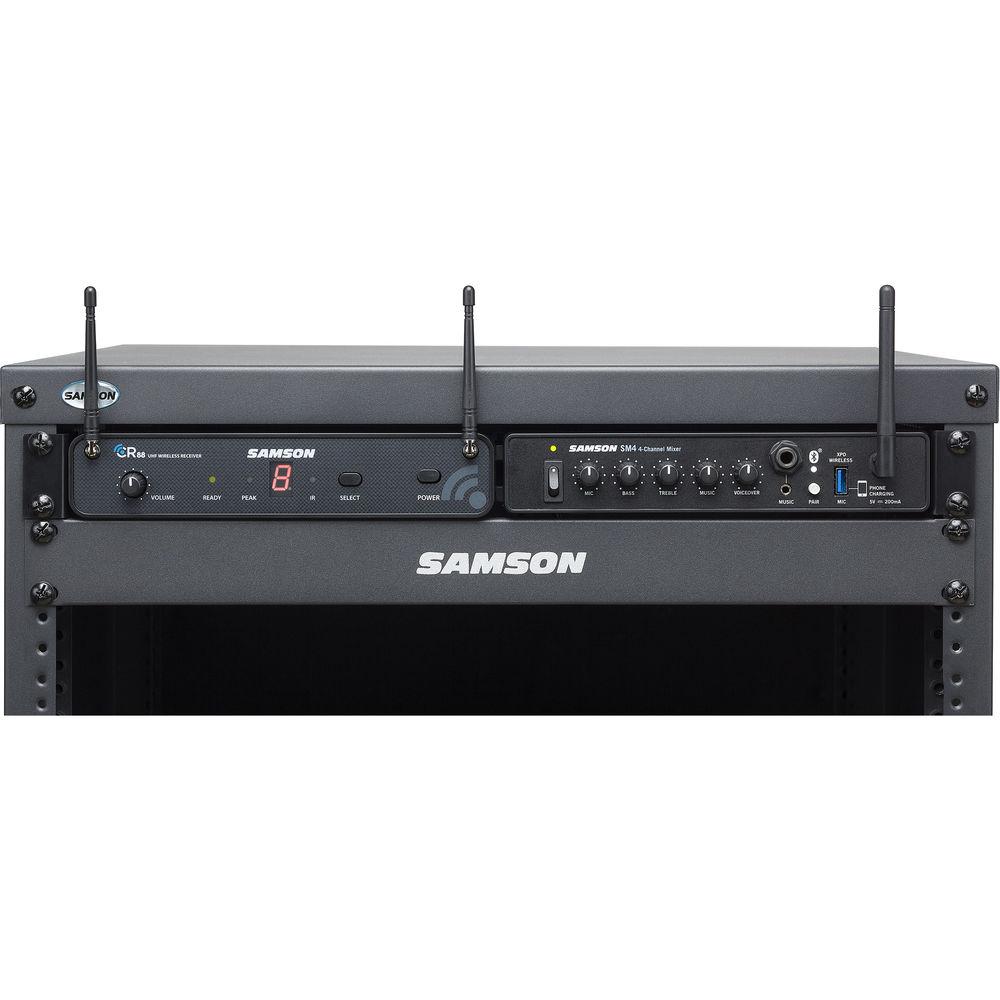

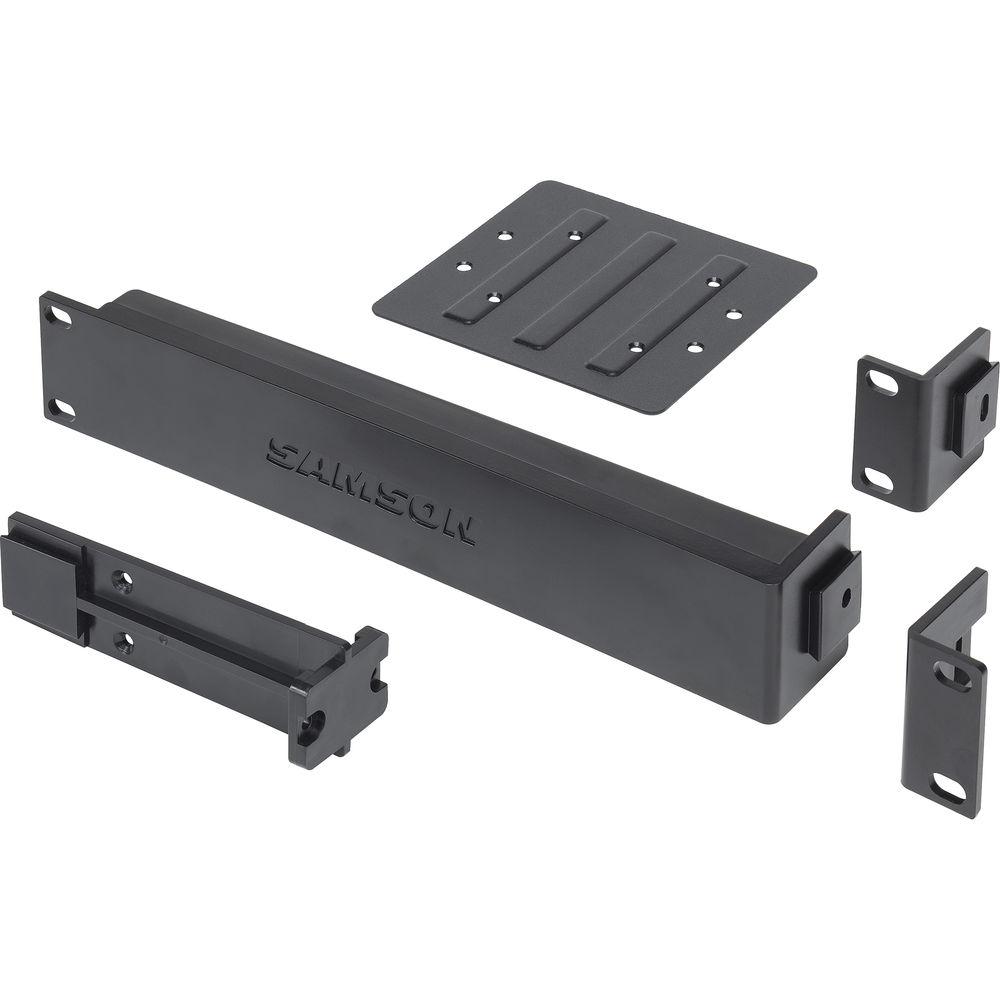

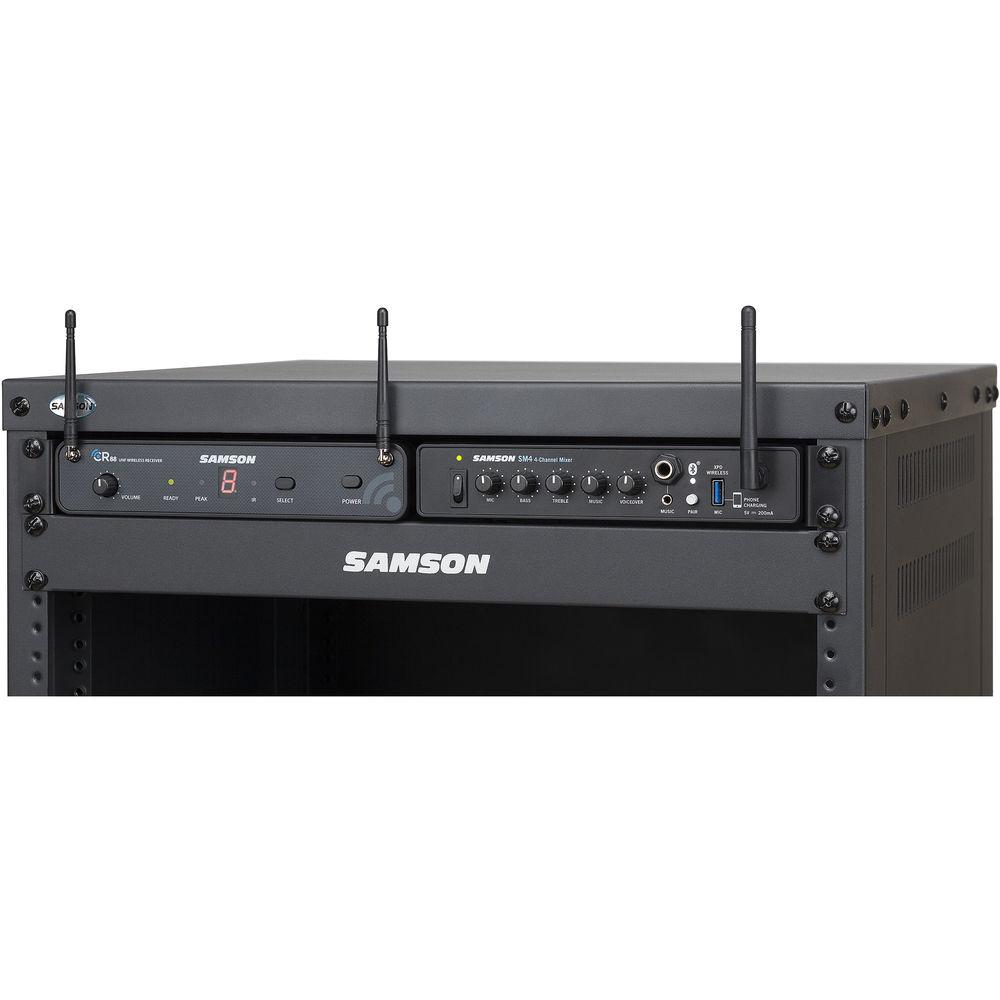

- Rackmount kit and power adapter included
UPC: 809164020332 In the Box Samson 4-Channel Mixer with USB and Bluetooth Capability Rackmount Kit Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson 4-Channel Mixer with USB and Bluetooth Capability in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SM4 Specs | I/O | 1 x 3.5 mm input
1 x 1/4" input
2 x RCA inputs
1 x XLR input
2 x XLR outputs
2 x RCA outputs
1 x USB Port | | Frequency Response | Mic to Main: 30 Hz to 30 kHz (level at max, unity gain +1 / -3 dB) | | THD | Mic/Line to Main: <0.02% (level at max, unity gain +1 / -3 dB) | | Equivalent Input Noise | Mic: < -75 dB, 20 Hz to 30 kHz, A-weighted (level at max) | | Maximum Voltage Gain | Mic to Main: 32 dB
Line to Main: 8 dB (RCA input)
Stereo Line to Main: 8 dB (1/4" input, 3.5 mm input) | | Residual Noise | Main: -110 dB (all level min, 30 kHz LPF, all control min) | | Crosstalk | Input Versus Output (Unity Gain, Level Set Min): > 82 dB
Input Versus Output (Max Output, Level Set Min): > 70 dB | | Maximum Level | Mic Input: -18 dB | | Equalizer | High: ±12 dB at 12 kHz
Low: ±10 dB at 80 Hz | | USB Output Power | USB 3.0: 5 VDC, 0.2 A max | | Phantom Power | 15 VDC | | Power Requirements | 15 VDC, 800 mA | | Bluetooth | Bluetooth V4.0, A2DP | | Working Frequency | 2.402 to 2.480 GHz | | RF Power | <10 mW EIRP | | Dimensions | 8.8 x 5.4 x 1.7" / 223 x 138 x 43mm | | Weight | 1.8 lb / 08 kg | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 11.7 x 9.9 x 2.3" |
