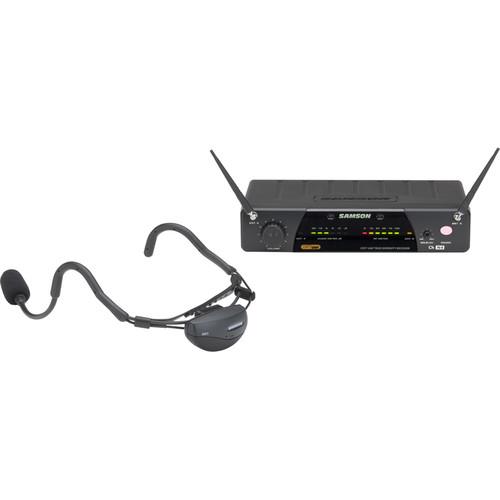

Product description The Samson Airline 77 Head Worn Wireless Microphone System features the QE head worn fitness microphone transmitter, and CR77 true-diversity UHF receiver with 1/4" phone and XLR output connections. The QE head worn microphone features a built-in transmitter, wrap-around headband and unidirectional polar pattern.Up to 14 hours of continuous operation is achieved on just a single AAA battery. The CR77 true-diversity receiver is the heart of the Airline 77 series and features PLL synthesized tuning, true diversity reception, dual antennas, XLR and 1/4" phone output connectors, RF level LED meters, and a large output volume control dial. - XLR and unbalanced 1/4-inch outputs with mic/line level output switch
- Headset transmitter features power/battery LED, power switch and mute switch
- Headset condenser mic is sweat resistant and employs unidirectional cardioid pickup pattern for great sound
- True diversity UHF wireless headset system with PLL frequency control
- CR77 receiver features multi-segment audio level and RF level LED meters, squelch and volume control
- AC adapter and 1/4-inch to 1/4-inch cable included
UPC: 809164218678 In the Box Samson AirLine 77 Fitness Head Worn Wireless Microphone System (Frequency K1: 489.500 MHz) CR77 UHF Diversity Receiver QE Fitness Head-Worn Microphone Transmitter AC Power Supply 1/4" to 1/4" Phone Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson AirLine 77 Fitness Head Worn Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SW7AVSCE-K1 Specs | | | Receiving Frequency | K1: 489.500 MHz | | Oscillation Type | PLL | | De-Emphasis | 50 ms | | IF Frequency | 10.7 MHz | | Antennas | 1/4 wavelength rod | | In/Out | DC inlet
XLR balanced output
1/4" (6.3 mm) unbalanced output | | LED Display | Receiver A/B (green), power on (red), AF level (6 segment), RF level (6 segment) | | Level Control | Audio level volume, squelch level control | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Operating Voltage | 12 VDC ±10% | | Current Consumption | 160 mA (all LED lights illuminated) | | Sensitivity | 18 dBm (@ THD 2%) | | Squelch | Sensitivity: 0 to 40 dBm (adjustable) | | Selectivity | ±150 kHz (AF Out ratio -60 dB) | | Total Harmonic Distortion (THD) | 1% max (@ AF 1 kHz, RF 46 dBu) | | Signal to Noise Ratio | 90 dB (with IHF-A filter) | | Residual Noise | 90 dBv (with IHF-A filter) | | AF Frequency Response | 50 Hz to 15 kHz (±3 dB overall) | | Audio Output Level | Unbalanced: 0 dBv
Balanced (slide switch selectable): -20 dBm (line), -40 dBm (mic) | | Audio Output Impedance | Unbalanced: 5 kOhms
Balanced: 600 Ohms | | | | Operating Power | 1.5 V typical, 1.05 V minimum, 2 V maximum | | Current Consumption | 60 mA typical | | Battery Life | 14 hours (AAA size battery) | | RF Output Power | 5 mW (-4 dB minimum, +3 dB maximum) | | Frequency Stability | -40 kHz minimum, 40 kHz maximum | | Spurious | 1 µW | | Modulation | 13 kHz minimum, 15 kHz typical, 17 kHz maximum, input 1 kHz - 20 dBv | | Input Impedance | Microphone: 2 kOhms | | Total Harmonic Distortion (THD) | <2% (1 kHz deviation 15 kHz) | | Audio Frequency Response | 50 Hz to 15 kHz (±3.5 dB) | | Controls | Power switch, mute switch volume | | Input | 2.5mm Stereo Jack | | Indicators | Power on (LED flash), low battery (LED on) | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 11.14 x 10.58 x 3.58" |
