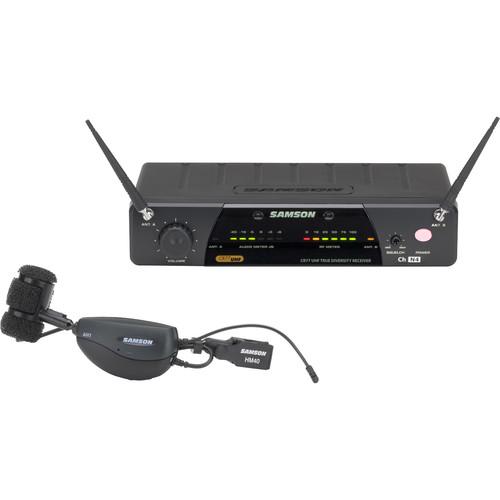

User Manual for Samson AirLine 77 Wind Instrument True Diversity UHF Wireless System Click to enlarge the picture
Contents of the user manual for the Samson AirLine 77 Wind Instrument True
- Product category: Wireless Systems Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Wireless Systems
|
User manual for the Samson AirLine 77 Wind Instrument True contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|
Product description The Samson Airline 77 Wireless Wind Instrument Microphone System features the AH1 transmitter, HM40 wind instrument microphone, and CR77 true-diversity UHF receiver with 1/4" phone and XLR output connections. The system provides horn players true wireless freedom during performances, without beltpacks or cables. The HM40 microphone attaches to the bell of horns and reproduces audio with pristine clarity and accuracy.Up to 14 hours of continuous operation is achieved on a single AAA battery. The CR77 true-diversity receiver is the heart of the Airline 77 series and features PLL synthesized tuning, true diversity reception, dual antennas, XLR and 1/4" phone output connectors, RF level LED meters, and a large output volume control dial. - True diversity UHF wireless wind instrument system with PLL frequency control
- CR77 receiver features multi-segment audio level and RF level LED meters, Squelch and volume control, XLR and unbalanced 1/4-inch outputs with mic/line level output switch
- AH1 headset transmitter features power/battery LED, power switch and mute switch
- HM40 condenser horn microphone employs cardioid pickup pattern
- Horn bell clamp included for easy attachment of entire AH1/HM40 assembly to horn
- AC adapter and 1/4-inch to 1/4-inch cable included
UPC: 809164218760 In the Box Samson AirLine 77 Wind Instrument True Diversity UHF Wireless System (K1: 489.050 MHz) CR77 UHF Diversity Receiver AH1 Transmitter / HM40 Horn Mic Horn Bell Clamp AC Power Supply 1/4" to 1/4" Phone Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson AirLine 77 Wind Instrument True Diversity UHF Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SW7AVSW4-K1 Specs | | | Receiving Frequency | K1: 489.050 MHz | | Oscillation Type | PLL | | De-Emphasis | 50 ms | | IF Frequency | 10.7 MHz | | Antennas | 1/4 wavelength rod | | In/Out | DC inlet
XLR balanced output
1/4" (6.3 mm) unbalanced output | | LED Display | Receiver A/B (green), power on (red), AF level (6 segment), RF level (6 segment) | | Level Control | Audio level volume, squelch level control | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Operating Voltage | 12 VDC ±10% | | Current Consumption | 160 mA (all LED lights illuminated) | | Sensitivity | 18 dBm (@ THD 2%) | | Squelch | Sensitivity: 0 to 40 dBm (adjustable) | | Selectivity | ±150 kHz (AF Out ratio -60 dB) | | Total Harmonic Distortion (THD) | 1% max (@ AF 1 kHz, RF 46 dBu) | | Signal to Noise Ratio | 90 dB (with IHF-A filter) | | Residual Noise | 90 dBv (with IHF-A filter) | | AF Frequency Response | 50 Hz to 15 kHz (±3 dB overall) | | Audio Output Level | Unbalanced: 0 dBv
Balanced (slide switch selectable): -20 dBm (line), -40 dBm (mic) | | Audio Output Impedance | Unbalanced: 5 kOhms
Balanced: 600 Ohms | | | | Operating Power | 1.5 V typical, 1.05 V minimum, 2 V maximum | | Current Consumption | 60 mA typical | | Battery Life | 14 hours (AAA size battery) | | RF Output Power | 5 mW (-4 dB minimum, +3 dB maximum) | | Frequency Stability | -40 kHz minimum, 40 kHz maximum | | Spurious | 1 µW | | Modulation | 13 kHz minimum, 15 kHz typical, 17 kHz maximum, input 1 kHz-20 dBv | | Input Impedance | Microphone: 2 kOhms | | Total Harmonic Distortion (THD) | <2% (1 kHz deviation 15 kHz) | | Audio Frequency Response | 50 Hz to 15 kHz (±3.5 dB) | | Controls | Power switch, mute switch volume | | Input | 2.5mm Stereo Jack | | Indicators | Power on (LED flash), low battery (LED on) | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 11.8 x 10.8 x 3.7" |
