User Manual for Samson AirLine 88 Headset UHF Wireless System Click to enlarge the picture
Contents of the user manual for the Samson AirLine 88 Headset UHF Wireless
- Product category: Wireless Systems Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Wireless Systems
 |
User manual for the Samson AirLine 88 Headset UHF Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

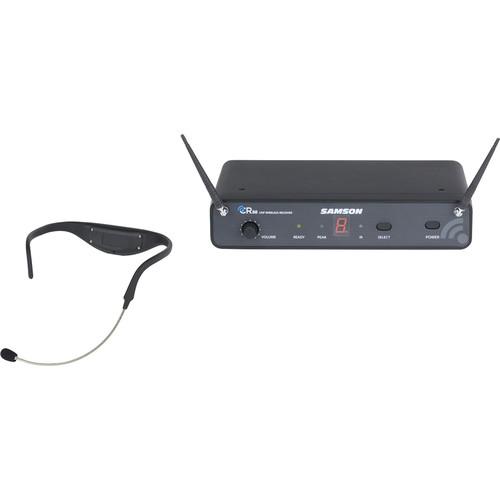

Product description The channel D AirLine 88 Headset UHF Wireless System from Samson offers true wireless freedom without the hassle of a beltpack or a cable. It features a lightweight, water-resistant micro-transmitter headset with a secure yet comfortable fit. It can be used in applications for fitness and aerobics instruction, auctioneers, singers and dancers, education, in houses of worship, and more. The frequency-agile UHF wireless system provides high-definition sound featuring 16 operating channels across a 24 MHz bandwidth, and it has a 300' operating range (line of sight). The receiver is built with XLR and 1/4" output connectors and has an LED display to indicate the operating channel. In addition, a rackmount kit, a USB battery charger/cable, an AC adapter, and four mic windscreens are also included. - The Wireless Future

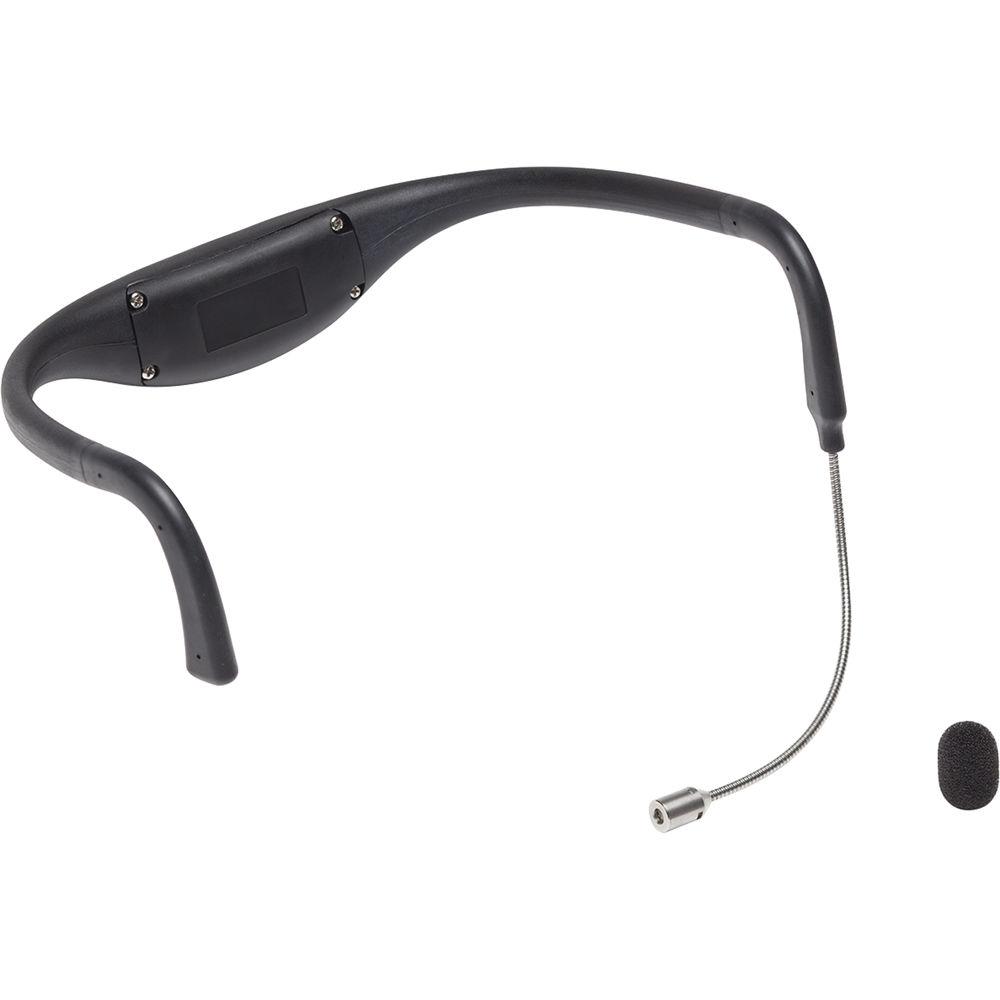

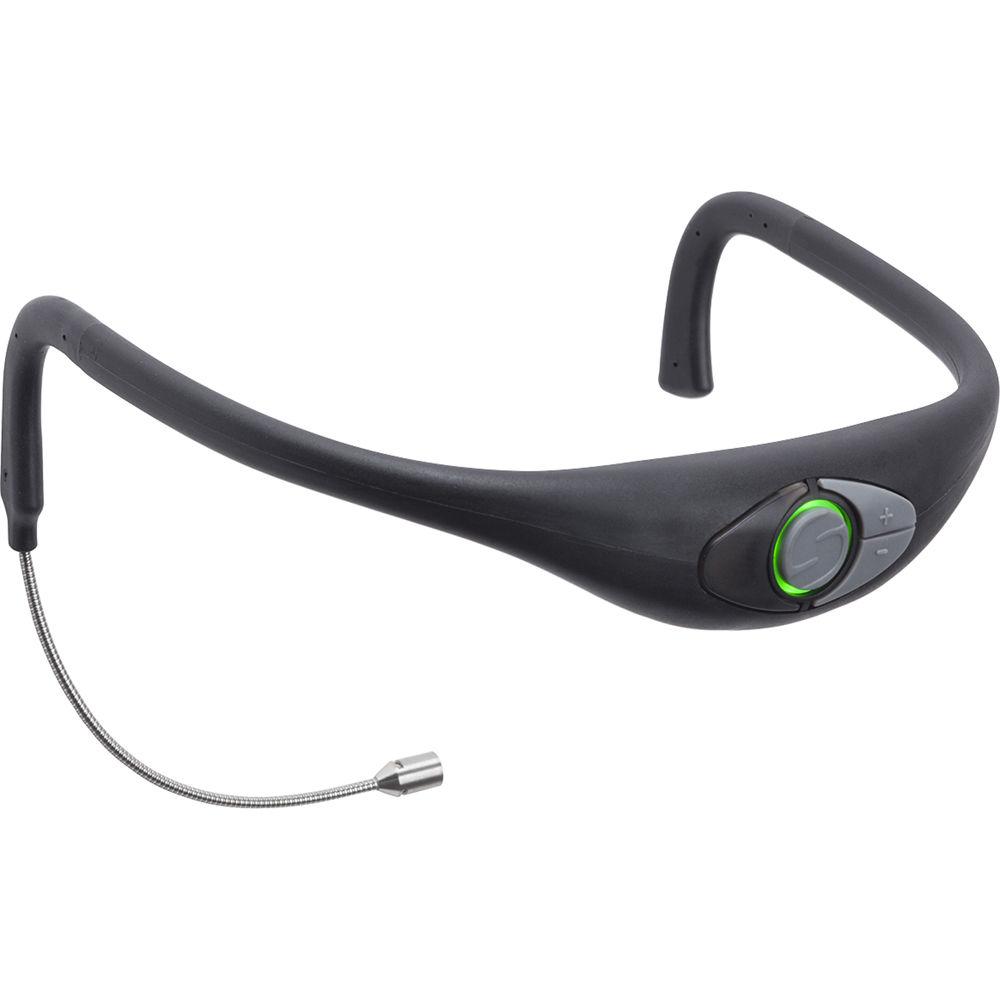

- Building on their previous cable-free wireless system (Samson's AirLine 77), the AirLine 88 Headset combines a micro transmitter and an adjustable gooseneck into a low-profile headset that molds to the shape of your head
- Fitness in Mind
- Designed with Yoga, Pilates, Zumba, and cycling instructors in mind, the system's headset features water-resistant components including a marine-grade stainless steel gooseneck, a sealed circuit board, and an AE50X micro-miniature microphone capsule. The capsule's cardioid pickup pattern prevents feedback and other unwanted noise from affecting a performance
- Tour Support
- Offering frequency-agile operation, the system's CR88 wireless receiver provides 16 selectable channels for reliable performance. The receiver's True Diversity design minimizes dropouts, while tone-key technology prevents unwanted noise when your transmitter is off or out of range. For classes with more than one instructor or facilities with multiple studios, up to eight systems per frequency band can be used simultaneously
- CR88 Wireless Receiver
- IR sync wirelessly matches receiver and transmitter frequency
1/4-wave antennas
Half-rack receiver design
LED display indicates operating channel
Balanced XLR, unbalanced 1/4" outputs - AH8 Headset Transmitter

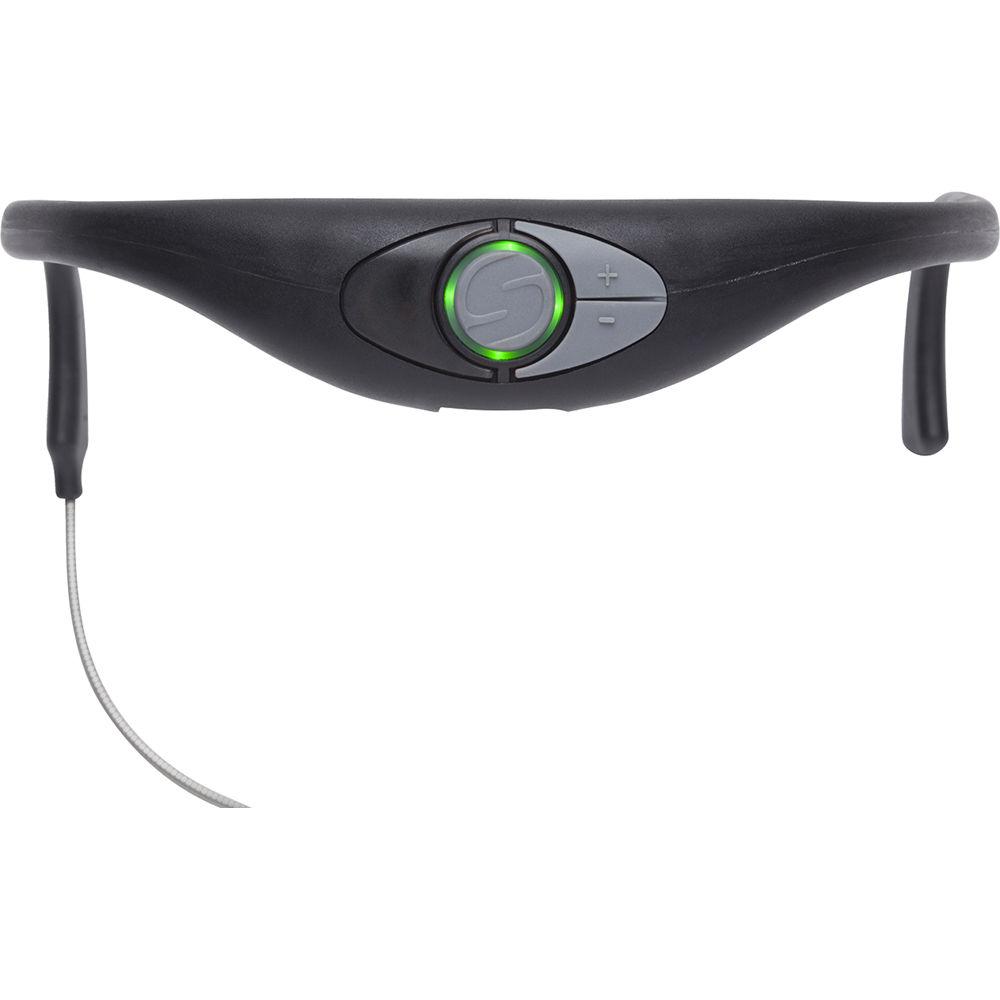

- Headset with built-in micro transmitter (no beltpack or cable required)
Offers up to eight hours of battery life using built-in rechargeable lithium-ion battery
Sealed gold contact charging connector for included USB-style charger
Low-battery LED indicator
300' operating range (line-of-sight)
Variable Gain control

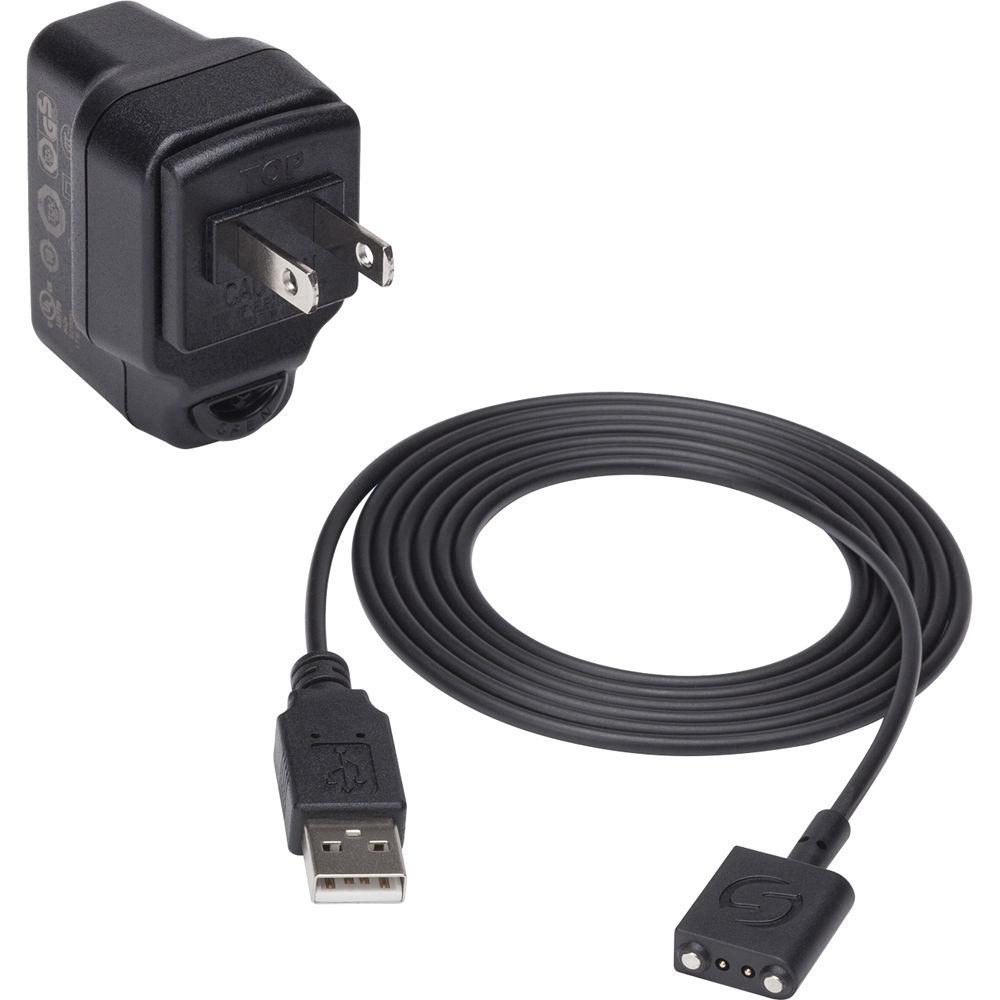

1-touch Mute UPC: 809164218050 In the Box Samson AirLine 88 Headset UHF Wireless System (Channel D, 542-566 MHz) Rackmount Kit USB Battery Charger/Cable AC Adapter 4 x Microphone Windscreens Limited 2-Year Warranty Limited 1-Year Warranty for Transmitter Limited 90-Day Warranty for Rechargeable Batteries Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson AirLine 88 Headset UHF Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SWC88AH8-D Specs | | | Channel | D, 542-566 MHz | | Working Range | 300' (100 m) line-of-sight | | Dynamic Range | > 100 dBA | | Signal to Noise | > 90 dB | | | | Audio Output Level | Balanced +9 dBu, unbalanced +14 dBu | | Audio Output Impedance | Balanced 240 Ohms, unbalanced 810 Ohms | | Output Connectors | Balanced 3-pin XLR
Unbalanced 1/4" (6.3 mm) | | | | Microphone Element | AE50X micro-miniature condenser | | Pickup Pattern | Cardioid | | RF Power | 10 mW EIRP | | Battery Life | 8 hours from lithium-ion battery | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 12.5 x 9.0 x 3.8" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
