User Manual for Samson AirLine 88 UHF Wireless System for Guitar Click to enlarge the picture
Contents of the user manual for the Samson AirLine 88 UHF Wireless System
- Product category: Guitar Wireless Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Guitar Wireless
 |
User manual for the Samson AirLine 88 UHF Wireless System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

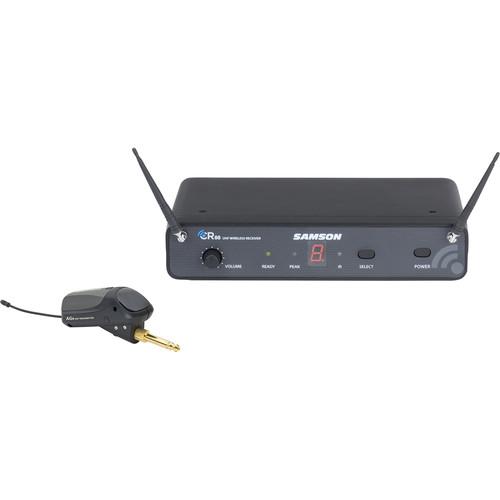

Product description Operating within the K band, Samson's AirLine 88 gives you a frequency-agile, rack-mountable wireless receiver with 16 channels, as well as the AG8 Guitar Transmitter, which cuts out the need for a separate beltpack or cable by plugging directly into the 1/4" jack on your instrument. The transmitter is designed with a dual-position connector which can fit all manners of guitar jacks. The transmitter is also suitable for electric basses, violins, and even accordions. This frequency-agile UHF wireless system provides an operating range of 300', tone key technology to prevent unwanted noise when you do stray out of range, IR sync for wireless matching, a mute switch, a battery life LED indicator, and more. Functionality - Transmitter Functionality
- Designed to be an extension of your instrument rather than a separate component, the AG8 Guitar Transmitter plugs directly into its 1/4" jack; it provides IR sync to wirelessly match the receiver and transmitter frequency, an audio Mute switch, a battery life LED indicator, and up to 12 hours of operation on a single AA battery
- Receiver Functionality
- Sporting frequency-agile operation, the system's rack-mountable CR88 Wireless Receiver provides 16 selectable channels; the receiver's True Diversity design minimizes dropouts, while tone key technology prevents unwanted noise when your transmitter is off or out of range
- Suitable Instruments
-
- Electric guitars
- Acoustic-electric guitars
- Bass guitars
- Electric violins
- Accordions
Components - Overall System
-
- Frequency-agile UHF wireless system
- 16 operating channels across 24 MHz bandwidth
- Up to eight simultaneous systems per frequency band (region dependent)
- Rackmount kit included

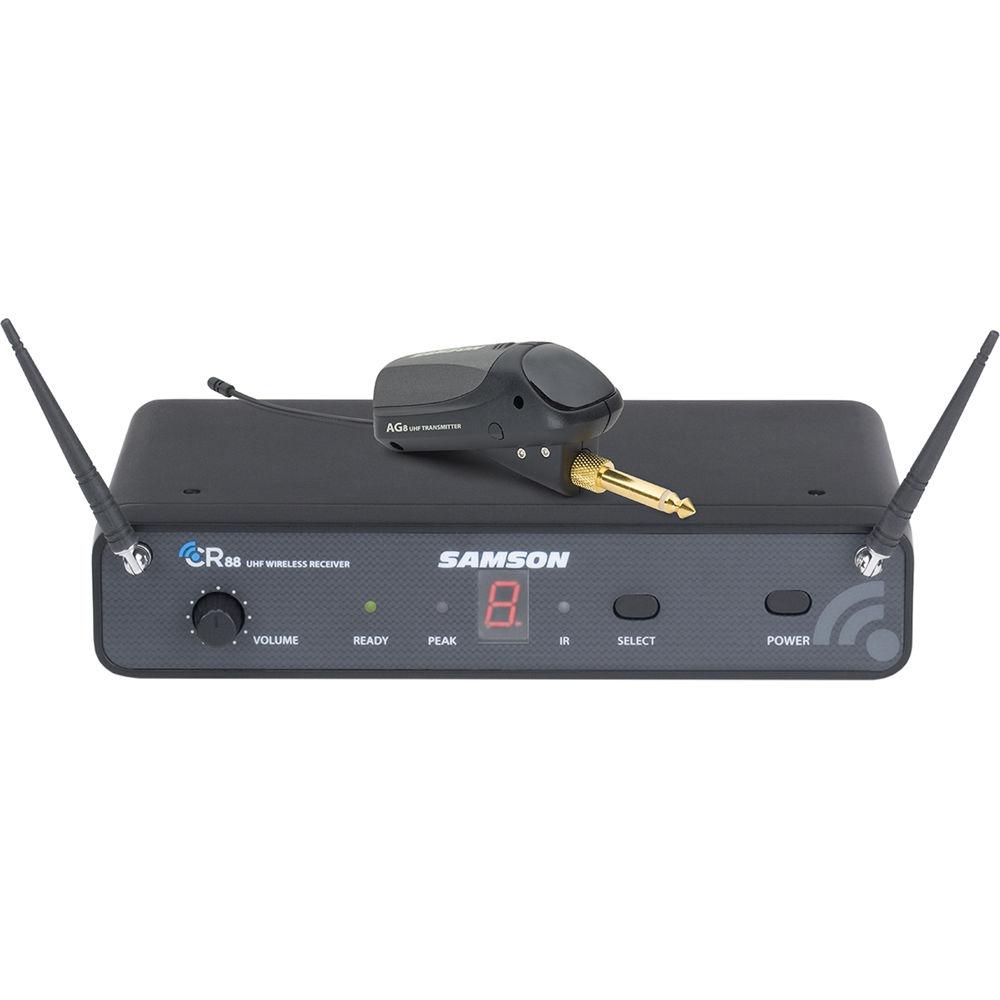

- CR88 Wireless Receiver
-
- IR sync wirelessly matches receiver and transmitter frequency
- True Diversity design minimizes dropouts
- Tone key prevents unwanted noise when transmitter is off or out of range
- 1/4-wave antennas
- Half-rack receiver design
- LED display indicates operating channel
- Balanced XLR outputs, unbalanced 1/4" outputs

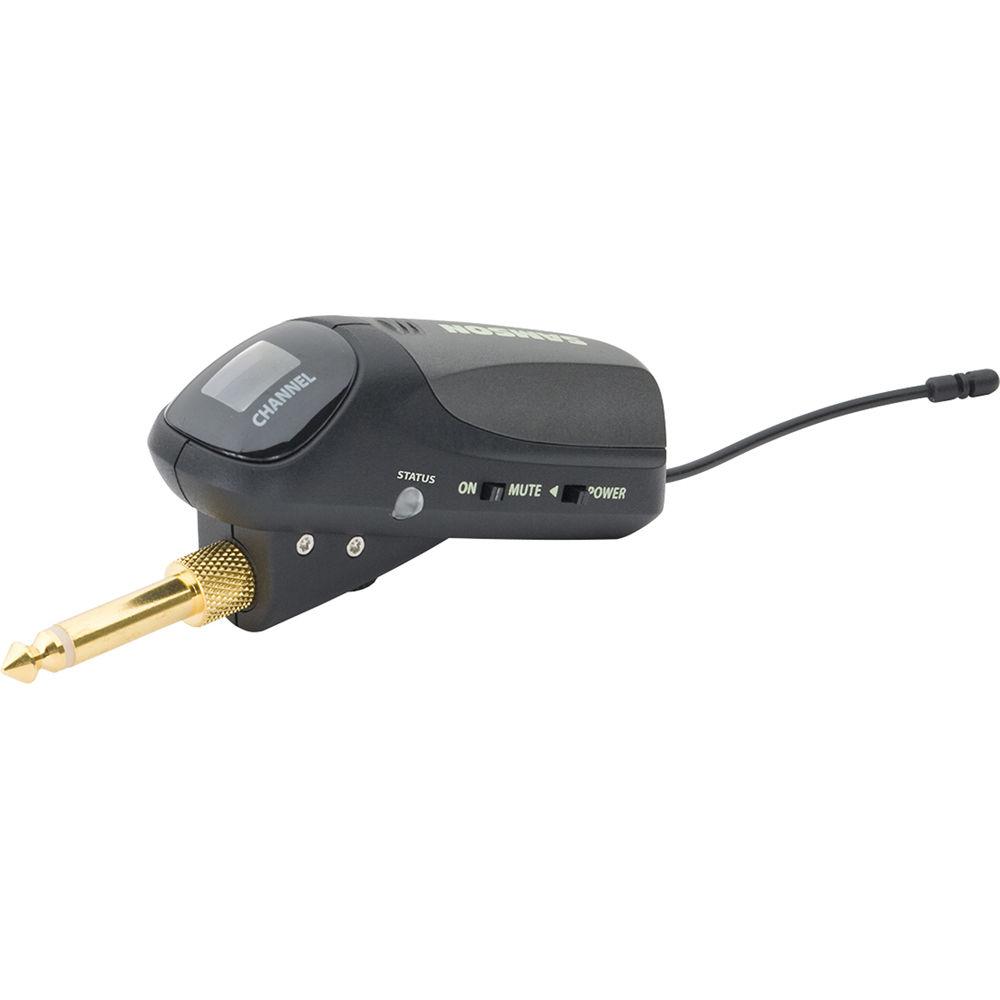

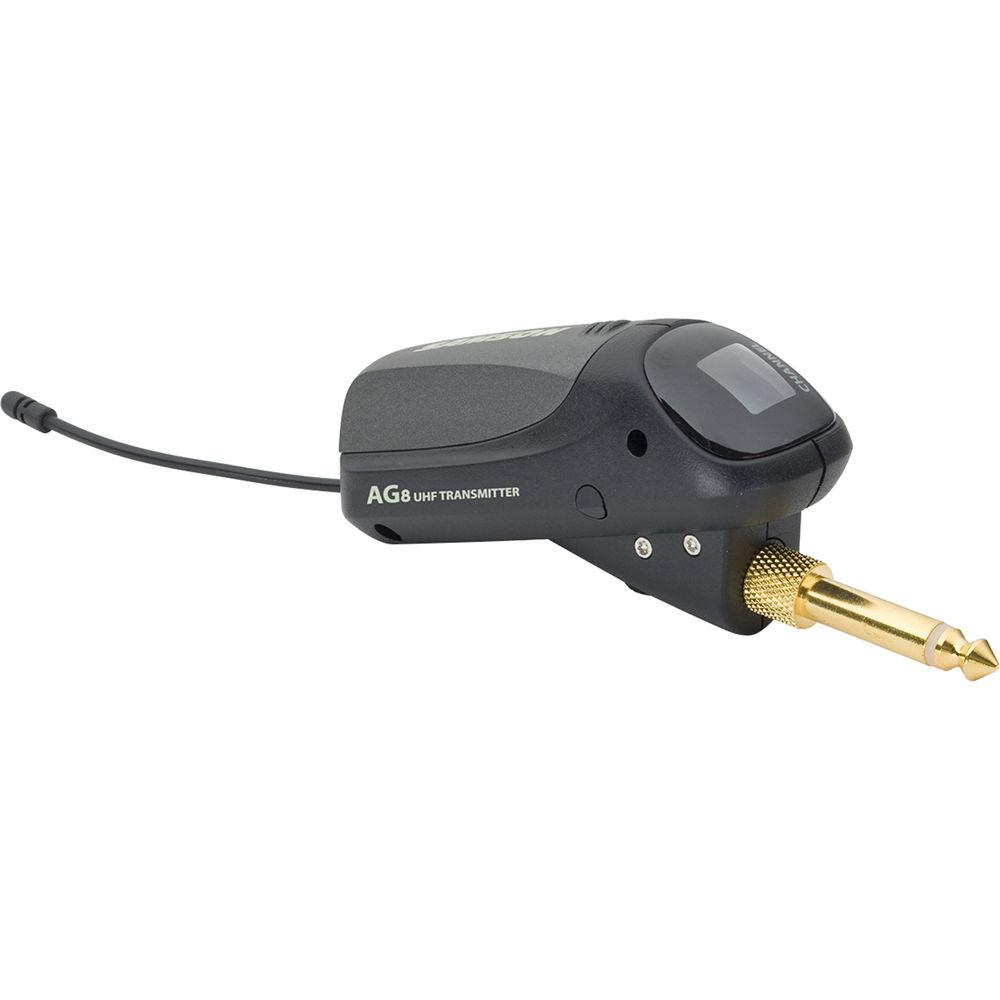

- AG8 Guitar Transmitter
-
- Plugs directly into guitar jack (no beltpack or cable required)

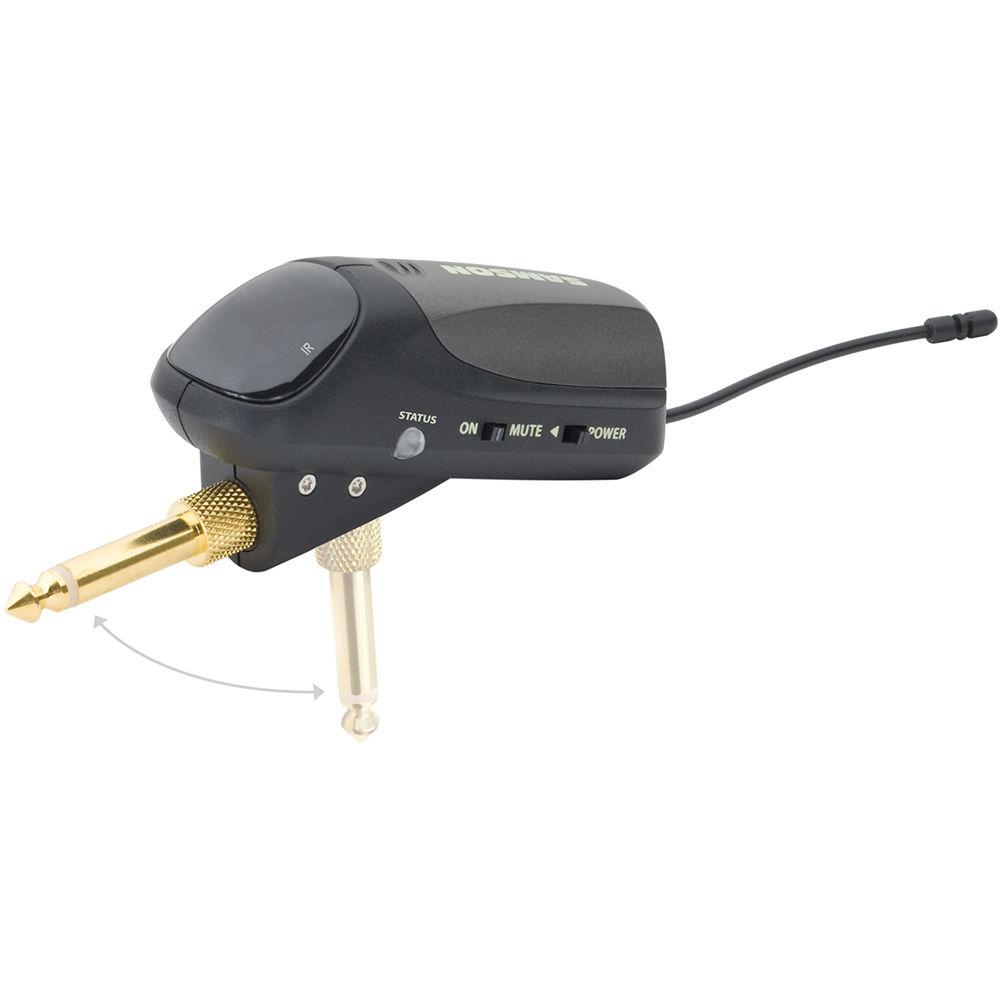

- Dual-position connector fits a variety of guitar jacks
- Offers up to 12 hours of battery life using single AA battery
- Low battery LED indicator
- 300' operating range (line-of-sight)
- Variable Gain control
- Mute switch
UPC: 809164218104 In the Box Samson AirLine 88 UHF Wireless System for Guitar (K Band) CR88 Wireless Receiver AG8 Guitar Transmitter Rackmount Kit AC Adapter Limited 2-Year Warranty for Receiver Limited 1-Year Warranty for Transmitter Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson AirLine 88 UHF Wireless System for Guitar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson AirLine 88 Specs | | | Working Range | 300' / 100 m, line-of-sight | | Dynamic Range | > 100 dB, A-weighted | | Signal to Noise | > 90 dB | | | | Audio Output Level | Balanced: +9 dBu
Unbalanced: +14 dBu | | Audio Output Impedance | Balanced: 240 Ohms
Unbalanced: 810 Ohms | | | | Input Impedance | 1 MOhm | | RF Power | 10 mW EIRP | | Battery | Single AA | | Battery Life (approx.) | 12 hours | | Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 12.5 x 9.0 x 3.75" |
