User Manual for Samson AirLine 99m AH9 Wireless UHF Headset System Click to enlarge the picture
Contents of the user manual for the Samson AirLine 99m AH9 Wireless UHF
- Product category: Wireless Systems Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Wireless Systems
 |
User manual for the Samson AirLine 99m AH9 Wireless UHF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

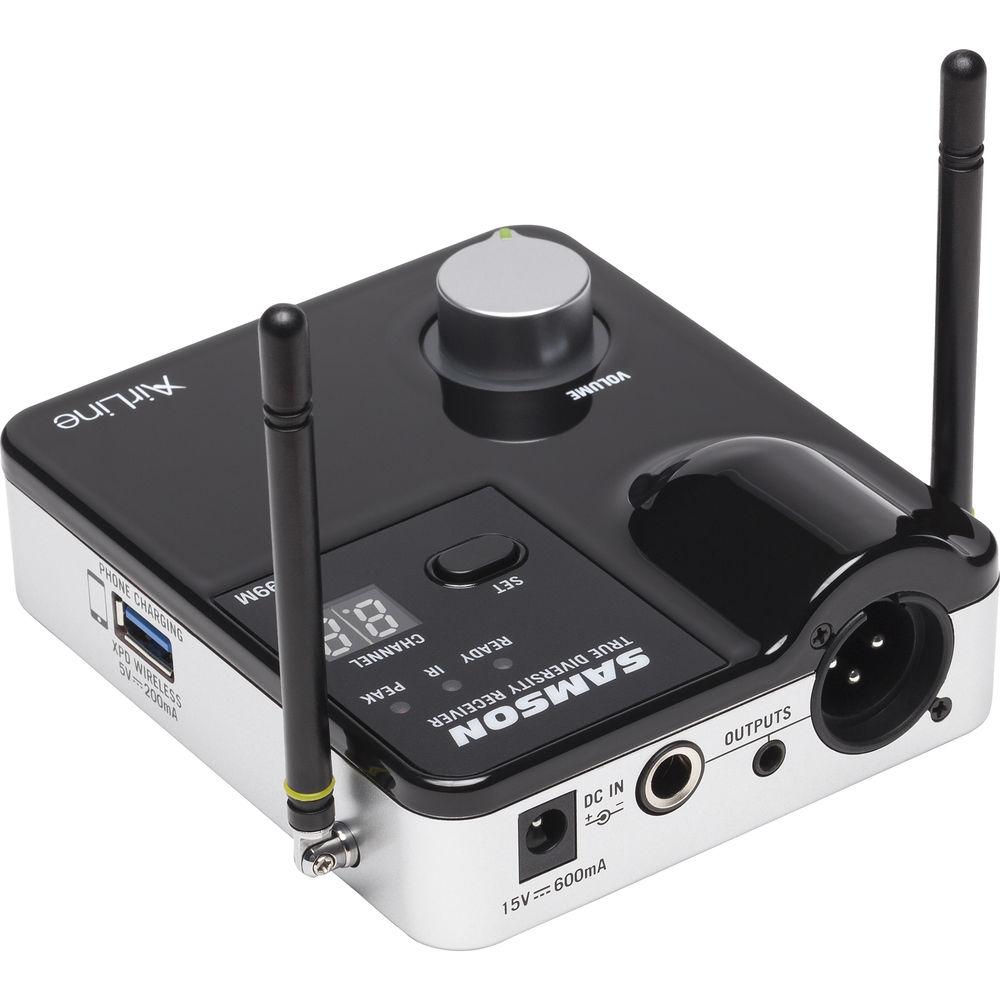

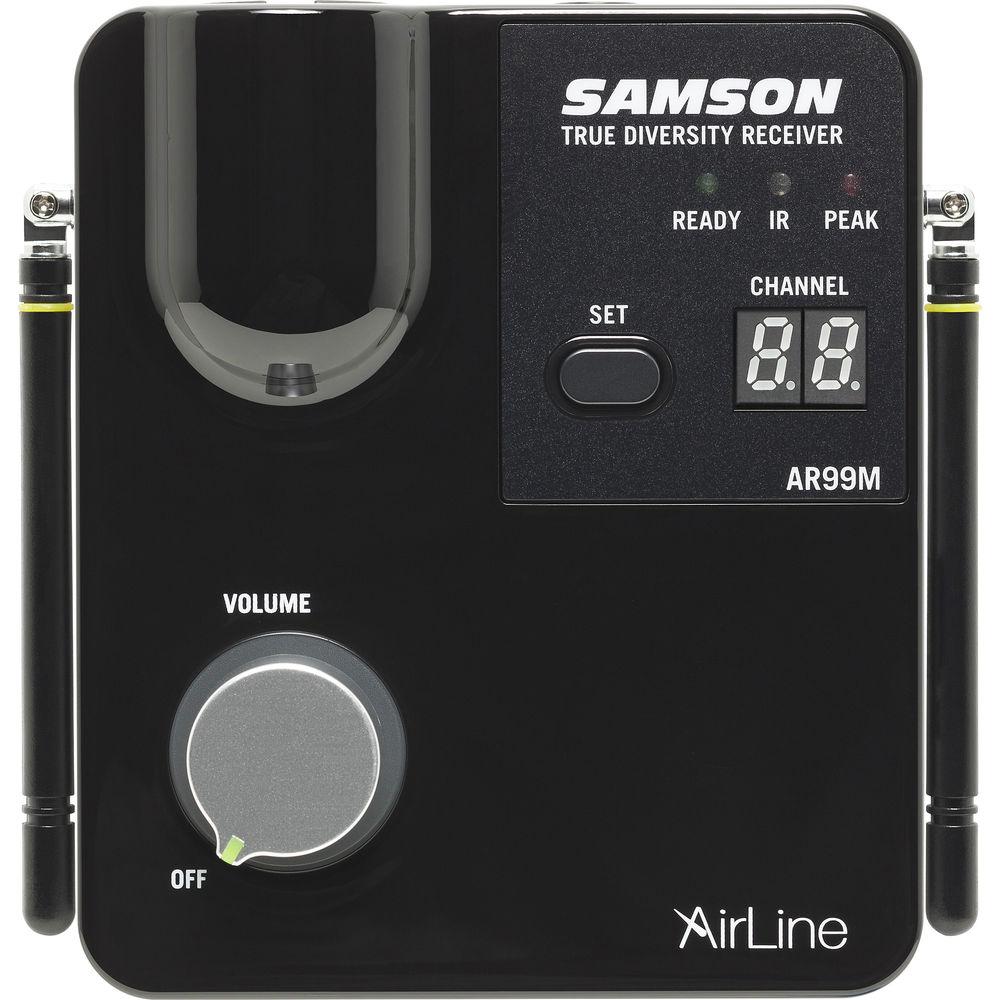

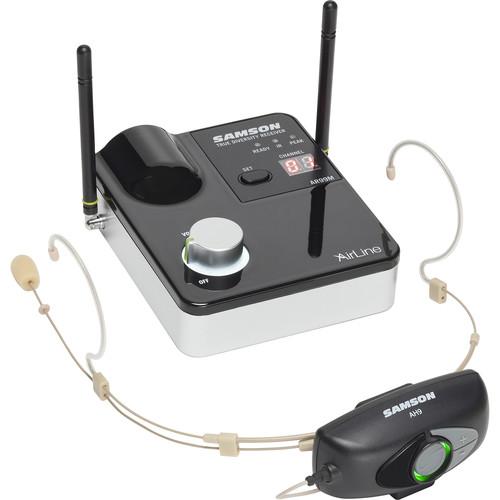

Product description Operating in the 470 to 494 MHz frequency band, the Samson AirLine 99m AH9 Wireless UHF Headset System features an AR99m UHF micro receiver and an AH9 micro transmitter attached to a DE10x dual-ear headset condenser microphone. The frequency-agile UHF system can be used to capture audio in various environments, and offers up to 300' of reliable performance for presenters, singers, and other active performer applications.The transmitter is powered by a built-in rechargeable battery and mounted on the DE10x omnidirectional headset microphone, which delivers clear audio reproduction and a low-profile appearance.The AR99m provides 100 selectable channels across 24 MHz, and is equipped with a true RF diversity design that minimizes dropouts. Built with tone key technology, the receiver prevents unwanted noise when your transmitter is off or out of range. Its XLR, 3.5mm, and 1/4" outputs ensure compatible connectivity with a variety of mixers and PA systems. Also, a side-panel USB Type-A port allows for convenient charging of the transmitter or a mobile device, or the addition of a Samson XPD wireless system (available separately). - AR99m Wireless Micro Receiver
-
- True RF diversity design minimizes dropouts
- Set button scans/selects optimal channel options
- IR sync wirelessly matches receiver and transmitter frequency
- Tone key prevents unwanted noise when transmitter is off or out of range
- Dual 1/4-wave antennas
- LED indication of channel, ready, and peak status

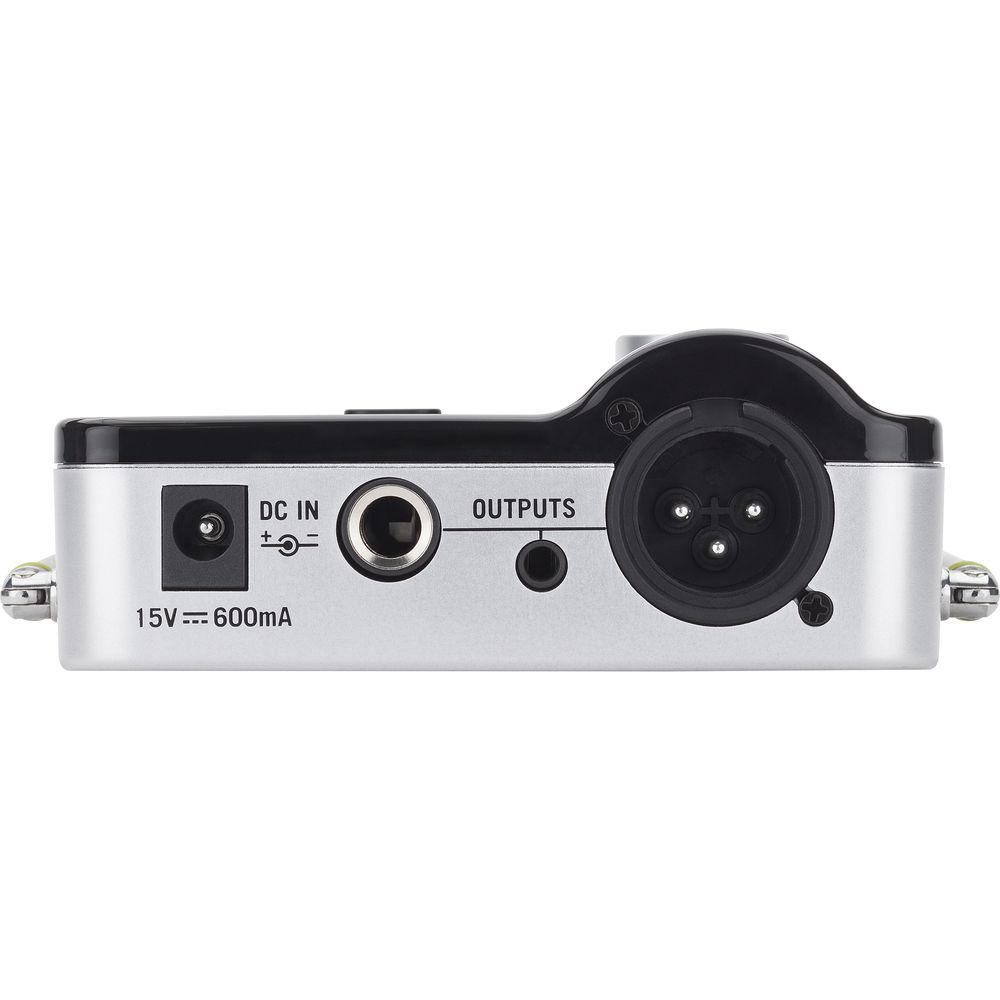

- Balanced 3-pin XLR output
- Unbalanced 1/4" and 3.5mm outputs

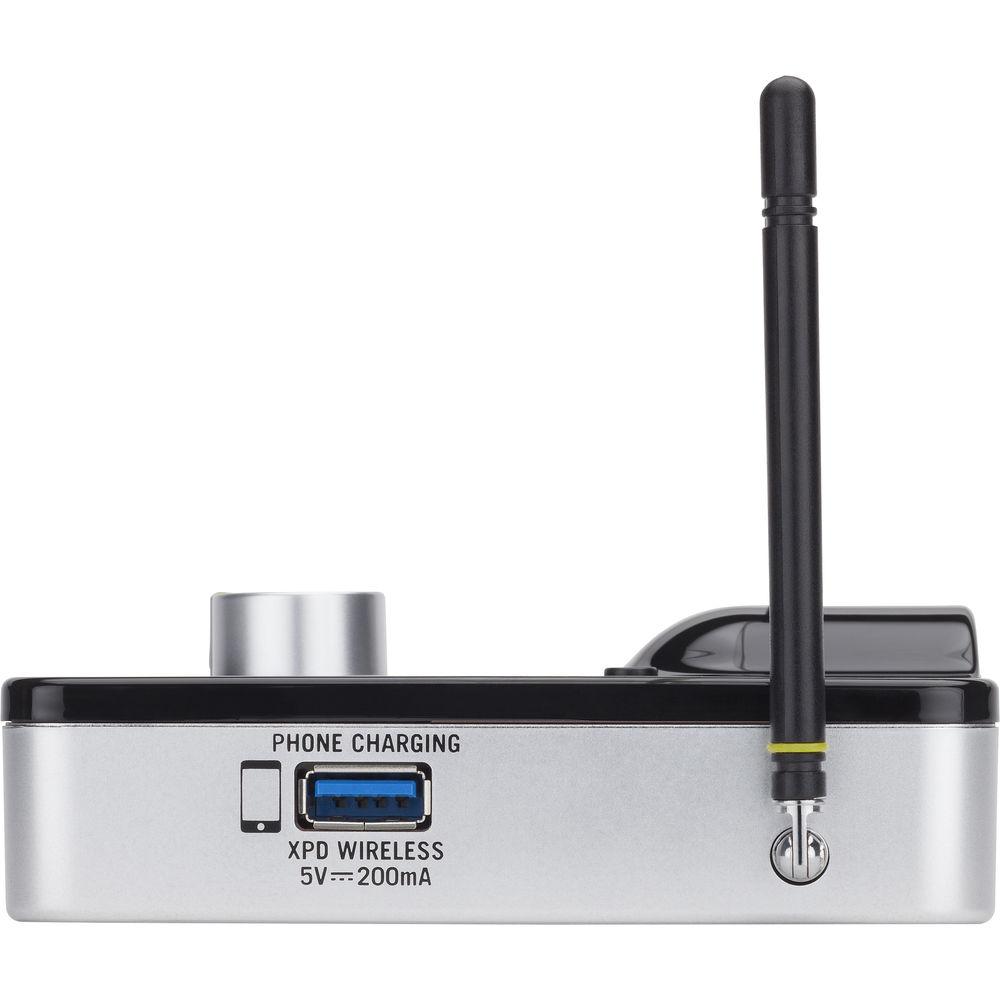

- USB Type-A port for charging the AH9 transmitter or a mobile device, or adding a Samson XPD wireless system
- Rotary volume knob with integral power switch
- Includes power adapter

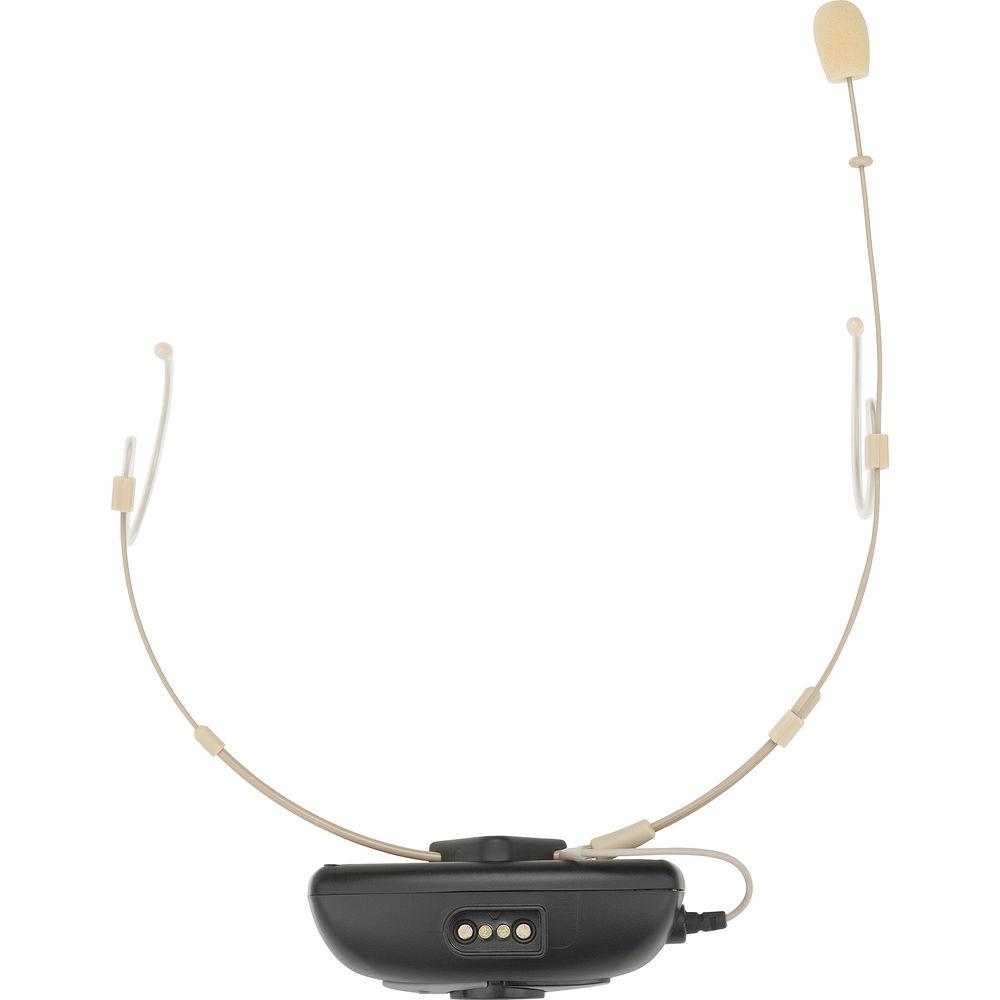

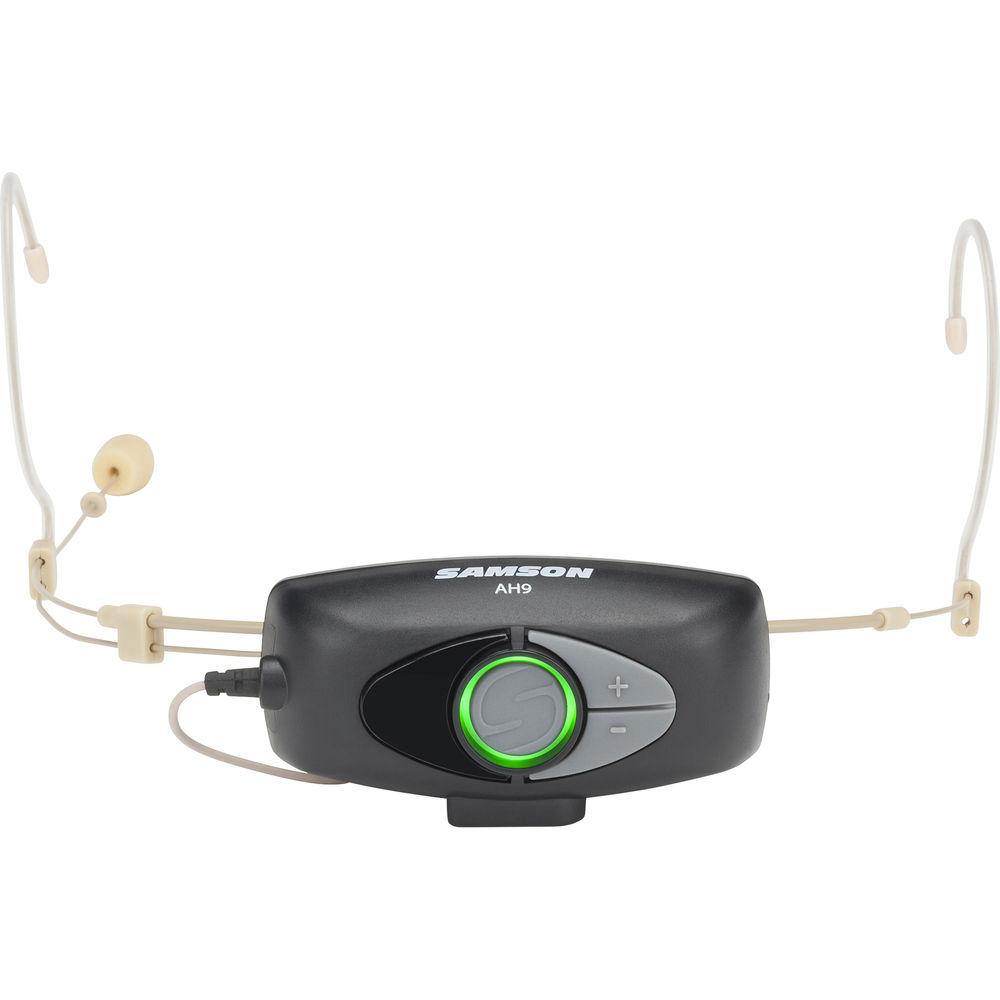

- AH9 Wireless Micro Transmitter
-
- Micro transmitter mounted directly to a dual-ear headset
- No beltpack or cable required
- Water- and sweat-resistant DE10x headset microphone with miniature condenser capsule
- Built-in rechargeable lithium-ion battery
- Battery life up to eight hours
- Sealed gold contact charging connector for included USB charger
- Low-battery LED indicator
- 300' operating range (line of sight)
- Variable gain control
- One-touch mute
- Includes four windscreens

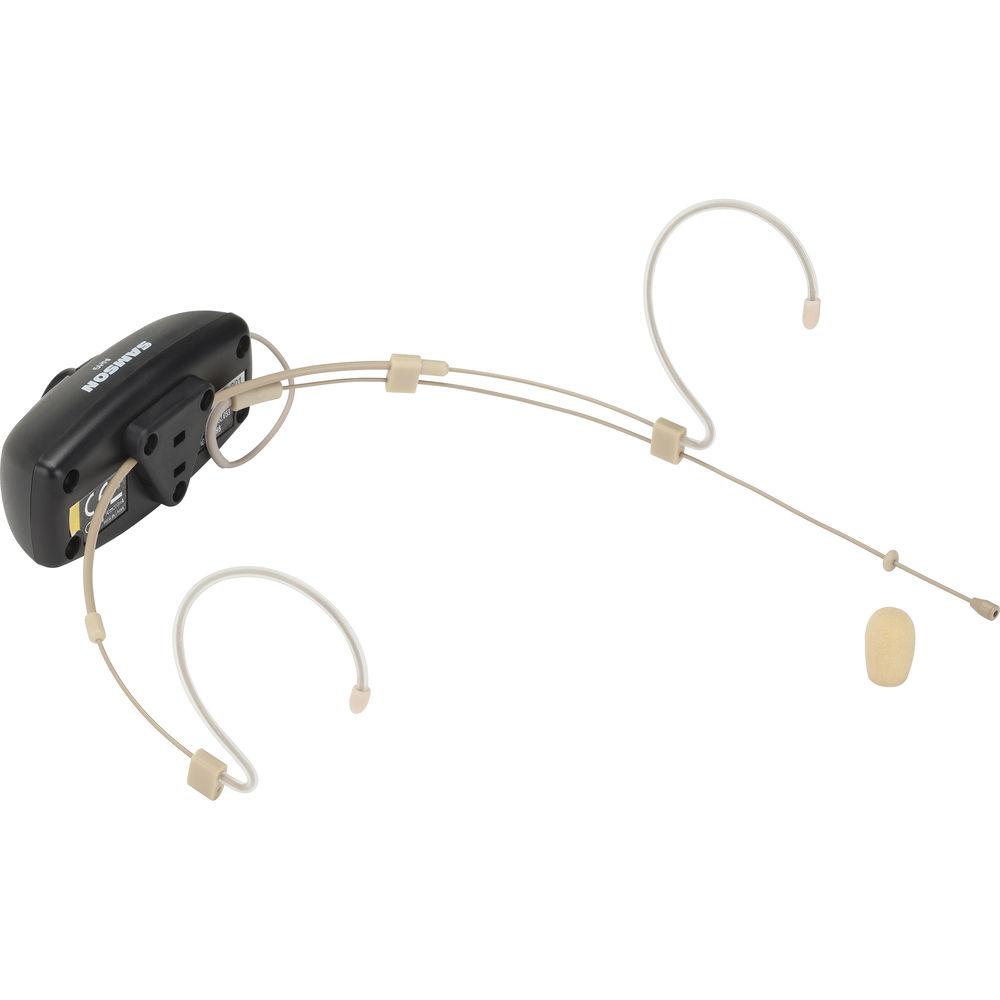

- DE10x Headset Microphone
-
- 3mm miniature condenser element
- Adjustable frame and mic boom
- Moisture-resistant coating
- Stainless steel mesh grille
- IP65 rating for resistance to dust, water, and sweat
- Omnidirectional polar pattern captures sound evenly in all directions with no proximity effect of off-axis coloration
- Dual-ear wearing style
- Windscreen reduces popping and wind noise
UPC: 809164221760 In the Box Samson AirLine 99m AH9 Wireless UHF Headset System (K: 470 to 494 MHz) 4 x Windscreens AC Adapter USB Charger Limited 2-Year Warranty on Main Components Limited 90-Day Warranty on Rechargeable Battery Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson AirLine 99m AH9 Wireless UHF Headset System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson 99M 99 Specs | | | Wireless Transmission | Digital UHF | | Number of RF Channels | 100 | | Included Transmitters | 1 x Headworn with Microphone | | Diversity | True Diversity | | RF Frequency Band | K: 470 to 494 MHz | | Max Operating Range | 300' / 91.4 m (Line of Sight) | | Max Systems per Setup | 8 | | Dynamic Range | >100 dBA | | Encryption | None | | Pilot Tone | 35 kHz | | | | Form Factor | Table-Top | | Mounting Options | Tabletop | | Antenna | 2 x 1/4 Wave External, Fixed (Side-Mount) | | Number of Audio Channels | 1 | | Audio I/O | 1 x XLR 3-Pin Male Balanced Output
1 x 1/4" TS Female Unbalanced Output
1 x 1/8" / 3.5 mm TS Female Unbalanced Output | | Audio Output Level | XLR Output:
+9 dBu (Balanced)
1/4" Output:
+14 dBu (Unbalanced) | | Phantom Power Protection | Not Specified by Manufacturer | | Frequency Response | 50 Hz to 15 kHz | | USB Port | 1 x USB Type-A (Charging, Host Connection) | | Impedance | XLR Output:
240 Ohms (Balanced)
1/4" Output:
810 Ohms (Unbalanced) | | Approximate RF Sensitivity | -100 dBm | | Adjacent Channel Isolation | >50 dB | | Power Requirements | AC/DC Power Adapter | | AC/DC Power Adapter | 15 VDC at 600 mA, Center-Positive (Included) | | Display & Indicators | 1 x Multi-Segment LED (Channel)
1 x LED (Sync)
1 x LED (Peak) | | Operating Temperature | 14 to 140°F / -10 to 60°C | | Dimensions | 3.7 x 1.5 x 4.3" / 9.5 x 3.9 x 11.0 cm (without Antennas) | | Weight | 6.8 oz / 192.0 g | | | | Form Factor | Headworn with Microphone | | RF Output Power | 10 mW (EIRP) | | Audio I/O | 1 x Proprietary Input Microphone Is Hardwired to Transmitter Input | | Pad | None | | Gain Range | Up to 20 dB | | Signal Processing | None | | Frequency Response | 50 Hz to 15 kHz | | Sync Method | IR | | Antenna | 1 x Internal | | Power Requirements | Battery | | Battery Type | 1 x Built-In Rechargeable (Included) | | Approx. Battery Life | 8 Hours | | USB Port | None | | Display & Indicators | 1 x LED (Battery Status, Mute, Recharging, Sync) | | Dimensions | 6.7 x 3.9 x 5.9" / 17.0 x 10.0 x 15.0 cm | | Weight | 2.1 oz / 60.0 g | | | | Form Factor | Headworn | | Sound Field | Mono | | Operating Principle | Pressure Operated | | Transducer | Electret Condenser | | Diaphragm | 0.12" / 3 mm | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Maximum SPL | 120 dB SPL | | Impedance | 2 kOhms ± 30% | | Sensitivity | -45 dBV/Pa at 1 kHz | | Operating Voltage | 1.5 to 12 V | | Weight | 0.24 oz / 6.8 g | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 18.6 x 10.1 x 8.4" |
