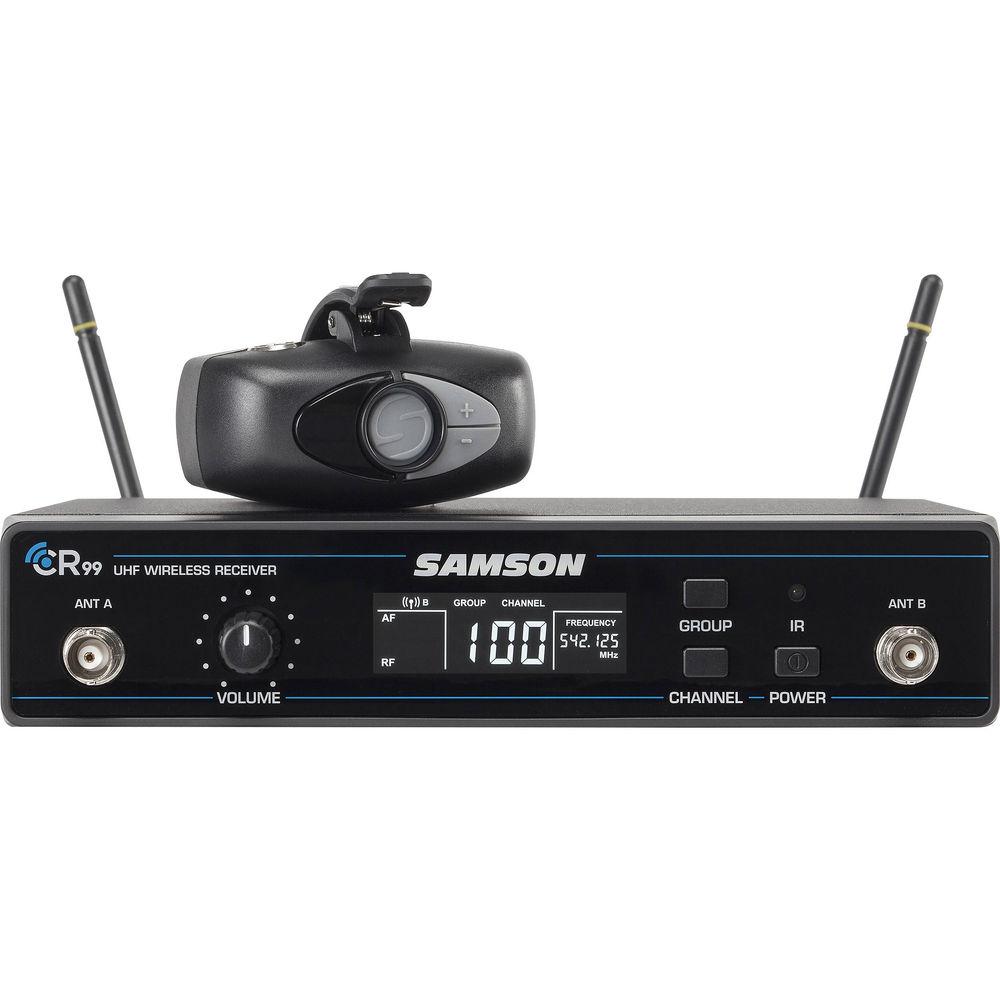

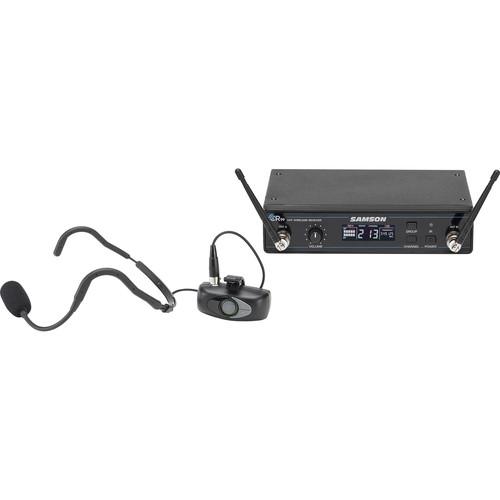

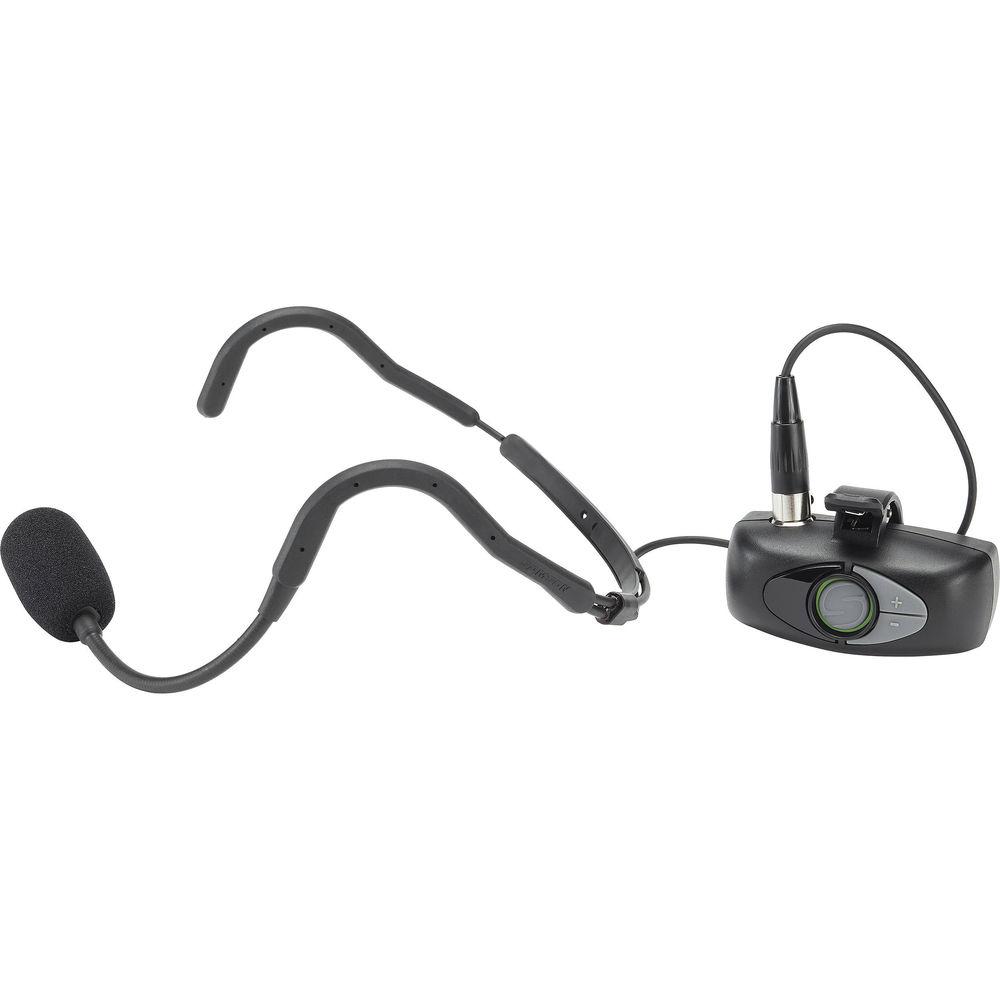

Product description Operating in the 470 to 494 MHz frequency band, the Samson AirLine AHX Wireless UHF Fitness Headset System features a CR99 UHF receiver, an ATX transmitter, and a Qe dual-ear fitness headset condenser microphone. The frequency-agile UHF system can be used to capture audio in various environments and offers up to 300' of reliable performance for singers and other active performer applications. The transmitter is small enough to fit in the palm of your hand, and is powered by the built-in rechargeable battery. It clips to your belt or shirt pocket, and connects to the TA3M mini-XLR jack on the Qe bidirectional headset microphone, which provides clear audio reproduction and sound rejection at the sides of the capsule. The system's rack-mountable CR99 receiver provides 80 selectable channels across 24 MHz, and is equipped with a true RF diversity design that minimizes dropouts. Built with tone key technology, the receiver prevents unwanted noise when your transmitter is off or out of range. Its XLR and 1/4" outputs ensure compatible connectivity with a variety of mixers and PA systems. - CR99 Wireless Receiver
-
- Rugged all-metal, rack-mountable chassis
- Backlit LCD displays RF, audio, and transmitter battery levels
- Group scan for easy single- or multi-system setup
- IR sync wirelessly matches receiver and transmitter frequency
- True RF Diversity design minimizes dropouts
- Tone key prevents unwanted noise when transmitter is off/out of range
- Removable 1/4-wave antennas
- Balanced XLR and unbalanced 1/4" outputs
- ATX Wireless Transmitter
-
- Clips directly to belt or waistband
- Built-in rechargeable lithium-ion battery
- Battery life up to eight hours

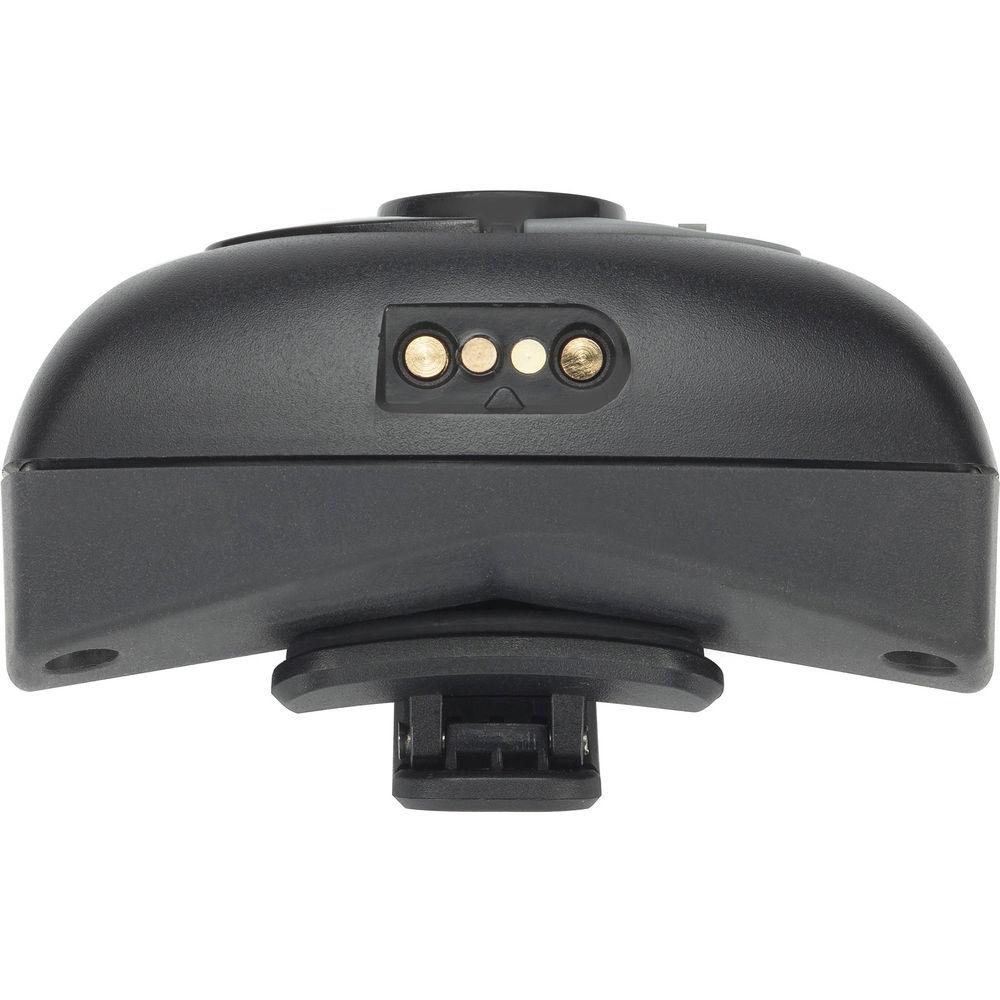

- Sealed gold contact charging connector for included USB charger
- Low-battery LED indicator
- 300' operating range (line of sight)
- Variable gain control
- One-touch mute

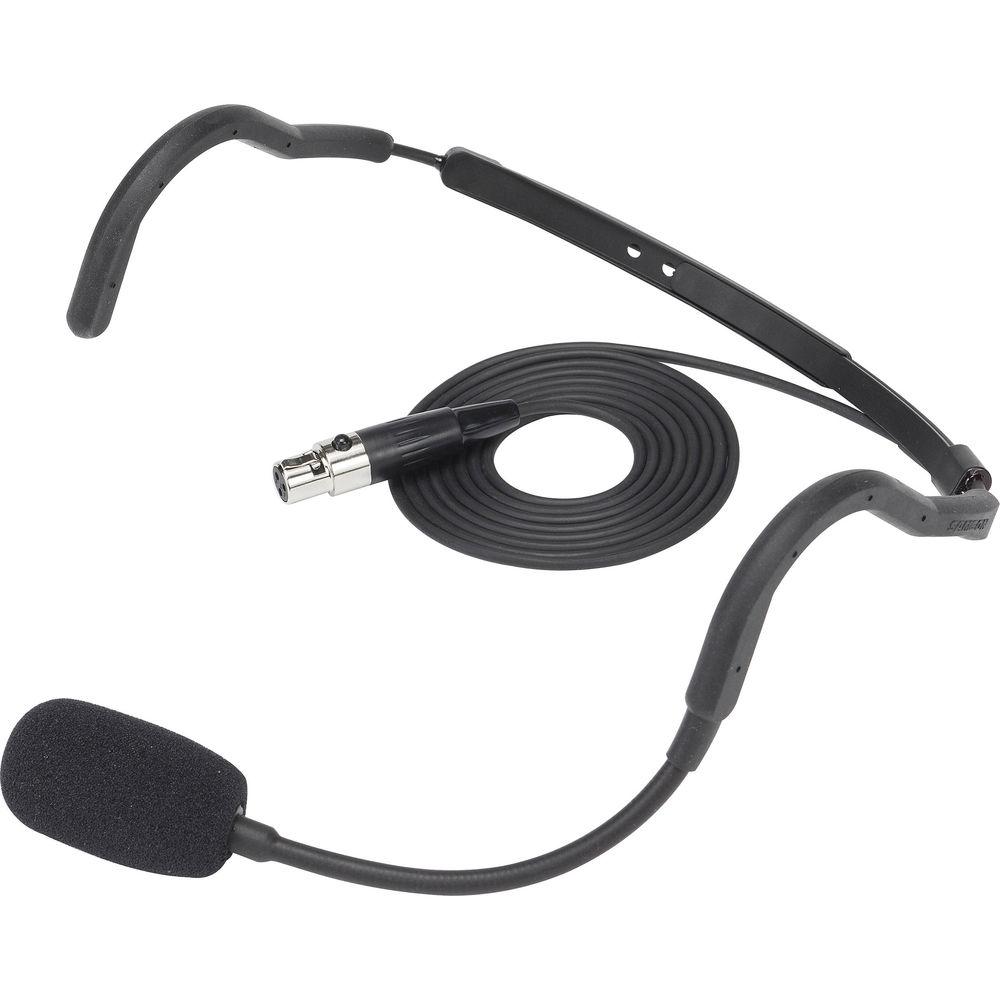

- Qe Fitness Headset Microphone
-
- Condenser element
- Water-resistant mic design for high-energy instructors/performers
- Bidirectional polar pattern rejects sound from the sides of the capsule
- Dual-ear wearing style
- Windscreen reduces popping and wind noise
In the Box Samson AirLine AHX Wireless UHF Fitness Headset System (K: 470 to 494 MHz) Windscreen Rackmount Kit AC Adapter USB Charger Limited 2-Year Warranty on Main Components Limited 90-Day Warranty on Rechargeable Battery Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson AirLine AHX Wireless UHF Fitness Headset System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson Airline AHX Specs | | | Wireless Transmission | Digital UHF | | Number of RF Channels | 80 | | Included Transmitters | 1 x Bodypack with Microphone | | Diversity | True Diversity | | RF Frequency Band | K: 470 to 494 MHz | | Max Operating Range | 300' / 91.4 m (Line of Sight) | | Max Systems per Setup | 8 | | Dynamic Range | >100 dBA | | Encryption | None | | Pilot Tone | 32.768 kHz | | | | Form Factor | Table-Top | | Mounting Options | Rackmount (with Included Hardware) | | Rackmount Size | 1 RU (1/2 Rack) | | Antenna | 2 x 1/4 Wave External, BNC (Front-Mount)
2 x 1/4 Wave External, BNC (Rear-Mount) | | Number of Audio Channels | 1 | | Audio I/O | 1 x XLR 3-Pin Male Balanced Output
1 x 1/4" TS Female Unbalanced Output | | Audio Output Level | XLR Output:
+9 dBu (Balanced)
1/4" Output:
+14 dBu (Unbalanced) | | Phantom Power Protection | Not Specified by Manufacturer | | Frequency Response | 50 Hz to 15 kHz | | Impedance | XLR Output:
240 Ohms (Balanced)
1/4" Output:
810 Ohms (Unbalanced) | | Approximate RF Sensitivity | -100 dBm | | Adjacent Channel Isolation | >50 dB | | Power Requirements | AC/DC Power Adapter | | AC/DC Power Adapter | 15 VDC at 200 mA (Included) | | Display & Indicators | 1 x Back-Lit LCD (AF Level, Battery Status, Channel, Frequency, Group, RF Level) | | Housing | Metal | | Dimensions | 7.9 x 1.6 x 5.9" / 20.1 x 4.1 x 15.0 cm | | Weight | 2.1 lb / 1.0 kg | | | | Form Factor | Bodypack with Microphone | | RF Output Power | 10 mW (EIRP) | | Audio I/O | 1 x TA3/Mini XLR 3-Pin Male Balanced Input | | Pad | None | | Gain Range | Up to 20 dB | | Signal Processing | None | | Frequency Response | 50 Hz to 15 kHz | | Sync Method | IR | | Antenna | 1 x Internal | | Power Requirements | Battery | | Battery Type | 1 x Built-In Rechargeable (Included) | | Approx. Battery Life | 8 Hours | | USB Port | None | | Display & Indicators | 1 x LED (Battery Status) | | Operating Temperature | 50 to 86°F / 10 to 30°C | | Dimensions | 6.7 x 3.9 x 5.9" / 17.0 x 9.9 x 15.0 cm | | Weight | 2.1 oz / 60.0 g | | | | Form Factor | Headworn | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Electret Condenser | | Polar Pattern | Figure-8 | | Maximum SPL | 145 dB SPL | | Sensitivity | 80 mV/Pa | | Output Connectors | 1 x TA3/Mini XLR 3-Pin Female Balanced | | Weight | 1.92 oz / 54.4 g |
