User Manual for Samson Airline ALX Wireless UHF Lavalier System Click to enlarge the picture
Contents of the user manual for the Samson Airline ALX Wireless UHF Lavalier
- Product category: Wireless Systems Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Wireless Systems
 |
User manual for the Samson Airline ALX Wireless UHF Lavalier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

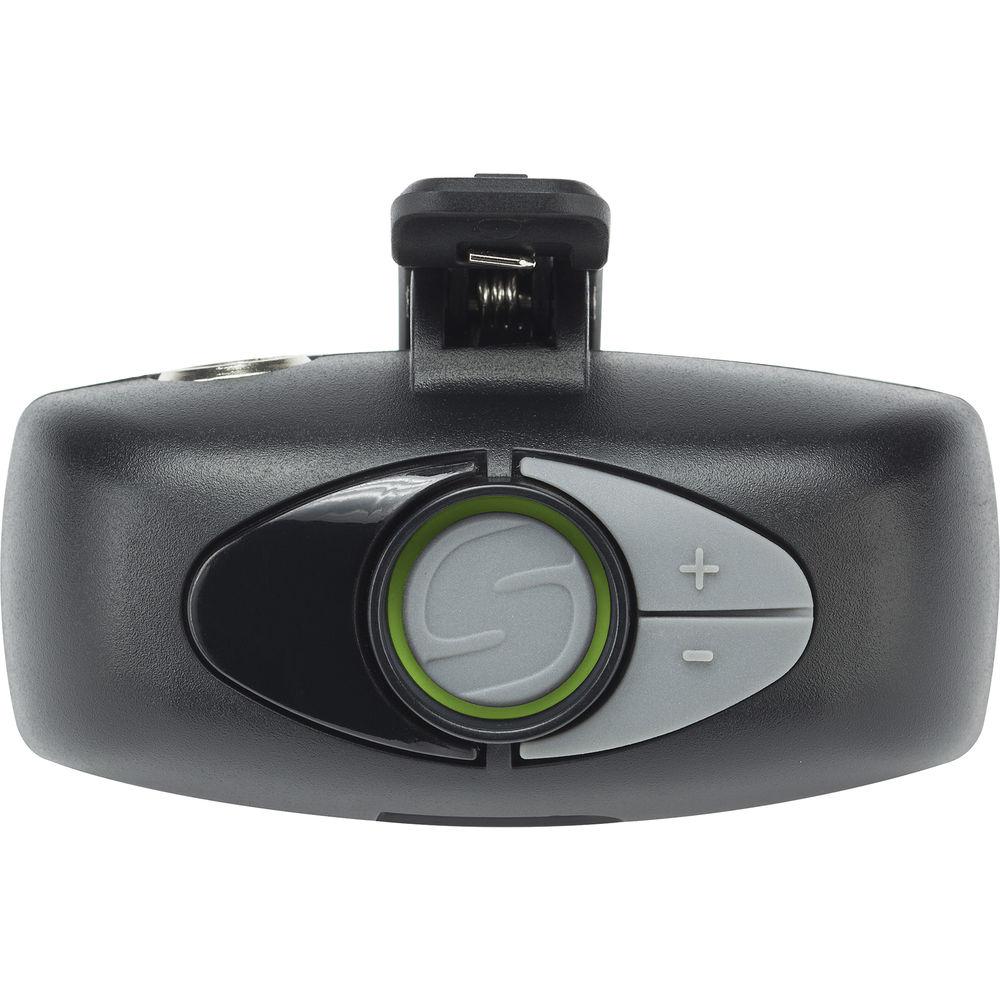

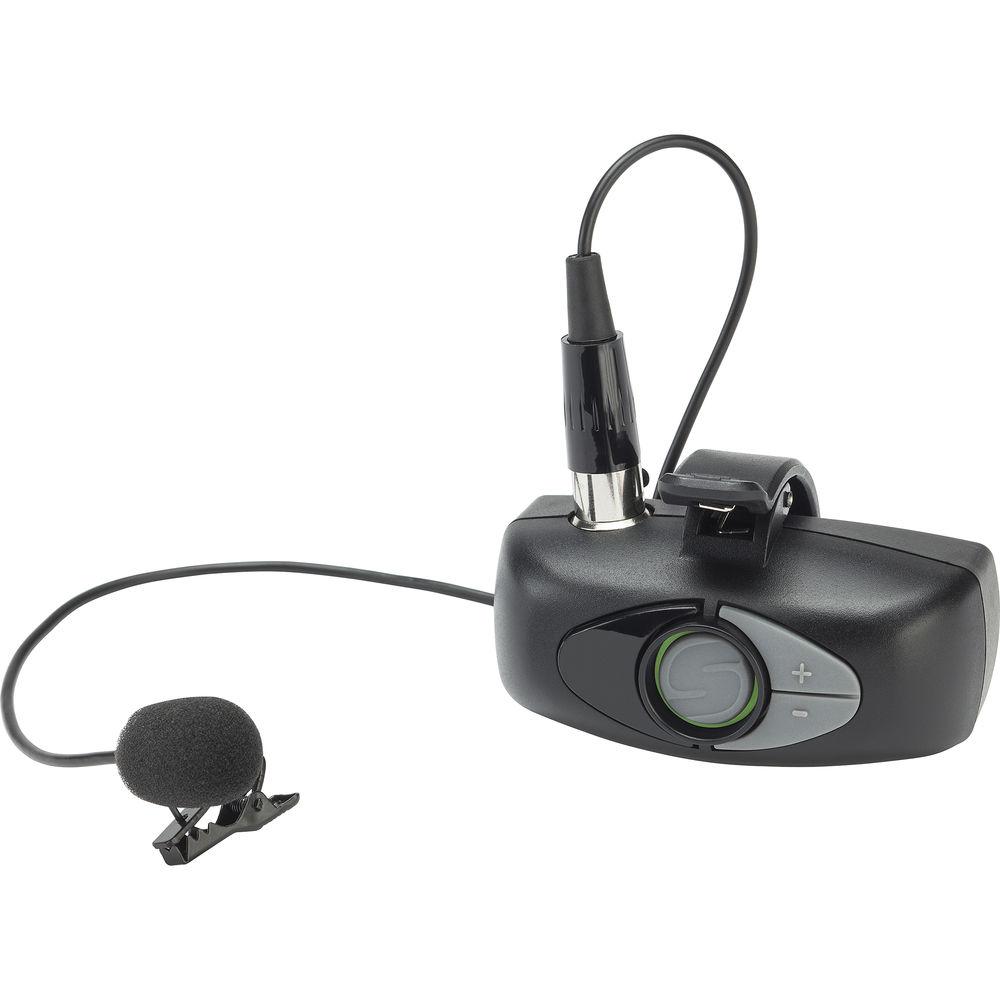

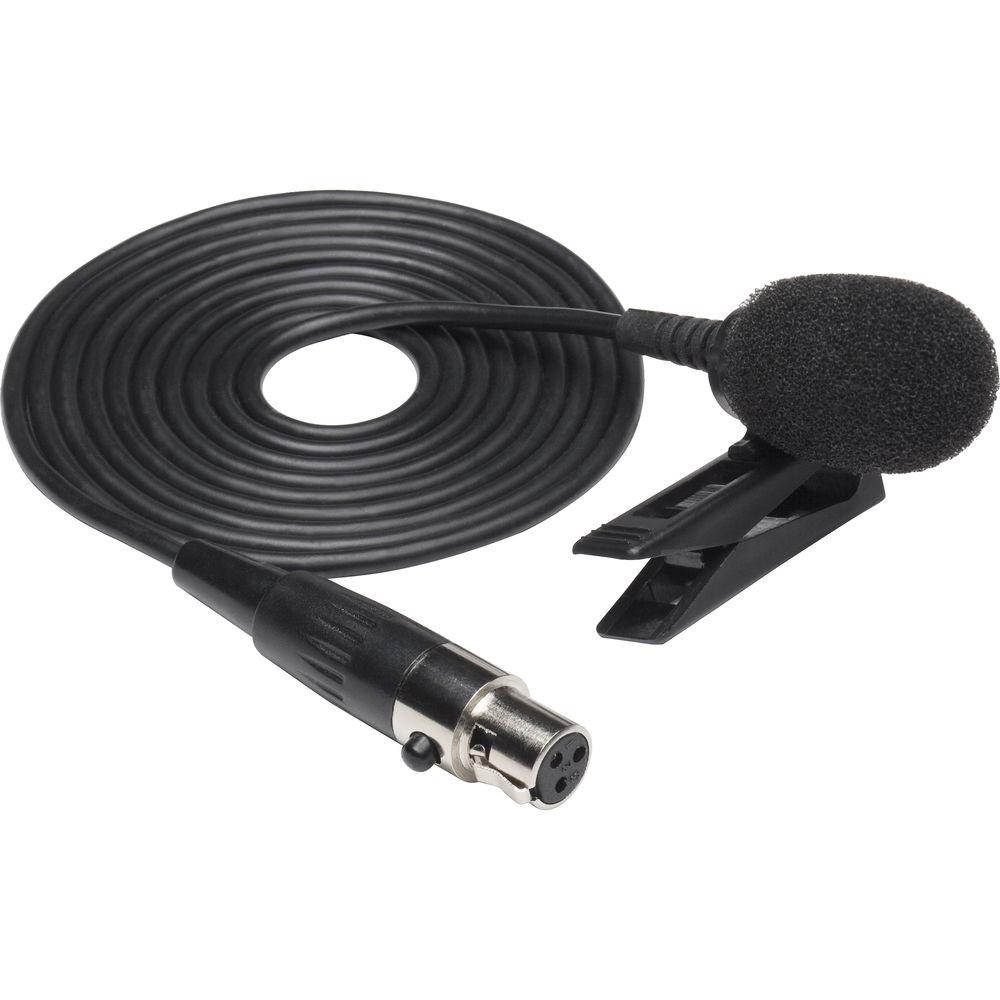

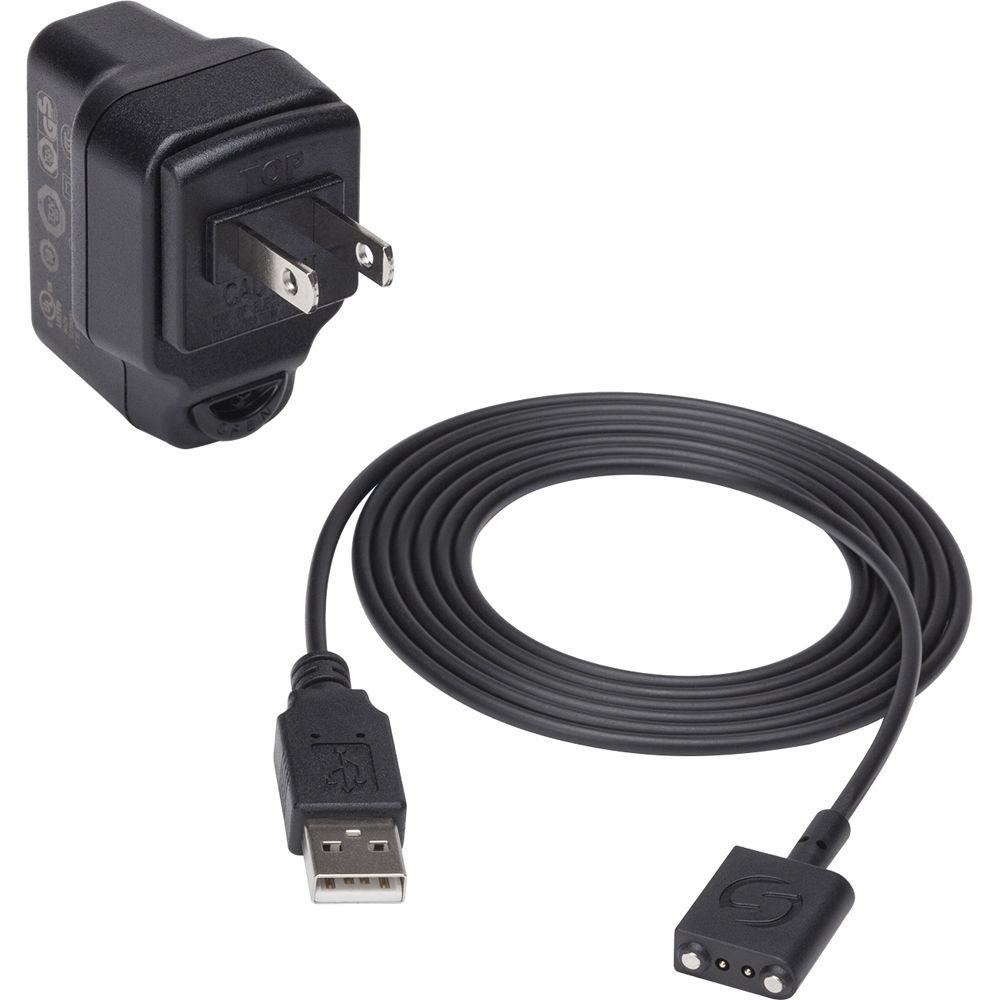

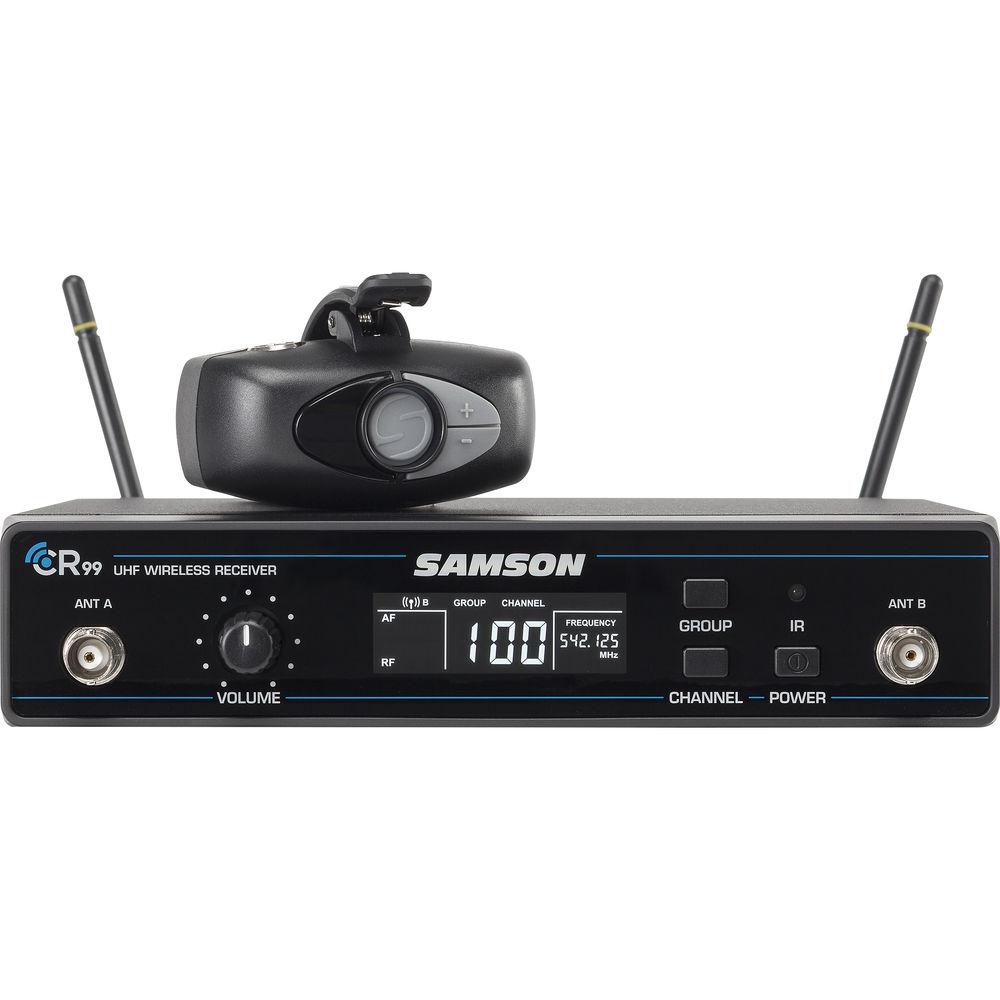

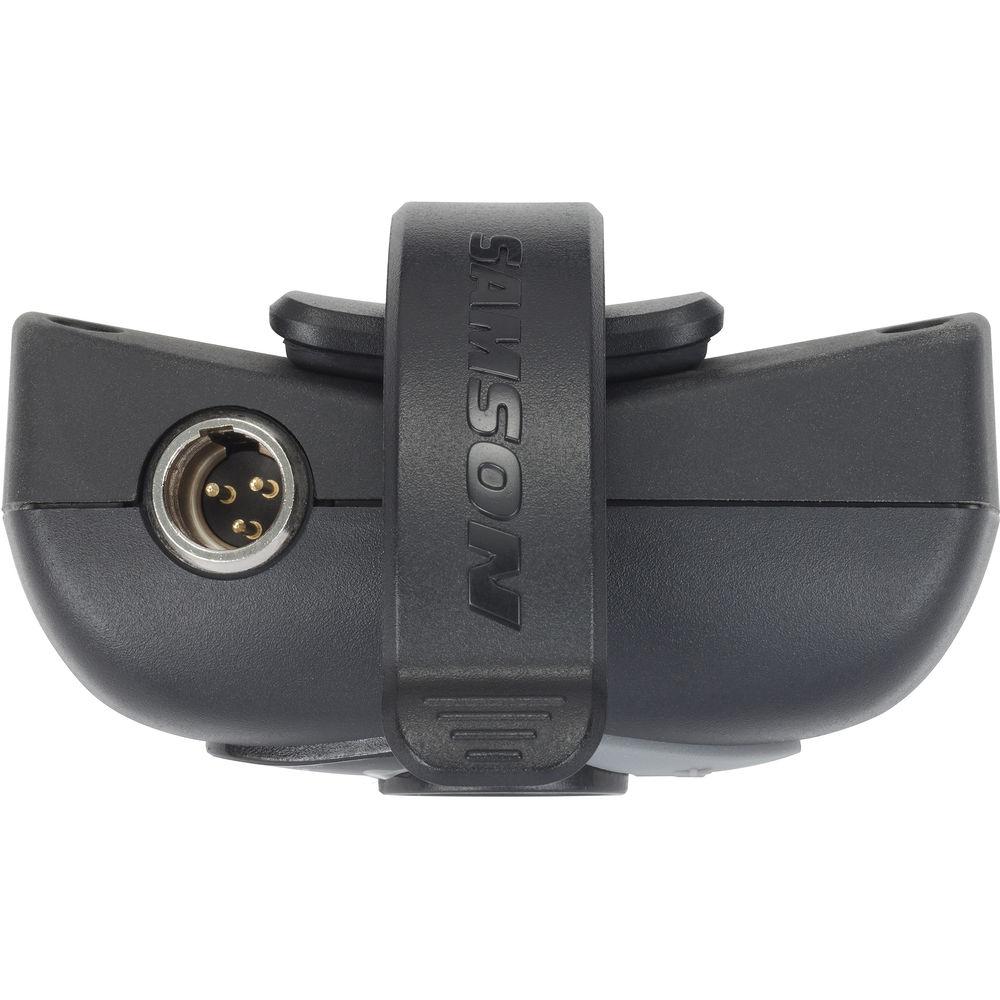

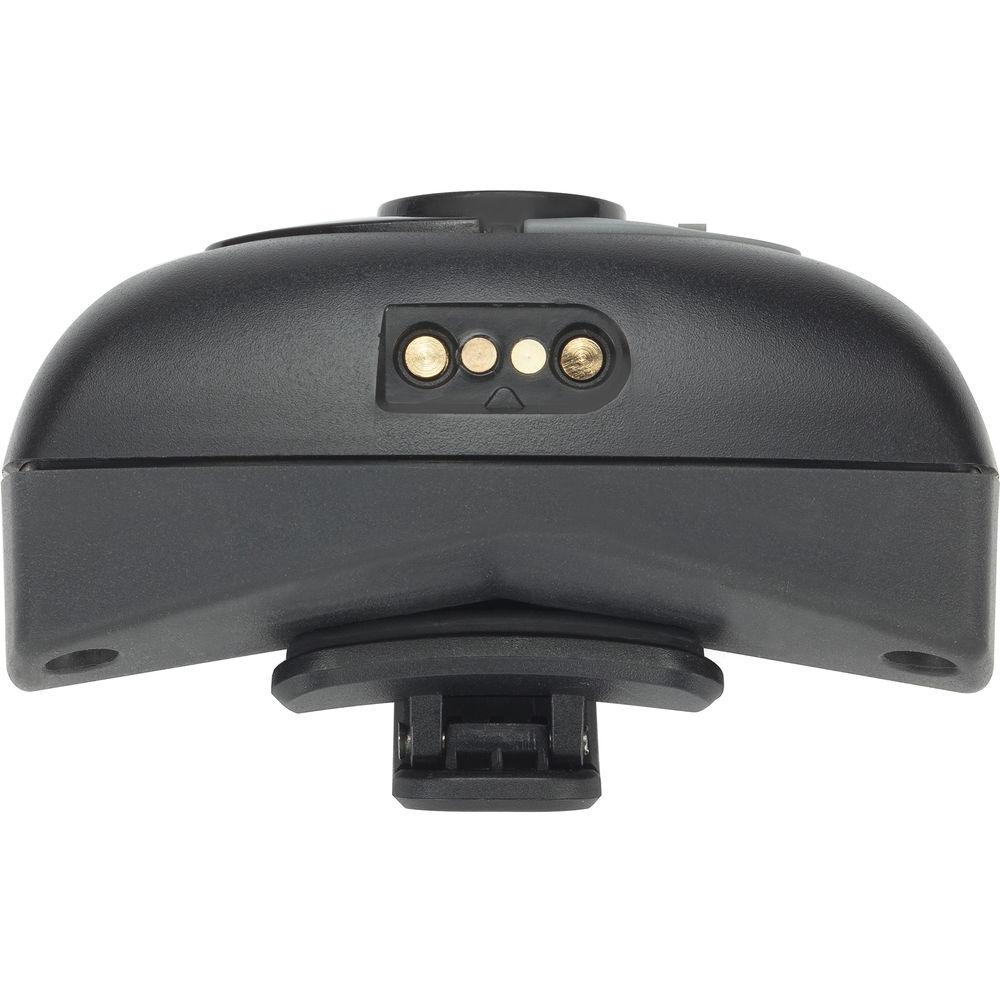

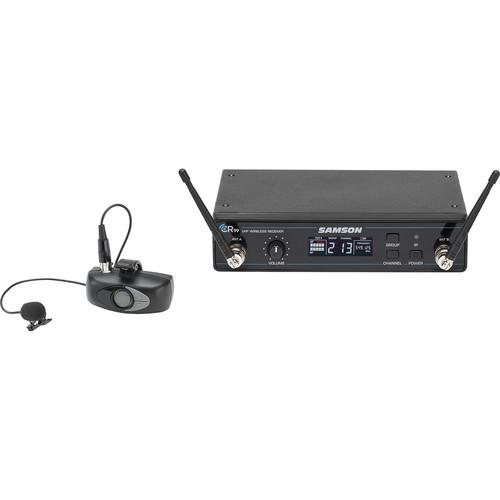

Product description The Airline ALX Wireless UHF Lavalier System from Samson features a CR99 UHF receiver with rackmount kit and AC adapter, an ATX transmitter, and an LM8 lavalier microphone. The frequency-agile UHF system can be used to capture audio in various environments and offers up to 300' of reliable performance for speech and other active presenter applications. The transmitter is small enough to fit in the palm of your hand and is built with a rechargeable battery. It clips to your belt and connects via a P3 mini-XLR connector to the low-profile LM8 omnidirectional lavalier microphone, which provides clear reproduction regardless of the position of the capsule relative to the sound source. The system's rack-mountable CR99 receiver provides 80 selectable channels of performance and is equipped with a true RF diversity design that minimizes dropouts. Built with tone key technology, the receiver prevents unwanted noise when your transmitter is off or out of range. UPC: 809164219552 In the Box Samson Airline ALX Wireless UHF Lavalier System (D: 542 to 566 MHz) CR99 UHF Receiver LM8 Lavalier Microphone ATX UHF Transmitter Windscreen Mic Clip Rackmount Kit AC Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson Airline ALX Wireless UHF Lavalier System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SWSATXLM8-D Specs | | | Model | LM8 lavalier | | Polar Pattern | Omnidirectional | | Connector | Mini-XLR (P3) | | | | Frequency Band | D: 542 to 566 MHz | | Working Range | 300' (100 m), line-of-sight | | Frequency Response | 50 Hz to 15 kHz | | Total Harmonic Distortion (THD) | <1% (@AF 1 kHz, RF 46 dBu) | | Dynamic Range | >100 dB, A-weighted | | Signal to Noise | >95 dB | | Operating Temperature | 14 to 140°F (-10 to 60°C) | | Tone Key | Frequency: 32.768 kHz | | | | Audio Output Level | Balanced: +9 dBu
Unbalanced: +14 dBu | | Audio Output Impedance | Balanced: 240 Ohms
Unbalanced: 810 Ohms | | Sensitivity | -100 dBm / 30 dB sinad | | Image Rejection | >50 dB | | Operating Voltage | 15 VDC 200 mA | | Dimensions (L x W x H) | 7.87 x 5.9 x 1.6" (200 x 150 x 42 mm) | | Weight | 2.08 lb (0.95 kg) | | | | Input Connector | Mini-XLR (P3) | | Input Impedance | 3 kOhms | | Gain Range | Input: 20 dB | | RF Power | 10 mW EIRP | | Power Requirements | 3.6 V 500 mAh | | Battery | Lithium Ion rechargeable battery | | Battery Life (approx.) | 6 hours | | Dimensions (L x W x H) | 5.9 x 6.7 x 3.9" (150 x 170 x 100 mm) | | Weight | 0.13 lb (60 g) | | | | Package Weight | 5.2 lb | | Box Dimensions (LxWxH) | 14.8 x 11.6 x 2.8" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
