Samson Airline ALX Wireless UHF Lavalier

Search your instruction manual in PDF to download

User Manual for Samson Airline ALX Wireless UHF Lavalier System

Click to enlarge the picture
Samson Airline ALX Wireless UHF Lavalier System Contents of the user manual for the Samson Airline ALX Wireless UHF Lavalier
  • Product category: Wireless Systems Samson
  • Brand: Samson
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Samson Wireless Systems

Samson Airline ALX Wireless UHF Lavalier System Samson Airline ALX Wireless UHF Lavalier System Samson Airline ALX Wireless UHF Lavalier System Samson Airline ALX Wireless UHF Lavalier System Samson Airline ALX Wireless UHF Lavalier System Samson Airline ALX Wireless UHF Lavalier System Samson Airline ALX Wireless UHF Lavalier System
User manual for the Samson Airline ALX Wireless UHF Lavalier contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Samson product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!



Product description

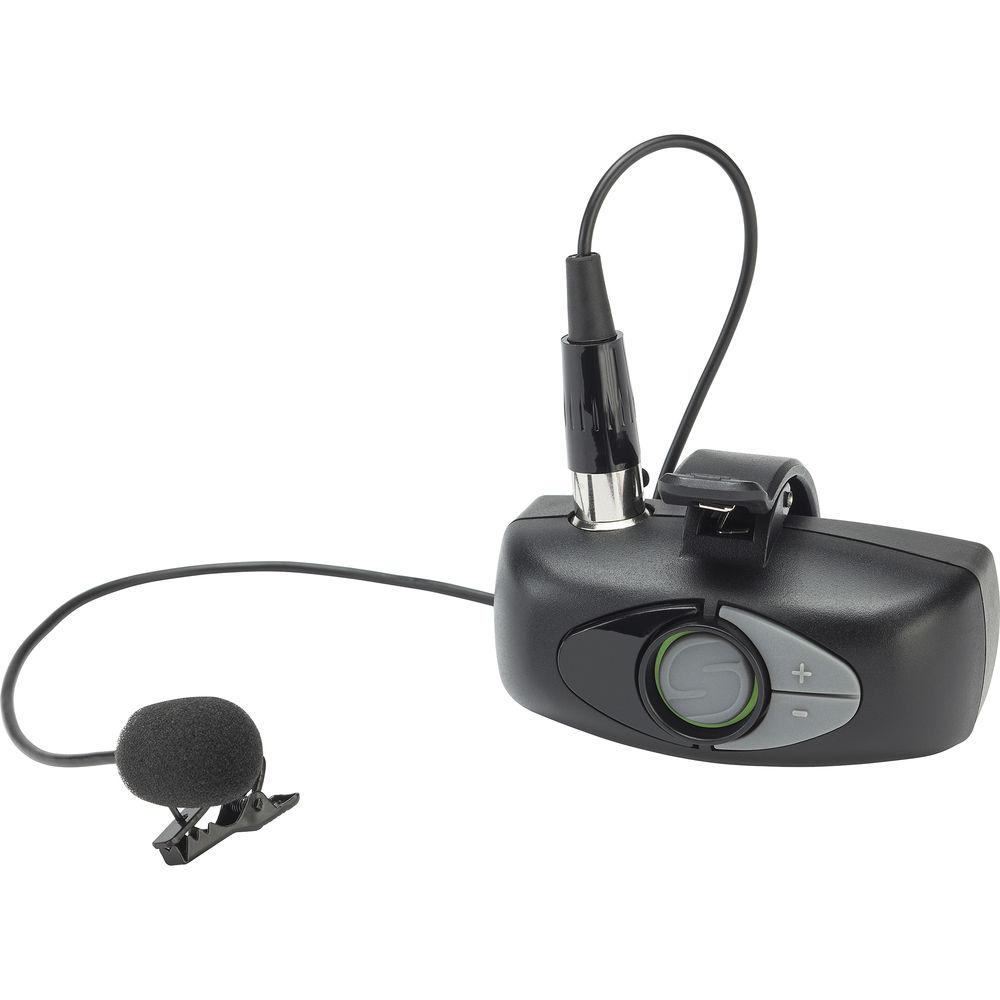

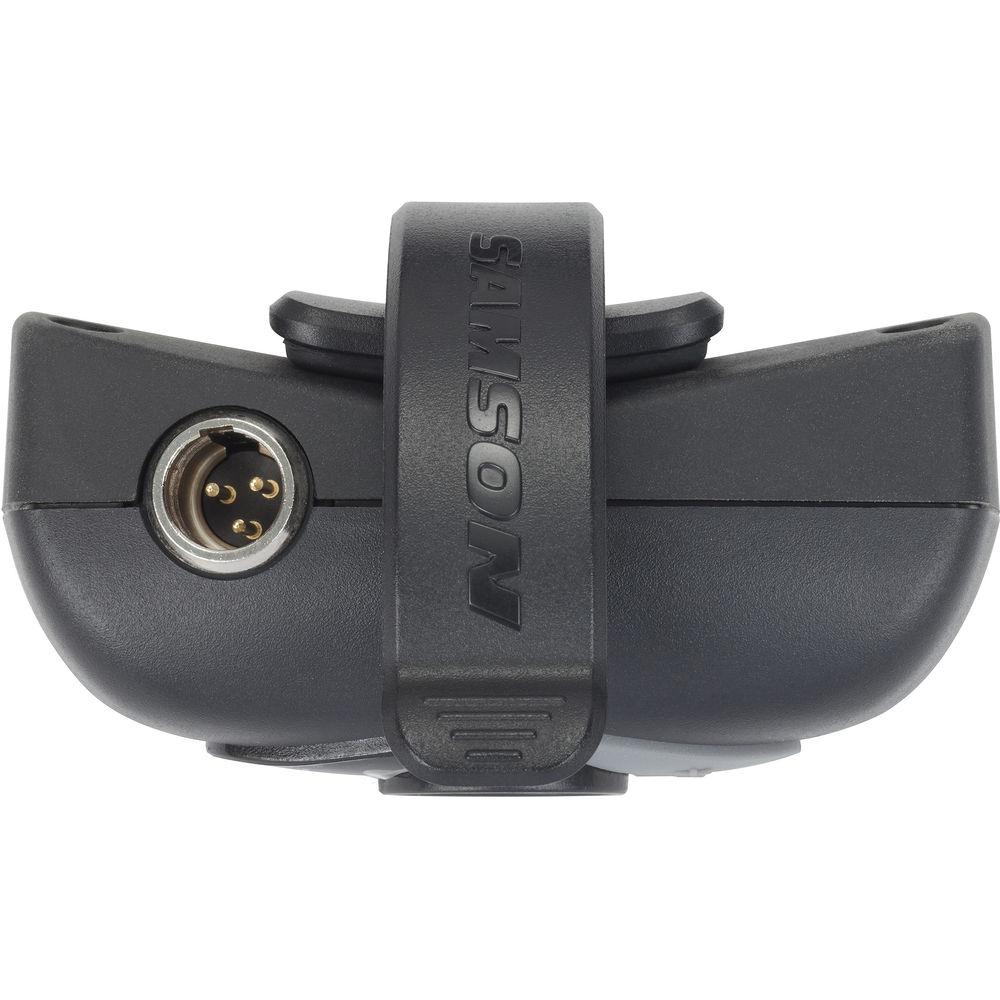

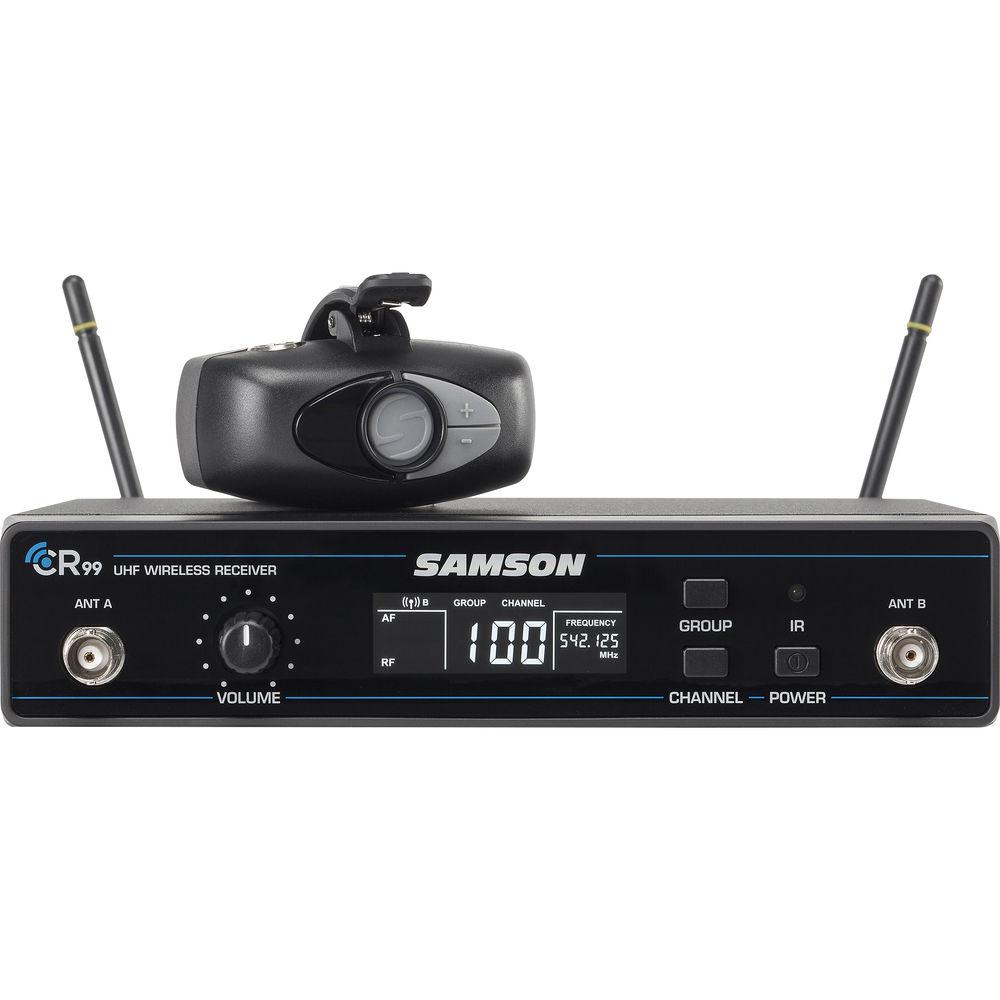

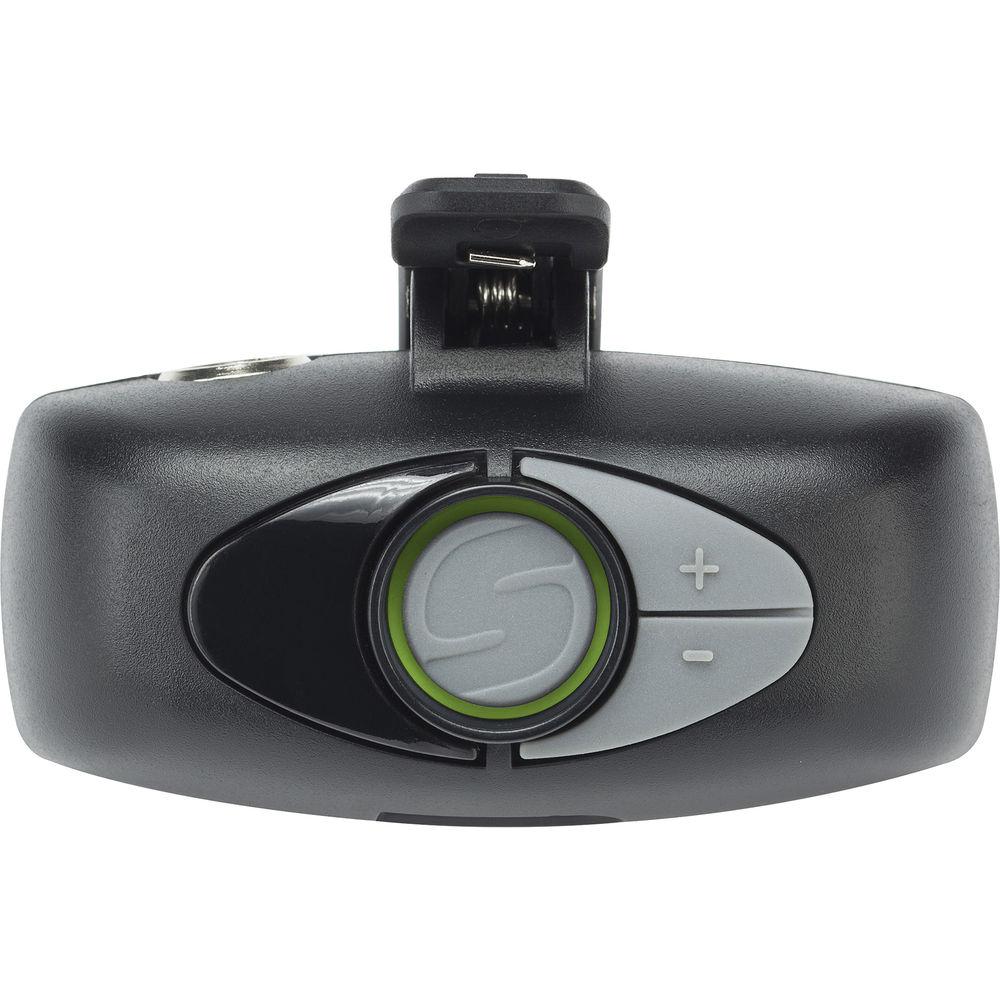

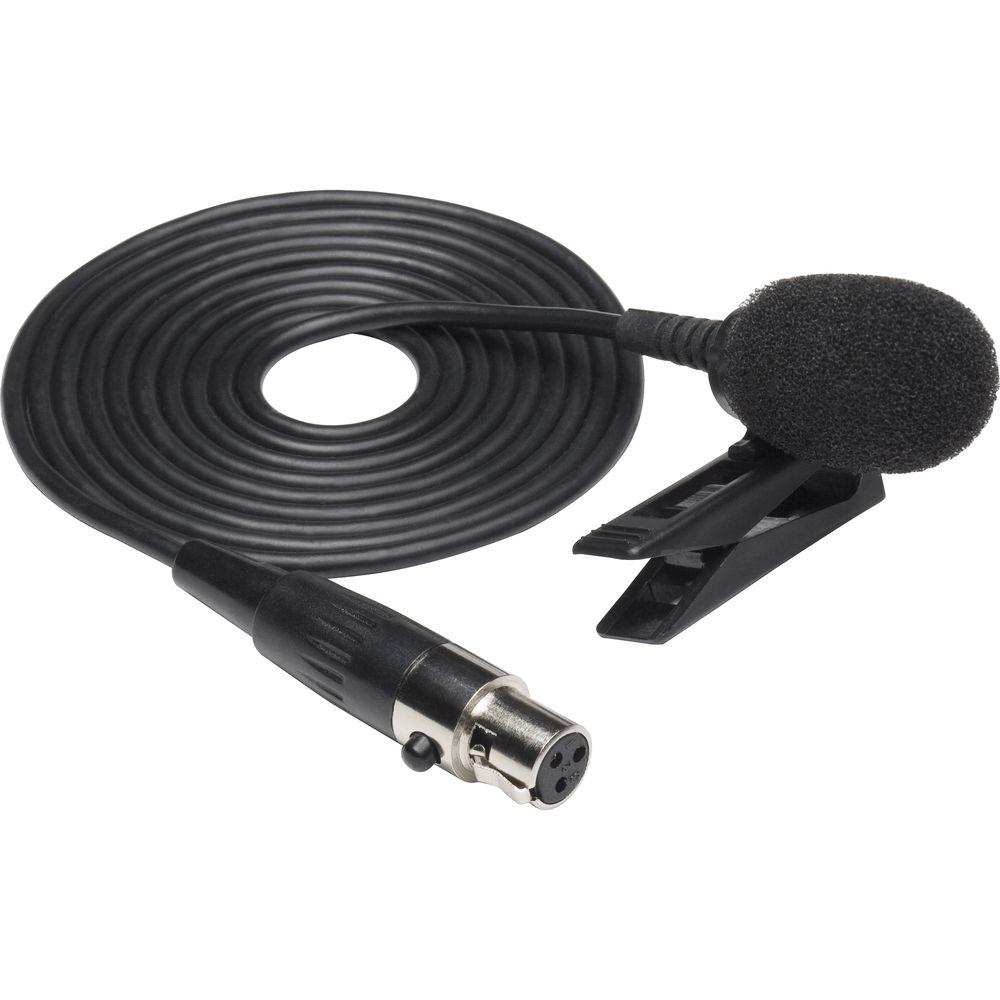

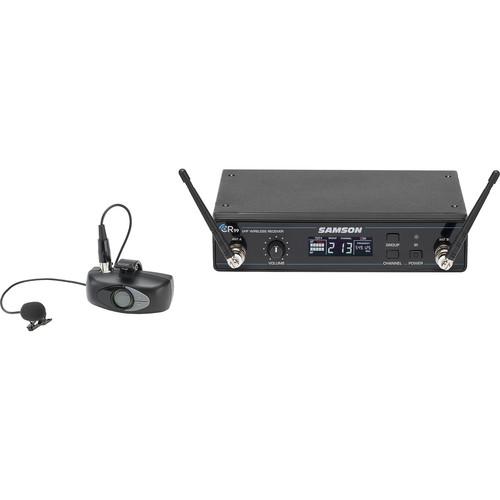

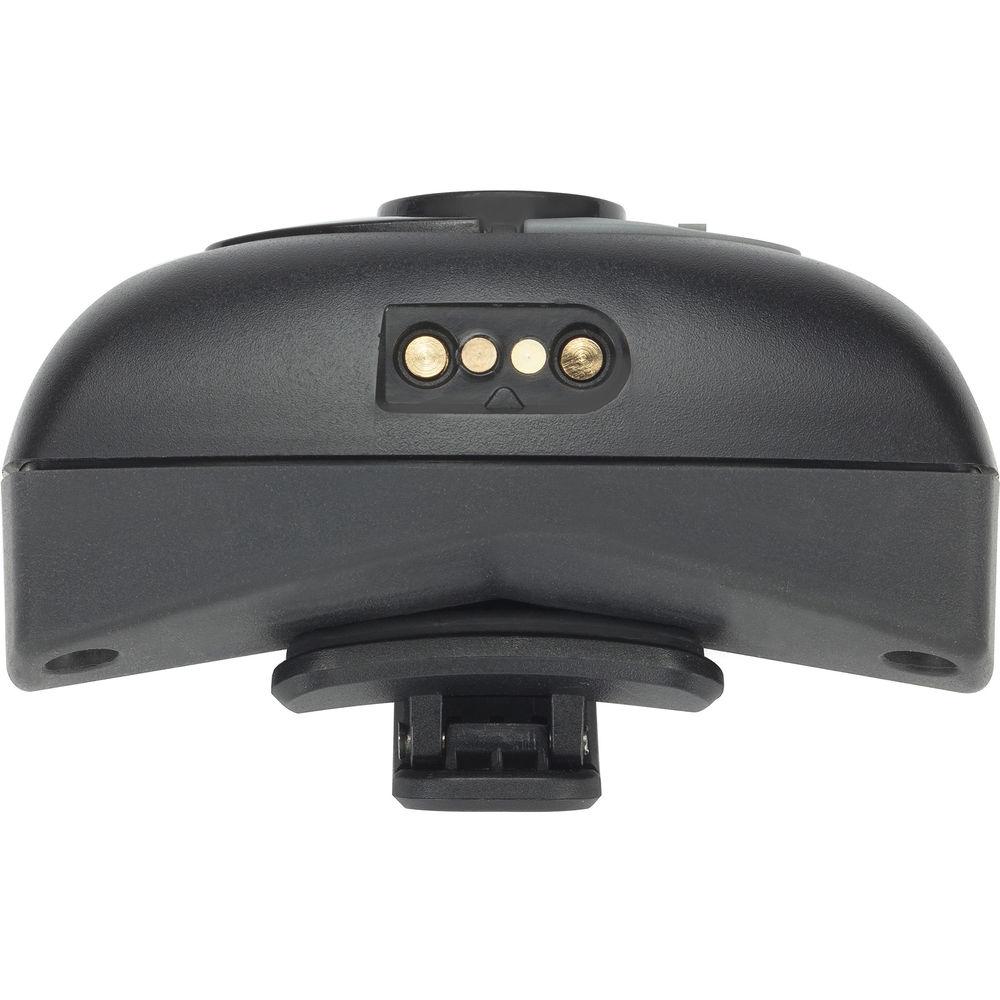

The Airline ALX Wireless UHF Lavalier System from Samson features a CR99 UHF receiver with rackmount kit and AC adapter, an ATX transmitter, and an LM8 lavalier microphone. The frequency-agile UHF system can be used to capture audio in various environments and offers up to 300' of reliable performance for speech and other active presenter applications. The transmitter is small enough to fit in the palm of your hand and is built with a rechargeable battery. It clips to your belt and connects via a P3 mini-XLR connector to the low-profile LM8 omnidirectional lavalier microphone, which provides clear reproduction regardless of the position of the capsule relative to the sound source. The system's rack-mountable CR99 receiver provides 80 selectable channels of performance and is equipped with a true RF diversity design that minimizes dropouts. Built with tone key technology, the receiver prevents unwanted noise when your transmitter is off or out of range. UPC: 809164219576 In the Box Samson Airline ALX Wireless UHF Lavalier System (K: 470 to 494 MHz)
  • CR99 UHF Receiver
  • LM8 Lavalier Microphone
  • ATX UHF Transmitter
  • Windscreen
  • Mic Clip
  • Rackmount Kit

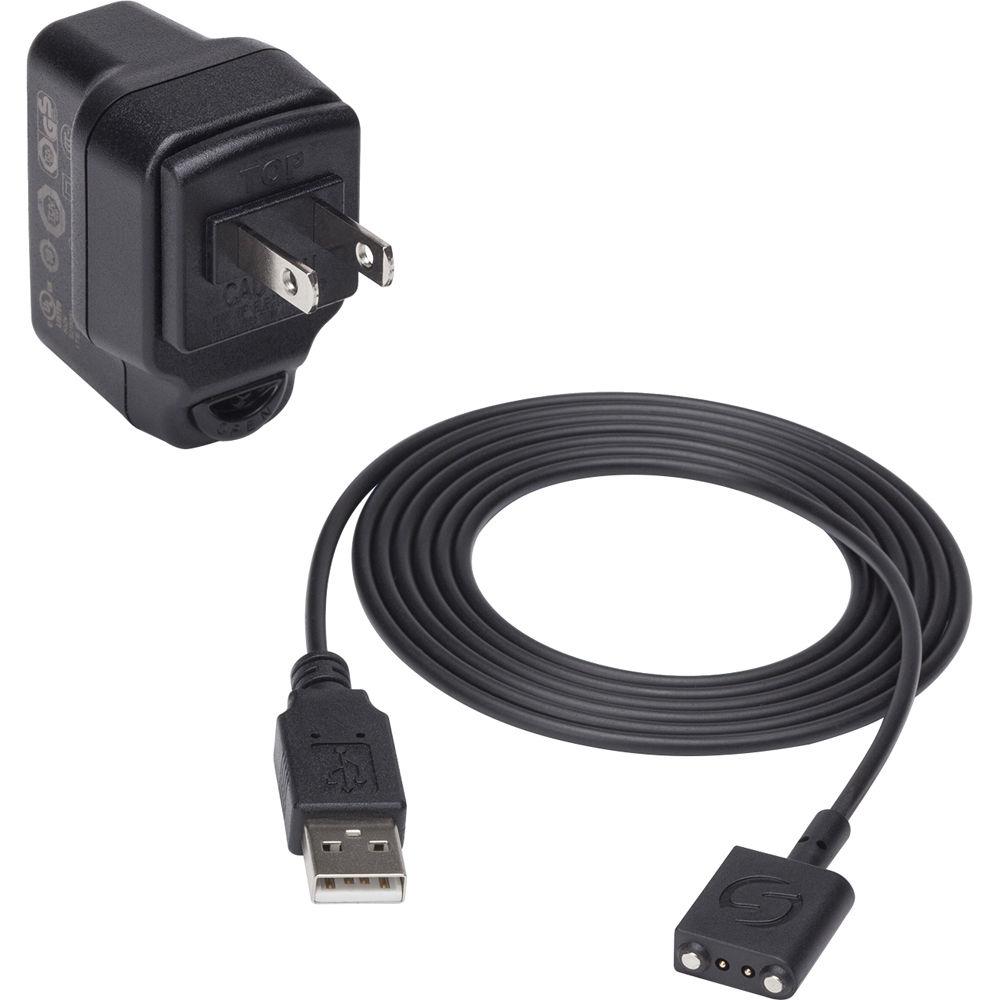

  • AC Adapter
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Samson Airline ALX Wireless UHF Lavalier System in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Samson SWSATXLM8-K Specs

    Model LM8 lavalier
    Polar Pattern Omnidirectional
    Connector Mini-XLR (P3)
    Frequency Band K: 470 to 494 MHz
    Working Range 300' (100 m), line-of-sight
    Frequency Response 50 Hz to 15 kHz
    Total Harmonic Distortion (THD) <1% (@AF 1 kHz, RF 46 dBu)
    Dynamic Range >100 dB, A-weighted
    Signal to Noise >95 dB
    Operating Temperature 14 to 140°F (-10 to 60°C)
    Tone Key Frequency: 32.768 kHz
    Audio Output Level Balanced: +9 dBu
    Unbalanced: +14 dBu
    Audio Output Impedance Balanced: 240 Ohms
    Unbalanced: 810 Ohms
    Sensitivity -100 dBm / 30 dB sinad
    Image Rejection >50 dB
    Operating Voltage 15 VDC 200 mA
    Dimensions (L x W x H) 7.87 x 5.9 x 1.6" (200 x 150 x 42 mm)
    Weight 2.08 lb (0.95 kg)
    Input Connector Mini-XLR (P3)
    Input Impedance 3 kOhms
    Gain Range Input: 20 dB
    RF Power 10 mW EIRP
    Power Requirements 3.6 V 500 mAh
    Battery Lithium Ion rechargeable battery
    Battery Life (approx.) 6 hours
    Dimensions (L x W x H) 5.9 x 6.7 x 3.9" (150 x 170 x 100 mm)
    Weight 0.13 lb (60 g)
    Package Weight 5.25 lb
    Box Dimensions (LxWxH) 14.8 x 11.5 x 2.8"
