User Manual for Samson AirLine Micro Wireless Earset System Click to enlarge the picture
Contents of the user manual for the Samson AirLine Micro Wireless Earset System
- Product category: Wireless Systems Samson
- Brand: Samson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Samson Wireless Systems
 |
User manual for the Samson AirLine Micro Wireless Earset System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Samson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Samson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Samson product will considerably shorten its lifespan!
|

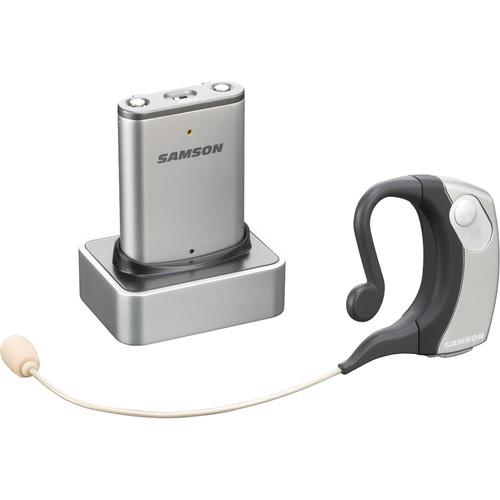

Product description The Samson AirLine Micro Wireless Earset System combines the latest in lithium-ion battery technology, with miniature RF stable components. The result is an ultra-compact wireless head worn microphone system that eliminates the need for battery changes, while providing stable, RFI (Radio Frequency Interference) free audio signal.The system includes the AR2 compact receiver, AR2 receiver dock, and AH2 head worn transmitter with omnidirectional microphone. The transmitter and receiver both feature built-in lithium-ion rechargeable batteries that are capable of up to 7 hours of operation on a full charge.The omnidirectional microphone is fully adjustable and captures speech and vocals with pristine results. The capsule is also moisture proof, making it ideal for high energy presentations, stage performances and fitness instruction.USB power inputs are featured on both the receiver and transmitter, although the AR2 receiver may be charged on the dock. A stereo 1/8" (3.5mm) mini output will plug your AR2 receiver into the PA system. AirLine Micro Earset System - Wireless UHF 600 MHz system with micro-size AH2 transmitter and AR2 receiver
- Tone squelch and auto mute for clear operation

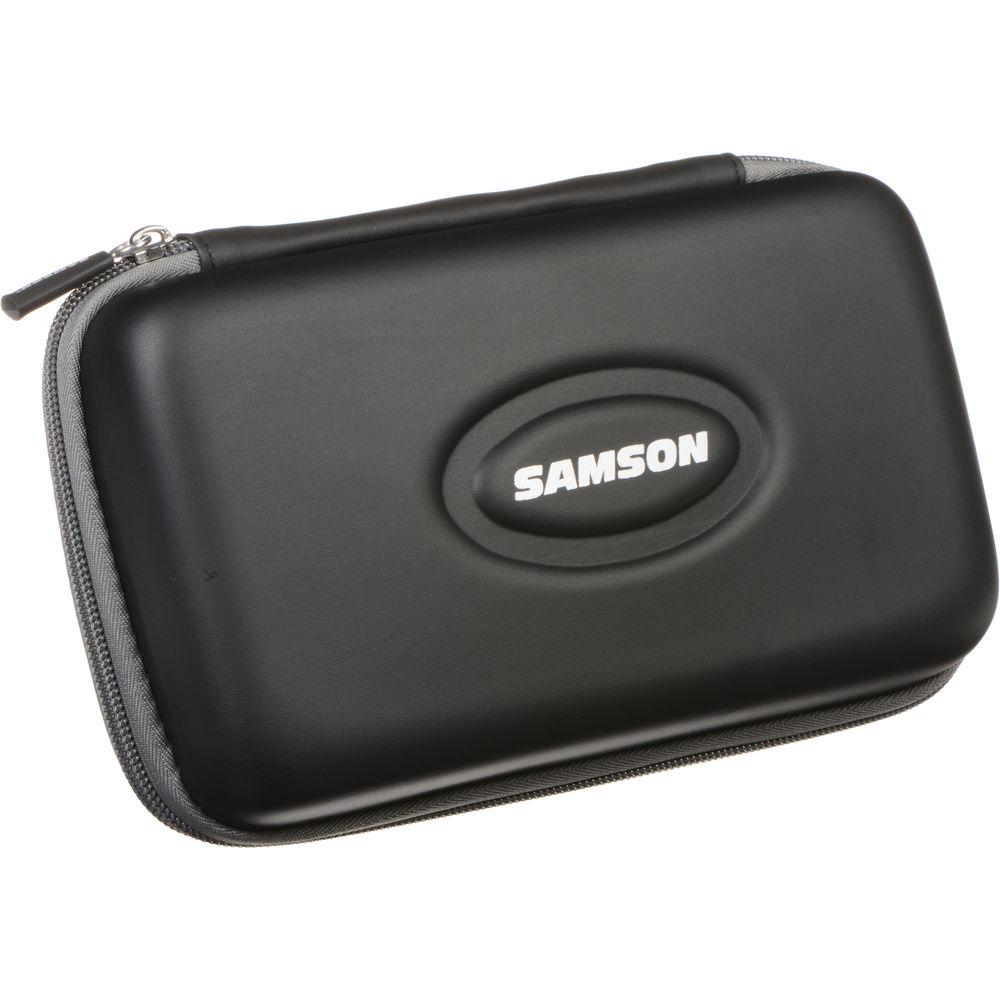

- Includes a convenient system carry case
- Includes AC adapter and charging cables

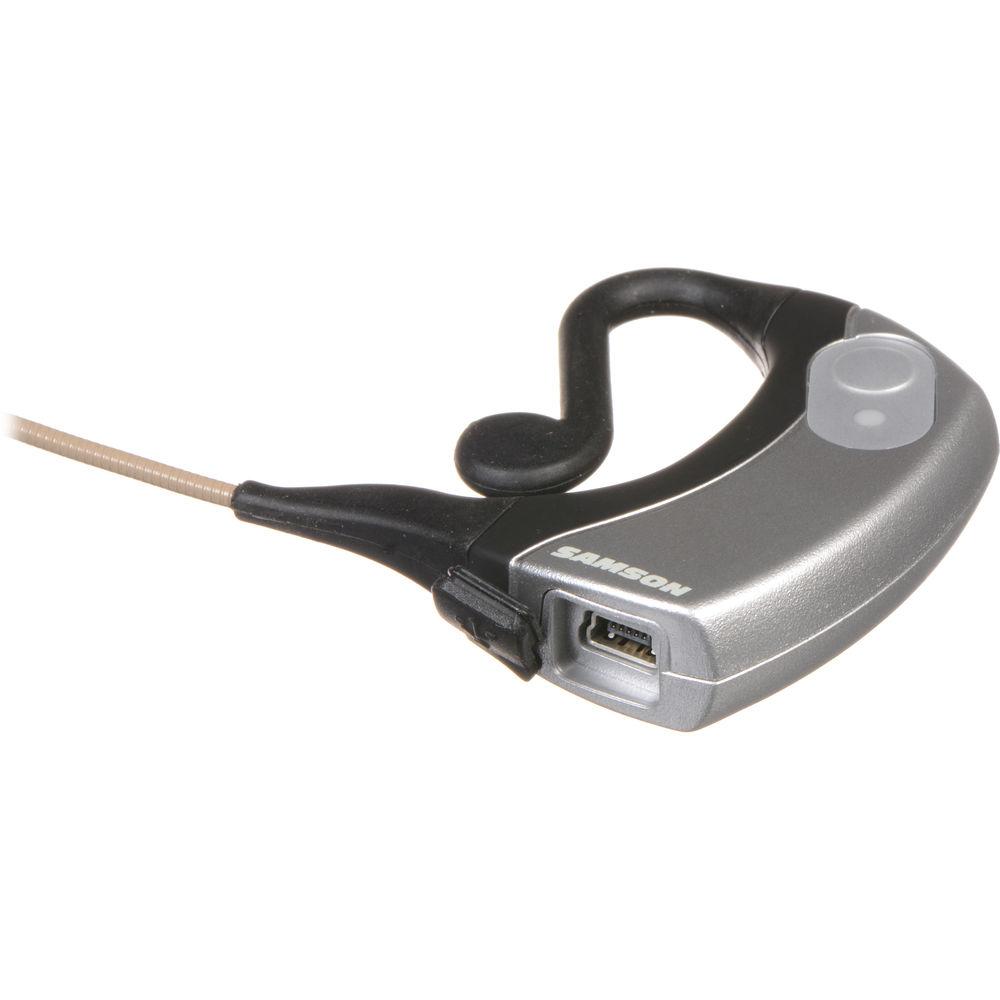

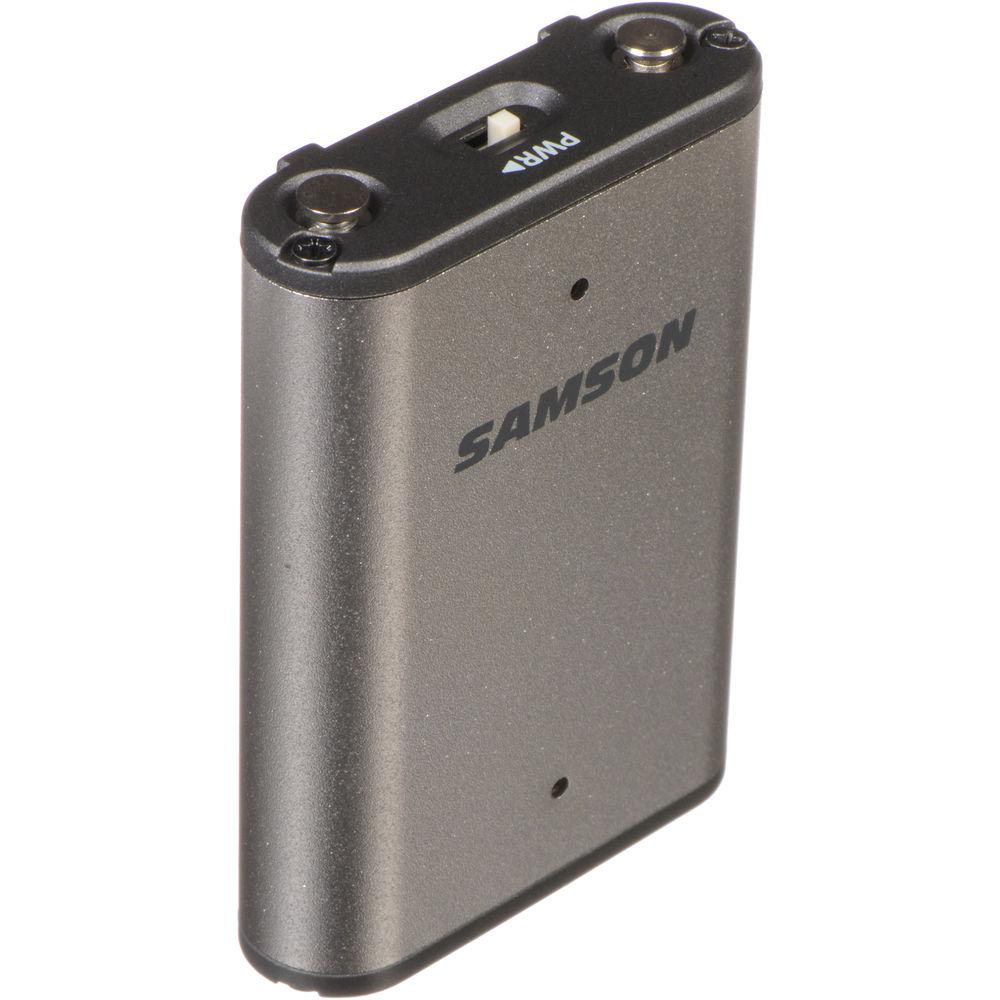

AH2 Transmitter - Earset transmitter and omnidirectional microphone with no beltpack
- Lithium ion rechargeable battery (5-6 hours of operation)
- USB DC input for recharging
- Single button operation for power, mute and volume

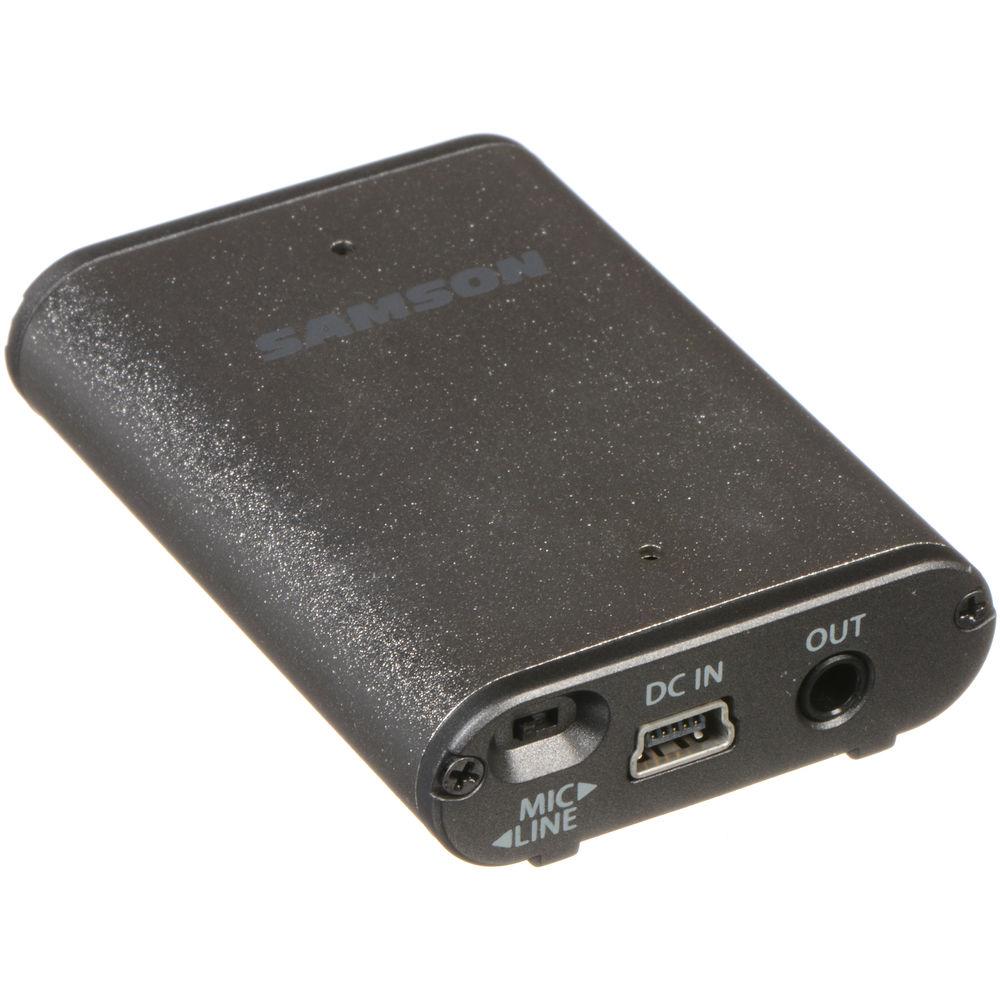

AR2 Receiver - Low-profile wireless receiver (2.36 x 1.67 x 0.51")
- Lithium ion rechargeable battery (7-8 hours of operation)
- USB DC input for power and recharging
- 3.5mm balanced mic/line level output

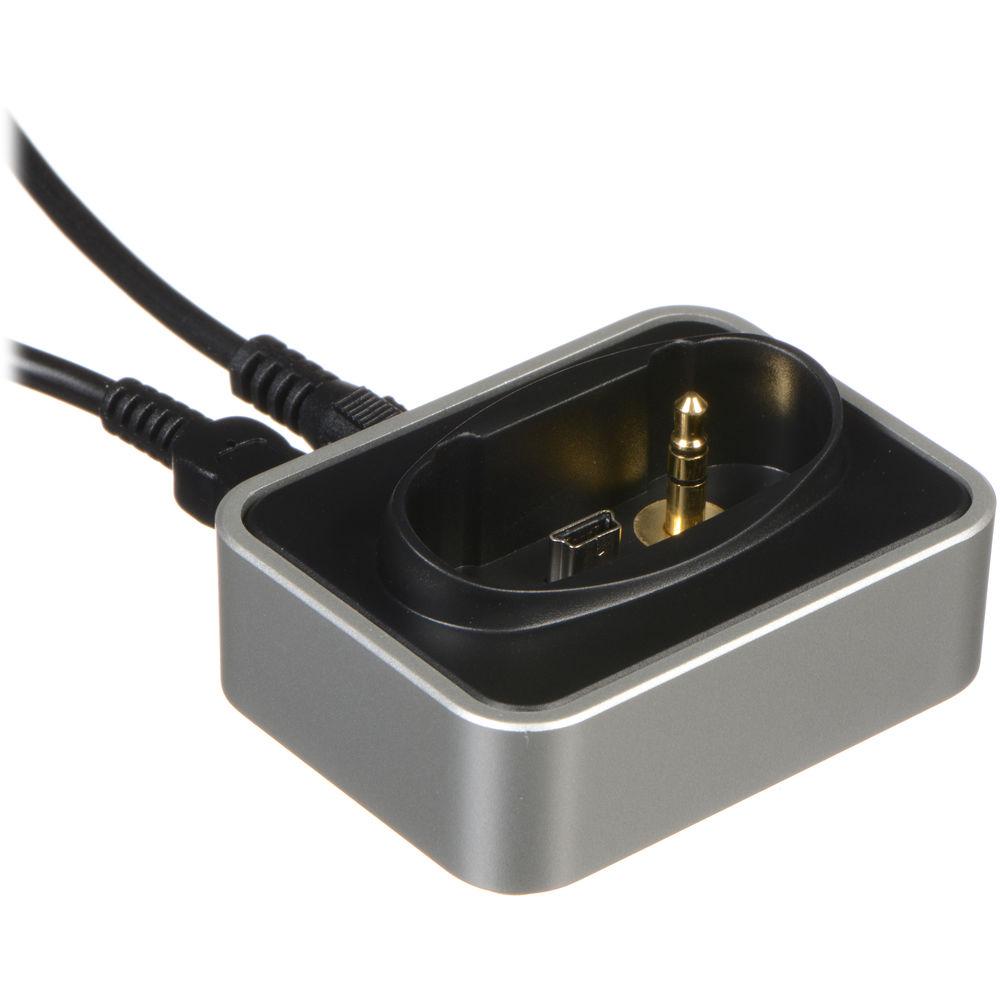

AR2 Dock - Provides secure base for AR2 receiver during operation and/or recharging
- USB DC input for power and recharging (cables included)
- 3.5mm balanced audio output
UPC: 809164218661 In the Box Samson AirLine Micro Wireless Earset System (K1: 489.050 MHz) AH2 Transmitter AR2 Receiver AR2 Dock Carry Case USB Y-Power Cable Universal AC Adapter 1/8" to 1/4" Audio Cable 3 x Windscreens Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Samson AirLine Micro Wireless Earset System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSamson SWAM2SES-K1 Specs | | | Frequency Range | K1 Band / 489.050 MHz | | Working Range | 300' (100 m) line of sight | | Audio Frequency Response | 100 Hz to 15 kHz | | Total Harmonic Distortion (THD) | < 1% (@AF 1 kHz, RF 46 dBu) | | Operating Temperature | 0 to 104°F (-18 to 40°C) | | Storage Temperature | 23 to 95°F (-5 to 35°C) | | | | Audio Output Connector | 1/8" (3.5 mm) unbalanced | | Audio Output Level | -30 dBv (Mic), -10 dBv (Line) | | Audio Output Impedance | 600 Ohms unbalanced | | AF Frequency Response | 50 Hz to 15 kHz | | Antennas | 2 x 1/4 wavelength rod | | Selectivity |
